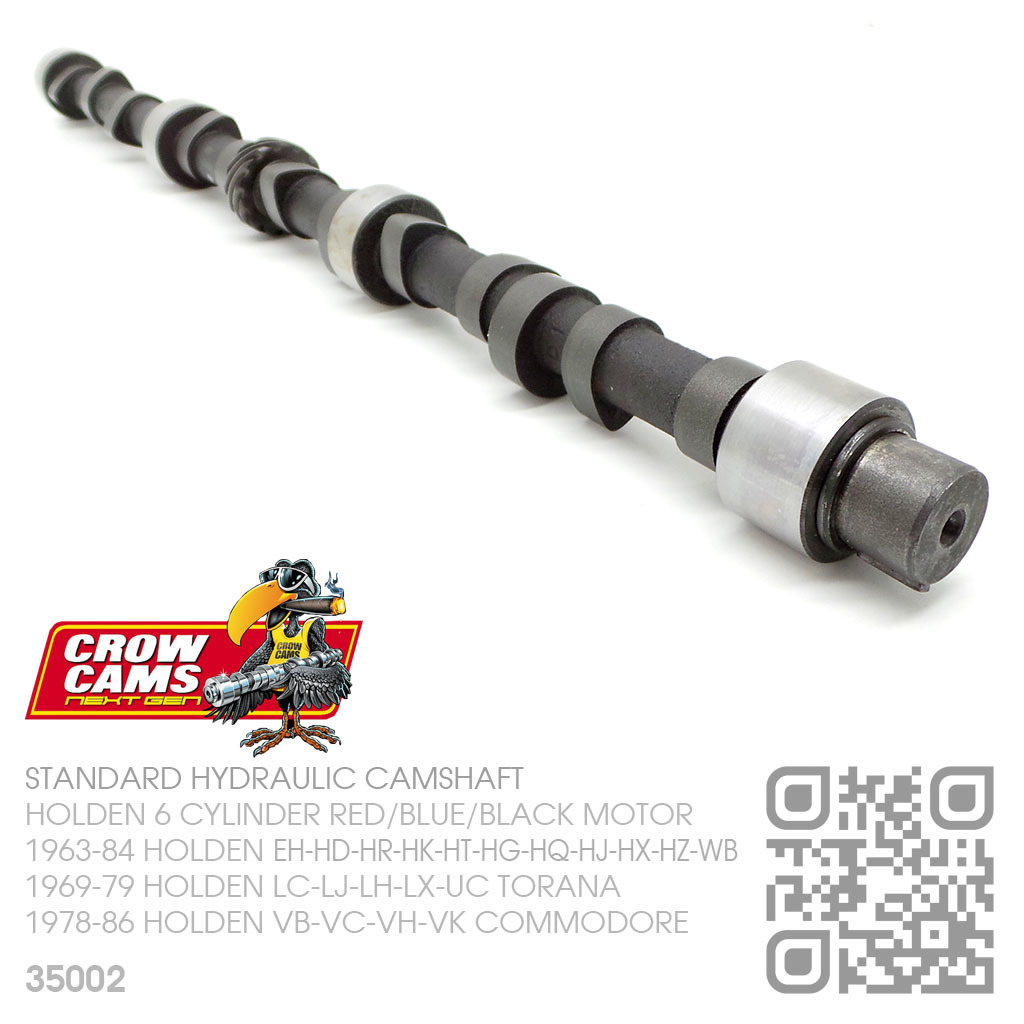

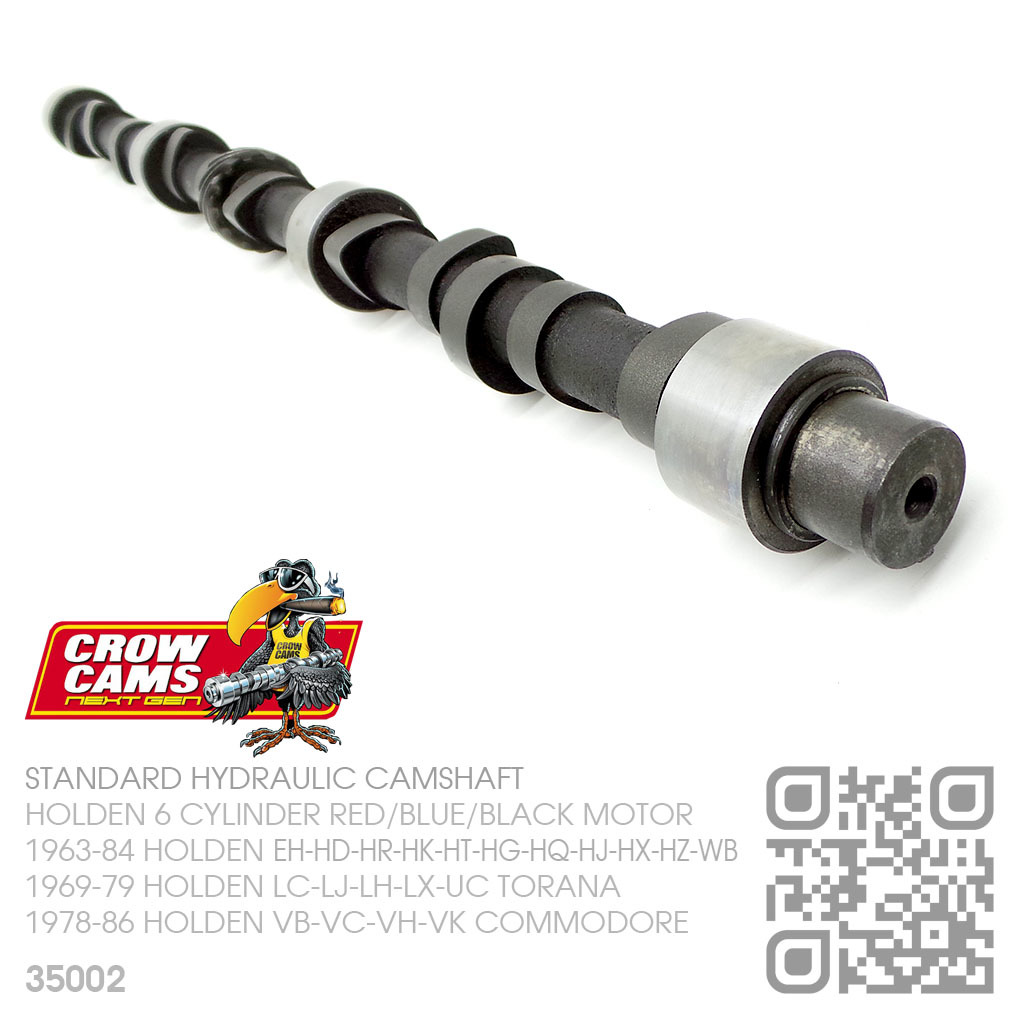

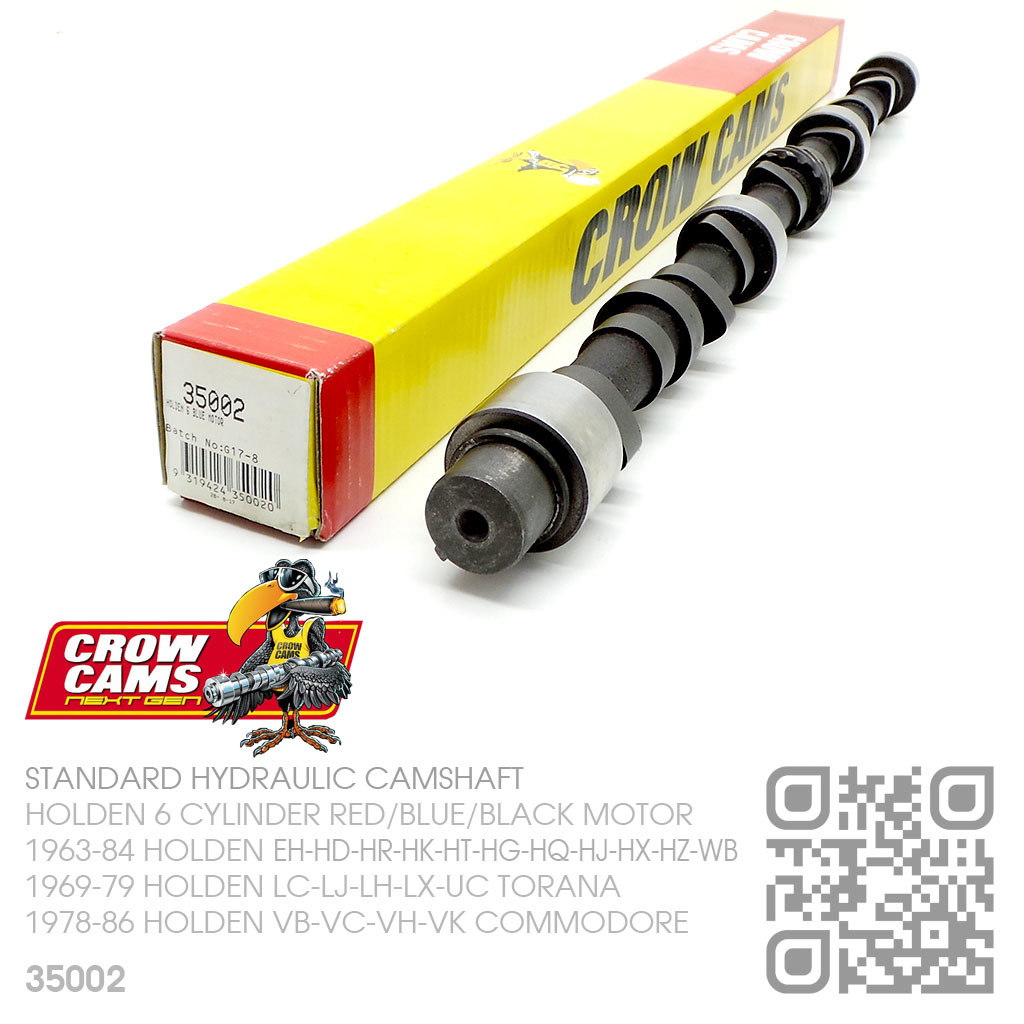

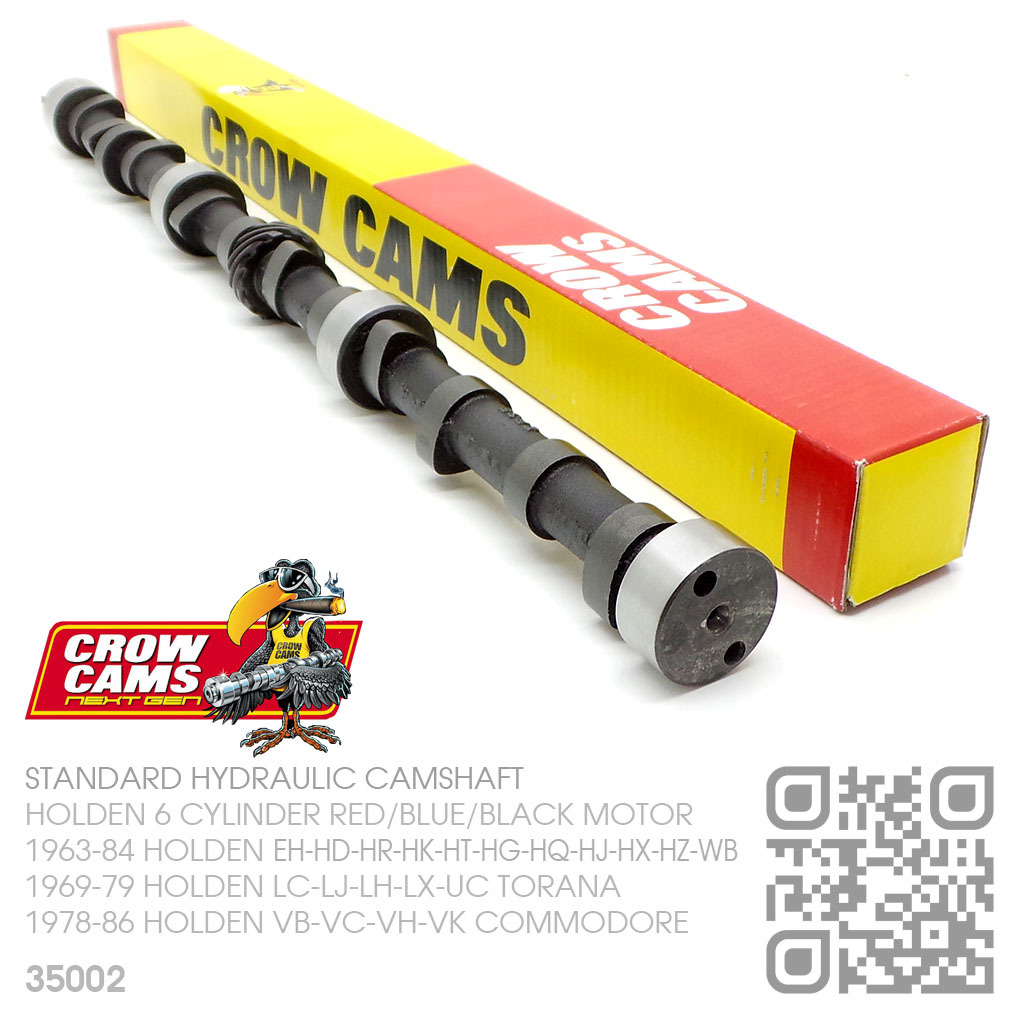

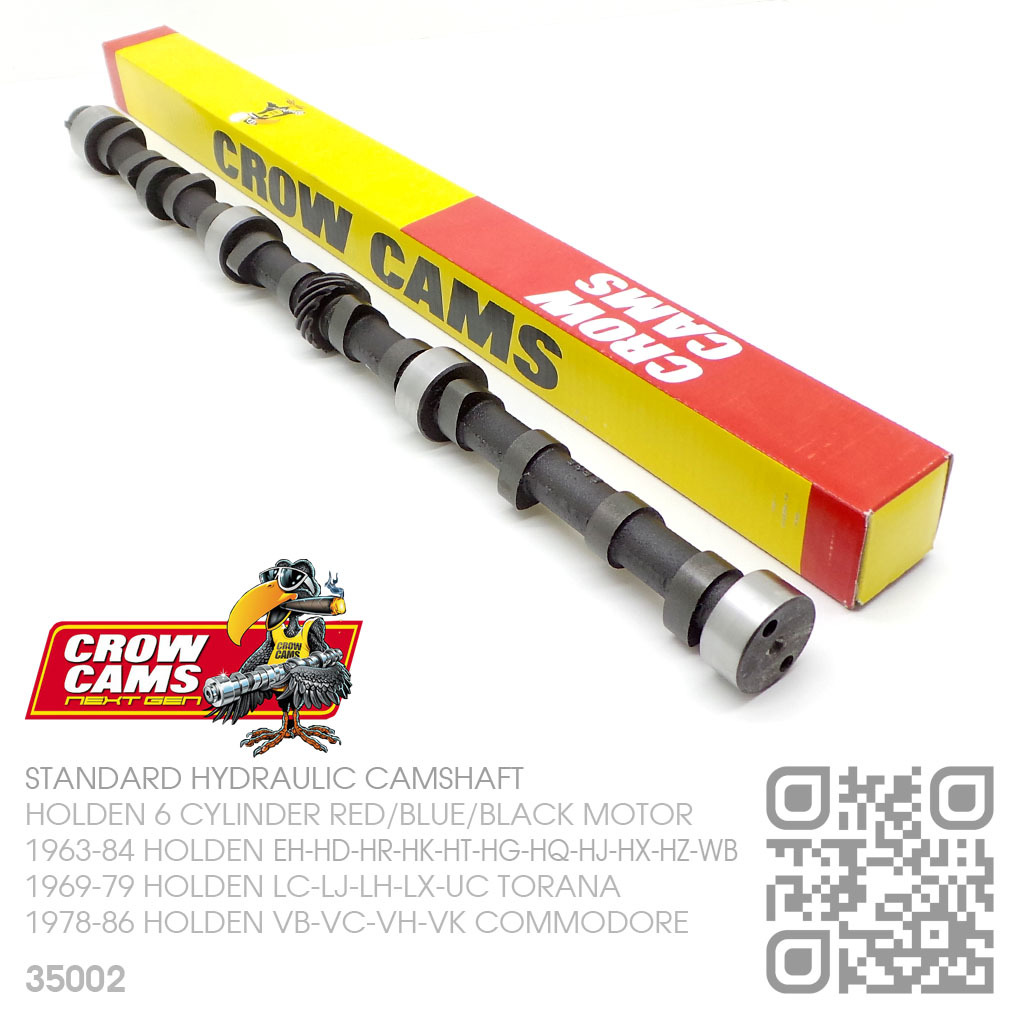

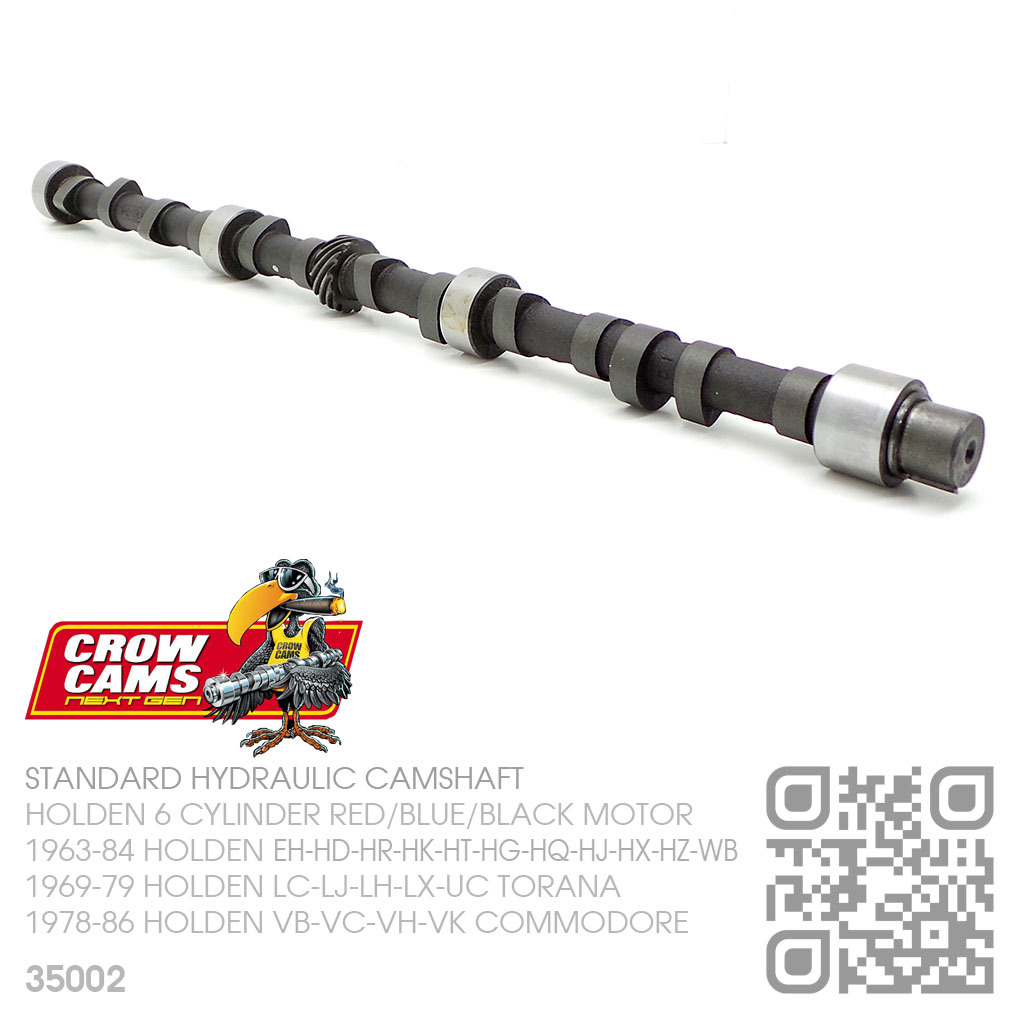

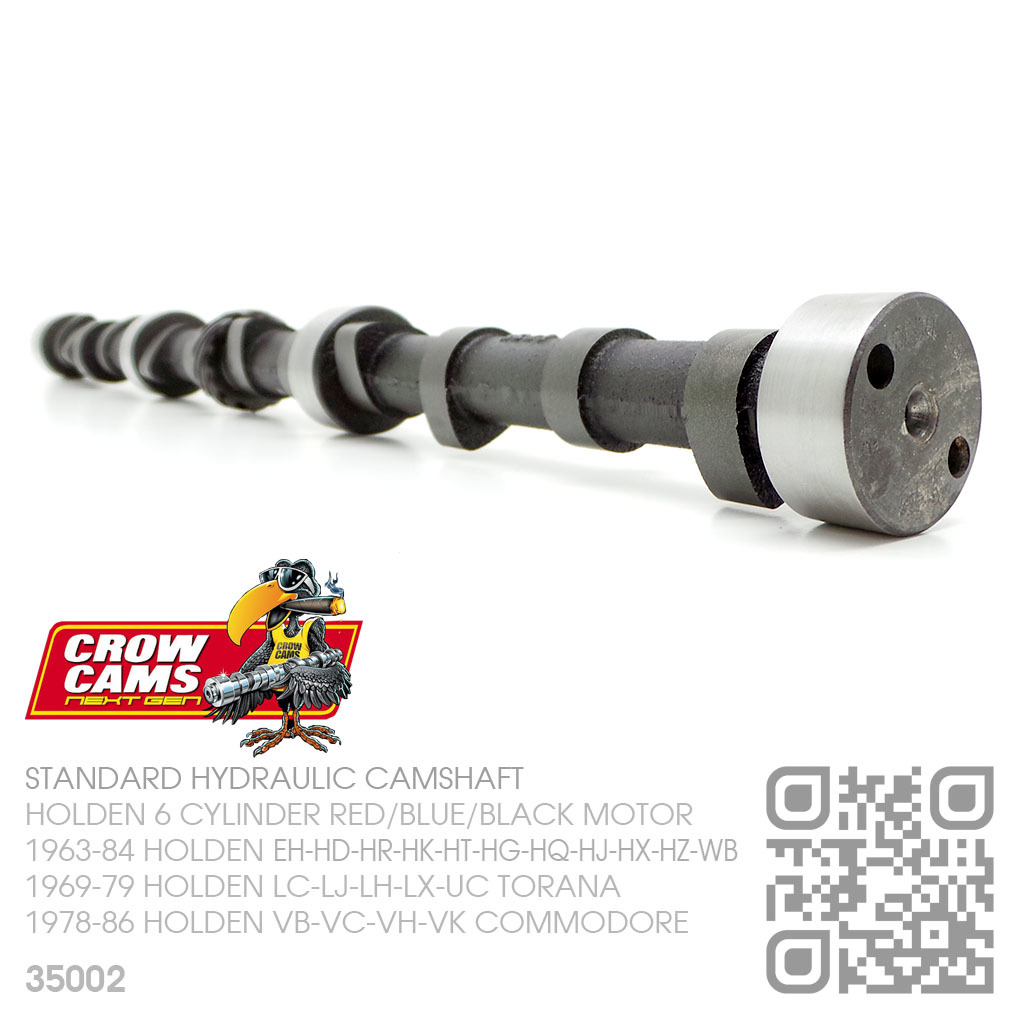

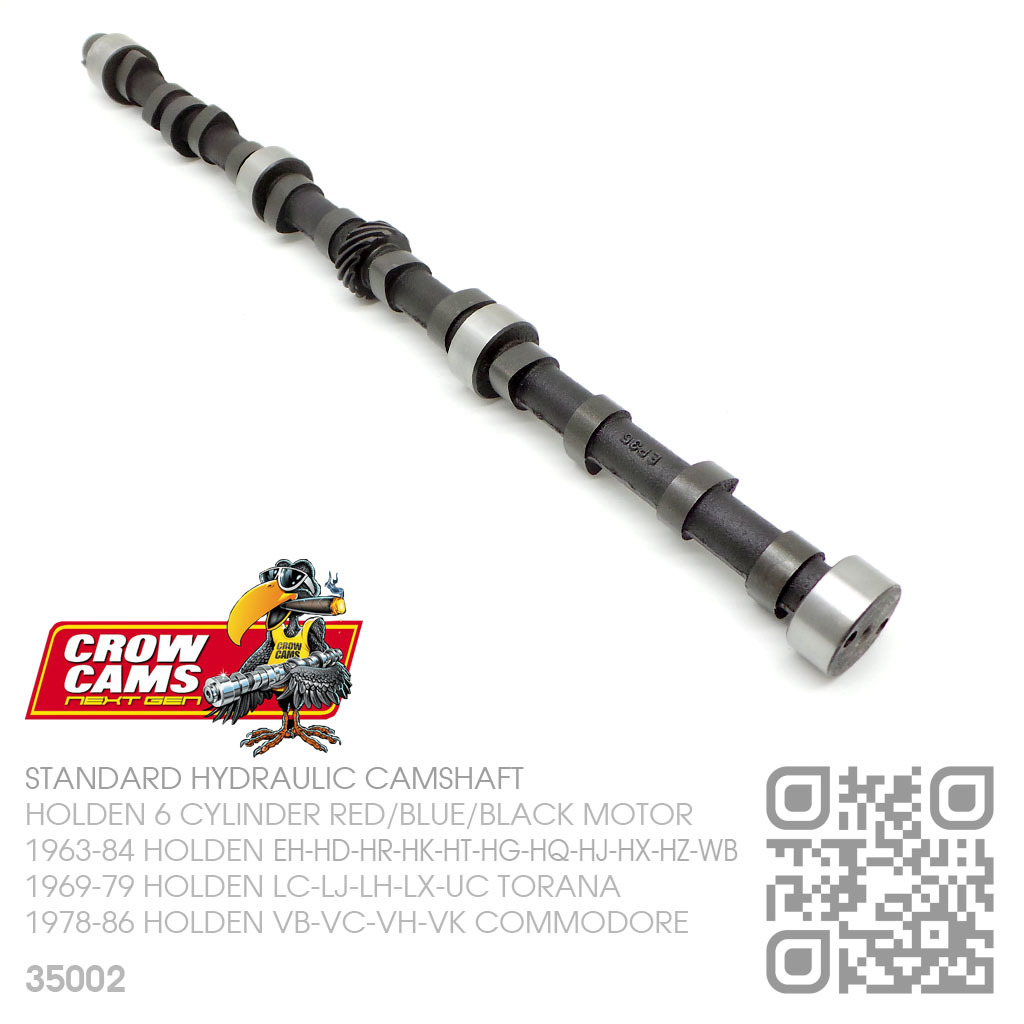

CROW CAMS 35002 STANDARD BILLET HYDRAULIC CAMSHAFT [HOLDEN 6-CYL RED/BLUE/BLACK MOTOR]

CROW CAMS 35002 NEXT GEN STANDARD BILLET HYDRAULIC CAMSHAFT
HOLDEN 6 CYLINDER RED/BLUE/BLACK MOTOR
EXCLUDING HOLDEN INJECTED BLACK MOTOR

08/1963-1971 HOLDEN [EH-HD-HR-HK-HT-HG SERIES]
07/1971-1984 HOLDEN [HQ-HJ-HX-HZ-WB SERIES]
10/1969-1979 HOLDEN [LC-LJ-LH-LX-UC TORANA]
10/1978-1986 HOLDEN [VB-VC-VH-VK COMMODORE]

Crow Cams' unique Next Gen cam design and CNC grinding technology is applied to a huge range of hydraulic lifter camshafts, for maximum torque and power in street or race applications.

Crow Cams' world class CNC grinding and inspection facilities have also been upgraded to ensure an even greater degree of grinding accuracy in terms of surface finish and cam position. These characteristics are checked on every cam on our CNC checking machines, which are regularly calibrated on our in-house Adcole camshaft coordinate measuring machine.

SPECIFICATIONS:
Camshaft Part Number: 35002
RPM Range: 800 - 3200
Advertised Duration Intake: 258º
Advertised Duration Exhaust: 269º
Duration @.050" Intake: 187º
Duration @.050" Exhaust: 199º
Valve Lift Intake: 0.350"
Valve Lift Exhaust: 0.385"
Rocker Ratio: 1.50:1
Lobe Separation Angle: 108º
Camshaft Characteristics: STANDARD REPLACEMENT CAM. SUIT CARBIE APPLICATION

CAMSHAFT REQUIREMENTS:
Engine Requirements: NEW HYDRAULIC LIFTERS

For more than 30 years, Crow Cams in Australia, have developed valve train products and developed unique camshafts.

SPECIAL NOTE:
NEW HYDRAULIC LIFTERS ARE HIGHLY RECOMMENDED
SOLID LIFTERS NOT SUITABLE FOR USE WITH THIS CAMSHAFT

CRITICAL NOTE:
USE ZDDP100 OIL ADDITIVE AND QUALITY MINERAL ENGINE OIL ONLY

MADE IN AUSTRALIA
