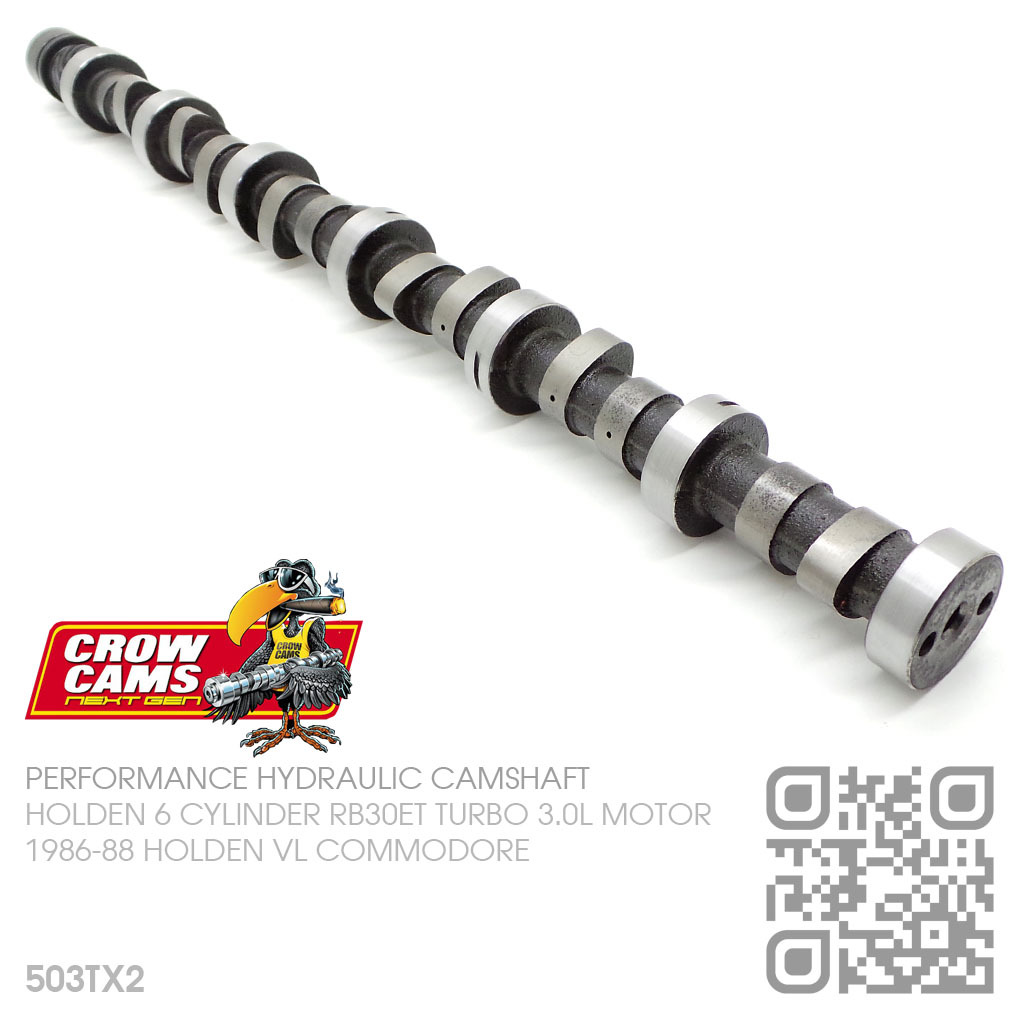

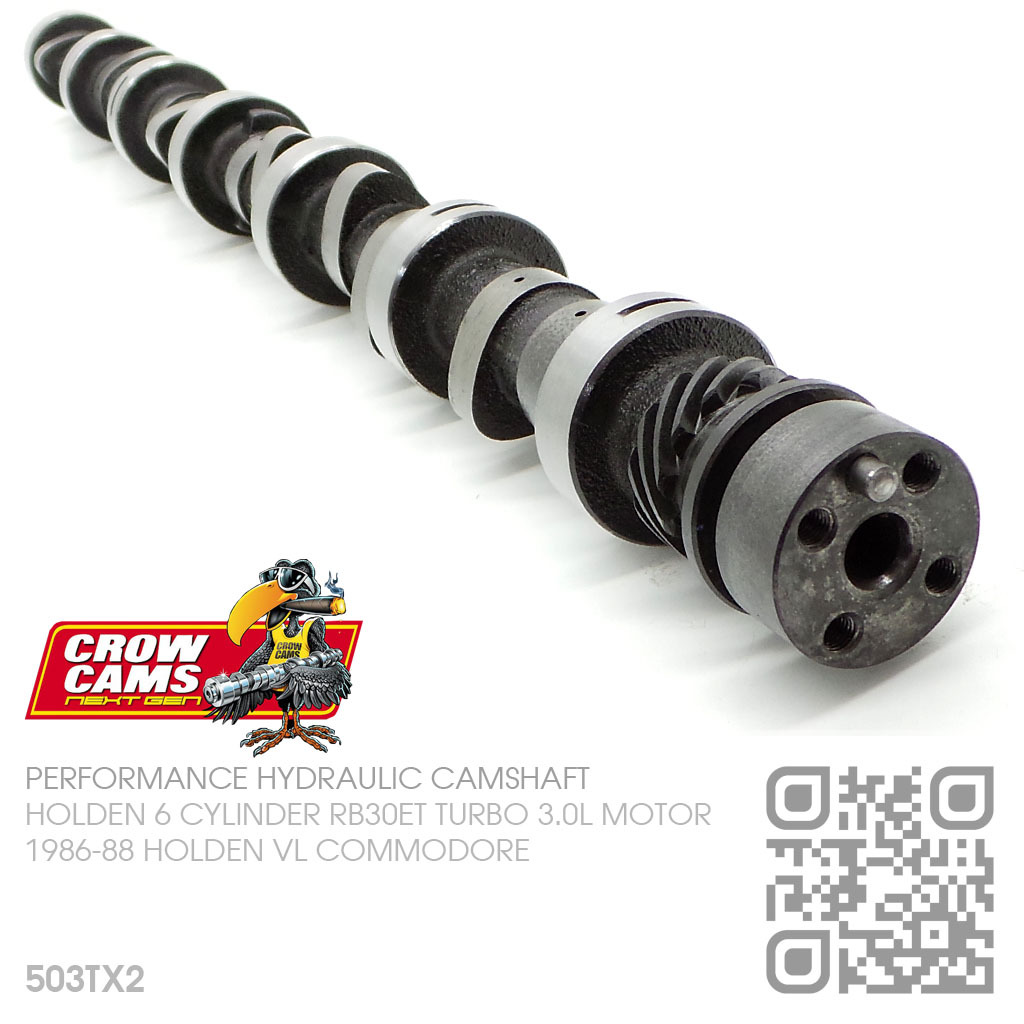

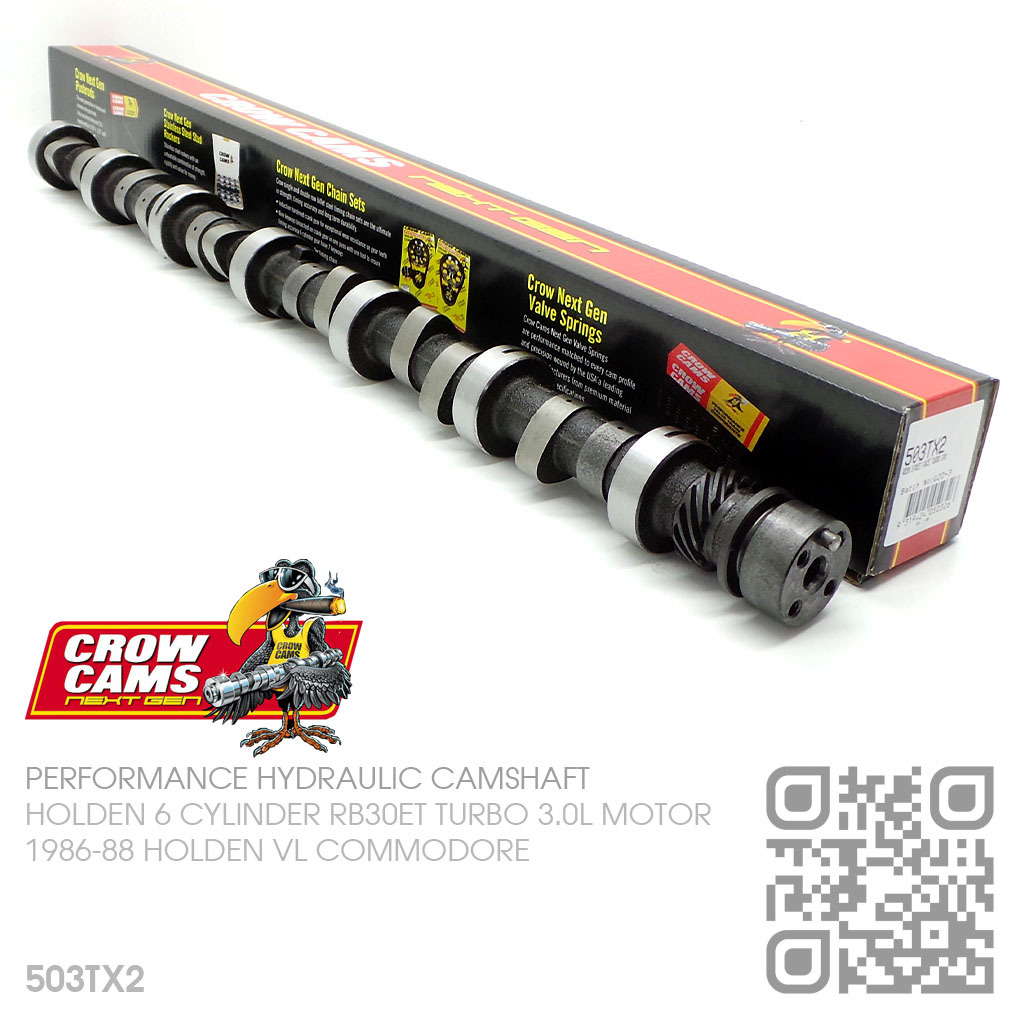

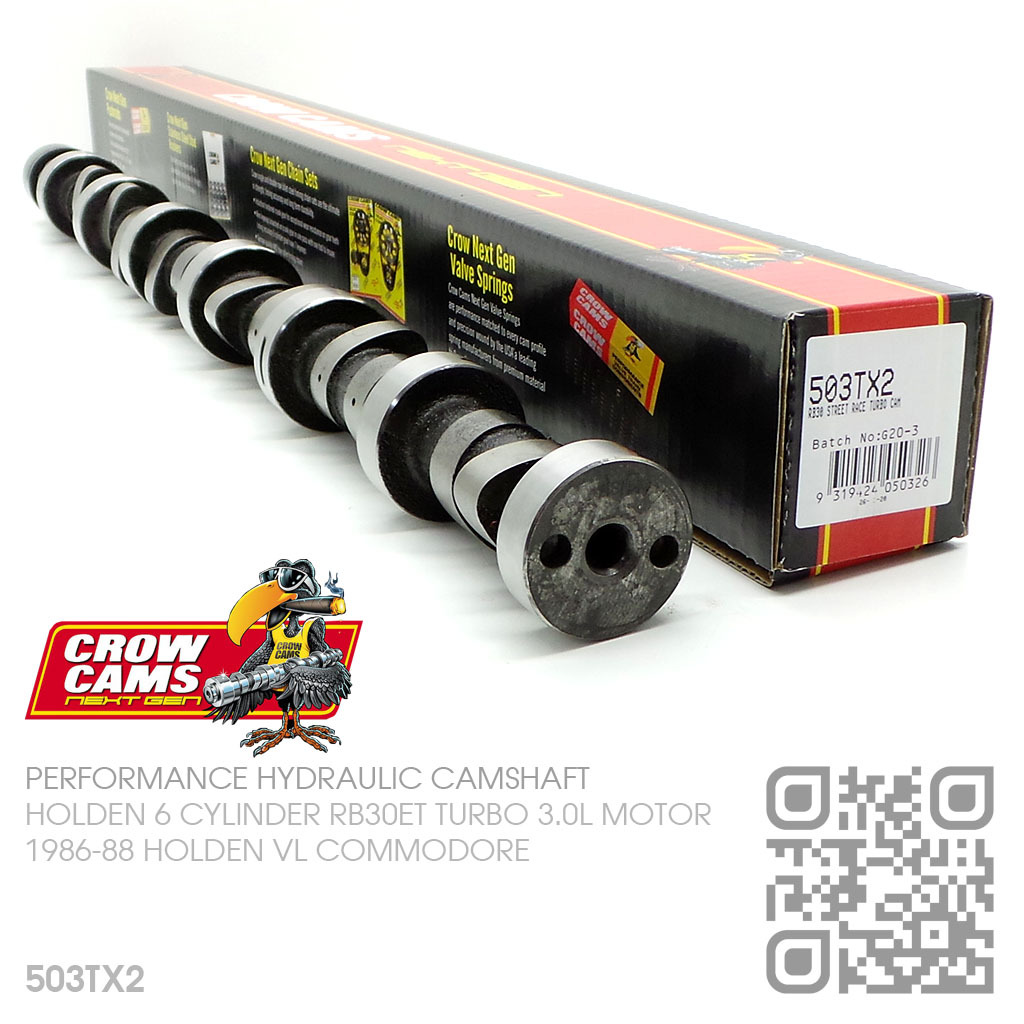

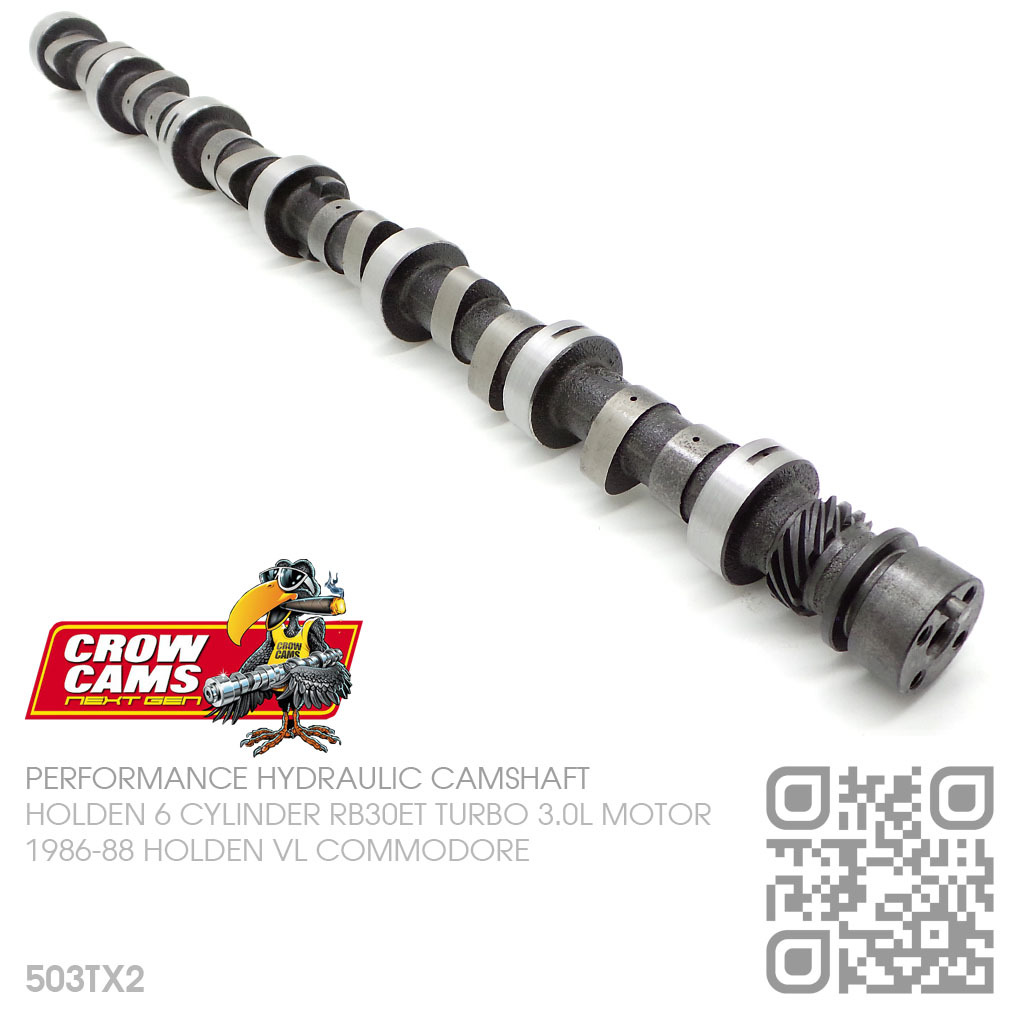

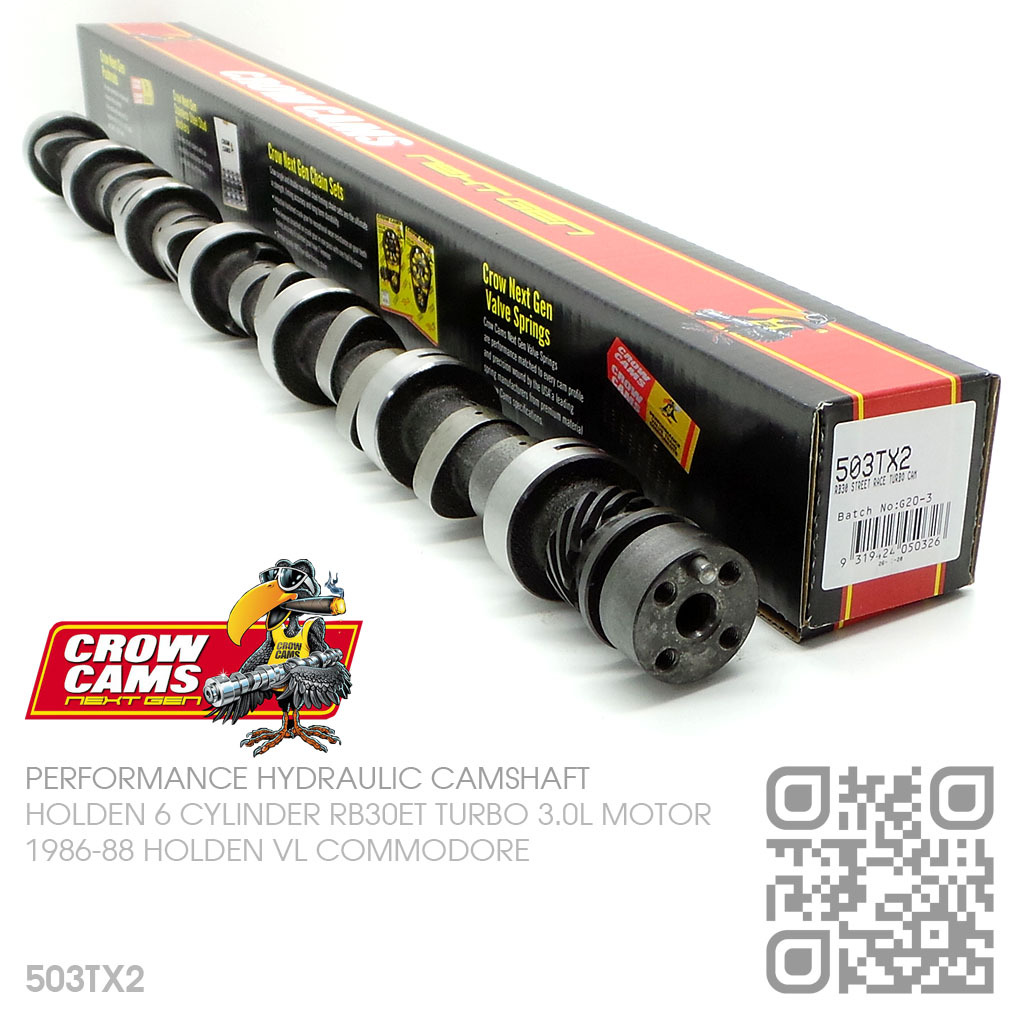

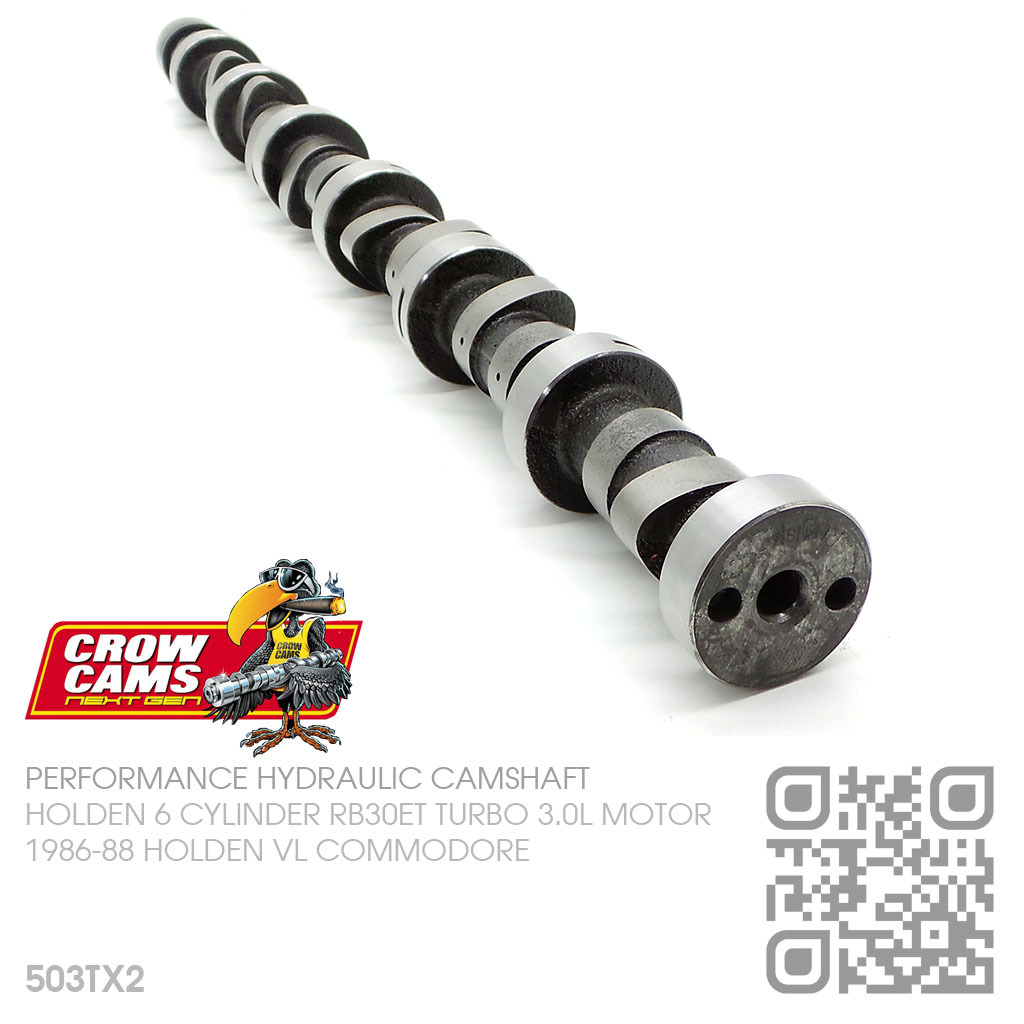

CROW CAMS 503TX2 PERFORMANCE BILLET HYDRAULIC CAMSHAFT [HOLDEN 6-CYL RB30ET TURBO 3.0L MOTOR]

CROW CAMS 503TX2 NEXT GEN PERFORMANCE BILLET HYDRAULIC CAMSHAFT
HOLDEN 6 CYL RB30ET TURBO 3.0L MOTOR

02/1986-1988 HOLDEN [VL COMMODORE]

Crow Cams' unique Next Gen cam design and CNC grinding technology is applied to a huge range of hydraulic lifter camshafts, for maximum torque and power in street or race applications.

Crow Cams' world class CNC grinding and inspection facilities have also been upgraded to ensure an even greater degree of grinding accuracy in terms of surface finish and cam position. These characteristics are checked on every cam on our CNC checking machines, which are regularly calibrated on our in-house Adcole camshaft coordinate measuring machine.

SPECIFICATIONS:
Camshaft Part Number: 503TX2
RPM Range: 3000 - 7000
Advertised Duration Intake: 292º
Advertised Duration Exhaust: 292º
Duration @.050" Intake: 230º
Duration @.050" Exhaust: 230º
Valve Lift Intake: 0.483"
Valve Lift Exhaust: 0.483"
Rocker Ratio: 1.60:1
Lobe Separation Angle: 117º

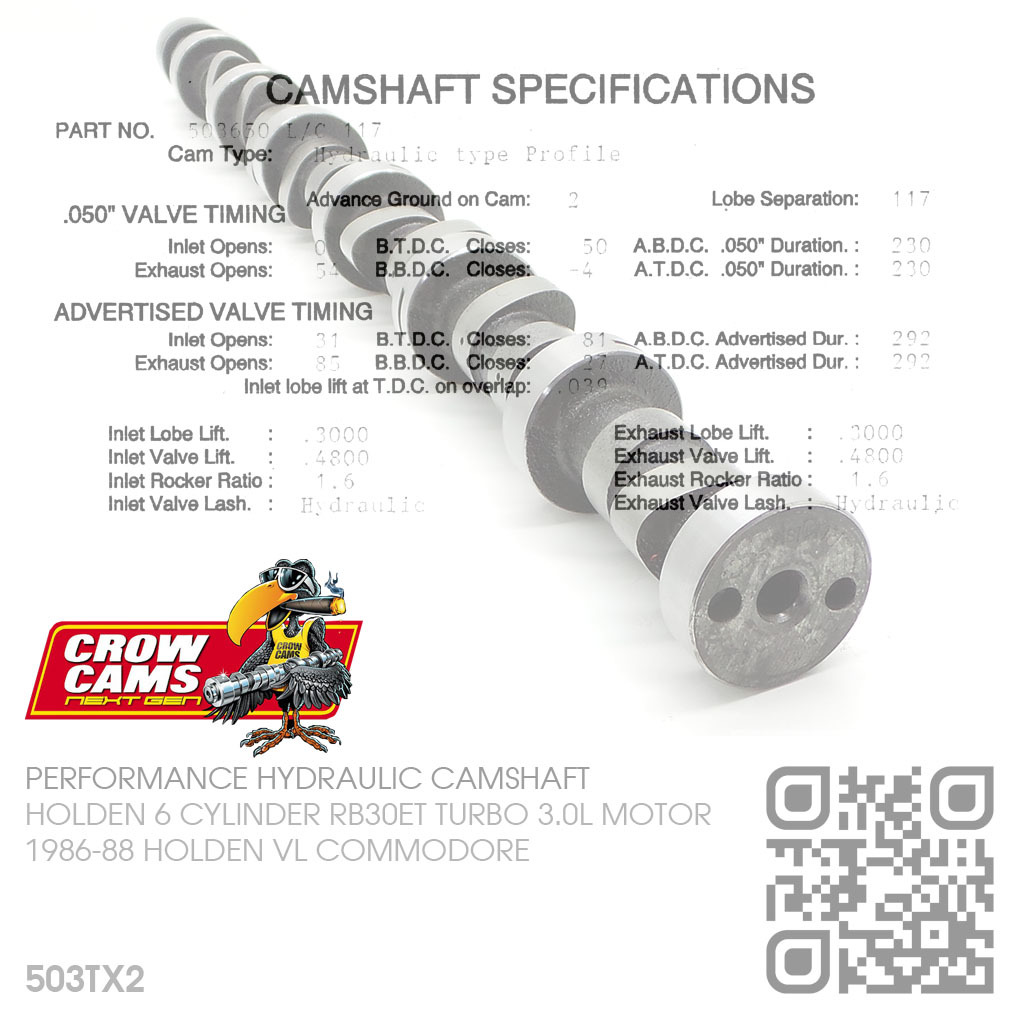

Detailed Cam Card: SEE LAST PRODUCT PHOTO
Camshaft Characteristics: HIGH PERFORMANCE STREET or STRIP TURBO CAM

CAMSHAFT REQUIREMENTS:
Cylinder Head Requirements: PERFORMANCE VALVE SPRINGS
Engine Requirements: NEW PERFORMANCE HYDRAULIC LIFTERS

For more than 30 years, Crow Cams in Australia, have developed valve train products and developed unique camshafts.

SPECIAL NOTE:
NEW HYDRAULIC LIFTERS ARE HIGHLY RECOMMENDED

IMPORTANT NOTE:
NOT SUITABLE FOR NON TURBO APPLICATION

CRITICAL NOTE:
USE ZDDP100 OIL ADDITIVE AND QUALITY MINERAL ENGINE OIL ONLY

MADE IN AUSTRALIA
