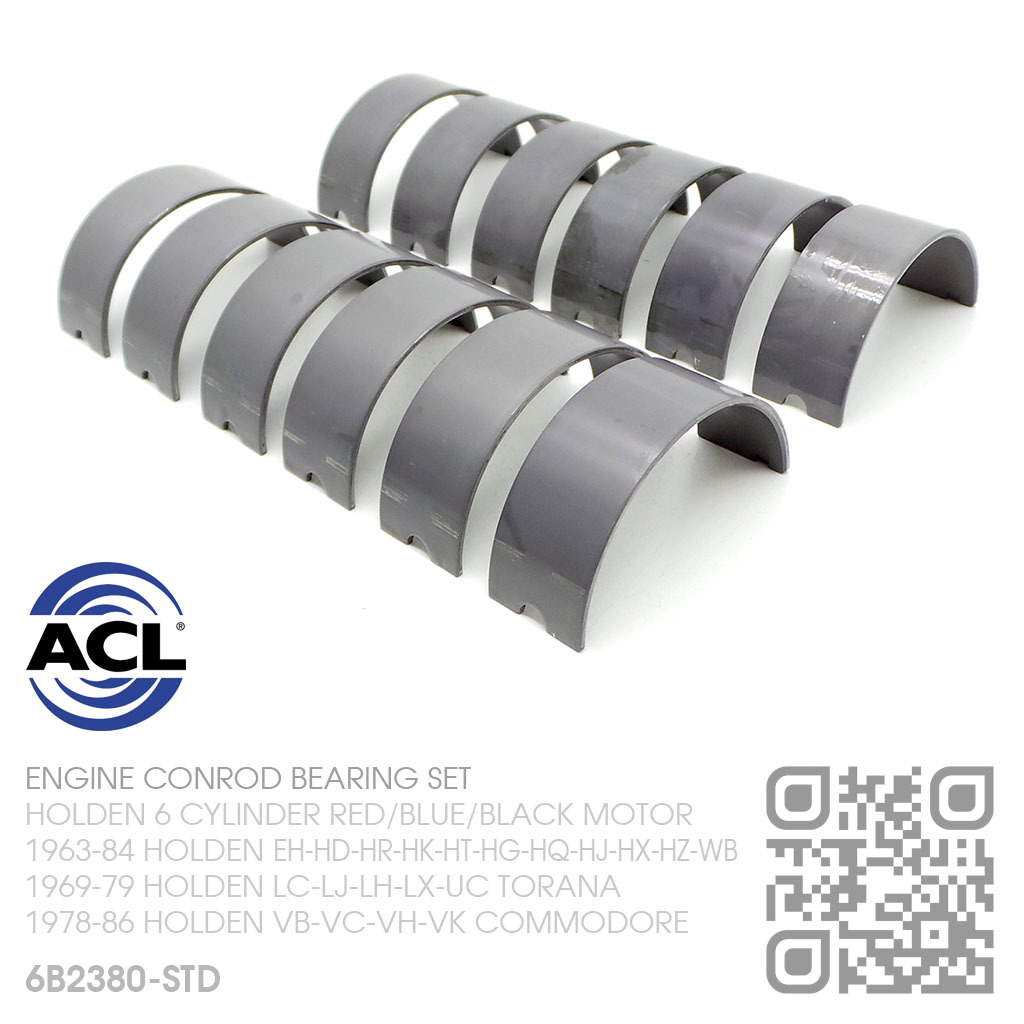

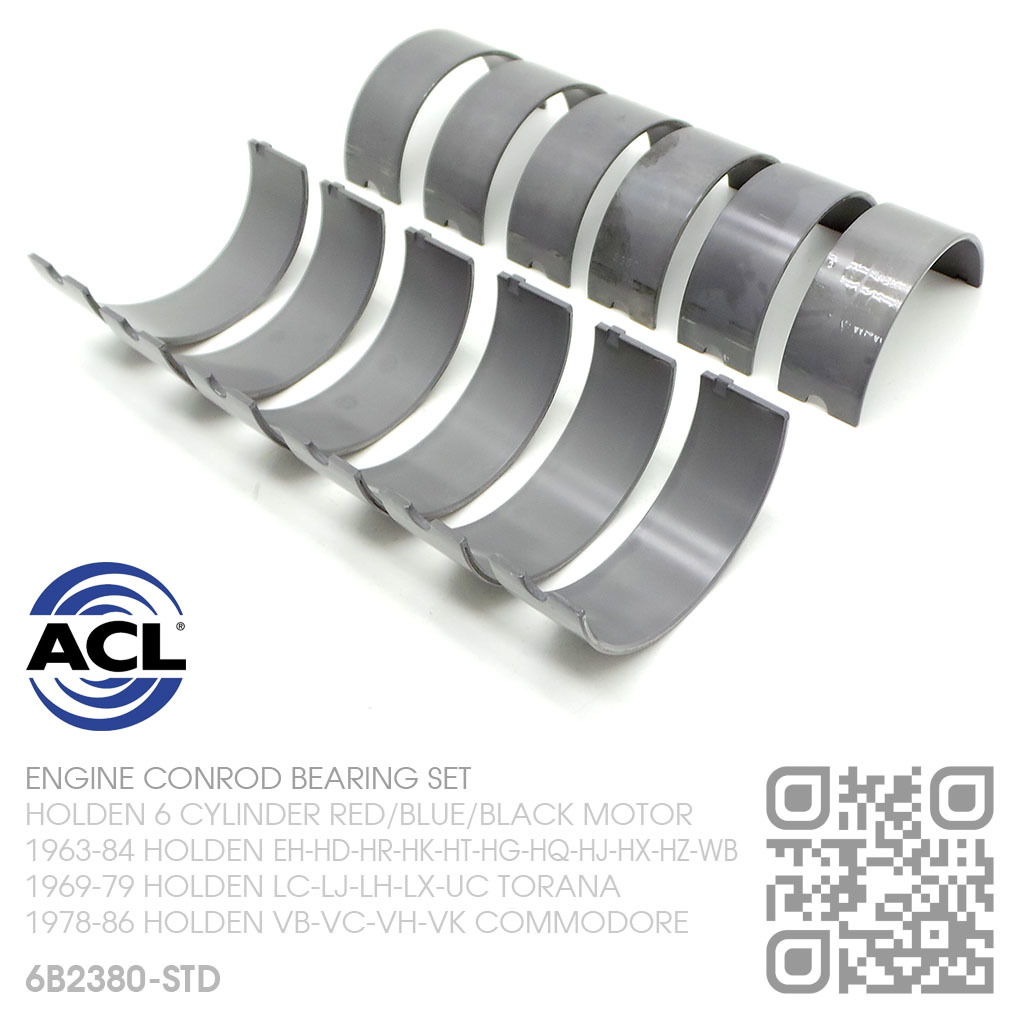

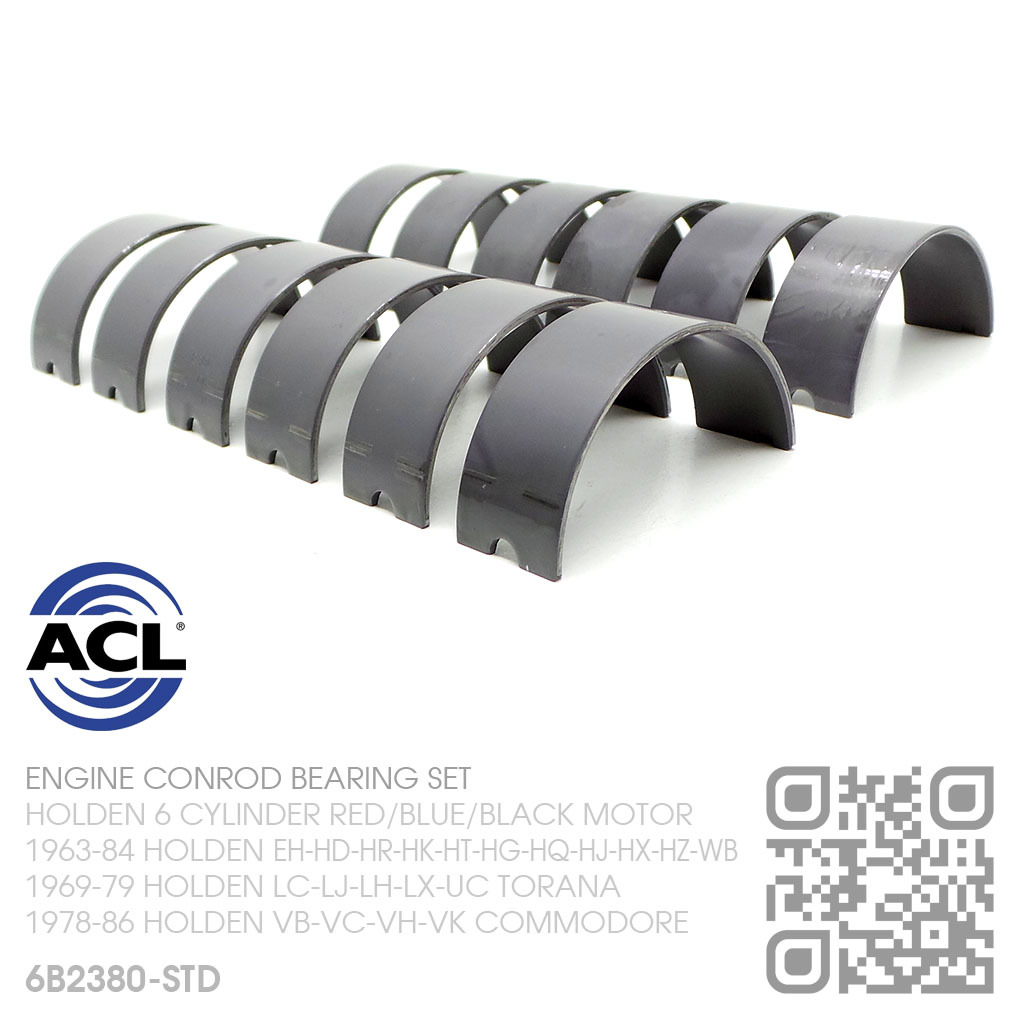

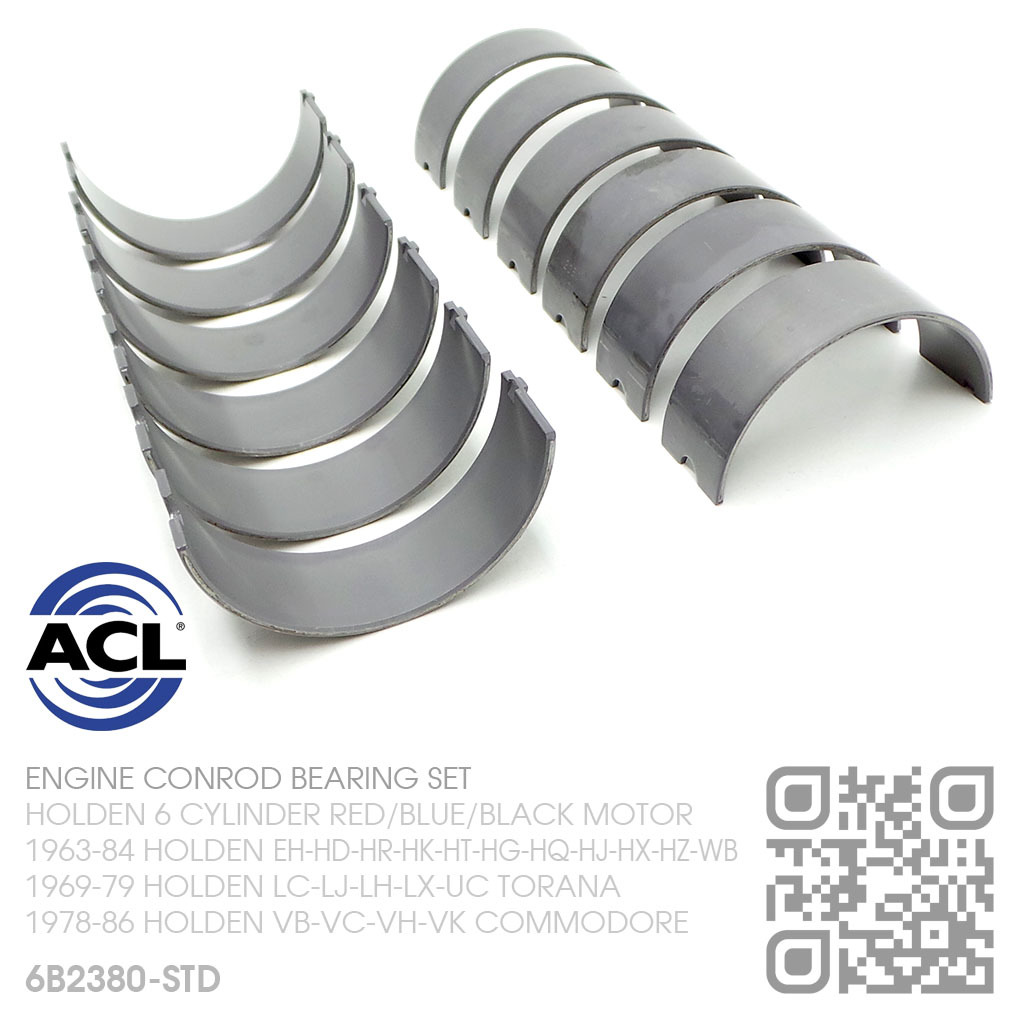

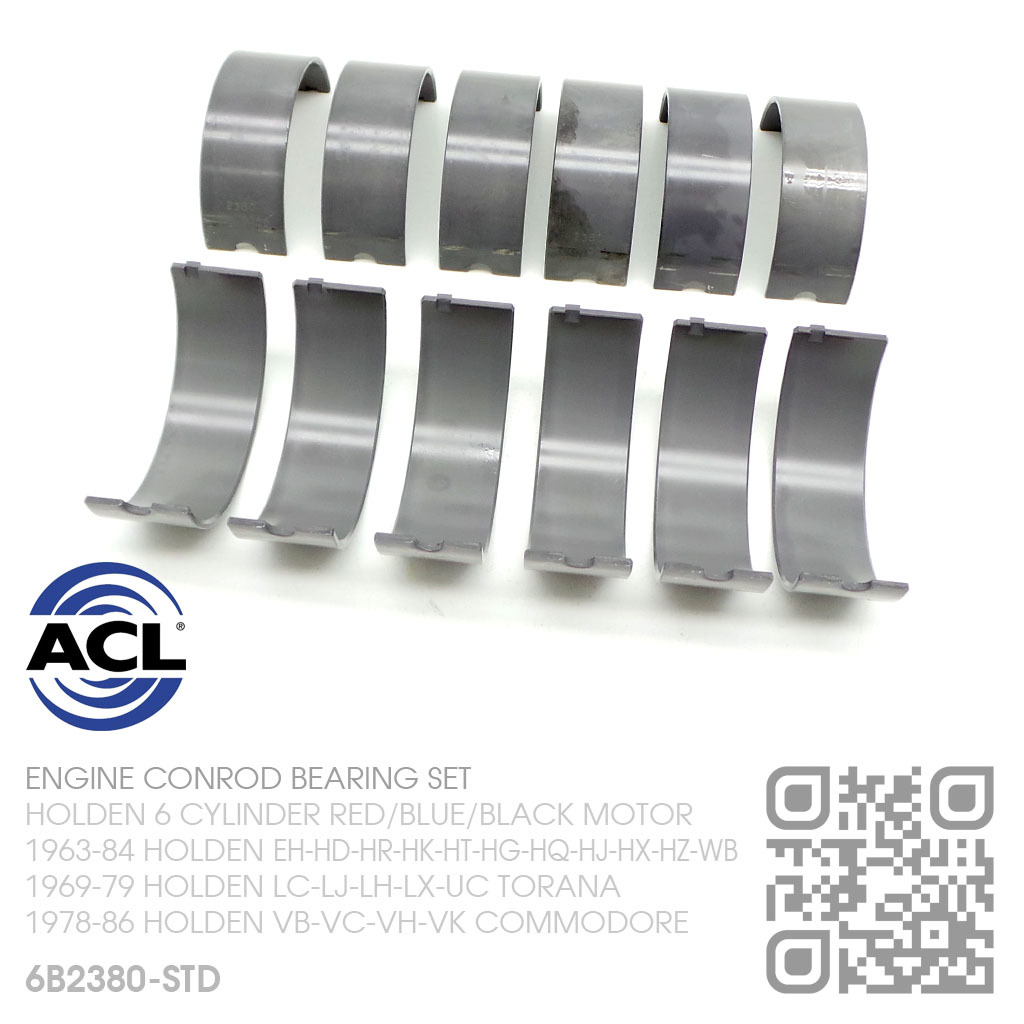

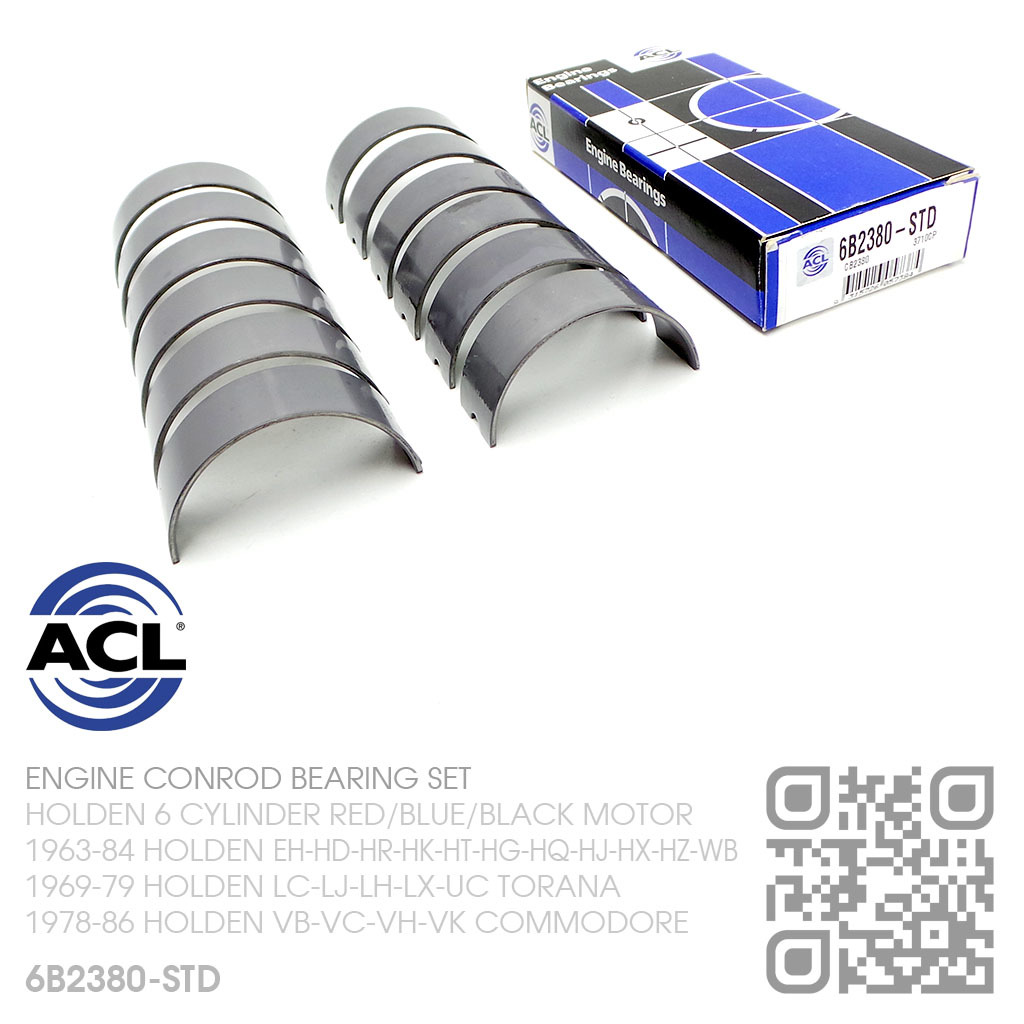

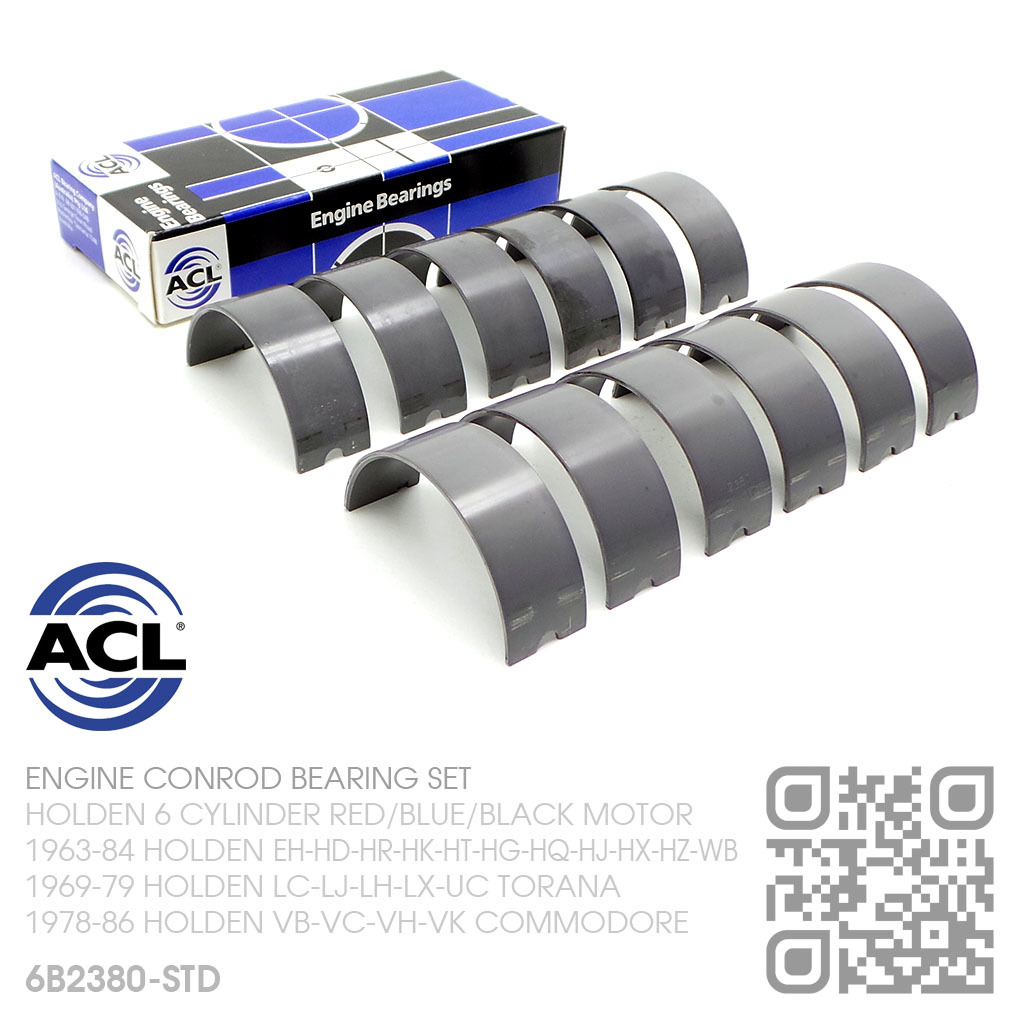

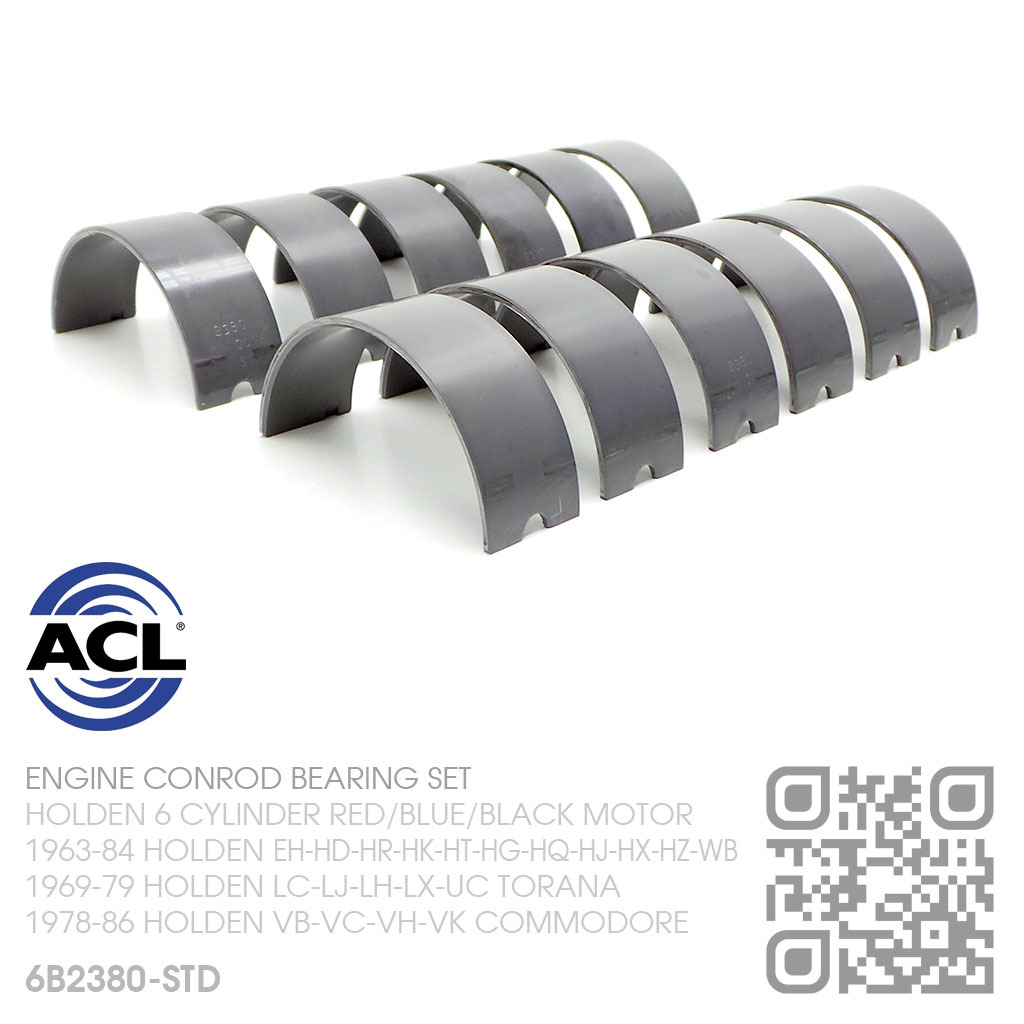

ACL DURAGLIDE CONROD BEARINGS SET STANDARD SIZE [HOLDEN 6-CYL RED/BLUE/BLACK MOTOR]

ACL DURAGLIDE 780 CONROD (BIG END) BEARING SET
STANDARD SIZE
HOLDEN 6 CYLINDER RED/BLUE/BLACK MOTOR

08/1963-1971 HOLDEN [EH-HD-HR-HK-HT-HG SERIES]
07/1971-1984 HOLDEN [HQ-HJ-HX-HZ-WB SERIES]
10/1969-1979 HOLDEN [LC-LJ-L-LX-UC TORANA]
10/1978-1986 HOLDEN [VB-VC-VH-VK COMMODORE]

ACL Duraglide 780 Series Bearings are made from extremely high quality multi-layered materials. A steel backing to provide supporting strength for the lining with Copper-lead (Tri-Metal). These are leaded bronze alloys, and are strong and adaptable. They provide the bearing with good fatigue strength, as well as good anti-seizure properties.

SPECIFICATIONS:
Min Standard Shaft Size: 1.8990" / 48.235mm
Max Standard Shaft Size: 1.9000" / 48.26mm
Min Standard Tunnel Size: 2.0247" / 51.427mm
Max Standard Tunnel Size: 2.0252" / 51.44mm
Max Wall At Crown: 0.0620" / 1.575mm
Max Overall Length: 0.7220" / 18.34mm
Min Vertical Oil Clearance: 0.0007" / 0.017mm
Max Vertical Oil Clearance: 0.0032" / 0.081mm
Material: F780 (TRI-METAL)
Series: ACL DURAGLIDE 780

The Conrod Bearing Sets are manufactured in Tasmania (Australia) by Leaders in Bearing technologies ACL Bearing Company. ACL is Australia's premier manufacturer of precision engine bearings and has been a Original Equipment Manufacturer to Holden.

REPLACES HOLDEN PART# 7429376

SPECIAL NOTE:
CRANKSHAFT CONNECTING ROD JOURNAL IS STANDARD SIZE

MADE IN AUSTRALIA
