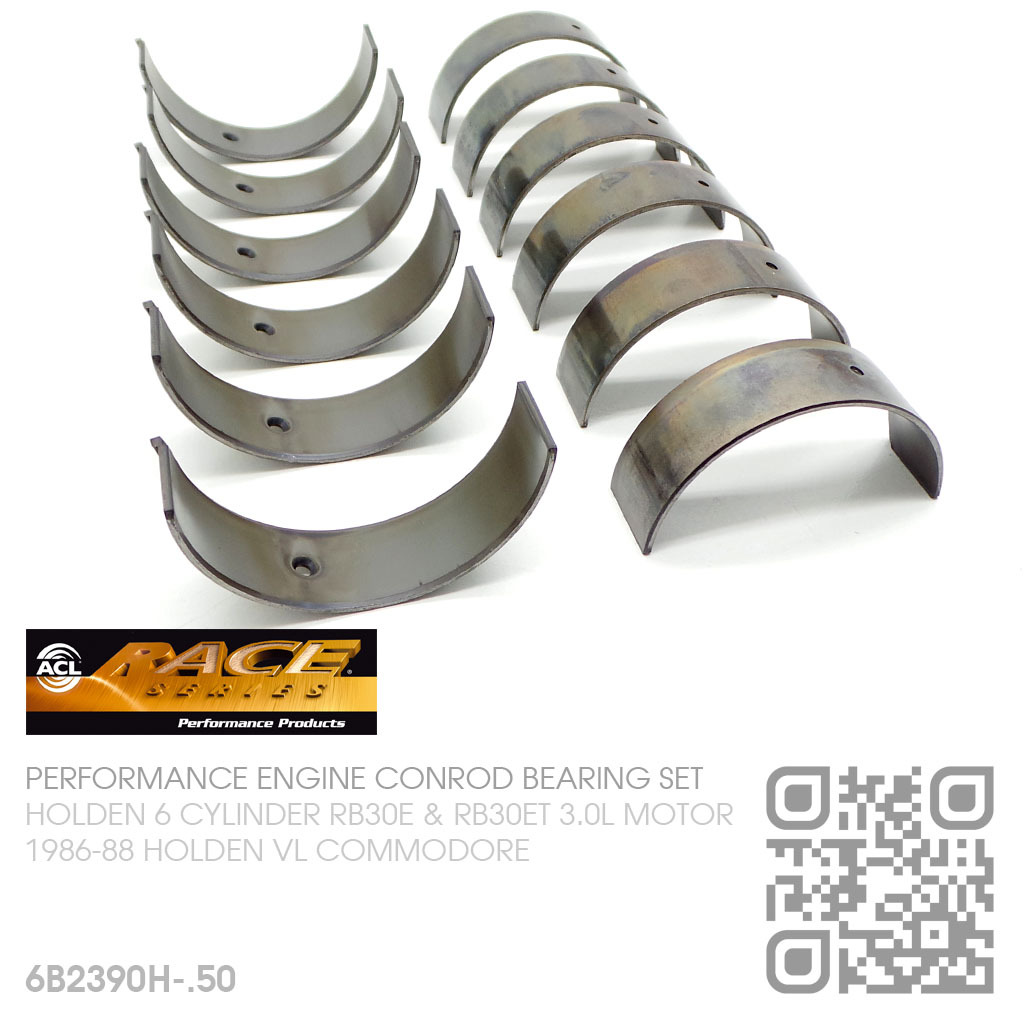

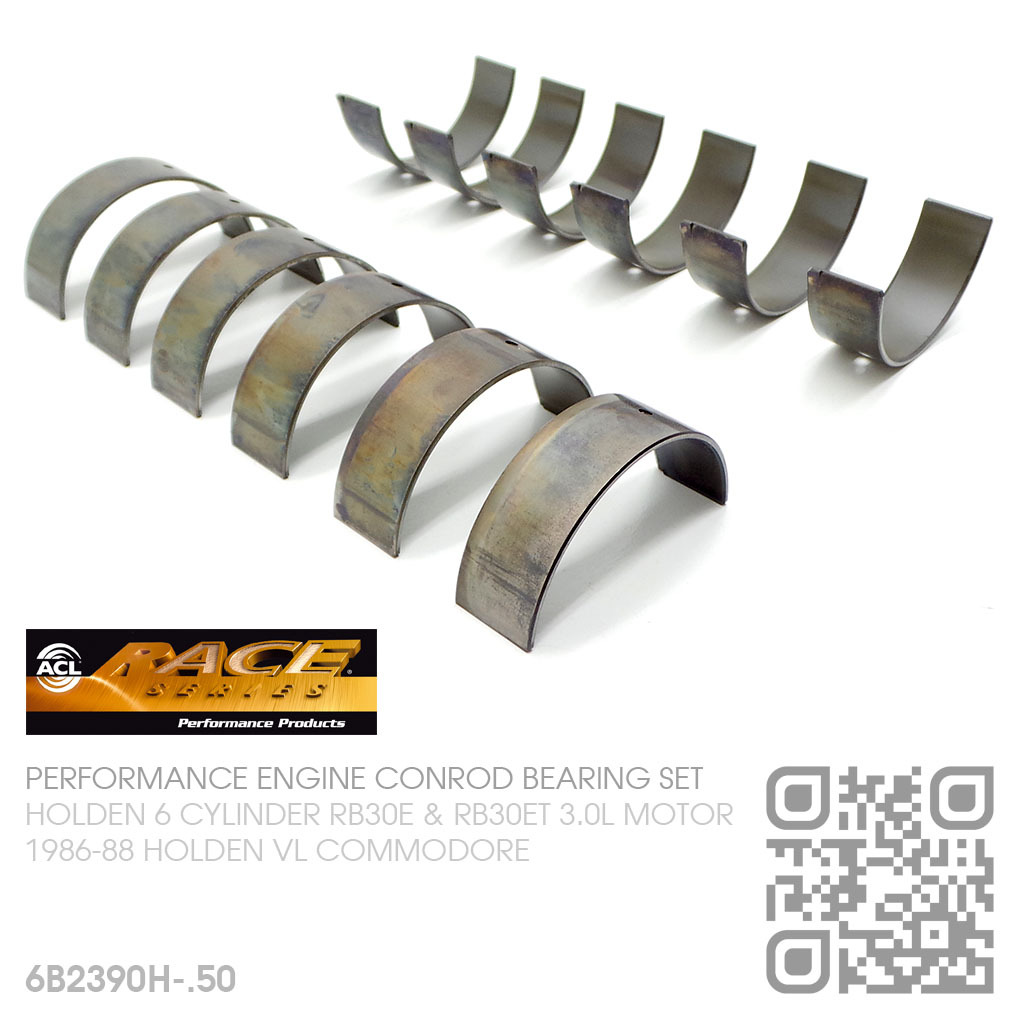

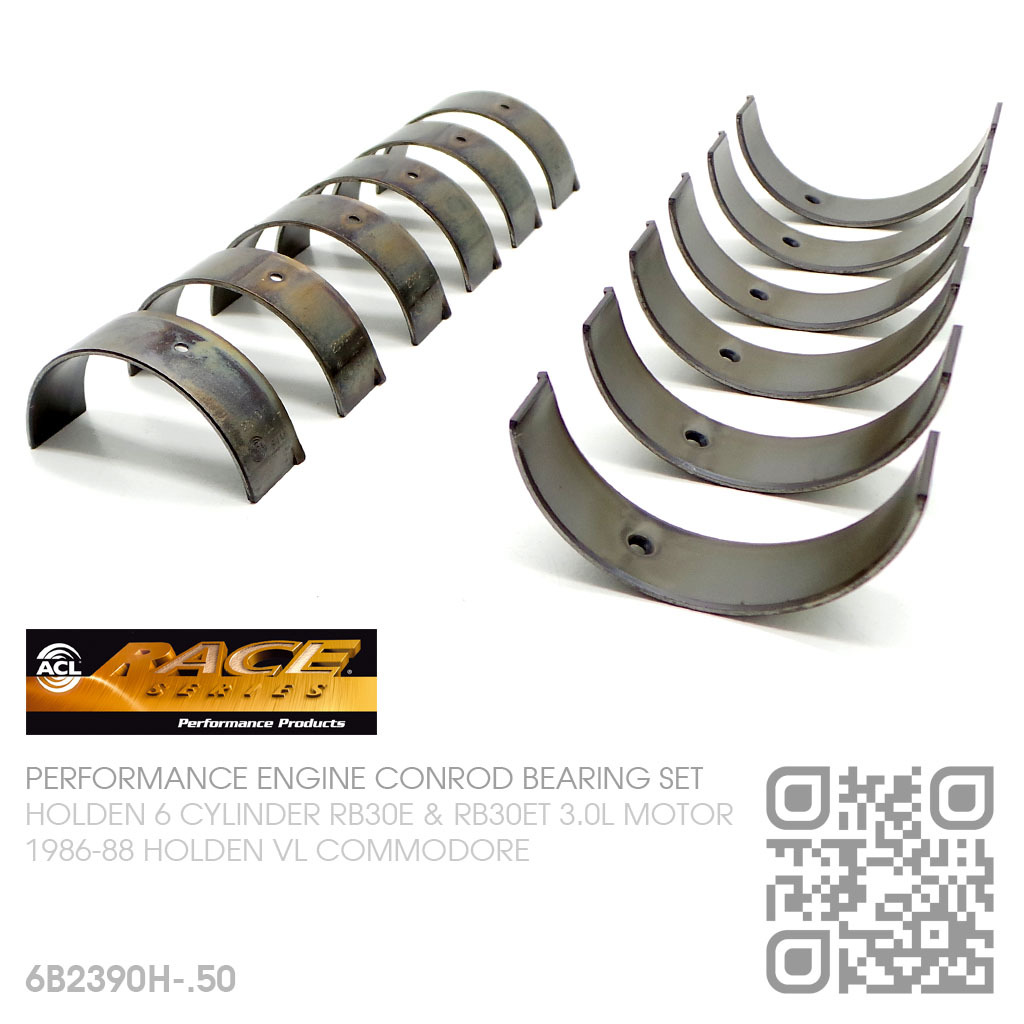

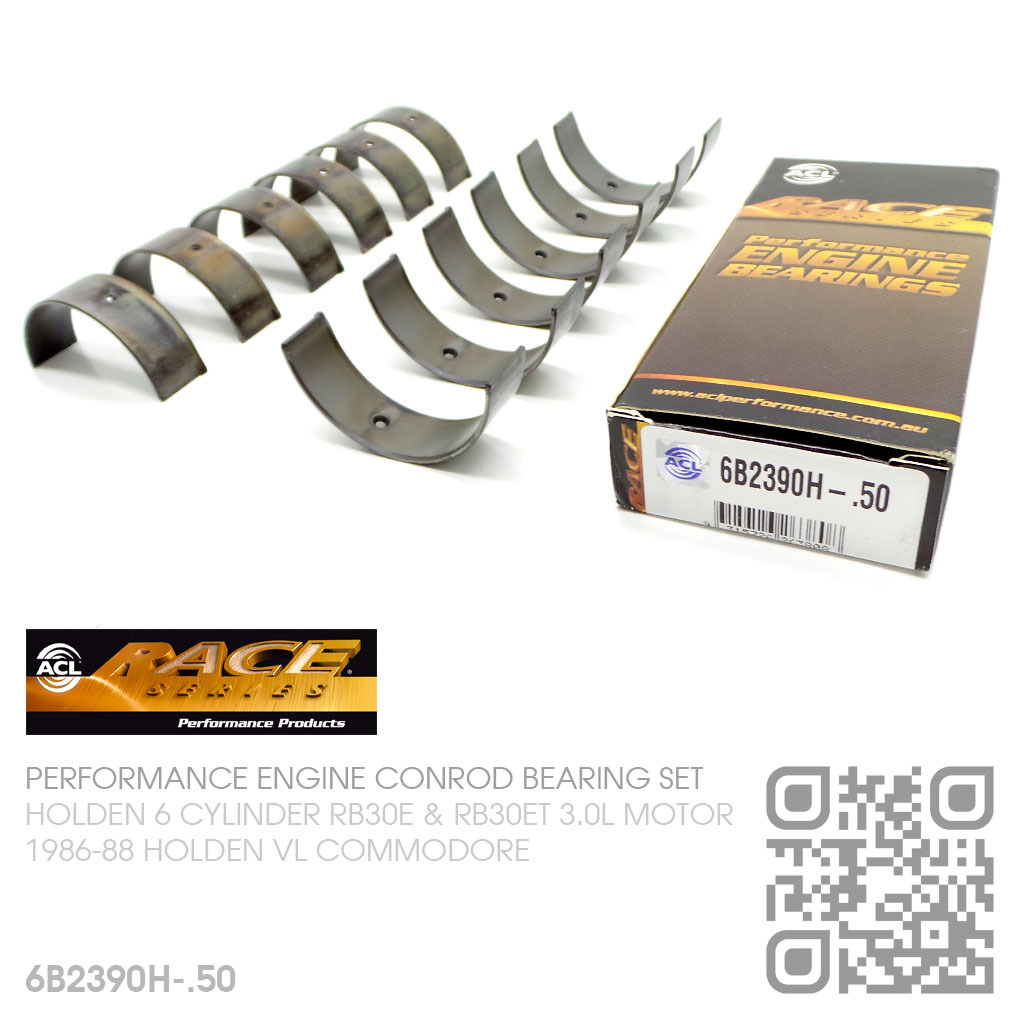

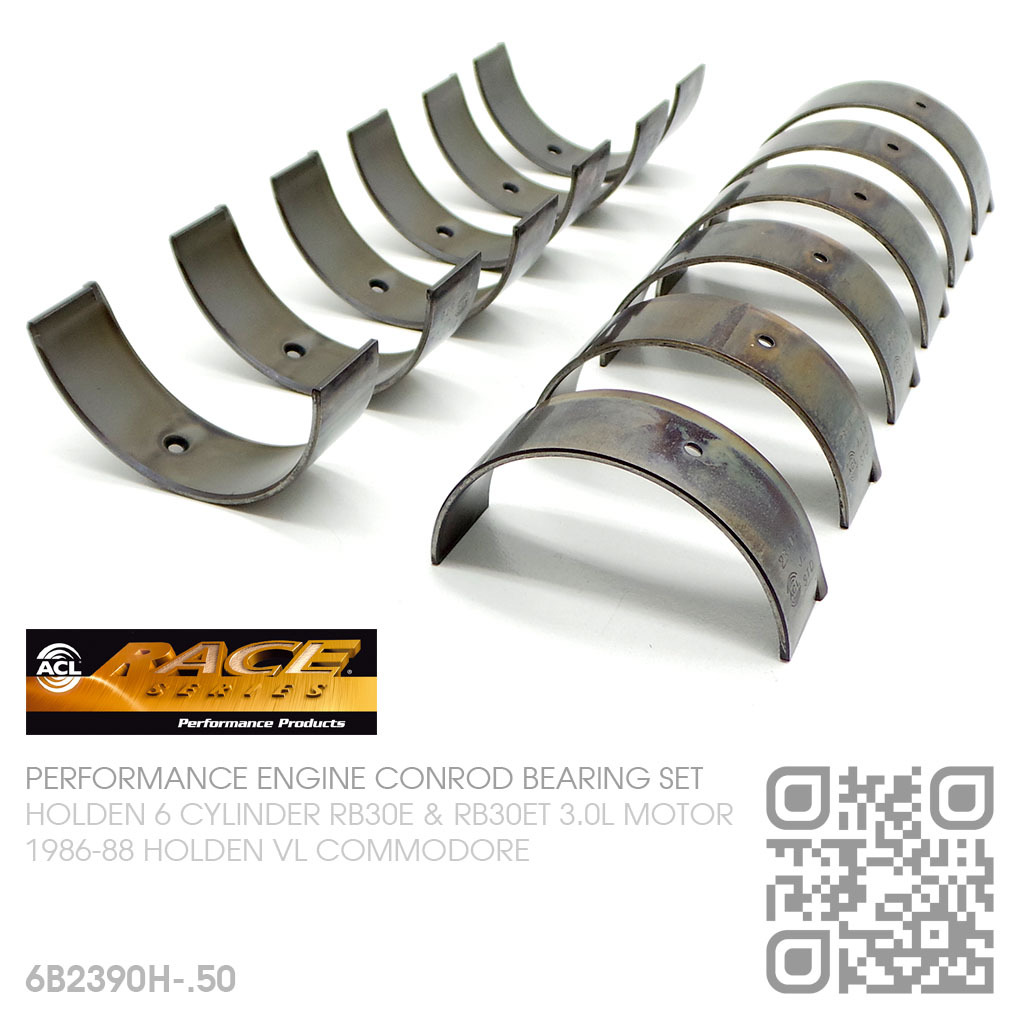

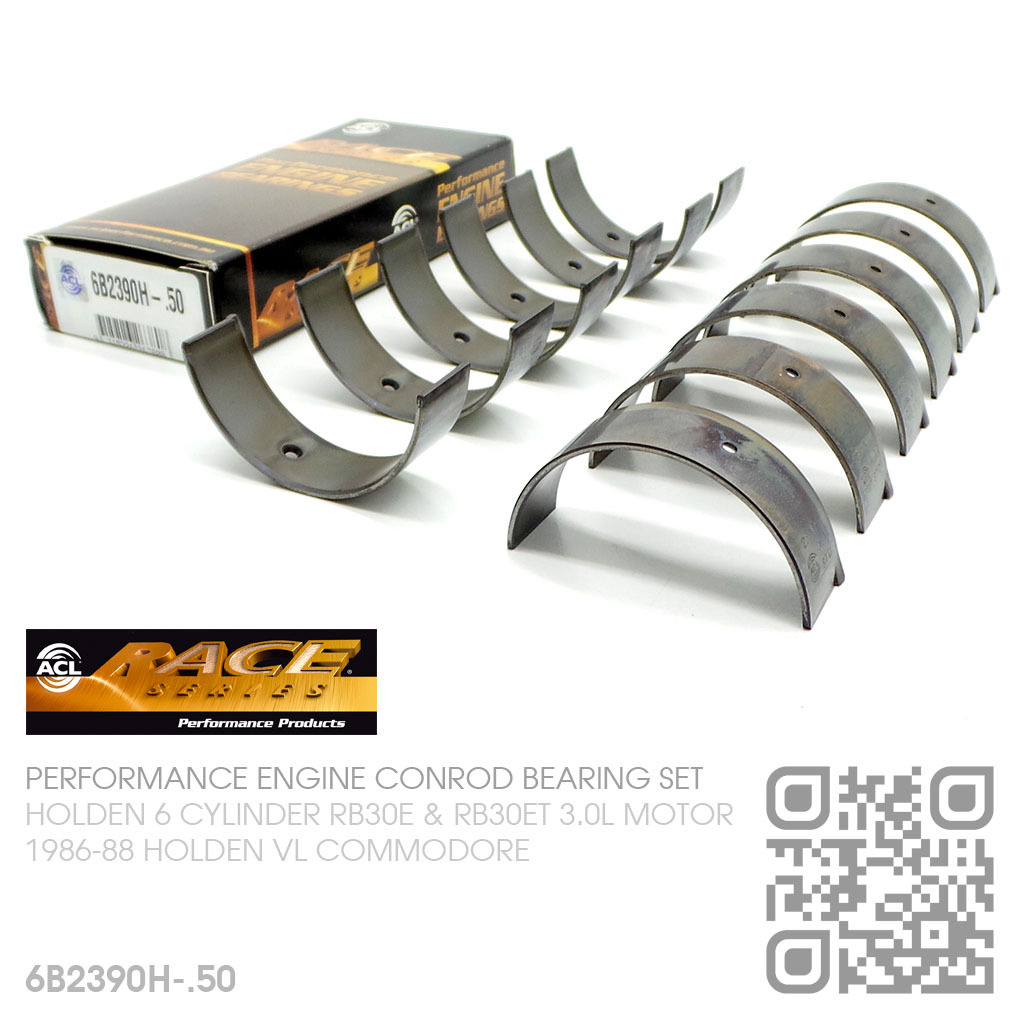

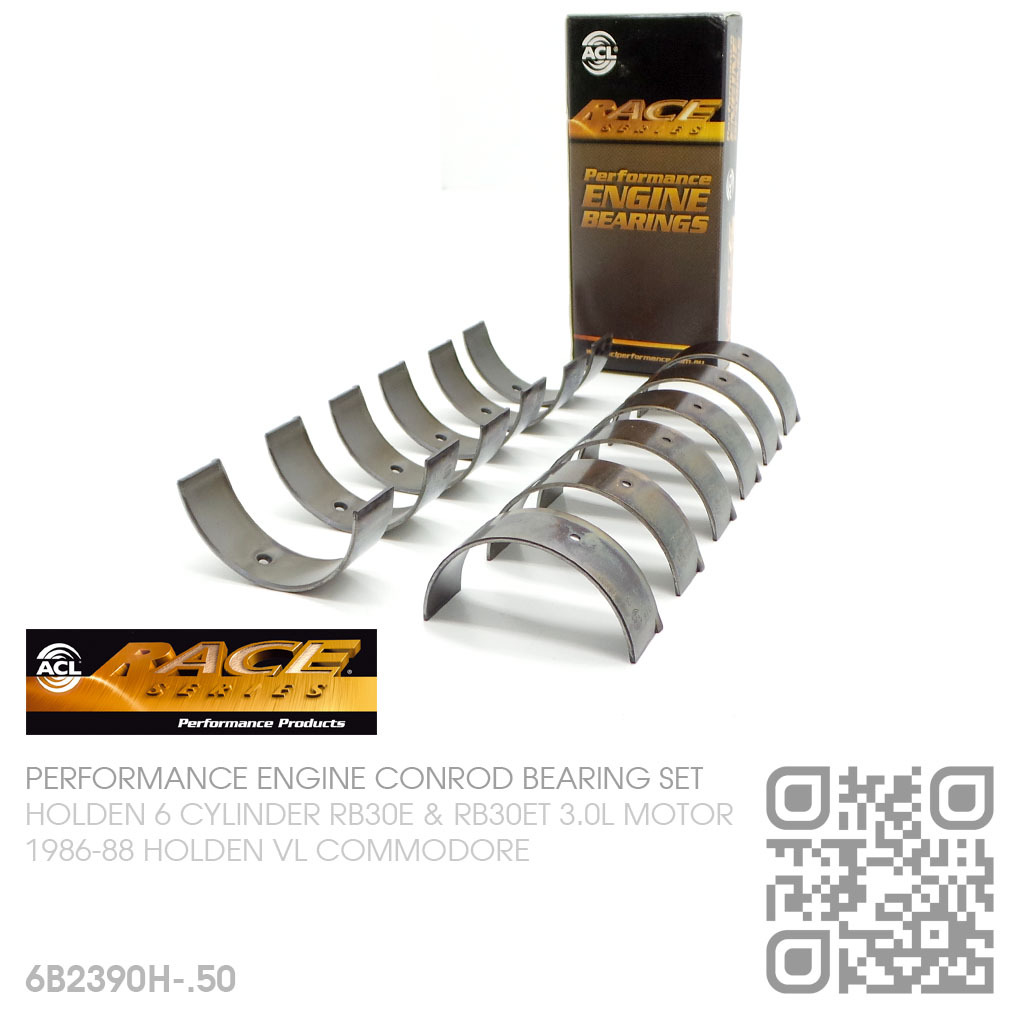

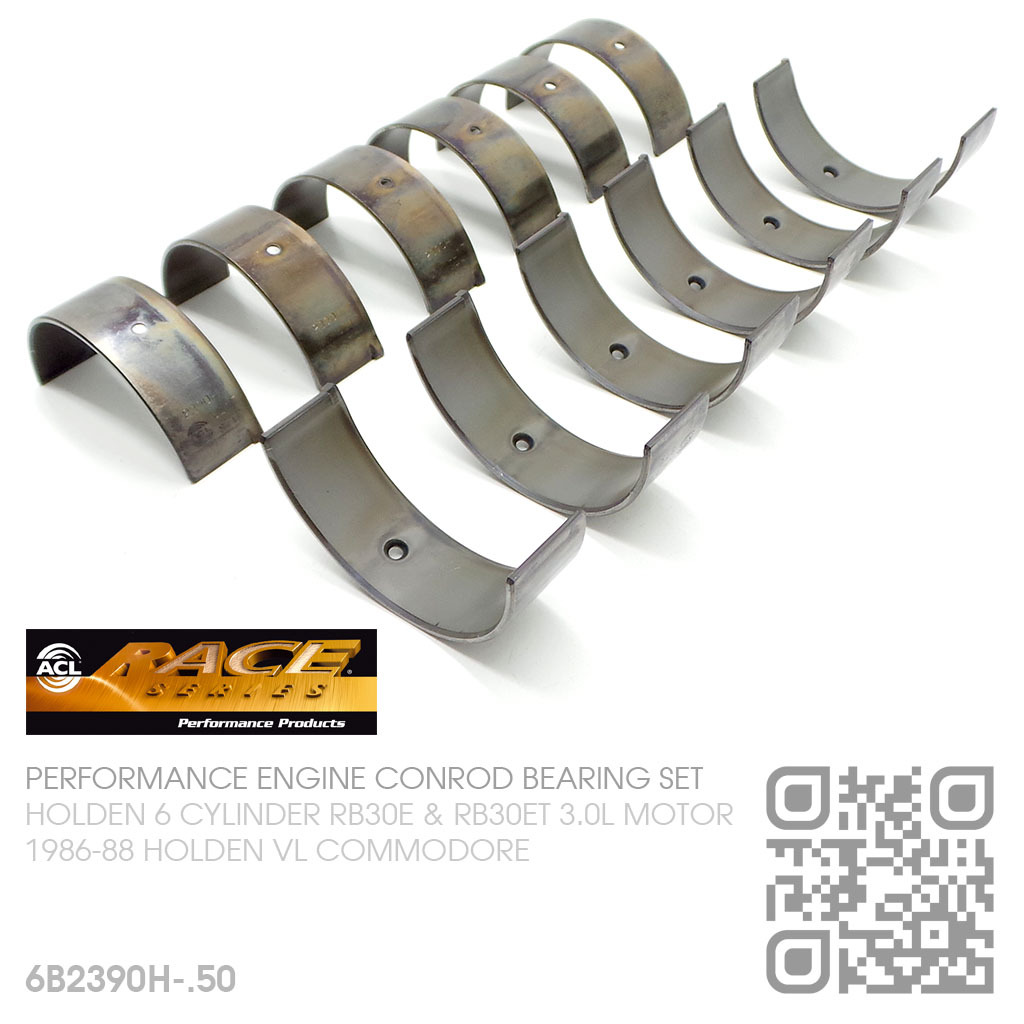

ACL RACE SERIES PERFORMANCE CONROD BEARINGS SET -0.500mm UNDERSIZE [HOLDEN 6-CYL RB30E & RB30ET TURBO 3.0L MOTOR]

ACL RACE SERIES PERFORMANCE CONROD (BIG END) BEARING SET
-0.500mm UNDERSIZE
HOLDEN 6 CYL RB30E 3.0L MOTOR
HOLDEN 6 CYL RB30ET TURBO 3.0L MOTOR

02/1986-1988 HOLDEN [VL COMMODORE]

High performance driving demands that you use the best parts. So rely on ACL's Race Series Products to perform to the exacting durability standards you expect. They provide the dependability it takes to hold up under higher RPM conditions.

The unique combination of design, metallurgy and engineering comes together to deliver what drivers expect from high performance parts. ACL Race Series Engine Bearings are a must for your performance engine.

SPECIFICATIONS:
Min Standard Shaft Size: 1.9670" / 49.961mm
Max Standard Shaft Size: 1.9675" / 49.974mm
Min Standard Tunnel Size: 2.0866" / 53.000mm
Max Standard Tunnel Size: 2.0870" / 53.011mm
Max Wall At Crown: 0.0592" / 1.503mm
Max Overall Length: 0.6730" / 17.100mm
Wall Size Tolerance: 0.0003" / 0.0008mm
Material: F781 (TRI-METAL)
Series: ACL RACE

The Conrod Bearing Sets are manufactured in Tasmania (Australia) by Leaders in Bearing technologies ACL Bearing Company. ACL is Australia's premier manufacturer of precision engine bearings and has been a Original Equipment Manufacturer to Holden.

SPECIAL NOTE:
CRANKSHAFT CONNECTING ROD JOURNAL IS -0.500mm UNDERSIZE

MADE IN AUSTRALIA
