3.125" PERFORMANCE FLAT TOP PISTONS & RINGS[HOLDEN 6-CYL 132 & 138 GREY MOTOR][FX-FJ-FE-FC-FB-EK-EJ]

NASON 3.125" PERFORMANCE FLAT TOP PISTONS & HASTINGS RINGS [HOLDEN 6-CYL 132 & 138 GREY MOTOR]

Calculate Shipping

Free shipping - $0.00

3.125" NASON HIGH PERFORMANCE
FLAT TOP PISTONS & HASTINGS RINGS
HOLDEN 6 CYLINDER 132 & 138 GREY MOTOR

1948-63 HOLDEN [FX-FJ-FE-FC-FB-EK-EJ SERIES]

Description

3.125" NASON HIGH PERFORMANCE
FLAT TOP PISTONS & HASTINGS RINGS
HOLDEN 6 CYLINDER 132 & 138 GREY MOTOR

132.5ci
11/1948-1960 HOLDEN [FX-FJ-FE-FC SERIES]

138ci
01/1960-1963 HOLDEN [FB-EK-EJ SERIES]

The High Performance Flat Top Pistons, Piston Rings and Gudgeon Pins are made to the highest standard and exceed original manufacturers specifications for longevity, smooth operation and maximum performance.

The pistons are manufactured by Nason, which had being supplying pistons in Australia since 1927. The piston rings are manufactured in the United States of America by Hastings leaders in Piston Ring technologies and have been in business for over a hundred years.

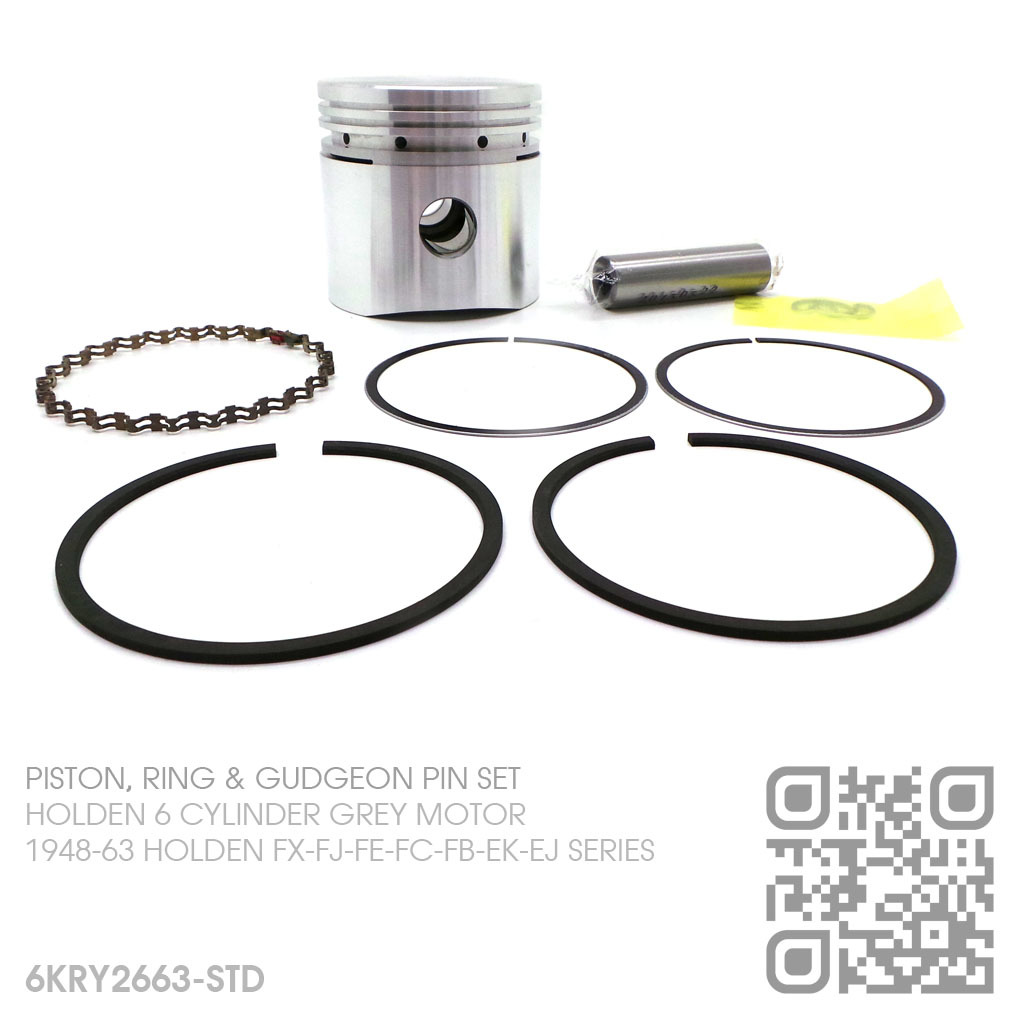

INCLUDES:

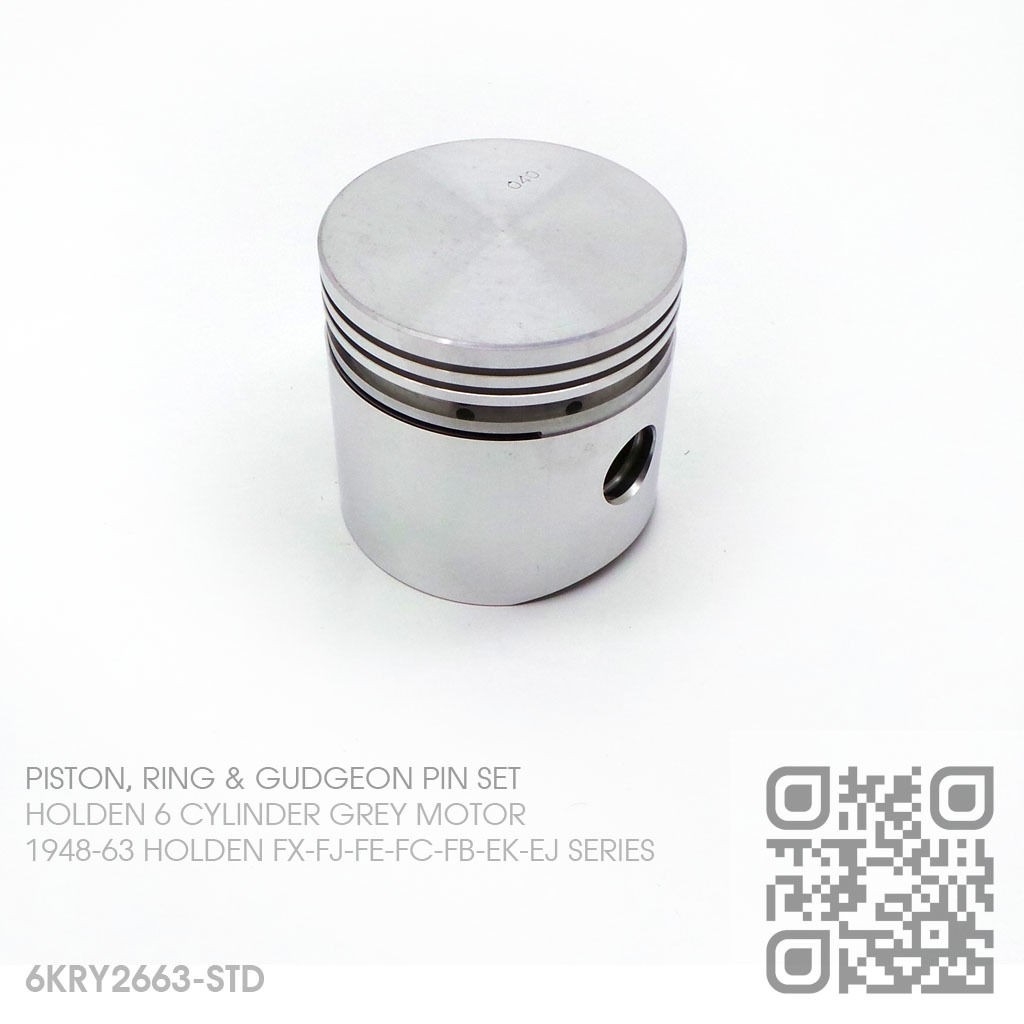

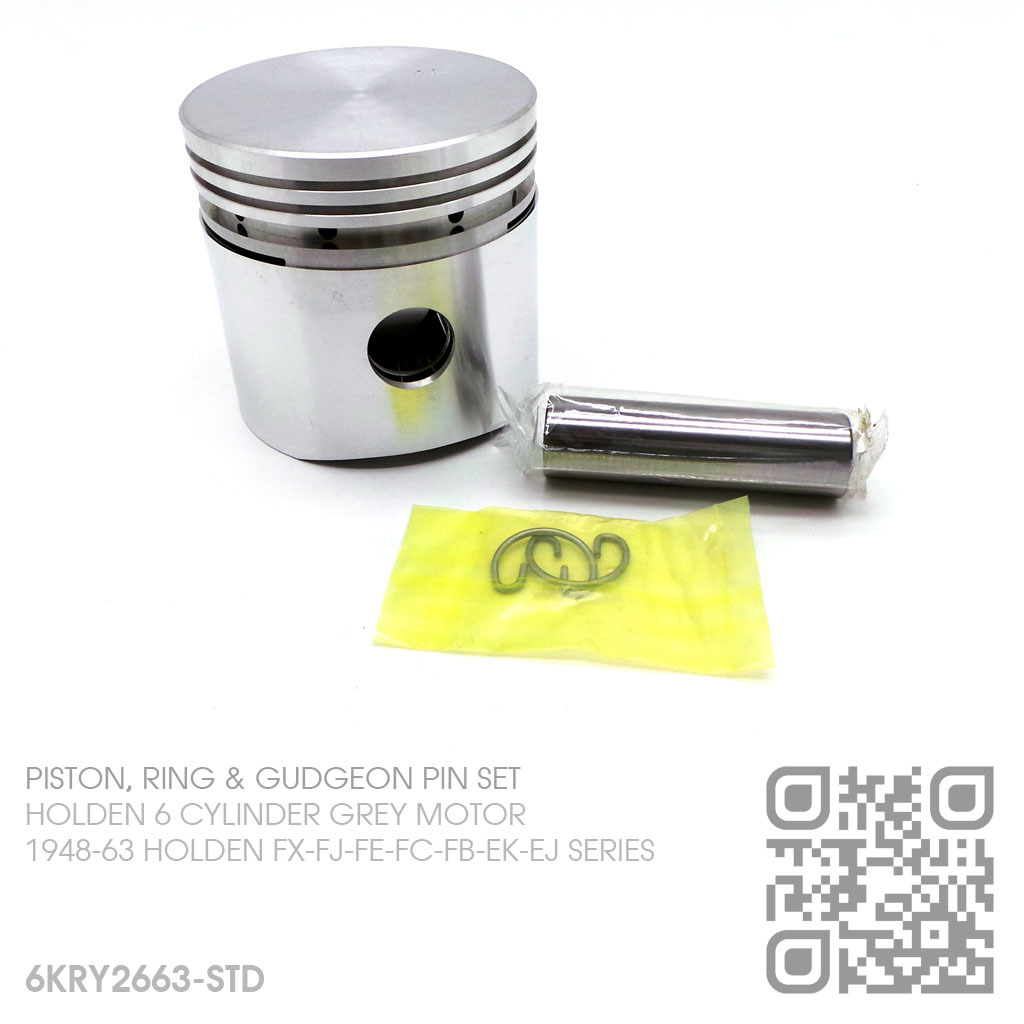

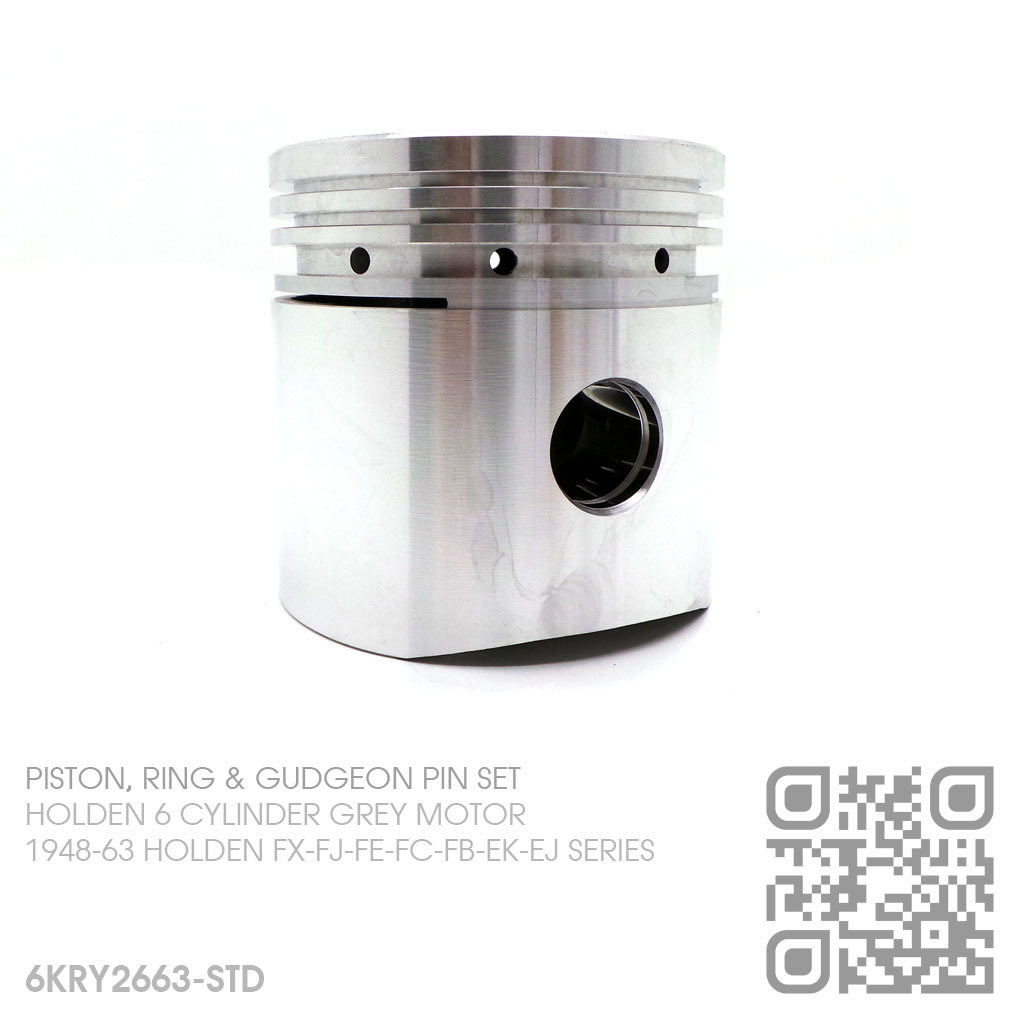

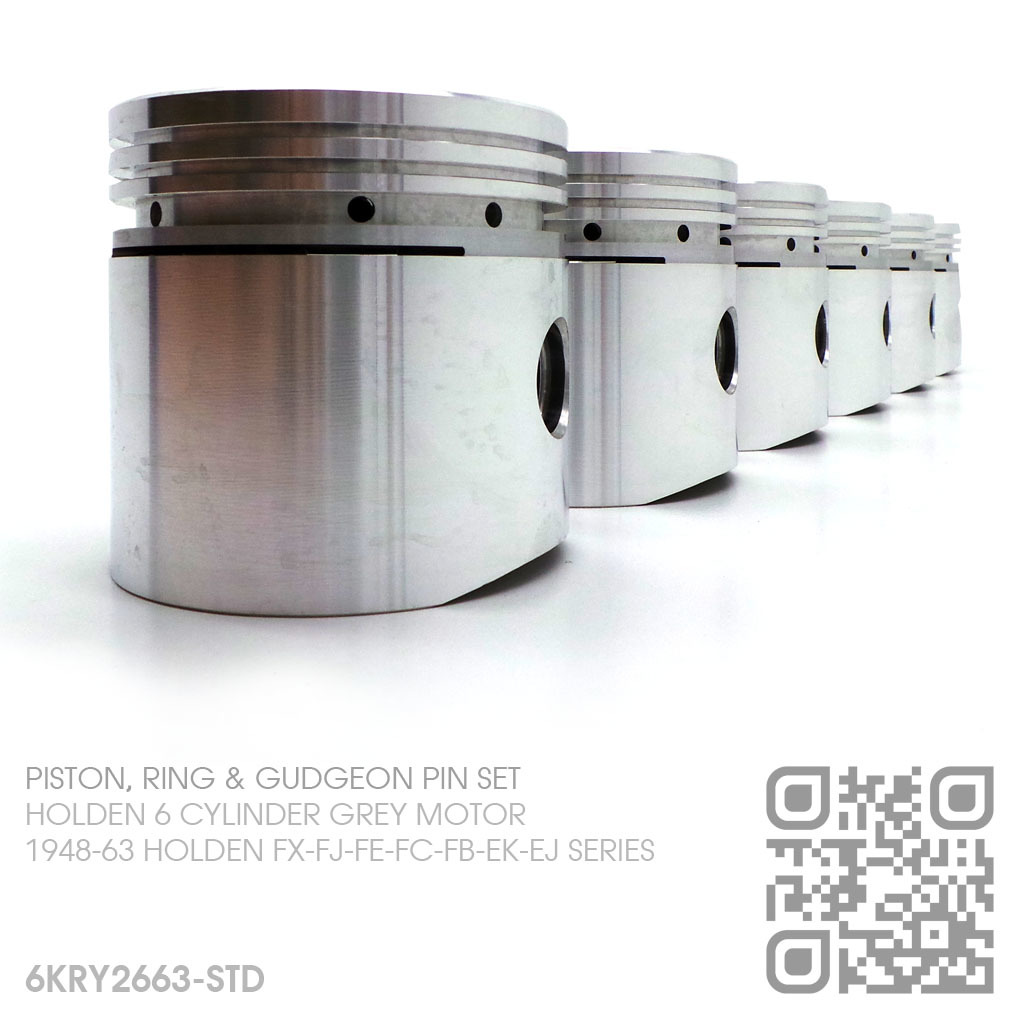

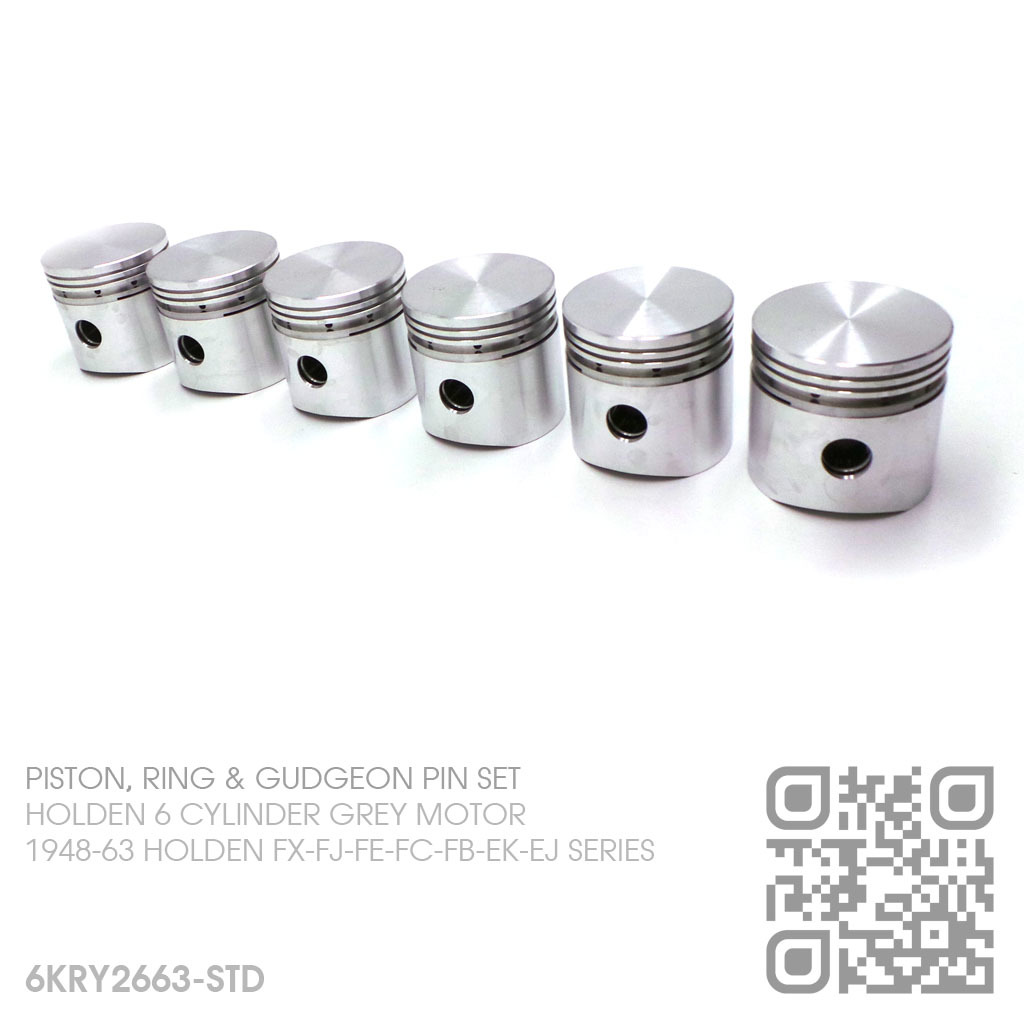

NASON FLAT TOP PISTON (6)
HASTINGS PISTON RING (SET)
NASON GUDGEON PINS (6)
GUDGEON PIN SURCLIP (12)

SPECIFICATIONS:
Standard Bore Size: 3.125"
Size: STANDARD
Head Type: FLAT TOP
Piston Type: CAST
Length: 3.063"
Compression Height: 1.779"
Pin Size: .750" X 2.629"
Pin Type: FULL FLOATING
Piston to Bore: .0015" @ 2.084" FROM BOTTOM
Top Ring Width: 5/64"
2nd Ring Width: 5/64"
Oil Ring Width: 3/16"

SPECIAL NOTE:
BORE BLOCK TO 3.125" (REPCO 138 SPORTS SPEC)

	STD
	BORE	HOLDEN	ENGINE #
132.5ci	3.000"	11/1948-1953 FX	1001 to 121793
		10/1953-1956 FJ	121794 to 283372
		07/1956-1957 FJ UTE/VAN	FROM U283384
		07/1956-1958 FE	L283373 to L439506
		05/1958-1960 FC	FROM L439507

138ci	3.062"	01/1960-1961 FB	B1001 to B175813
		05/1961-1963 EK	FROM B175814
		07/1962-1963 EJ	FROM J1001
