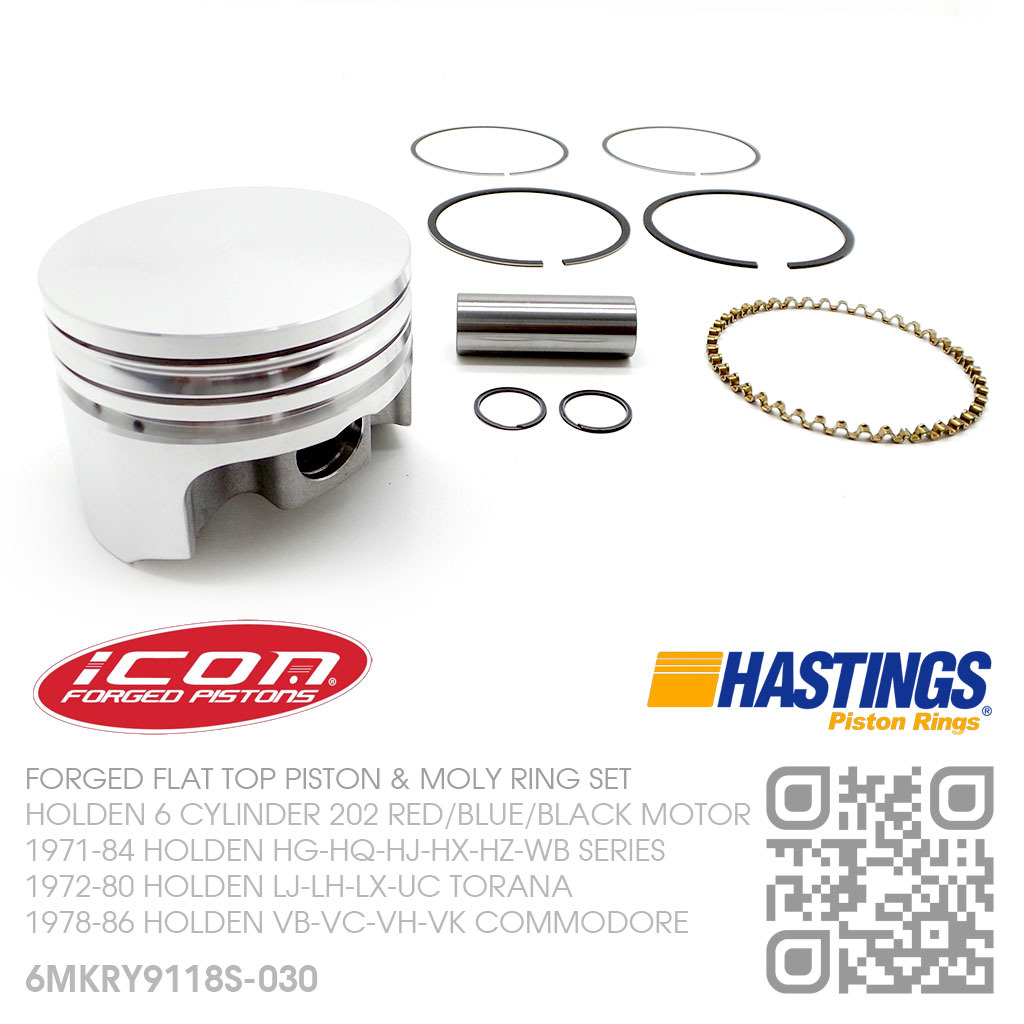

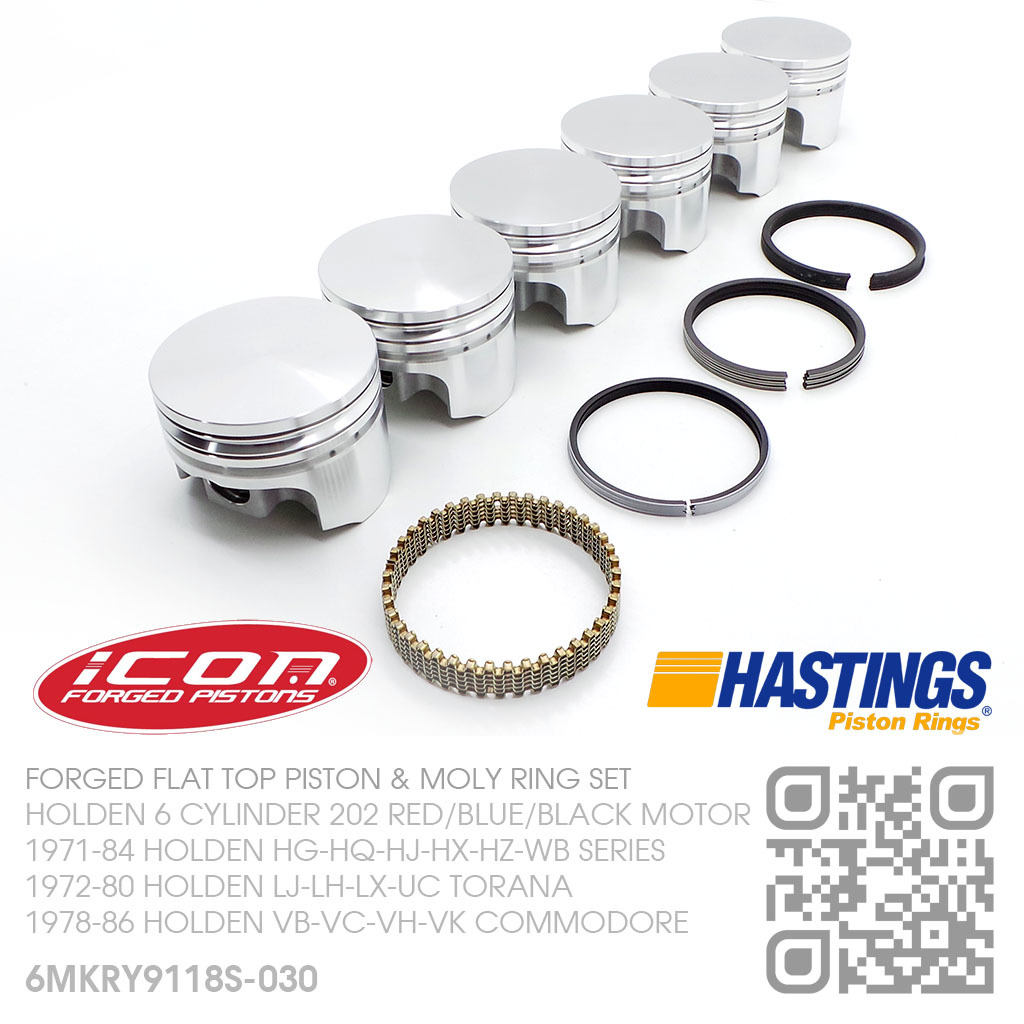

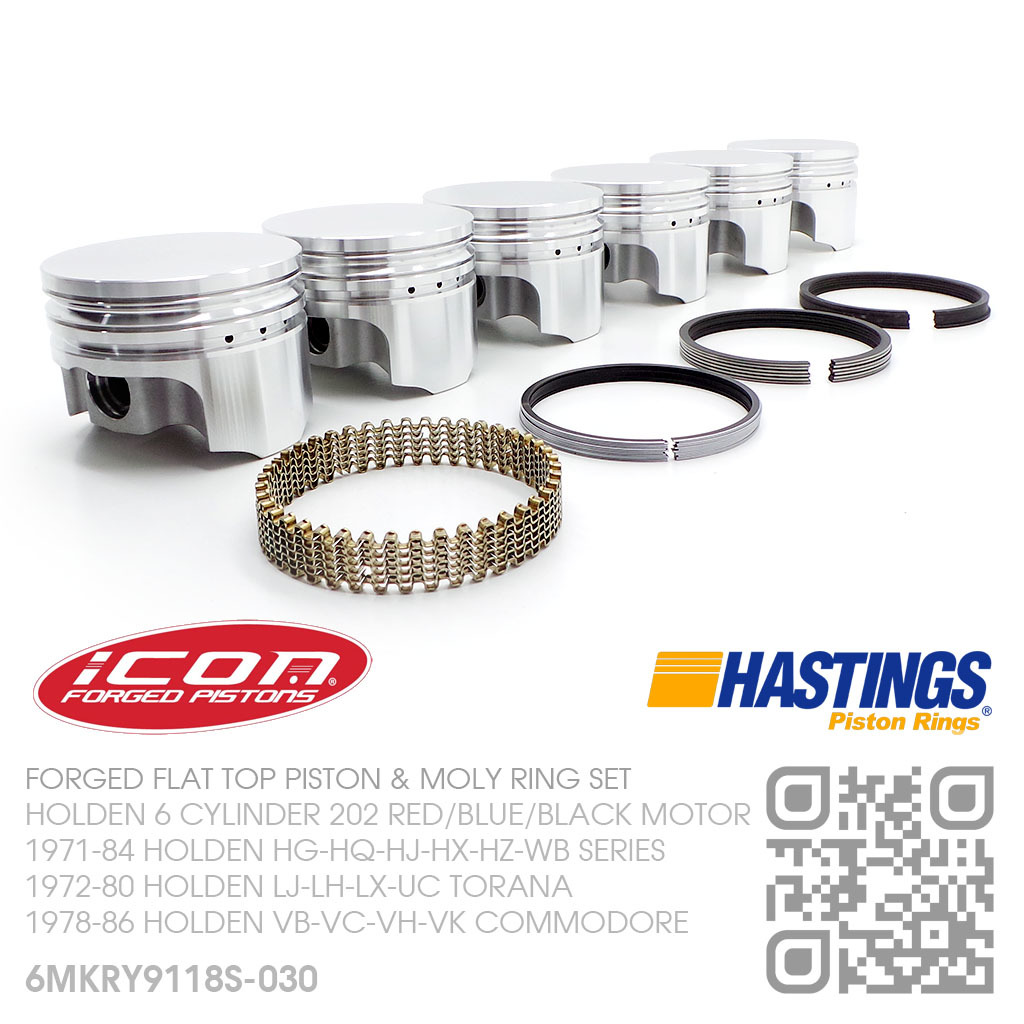

ICON 202+0.030" FORGED FLAT TOP PISTONS & HASTINGS MOLY RINGS [HOLDEN 6-CYL 202 RED/BLUE/BLACK MOTOR]

202+0.030" HIGH PERFORMANCE ICON FORGED 4032 ALLOY FLAT TOP PISTONS &
HASTINGS MOLY PISTON RING SET
HOLDEN 6 CYLINDER 202 RED/BLUE/BLACK MOTOR

07/1971-1984 HOLDEN [HG-HQ-HJ-HX-HZ-WB SERIES]
02/1972-1979 HOLDEN [LJ-L-LX-UC TORANA]
10/1978-1986 HOLDEN [VB-VC-VH-VK COMMODORE]

The High Performance Forged Flat Top Pistons, Moly Piston Rings and Gudgeon Pins are engineered from the ground up for extreme high performance street or racing applications.

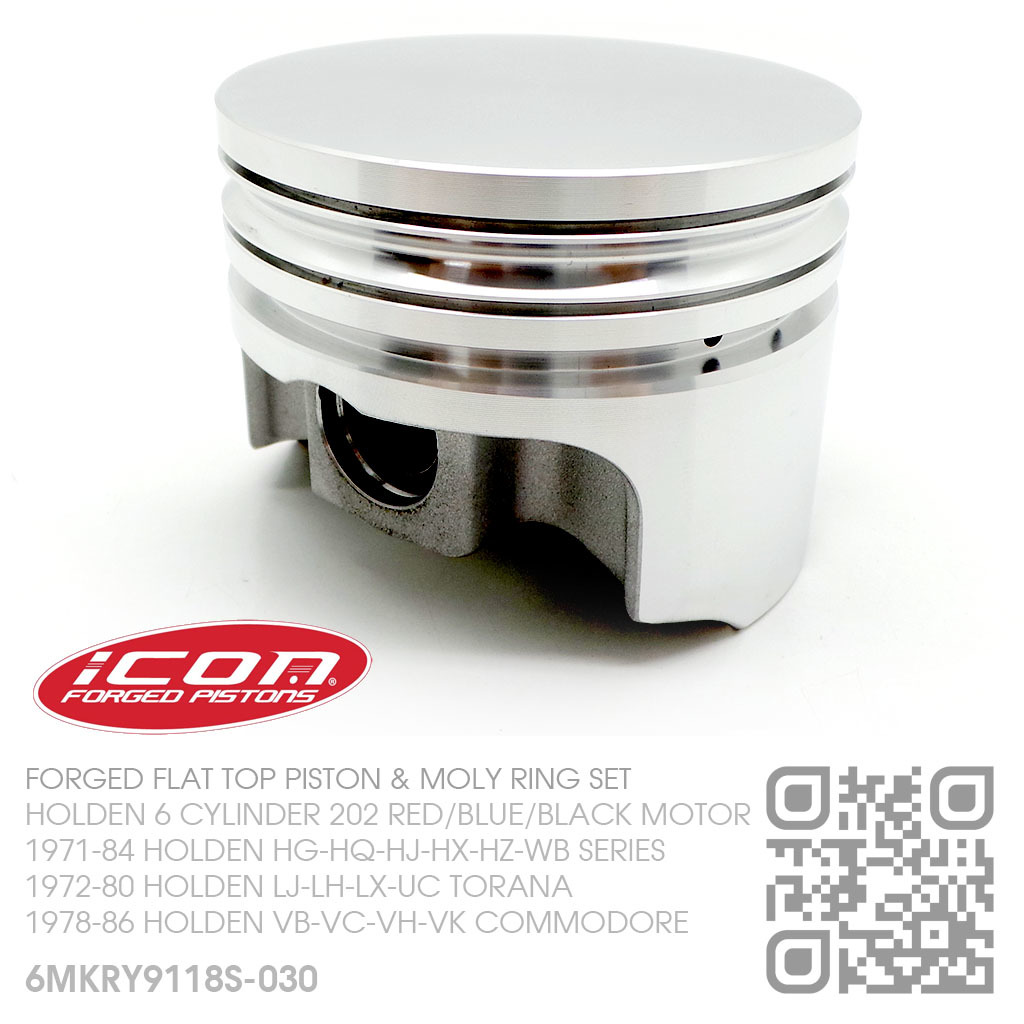

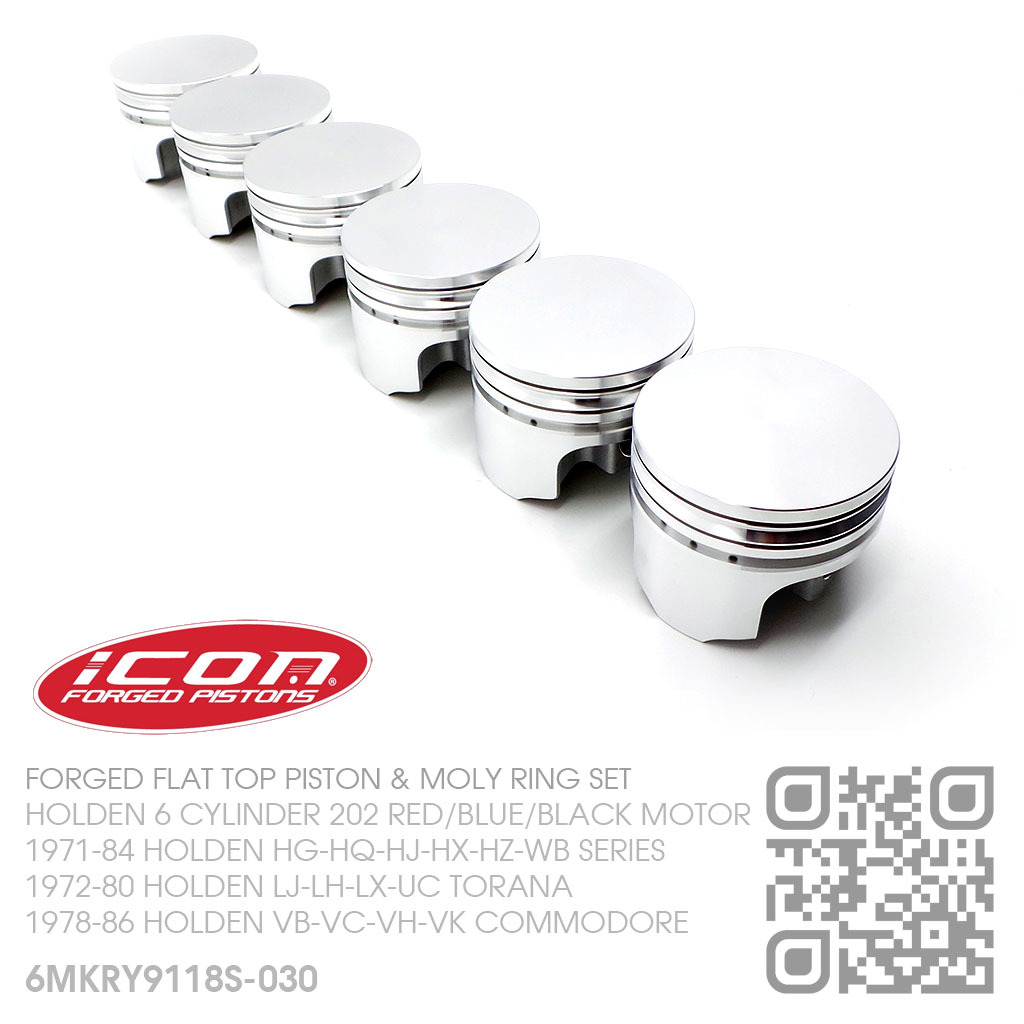

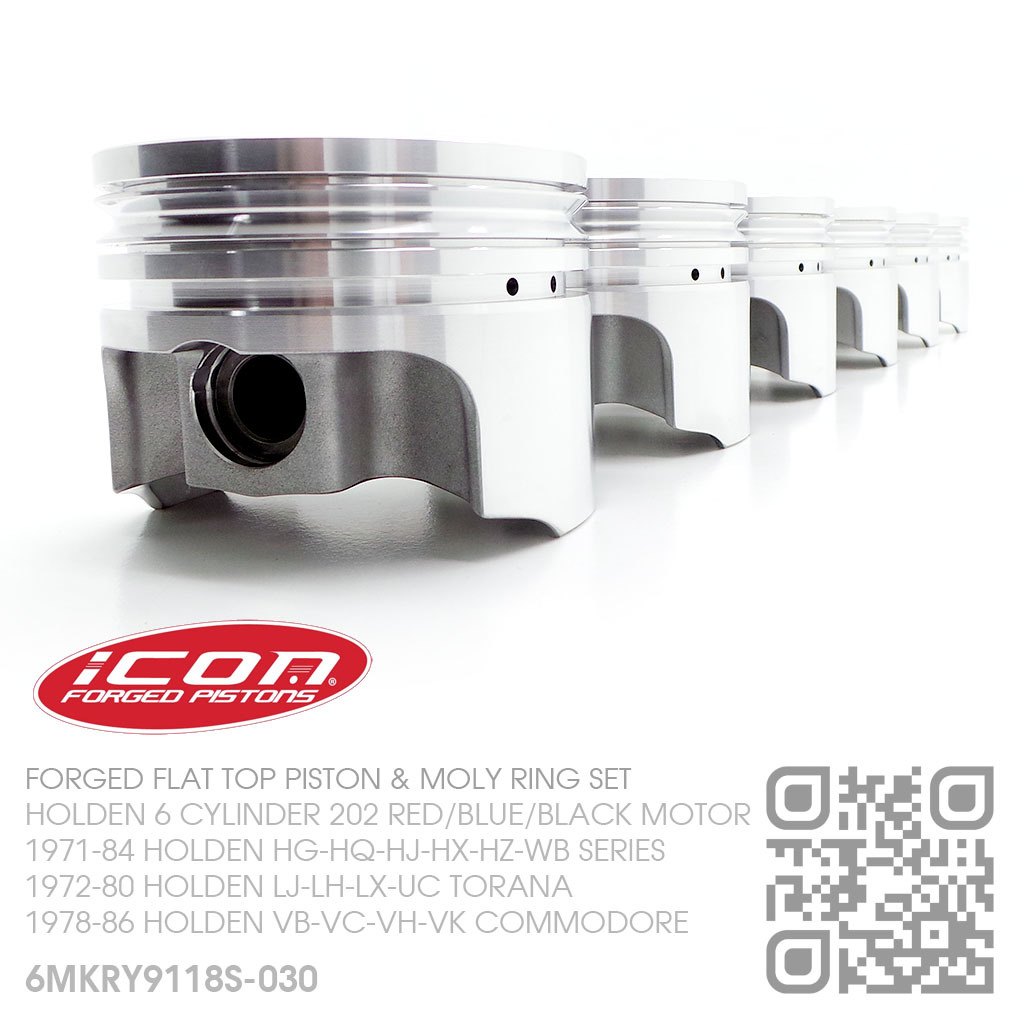

Icon Forged Pistons has put a century of piston design and experience into every Icon piston and the quality shows. Each Icon piston is forged from high-strength, heat treated, 2618 aluminium alloy. This makes Icon pistons significantly lighter than the competition, without sacrificing strength. Icon’s lightweight design allow your engine to rev quicker and get into it’s power band faster. The V-rib design promotes maximum piston cooling.

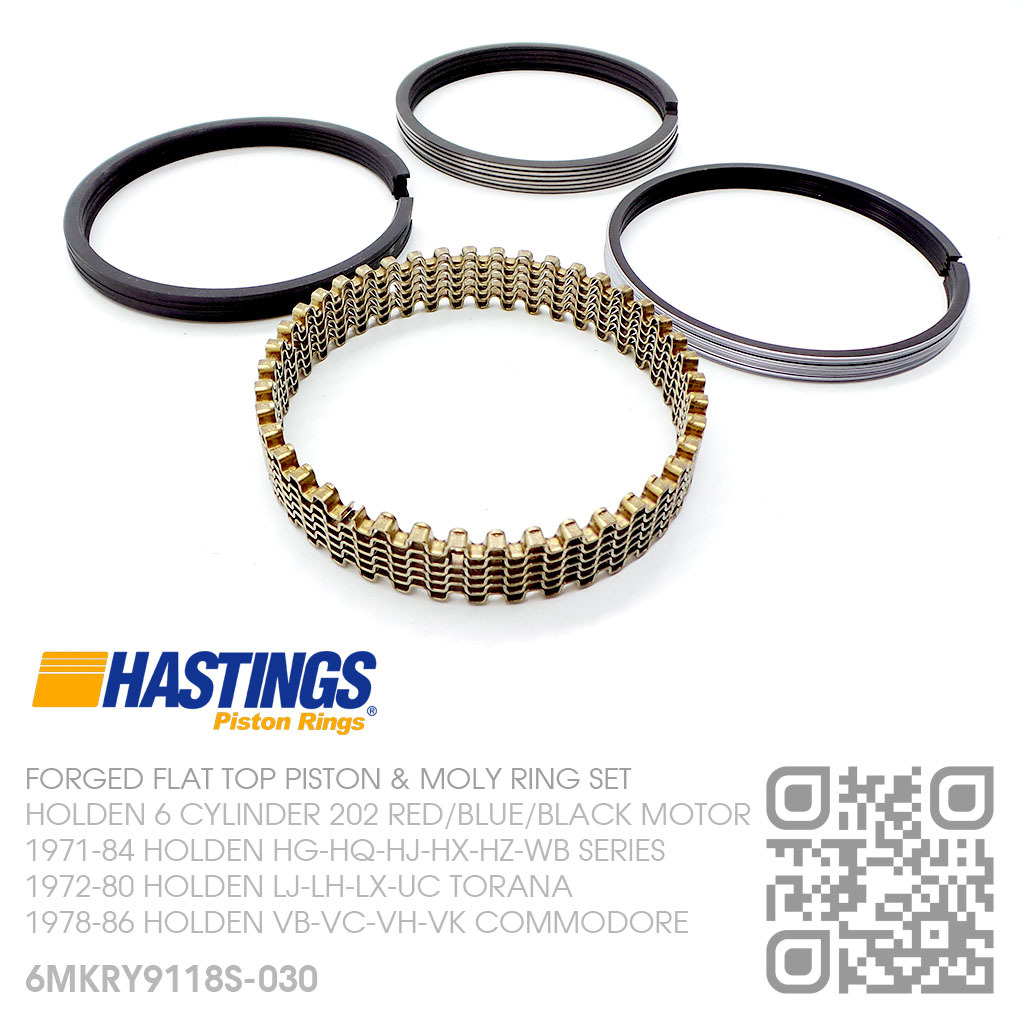

The moly piston rings are manufactured in the United States of America by Hastings leaders in Piston Ring technologies and have been in business for over a hundred years.

SPECIFICATIONS:
Bore Size: 3.625"
Size: +0.030" / 0.75mm
Head Type: FLAT TOP FORGED
Piston Type: FORGED 4032 ALLOY
Stroke: 3.250" / 82.55mm
Con Rod Length: 5.250"
Compression Height: 1.685"

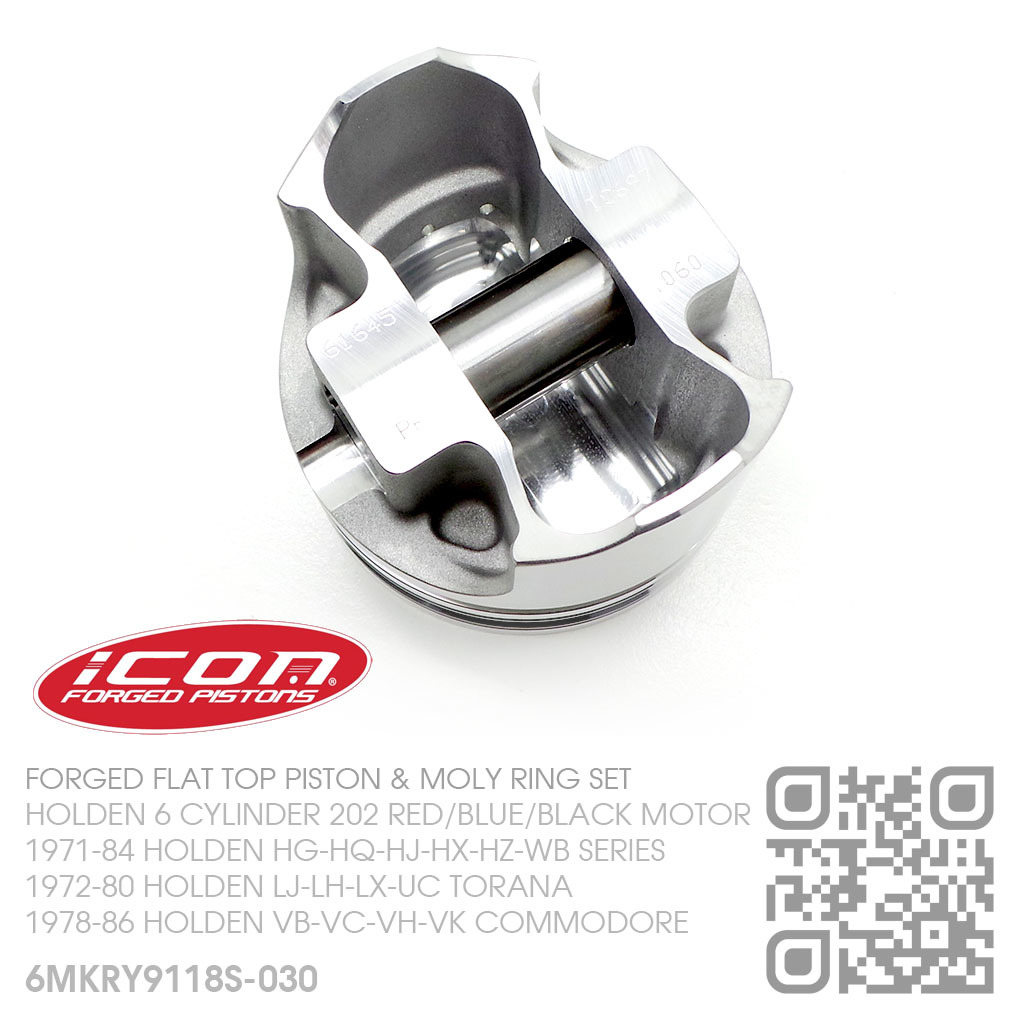

Pin Size: .866" x 2.600"
Pin Type: PRESS & FULL FLOATING
Weight: 500/116 Grams
Top Ring Width: 1/16"
2nd Ring Width: 1/16"
Oil Ring Width: 3/16"

MADE IN USA & MEXICO
