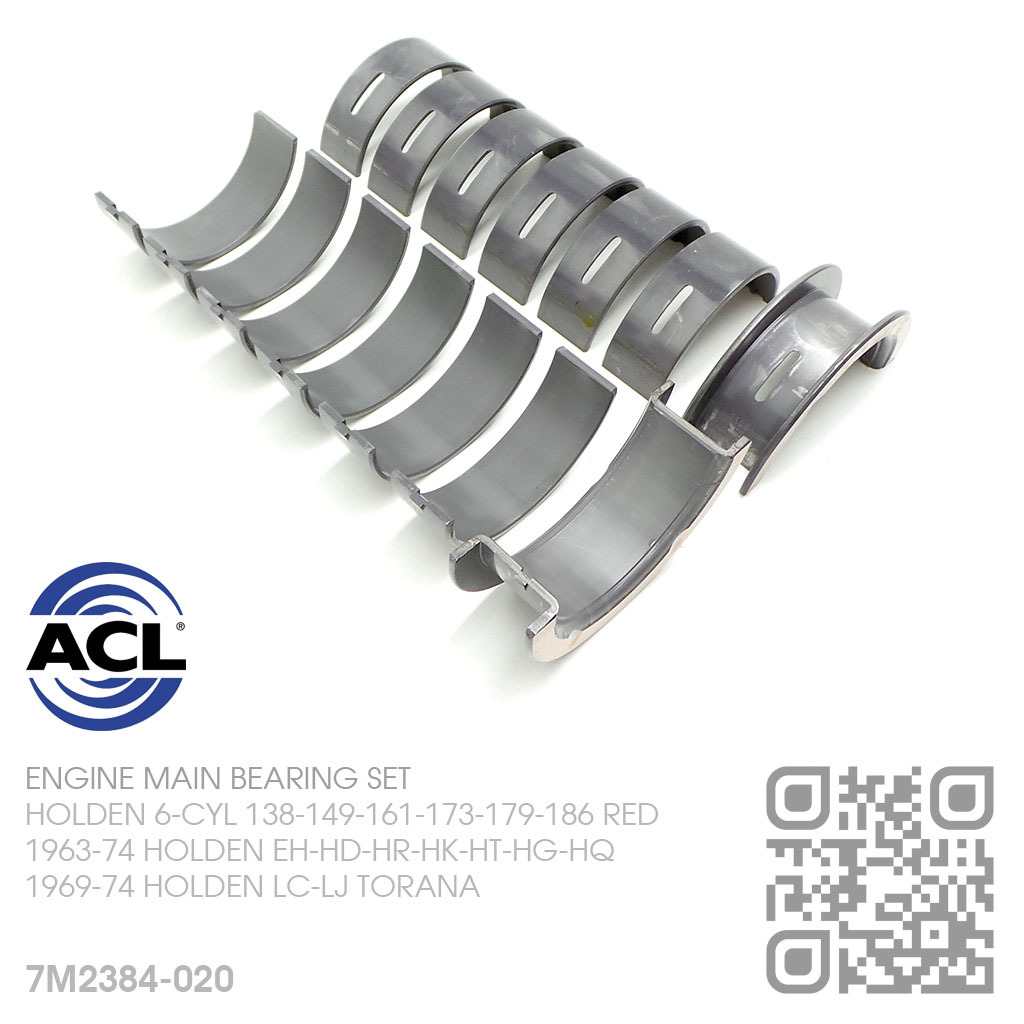

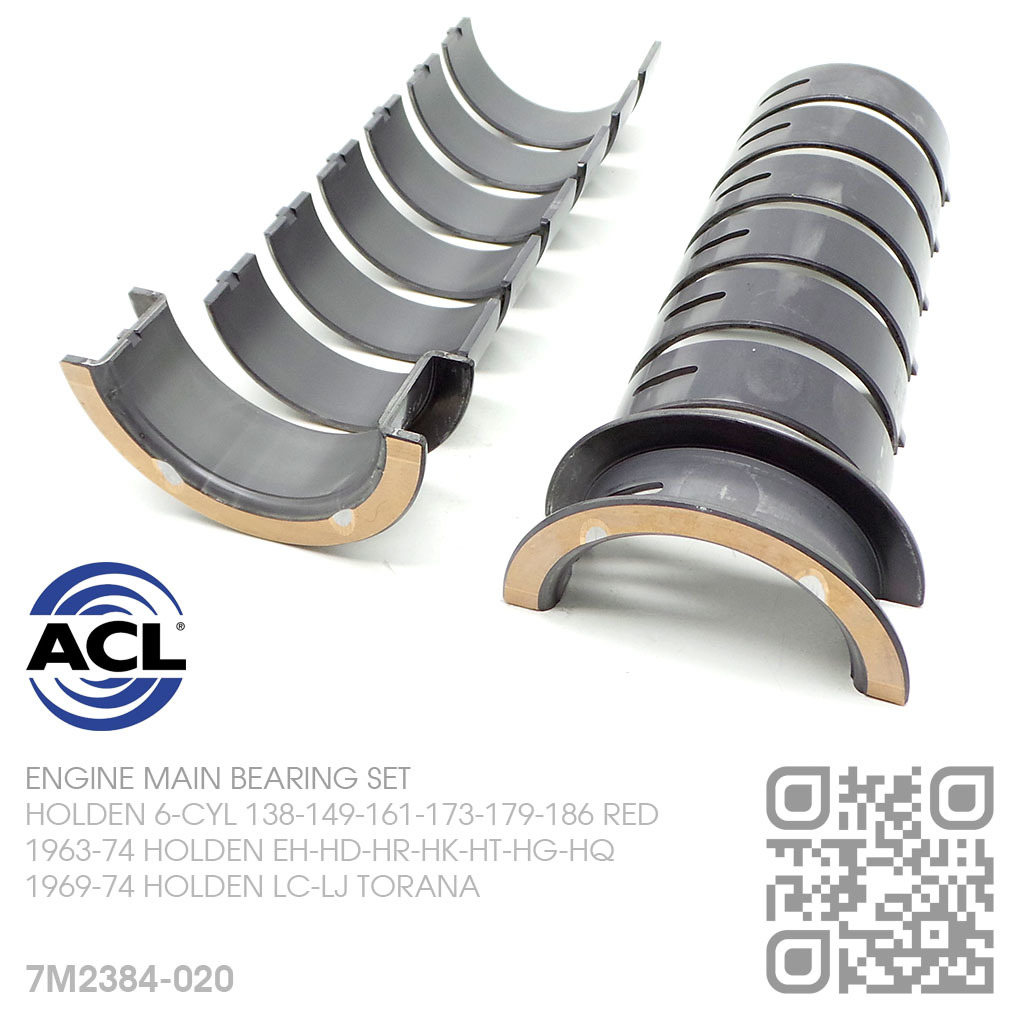

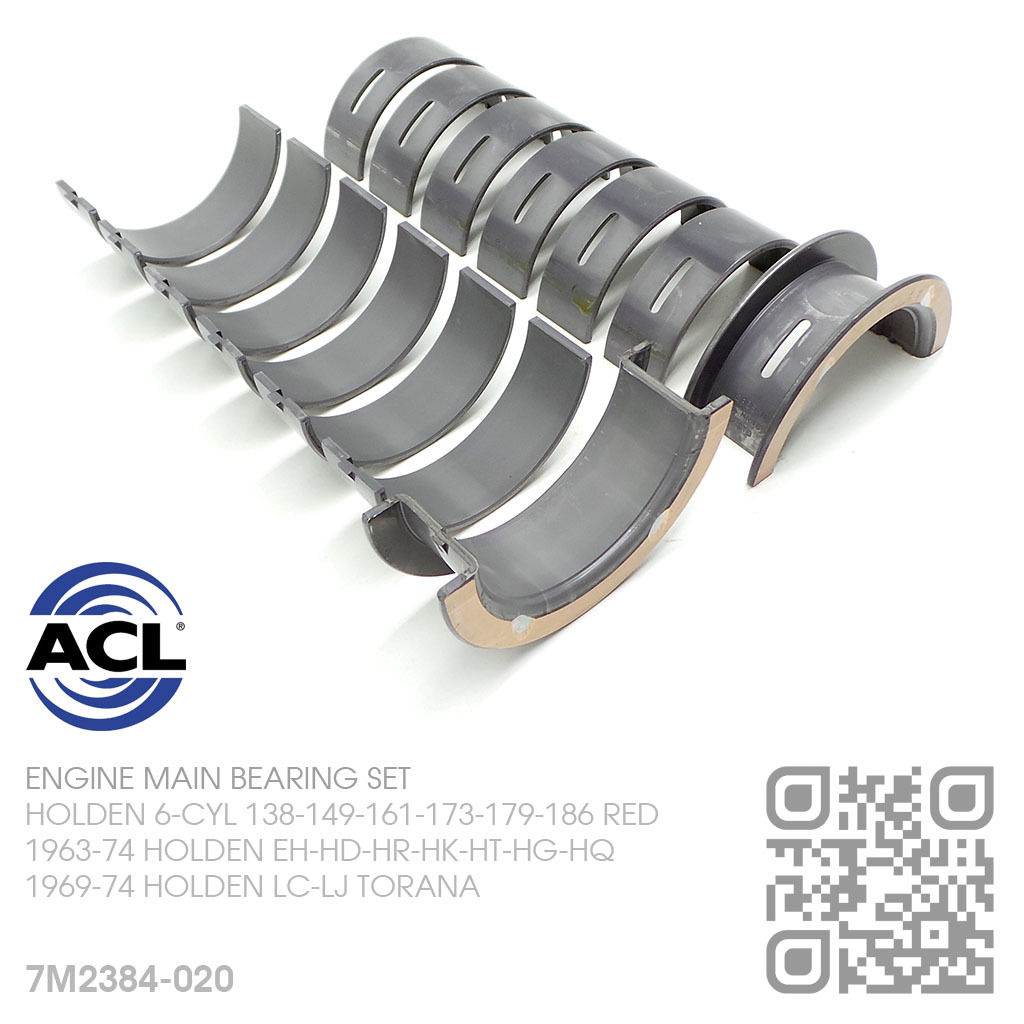

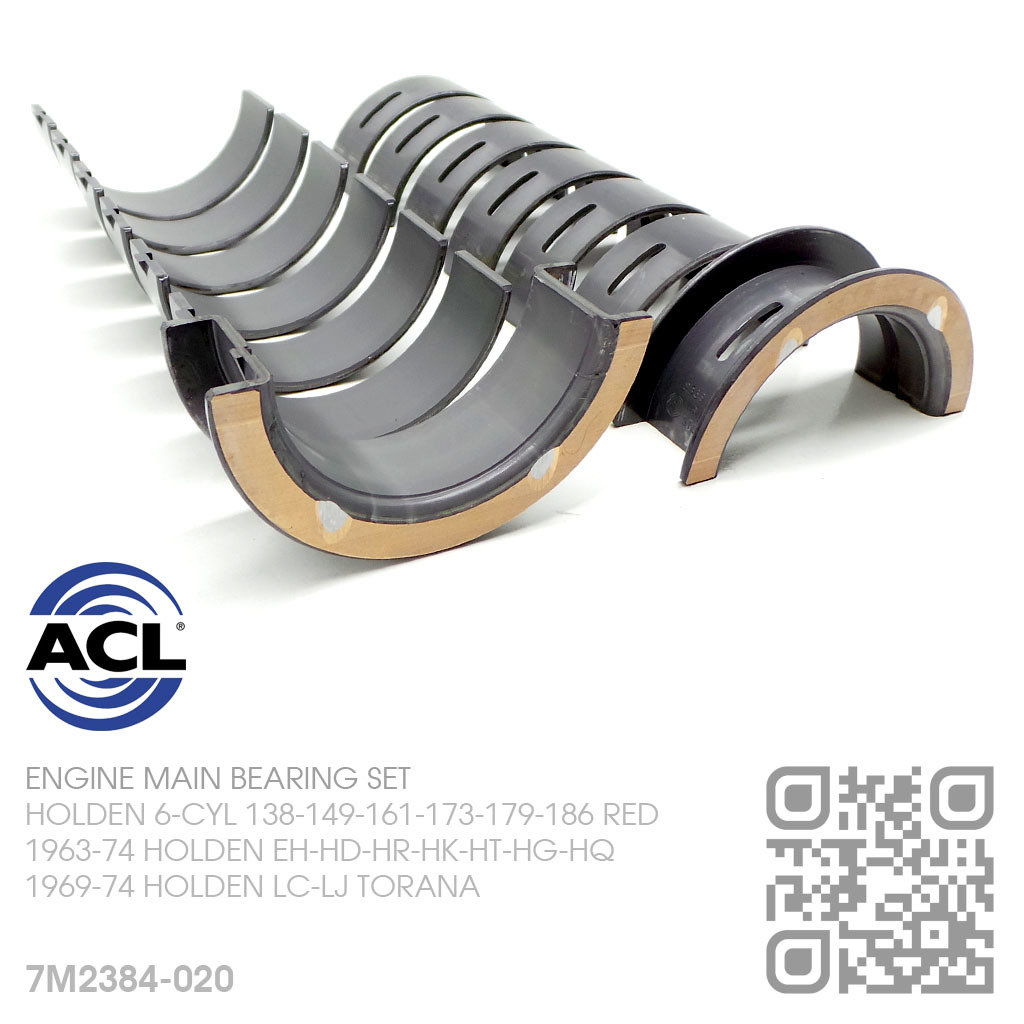

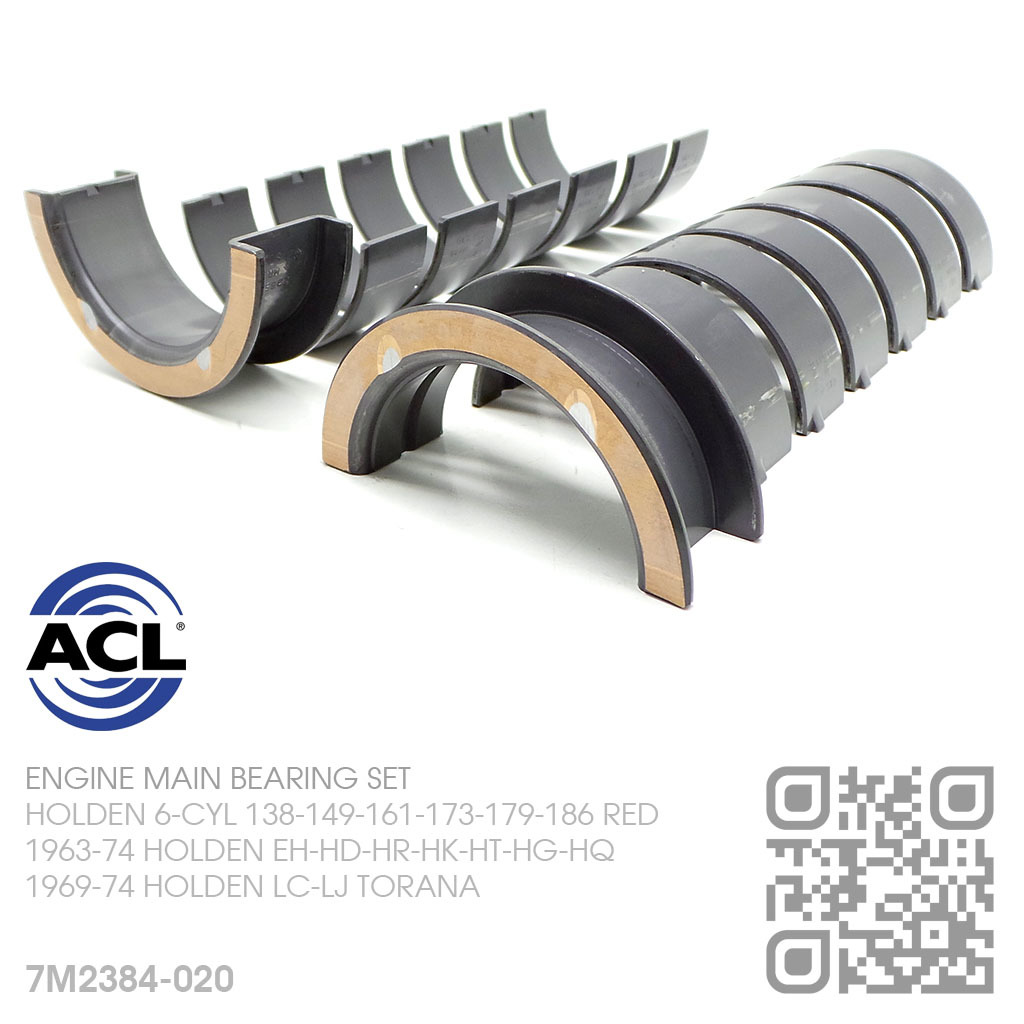

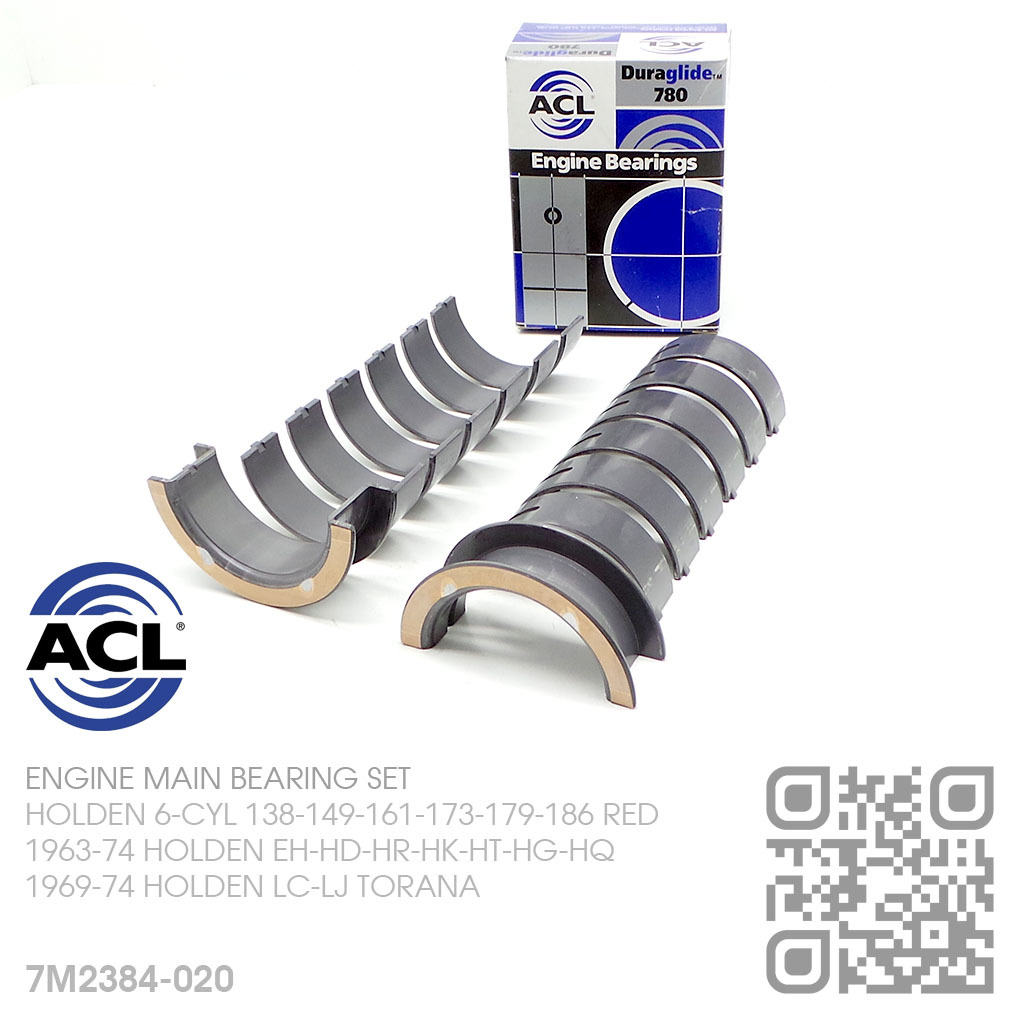

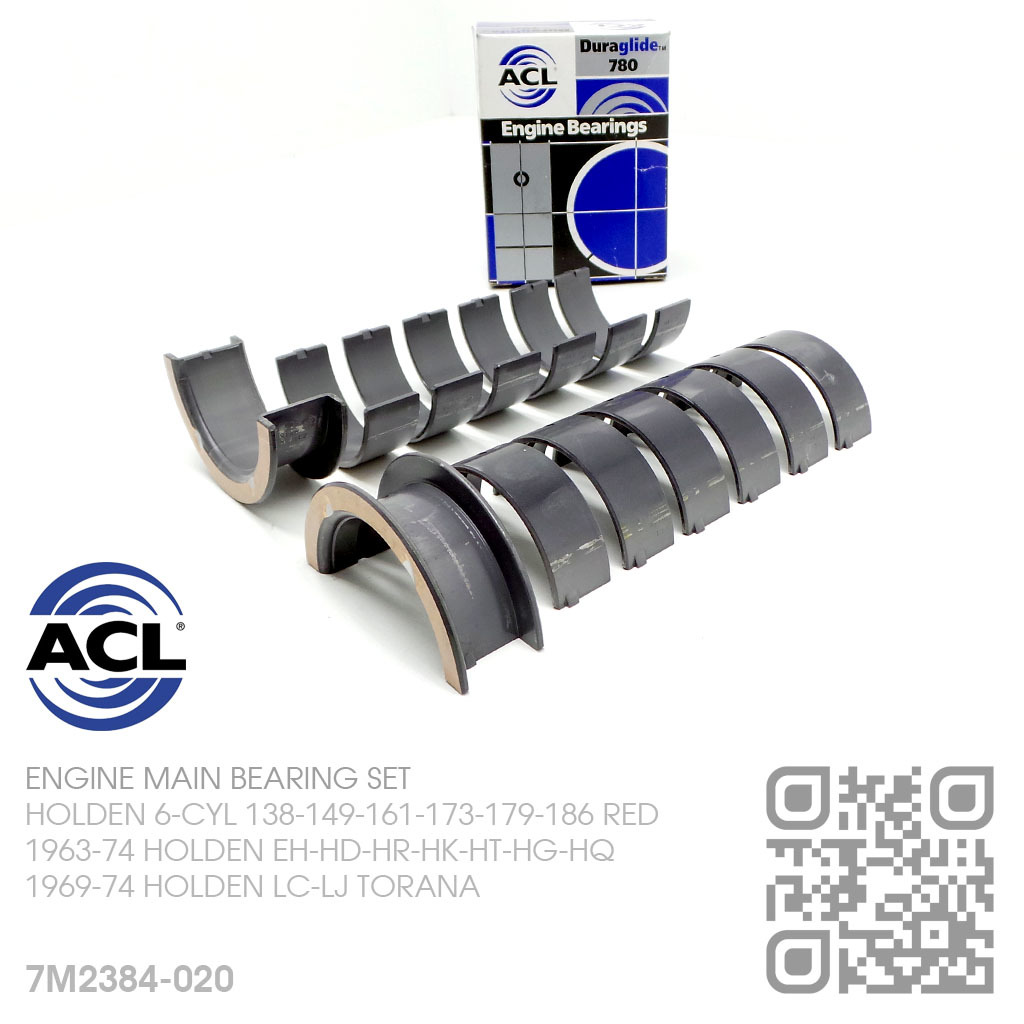

ACL DURAGLIDE MAIN BEARINGS SET -0.020" UNDERSIZE [HOLDEN 6-CYL 138-149-161-173-179-186 RED MOTOR]

ACL DURAGLIDE 780 MAIN BEARING SET
2.198" -0.020" UNDERSIZE
HOLDEN 6-CYL 138-149-161-173-179-186 RED MOTOR

08/1963-1974 HOLDEN [EH-HD-HR-HK-HT-HG-HQ SERIES]
10/1969-1974 HOLDEN [LC-LJ TORANA]

ACL Duraglide 780 Series Bearings are made from extremely high quality multi-layered materials. A steel backing to provide supporting strength for the lining with Copper-lead (Tri-Metal). These are leaded bronze alloys, and are strong and adaptable. They provide the bearing with good fatigue strength, as well as good anti-seizure properties.

For crankshaft bearings this lining is combined with a softer electroplated lead based overlay to give the bearing better conformability and improved anti-seizure tolerance. ACL Duraglide Engine Bearings are a must for your performance or stock engine.

SPECIFICATIONS:

POSITION 1,2,3,4,5,6
Min Standard Shaft Size: 2.1978" / 55.824mm
Max Standard Shaft Size: 2.1988" / 55.849mm
Min Standard Tunnel Size: 2.3906" / 60.721mm
Max Standard Tunnel Size: 2.3916" / 60.747mm
Max Wall At Crown: 0.0955" / 2.426mm
Max Overall Length: 0.8071" / 20.5mm
Min Vertical Oil Clearance: 0.0007" / 0.019mm
Max Vertical Oil Clearance: 0.0038" / 0.097mm

POSITION 7
Min Standard Shaft Size: 2.1978" / 55.824mm
Max Standard Shaft Size: 2.1988" / 55.849mm
Min Standard Tunnel Size: 2.3906" / 60.721mm
Max Standard Tunnel Size: 2.3916" / 60.747mm
Max Wall At Crown: 0.0955" / 2.426mm
Max Overall Length: 1.0091" / 25.63mm
Min Vertical Oil Clearance: 0.0007" / 0.019mm
Max Vertical Oil Clearance : 0.0038" / 0.097mm

Material: F780 (TRI-METAL)
Series: ACL DURAGLIDE 780

The Main Bearing Sets are manufactured in Tasmania (Australia) by Leaders in Bearing technologies ACL Bearing Company. ACL is Australia's premier manufacturer of precision engine bearings and has been a Original Equipment Manufacturer to Holden.

REPLACES HOLDEN PART# 7430407

SPECIAL NOTE:
CRANKSHAFT MACHINED -0.020" UNDERSIZE

MADE IN AUSTRALIA
