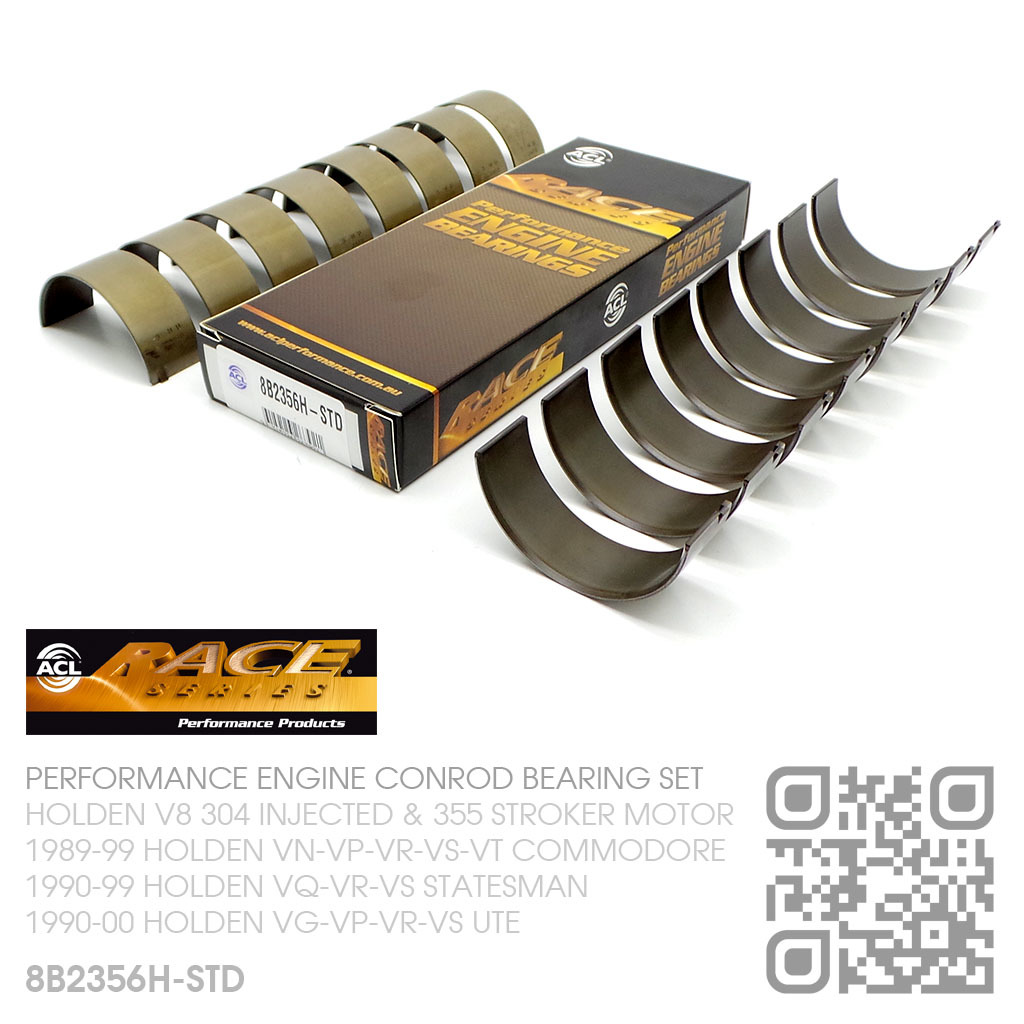

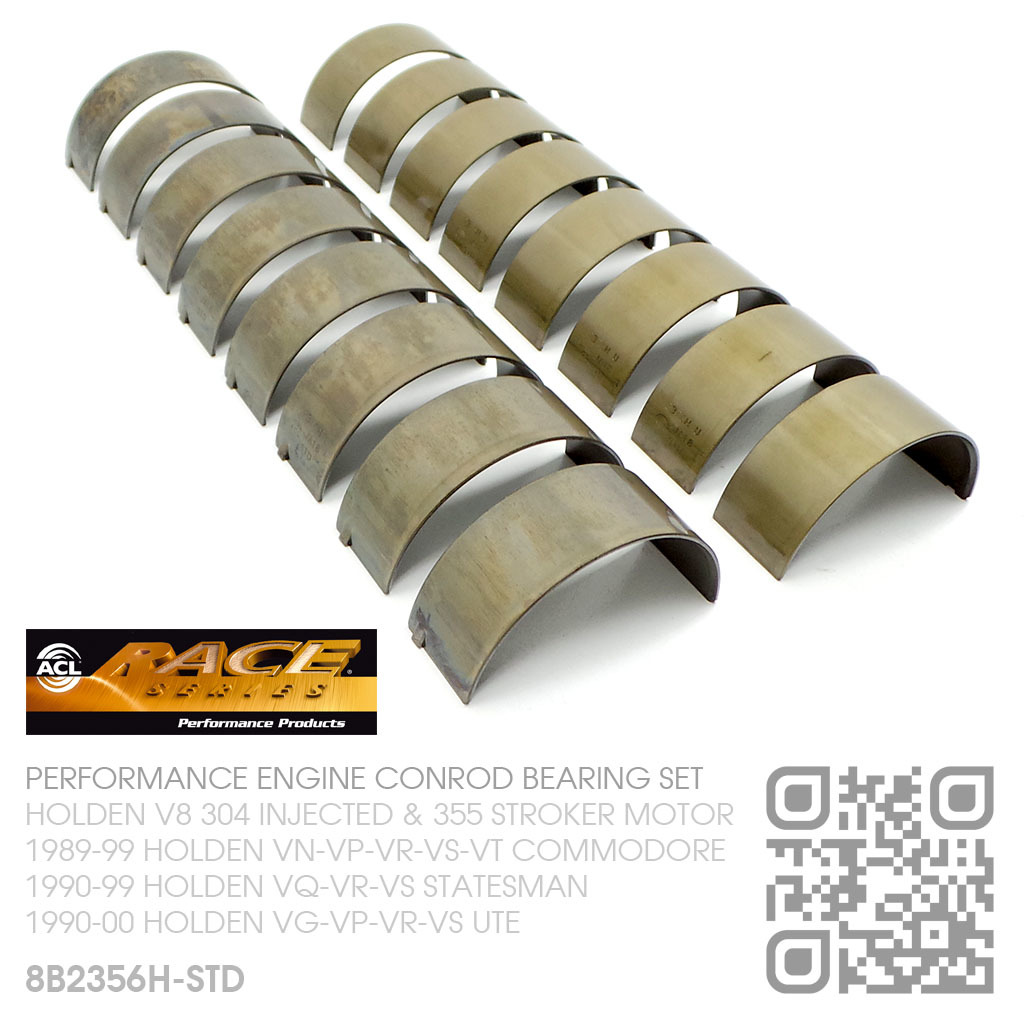

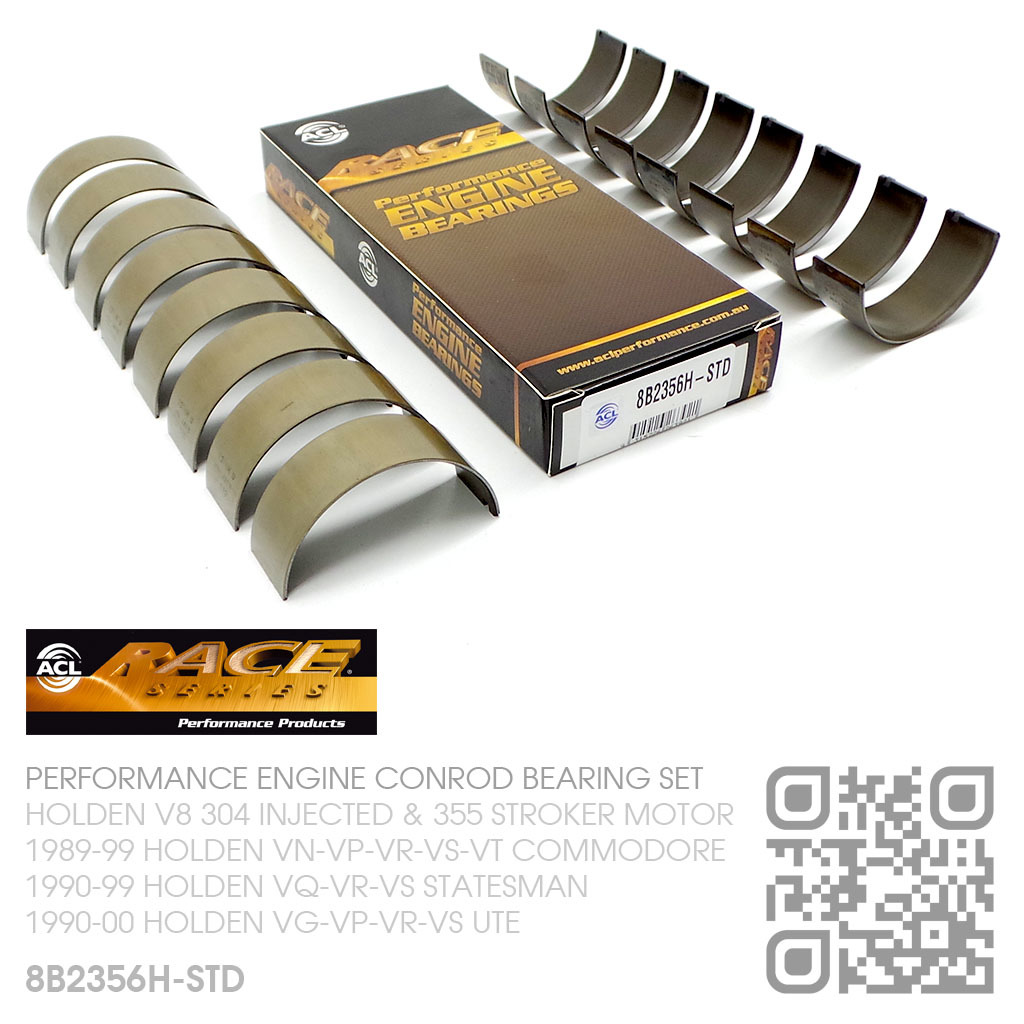

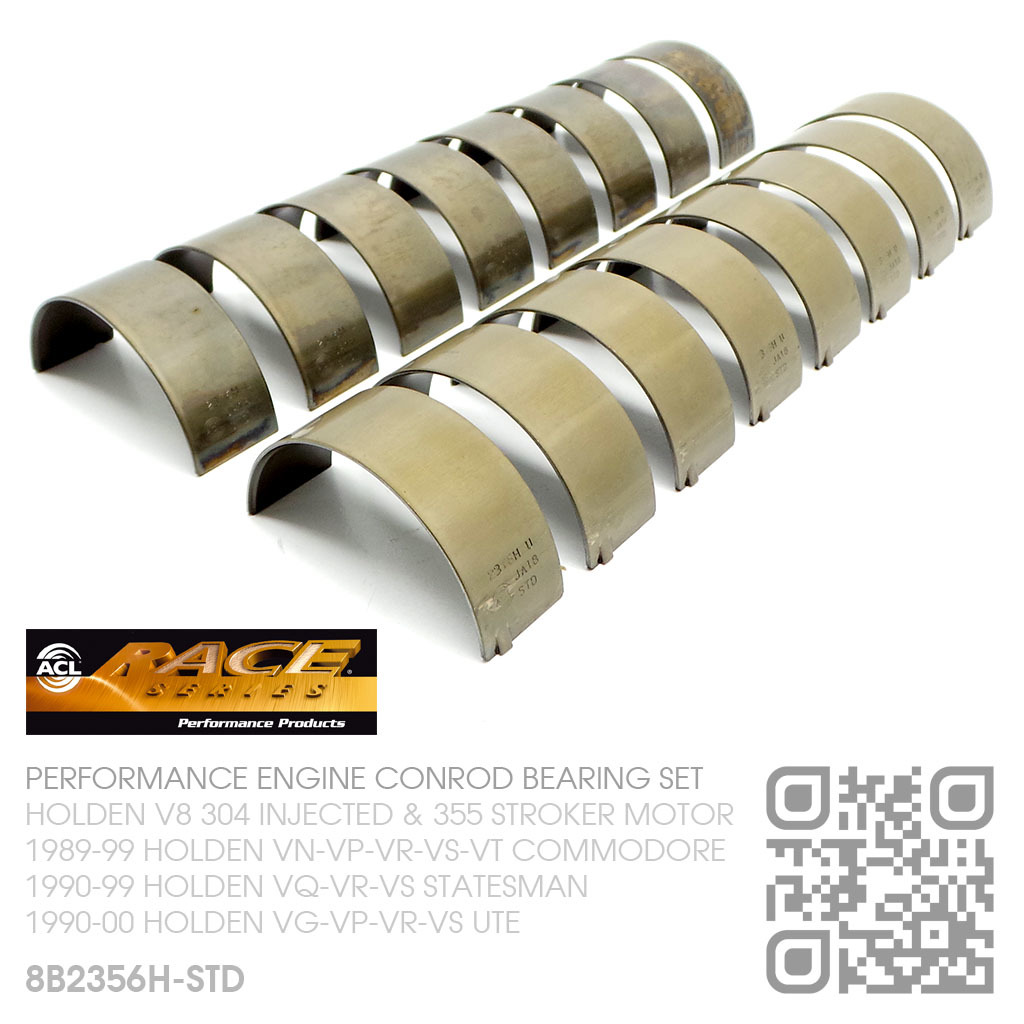

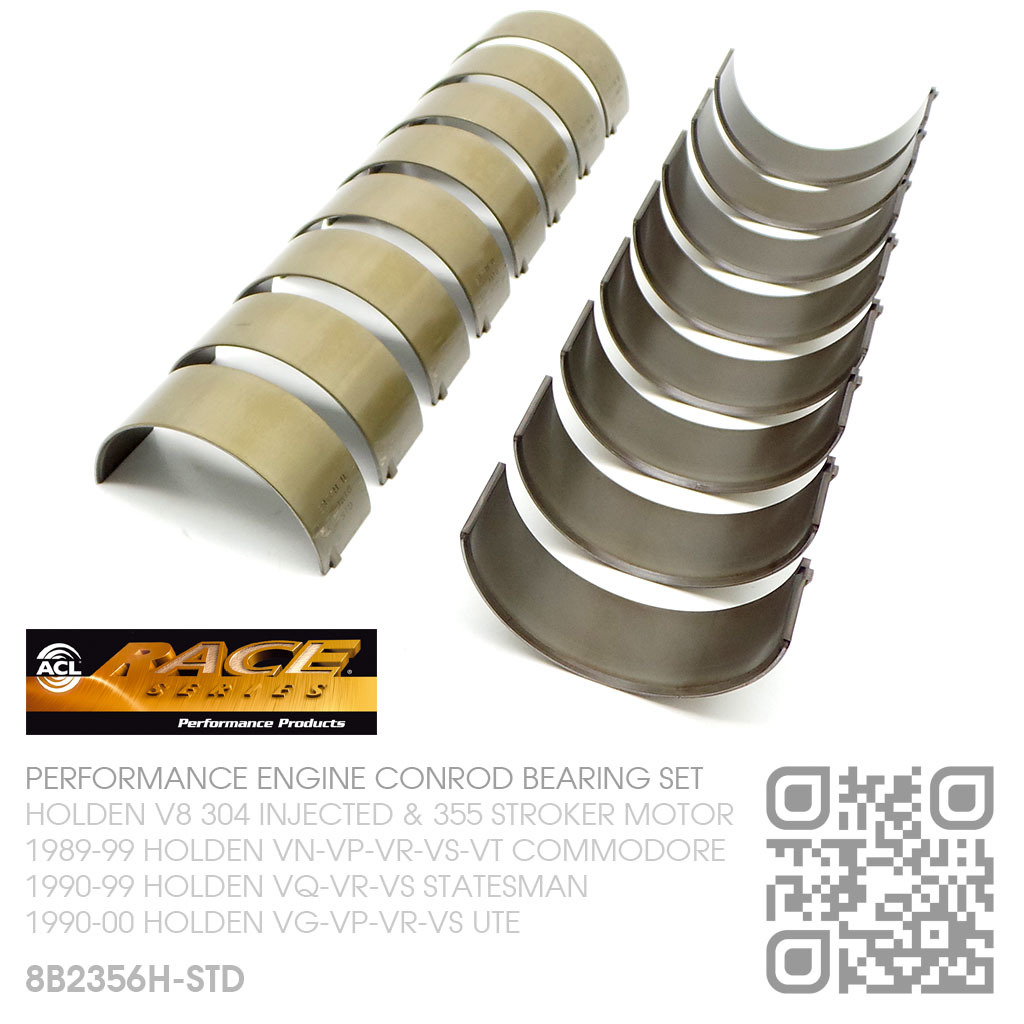

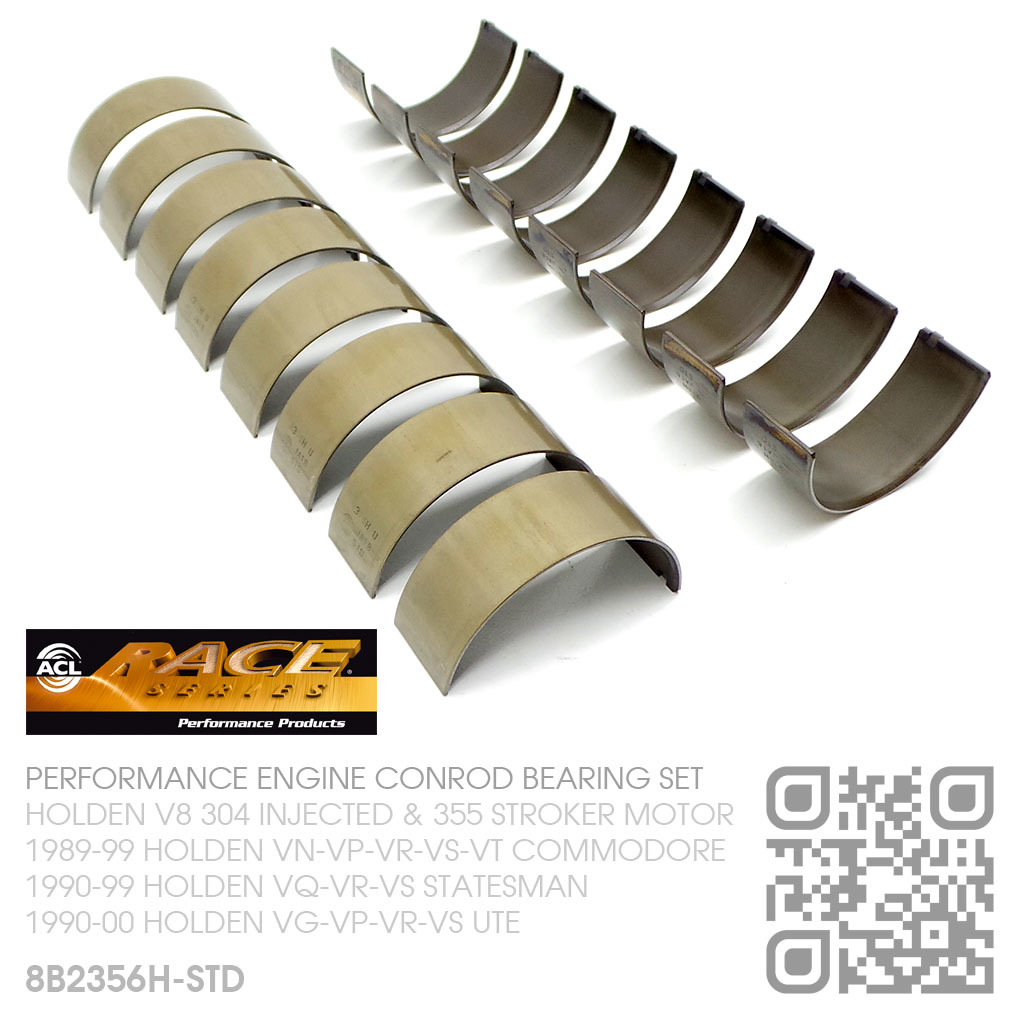

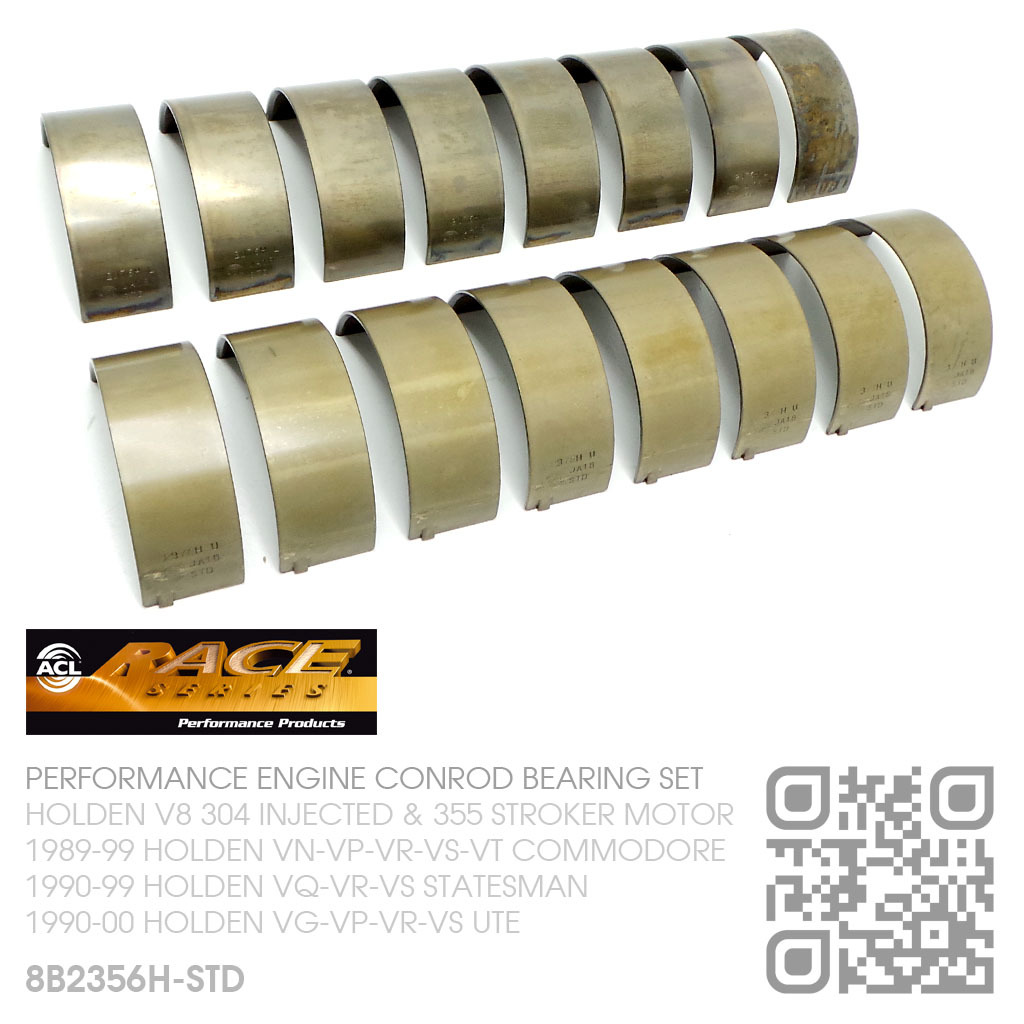

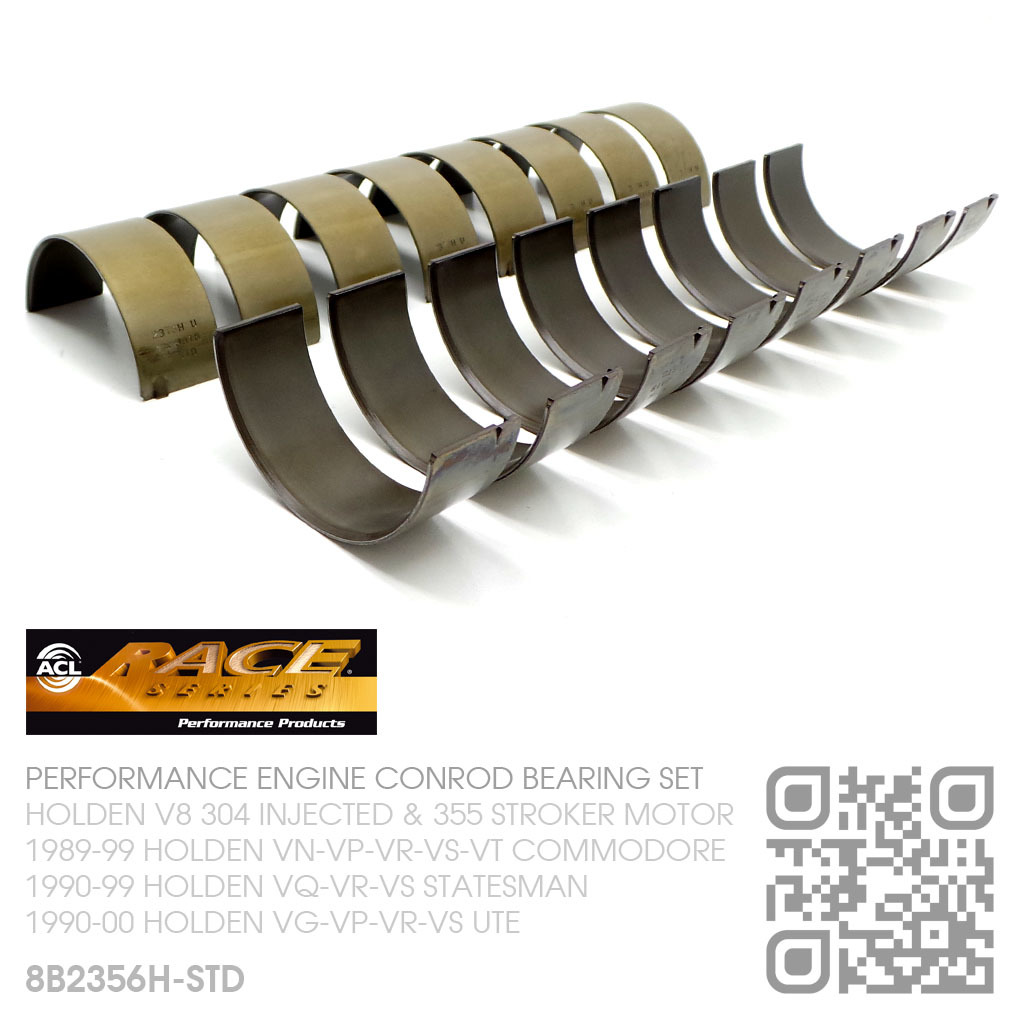

ACL RACE SERIES PERFORMANCE CONROD BEARING SET STANDARD SIZE [HOLDEN V8 304 INJECTED 5.0L & 355 STROKER 5.7L MOTOR]

ACL RACE SERIES PERFORMANCE CONROD (BIG END) BEARING SET
STANDARD SIZE
LB9 HOLDEN V8 304 INJECTED 5.0L MOTOR
L98 HOLDEN V8 355 STROKER 5.7L MOTOR (348ci)

03/1989-1999 HOLDEN [VN-VP-VR-VS-VT COMMODORE]
03/1990-1999 HOLDEN [VQ-VR-VS STATESMAN/CAPRICE]
09/1990-2000 HOLDEN [VG-VP-VR-VS UTE]

High performance driving demands that you use the best parts. So rely on ACL's Race Series Products to perform to the exacting durability standards you expect. They provide the dependability it takes to hold up under higher RPM conditions.

The unique combination of design, metallurgy and engineering comes together to deliver what drivers expect from high performance parts. ACL Race Series Engine Bearings are a must for your performance engine.

SPECIFICATIONS:
Min Standard Shaft Size: 2.1240"/ 53.950mm
Max Standard Shaft Size: 2.1250" / 53.975mm
Min Standard Tunnel Size: 2.2497" / 57.142mm
Max Standard Tunnel Size: 2.2504" / 57.160mm
Max Wall At Crown: 0.0619" / 1.572mm
Max Overall Length: 0.7780" / 19.750mm
Wall Size Tolerance: 0.0003" / 0.0008mm
Material: F781 (TRI-METAL)
Series: ACL RACE

The Conrod Bearing Sets are manufactured in Tasmania (Australia) by Leaders in Bearing technologies ACL Bearing Company. ACL is Australia's premier manufacturer of precision engine bearings and has been a Original Equipment Manufacturer to Holden.

REPLACES HOLDEN PART# 2806399

SPECIAL NOTE:
CRANKSHAFT CONNECTING ROD JOURNAL IS STANDARD SIZE

MADE IN AUSTRALIA
