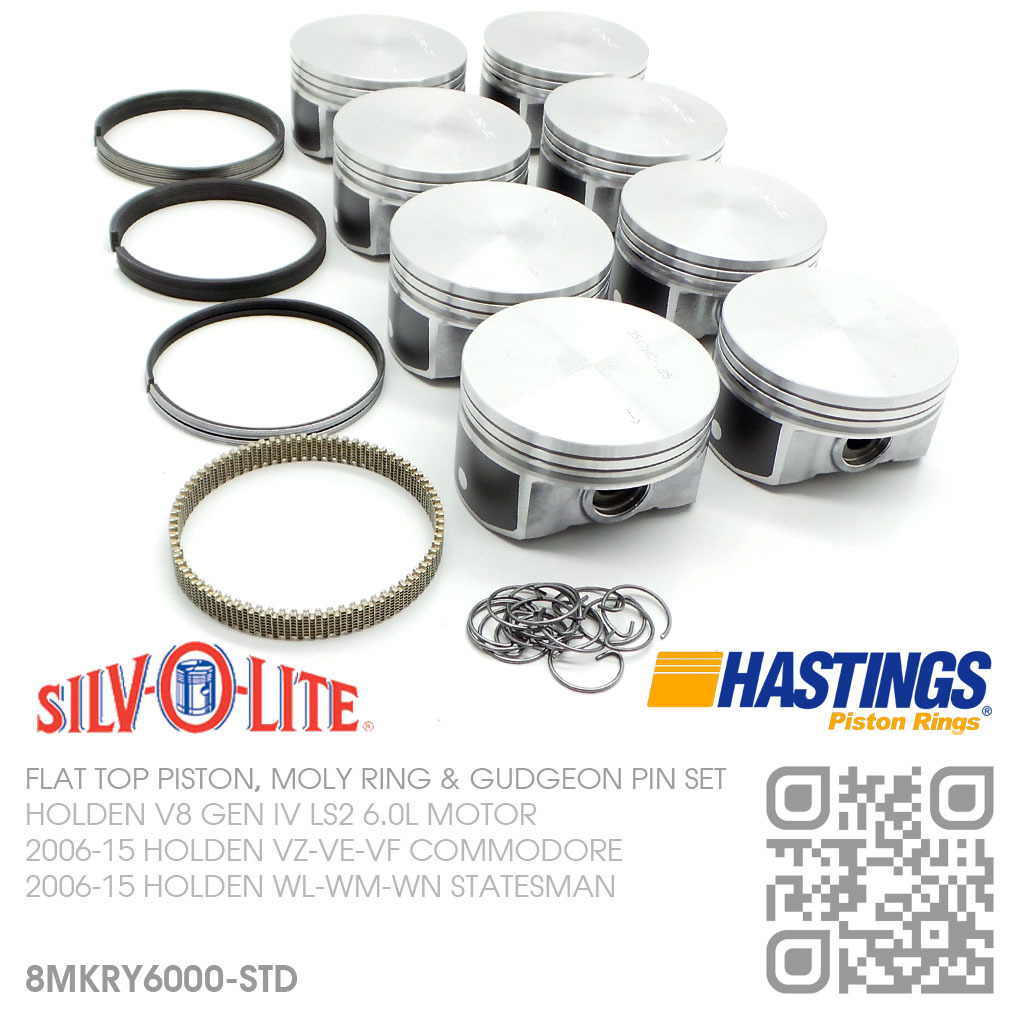

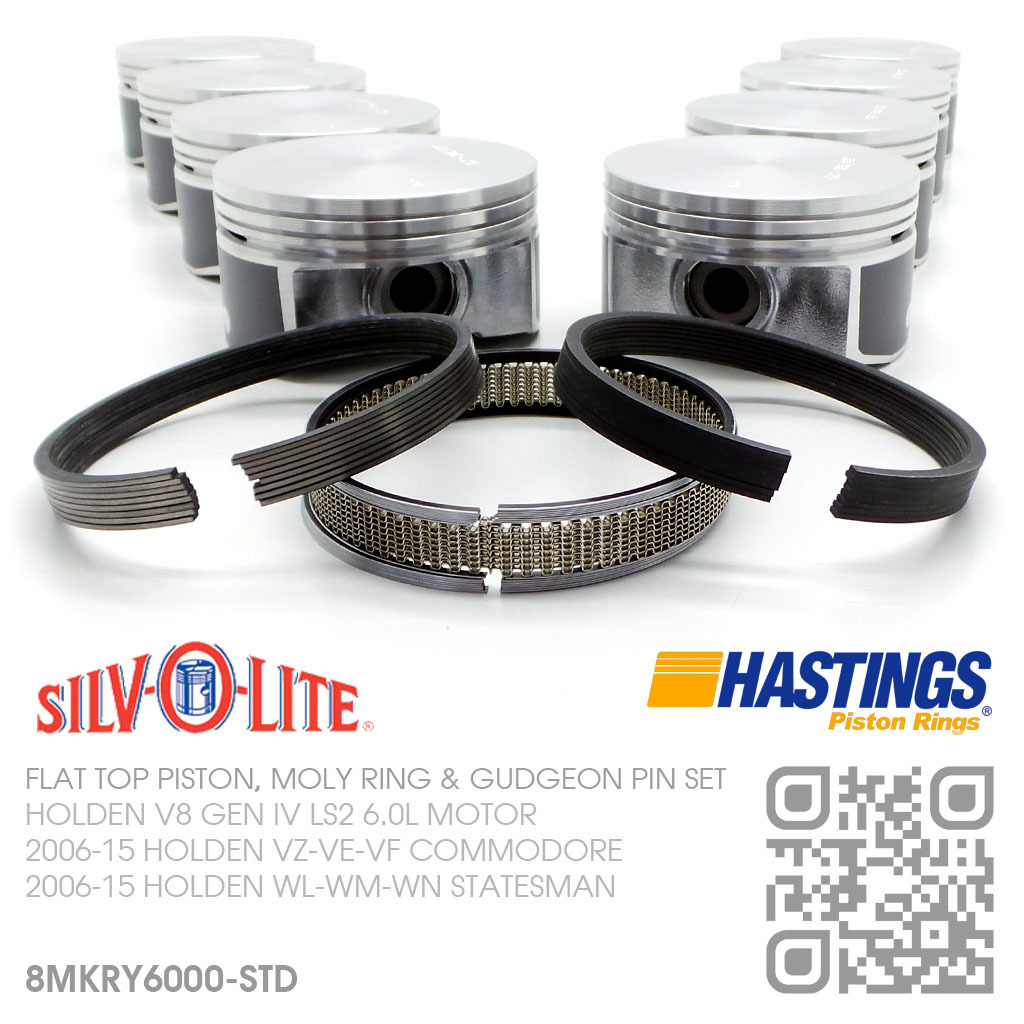

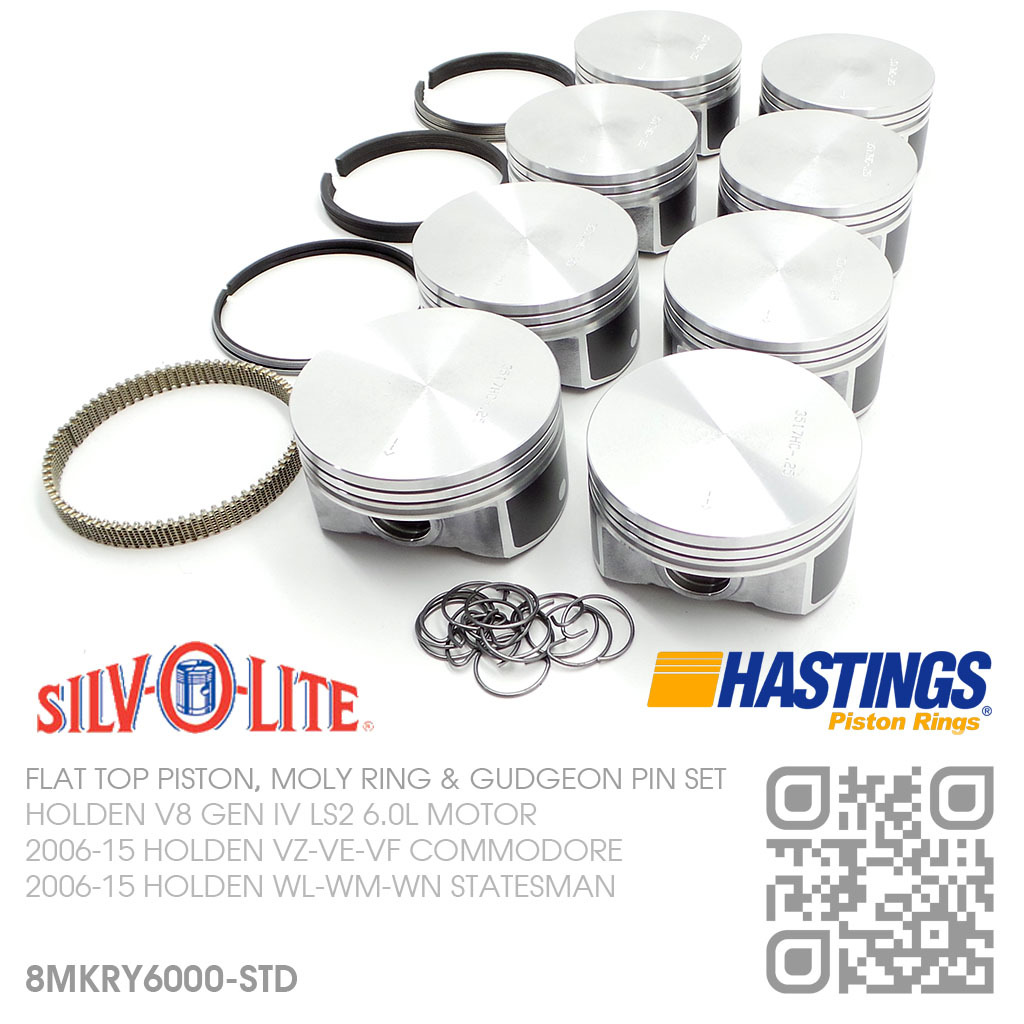

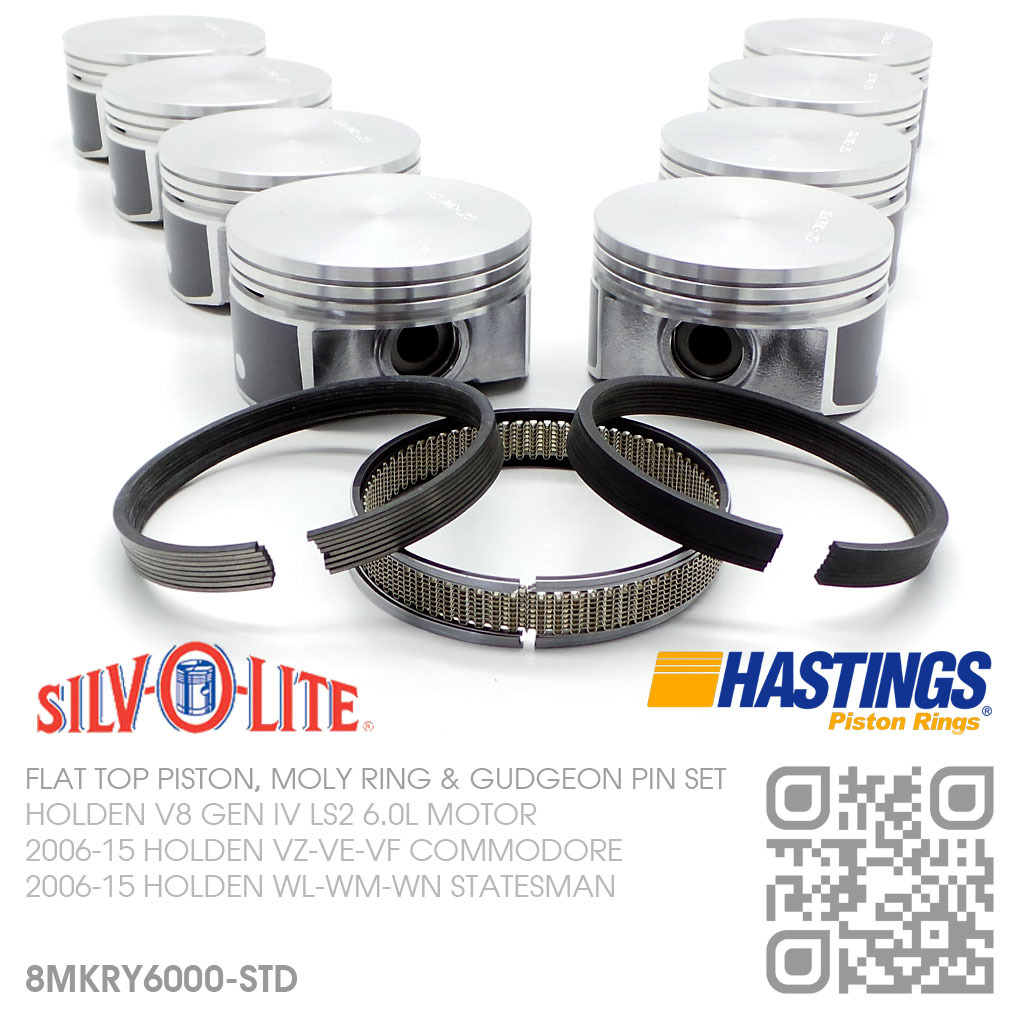

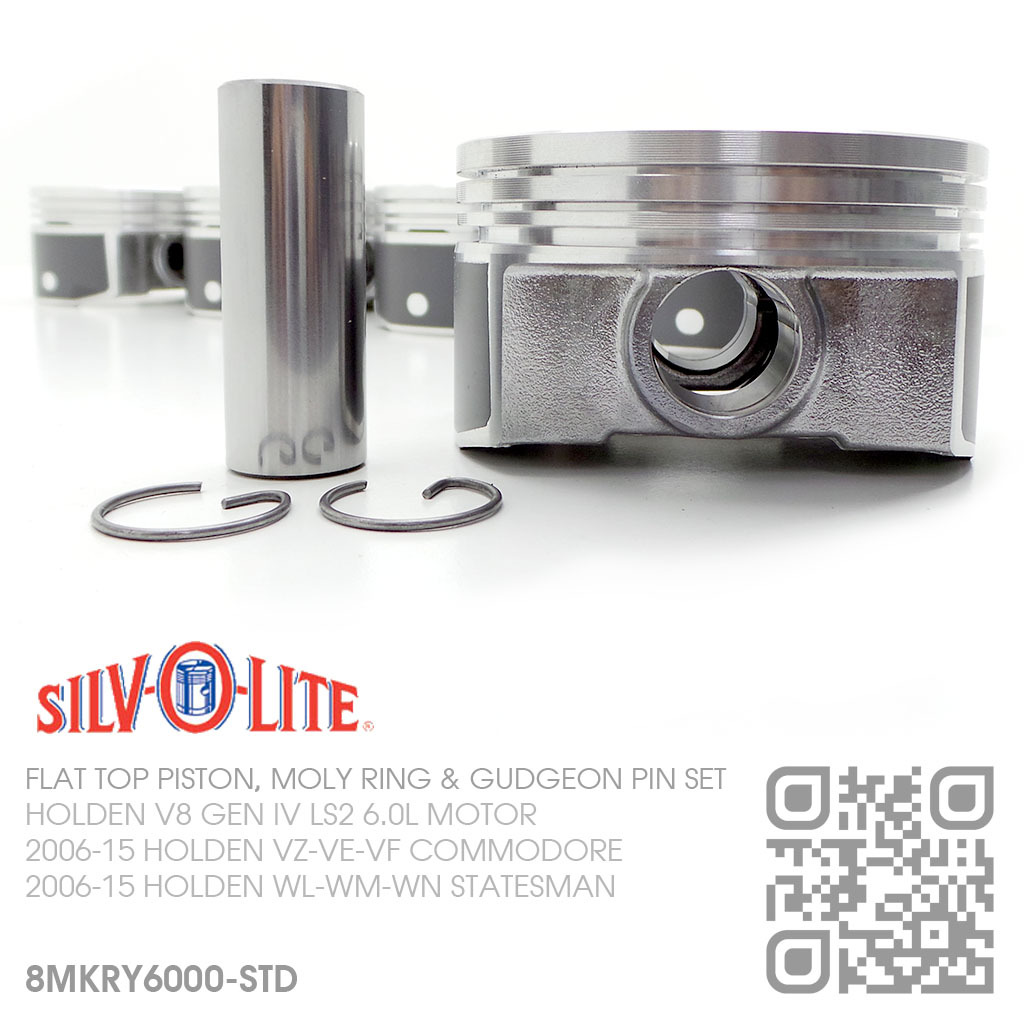

SILVOLITE LS2 STD FLAT TOP PISTONS & HASTINGS MOLY RINGS [HOLDEN V8 GEN IV LS2 6.0L MOTOR]

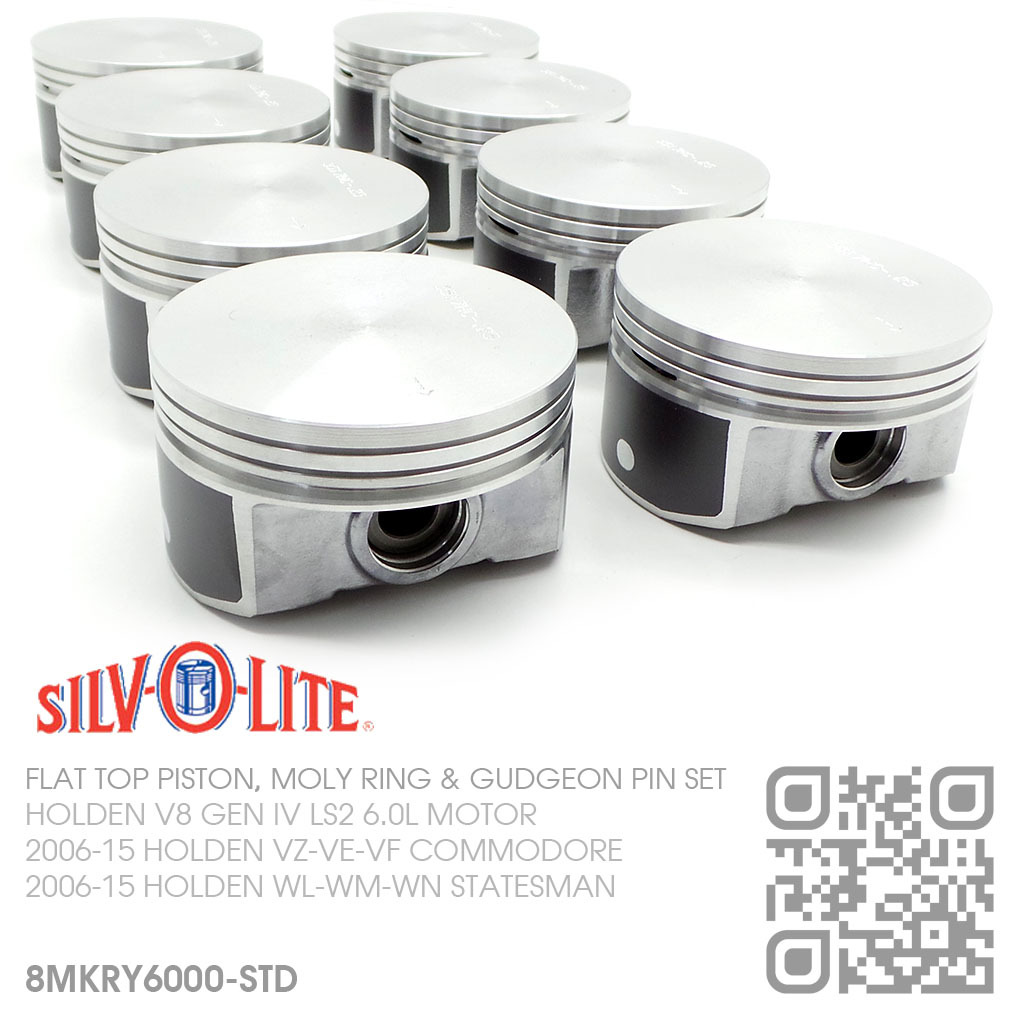

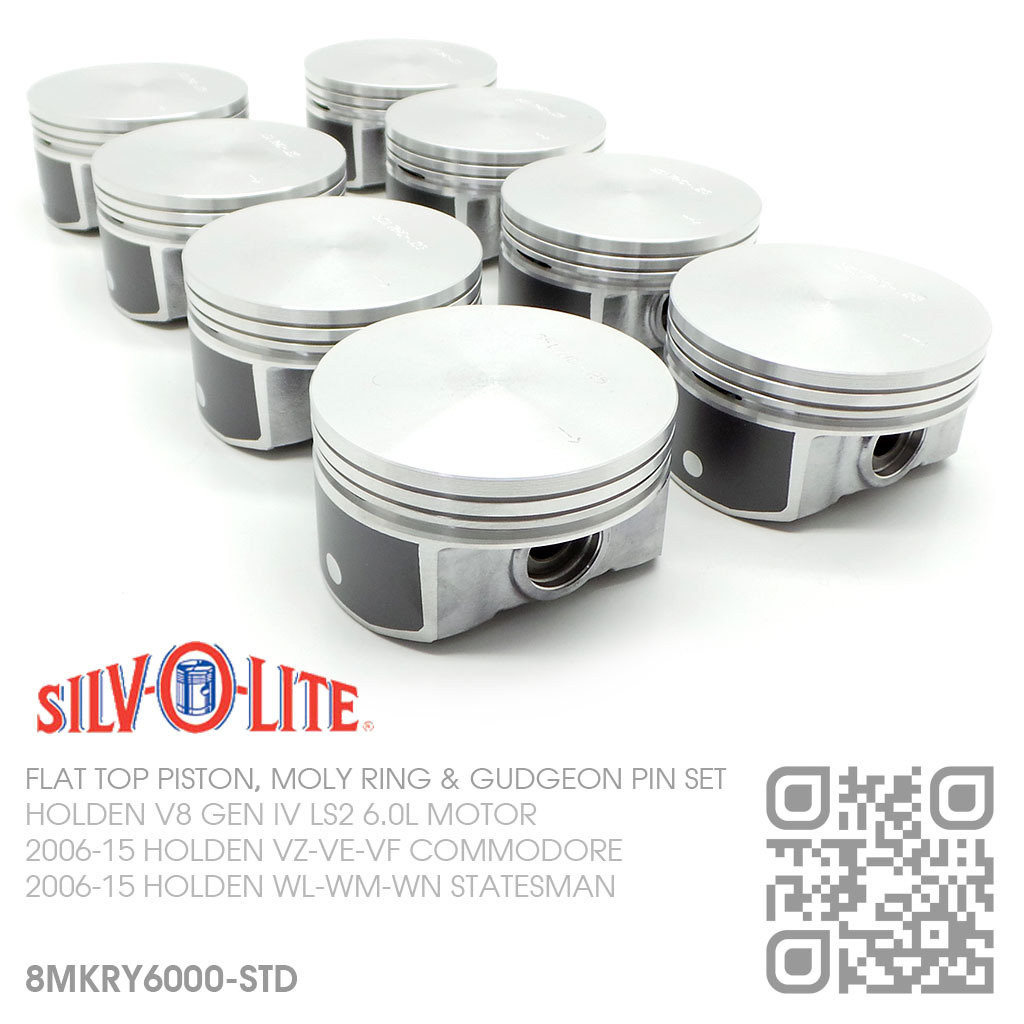

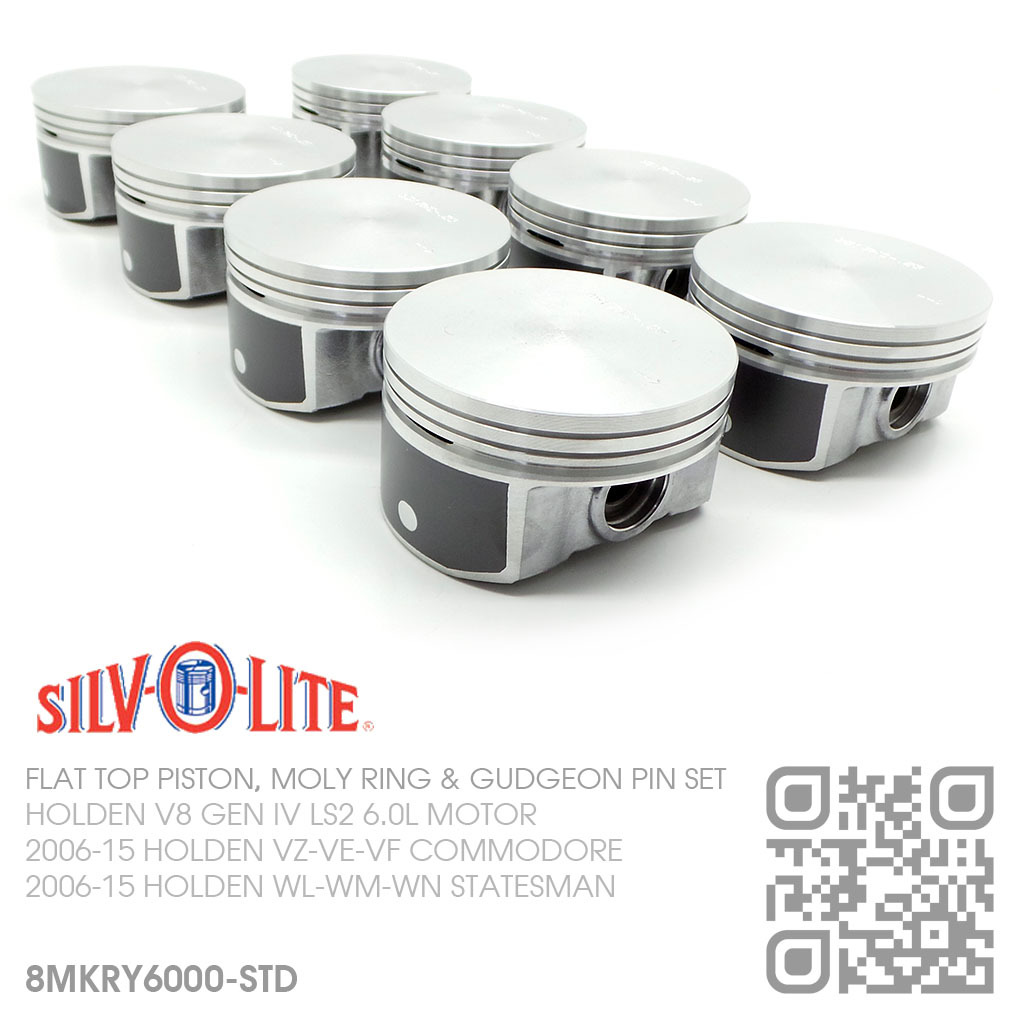

STANDARD SIZE SILVOLITE PERFORMANCE FLAT TOP PISTONS
FULL FLOATING PIN WITH COATED SKIRT &
HASTINGS MOLY RING SET
L98, L76 & L77 HOLDEN V8 GEN IV LS2 6.0L MOTOR

02/2006-09/2015 HOLDEN [VZ-VE-VF COMMODORE]
02/2006-09/2015 HOLDEN [VZ-VE-VF UTE]
09/2010-09/2015 HOLDEN [VE-VF SPORTWAGON]
02/2006-09/2015 HOLDEN [WL-WM-WN STATESMAN/CAPRICE]

The High Performance Flat Top Pistons, Moly Piston Rings and Gudgeon Pins are made to the highest standard and exceed original manufacturers specifications for longevity, smooth operation and maximum performance.

The pistons are manufactured by Silvolite, which had being making pistons since 1922. The moly piston rings are manufactured in the United States of America by Hastings leaders in Piston Ring technologies and have been in business for over a hundred years.

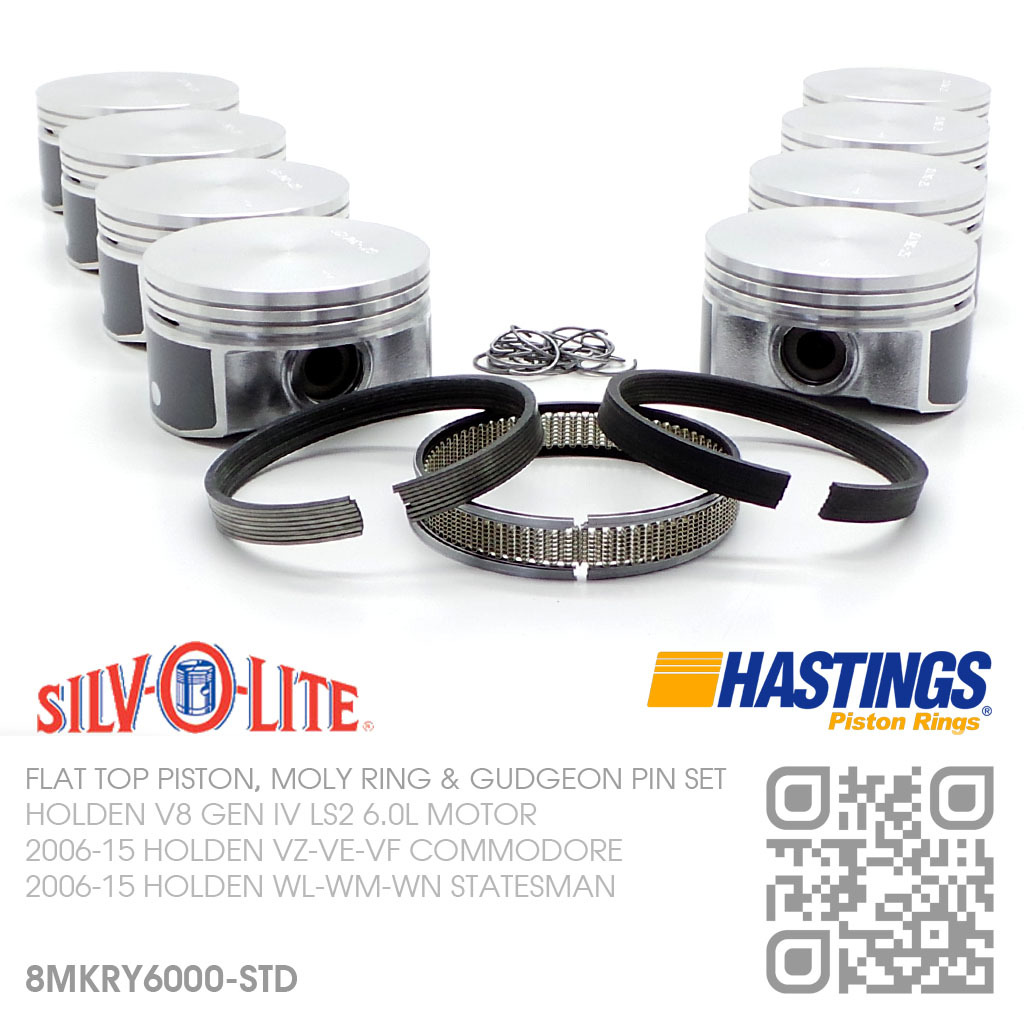

INCLUDES:

• SILVOLITE FLAT TOP PISTON WITH COATED SKIT (8)

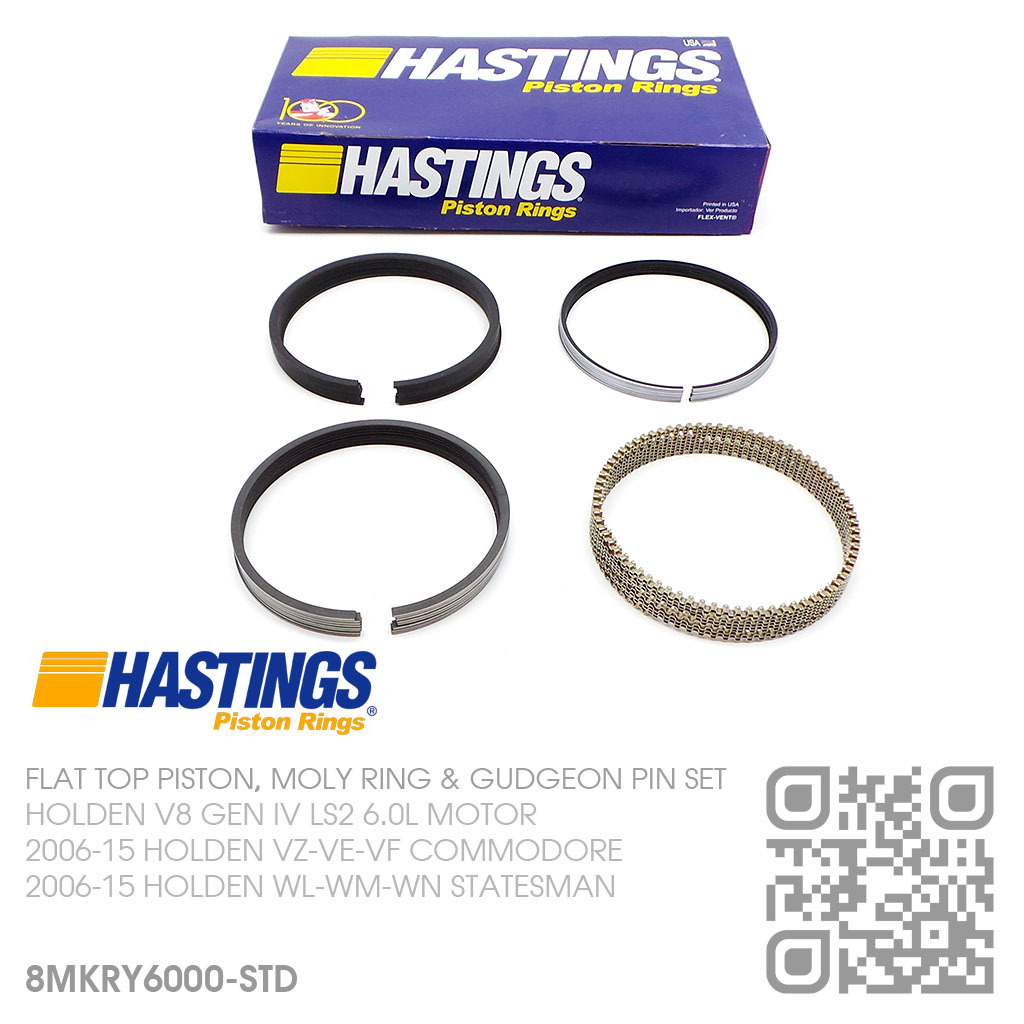

• HASTINGS MOLY PISTON RING (SET)
• SILVOLITE FULL FLOATING GUDGEON PIN (8)
• SILVOLITE GUDGEON PIN RETAINER (16)

SPECIFICATIONS:
Bore Size: 101.60mm / 4.000"
Size: STANDARD
Head Type: FLAT TOP WITH COATED SKIRT
Piston Type: CAST HYPEREUTECTIC
Length: 57.65mm
Compression Height: 33.73mm
Pin Size: 23.94mm x 65.02mm
Pin Type: FULL FLOATING
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 3.00mm

SPECIAL NOTE:
101.60mm / 4.000" ENGINE BLOCK BORE SIZE (STANDARD SIZE)

MADE IN USA & MEXICO
