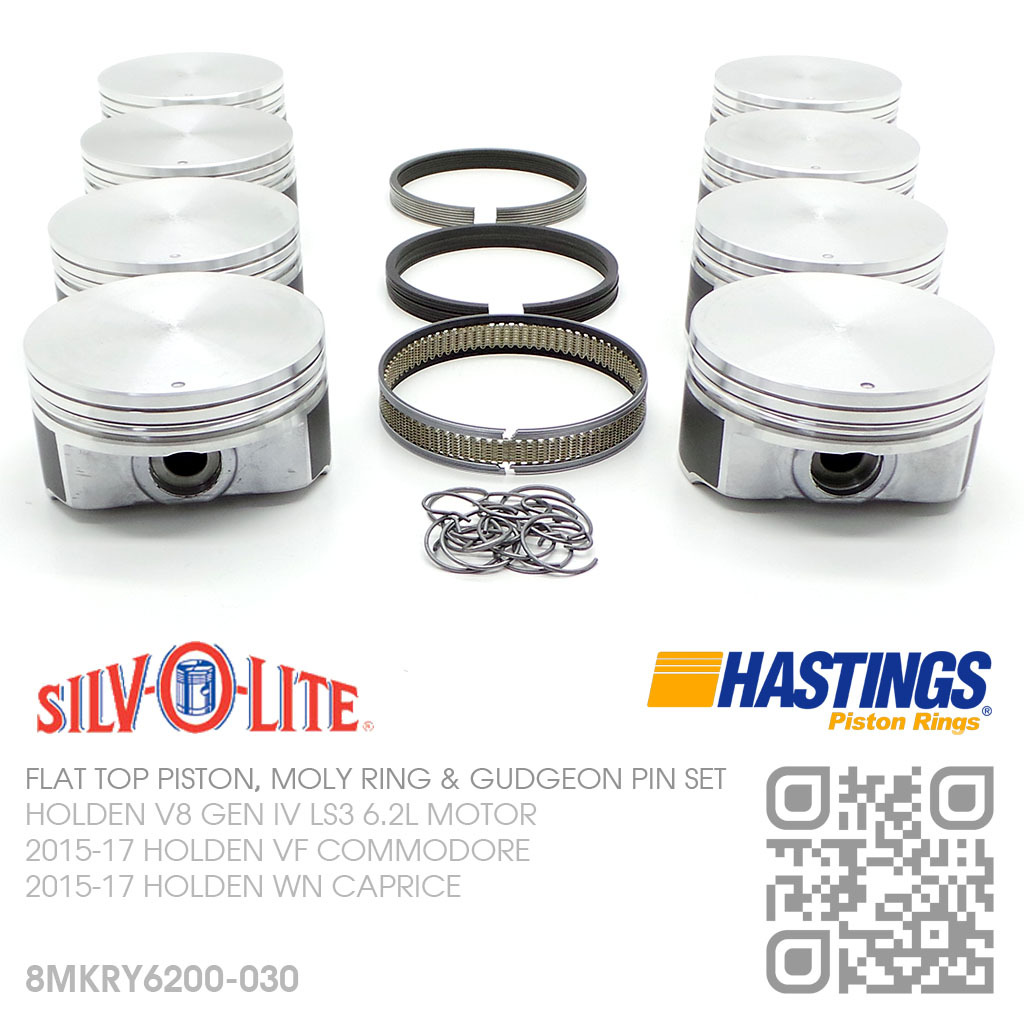

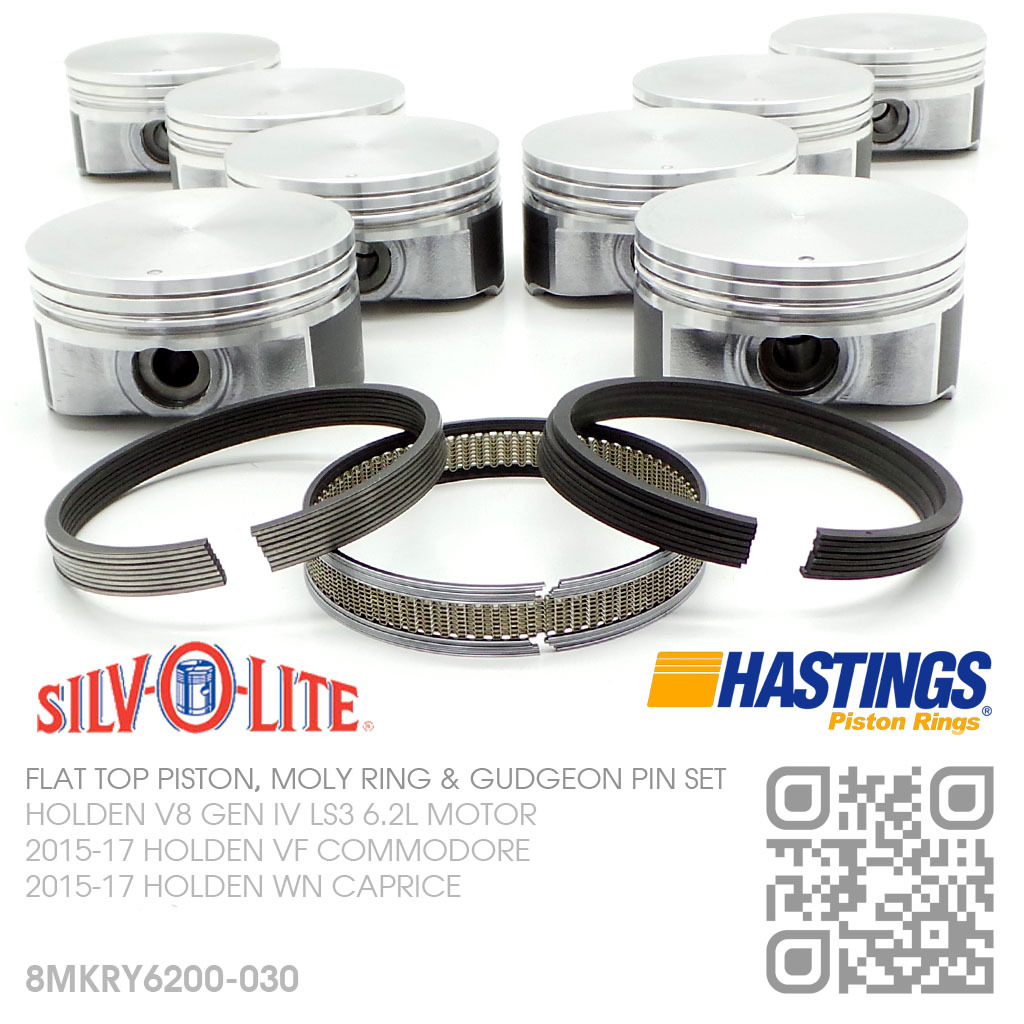

SILVOLITE LS3+0.030" FLAT TOP PISTONS & HASTINGS MOLY RINGS [HOLDEN V8 GEN IV LS3 6.2L MOTOR]

+0.030" SILVOLITE PERFORMANCE FLAT TOP PISTONS
FULL FLOATING PIN WITH COATED SKIRT &
HASTINGS MOLY RING SET
HOLDEN V8 GEN IV LS3 6.2L MOTOR

10/2015-10/2017 HOLDEN [VF COMMODORE]
10/2015-10/2017 HOLDEN [VF UTE]
10/2015-10/2017 HOLDEN [WN CAPRICE]

The High Performance Flat Top Pistons, Moly Piston Rings and Gudgeon Pins are made to the highest standard and exceed original manufacturers specifications for longevity, smooth operation and maximum performance.

The pistons are manufactured by Silvolite, which had being making pistons since 1922. The moly piston rings are manufactured in the United States of America by Hastings leaders in Piston Ring technologies and have been in business for over a hundred years.

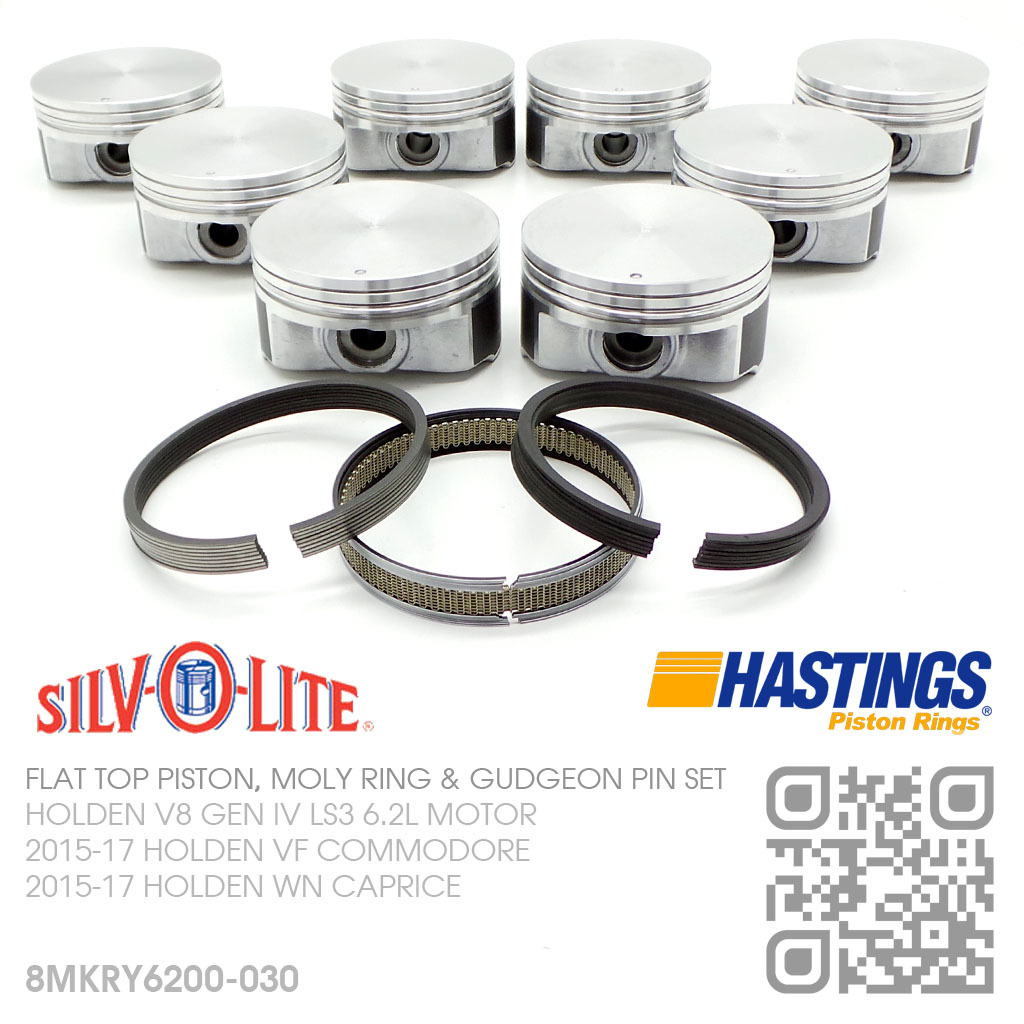

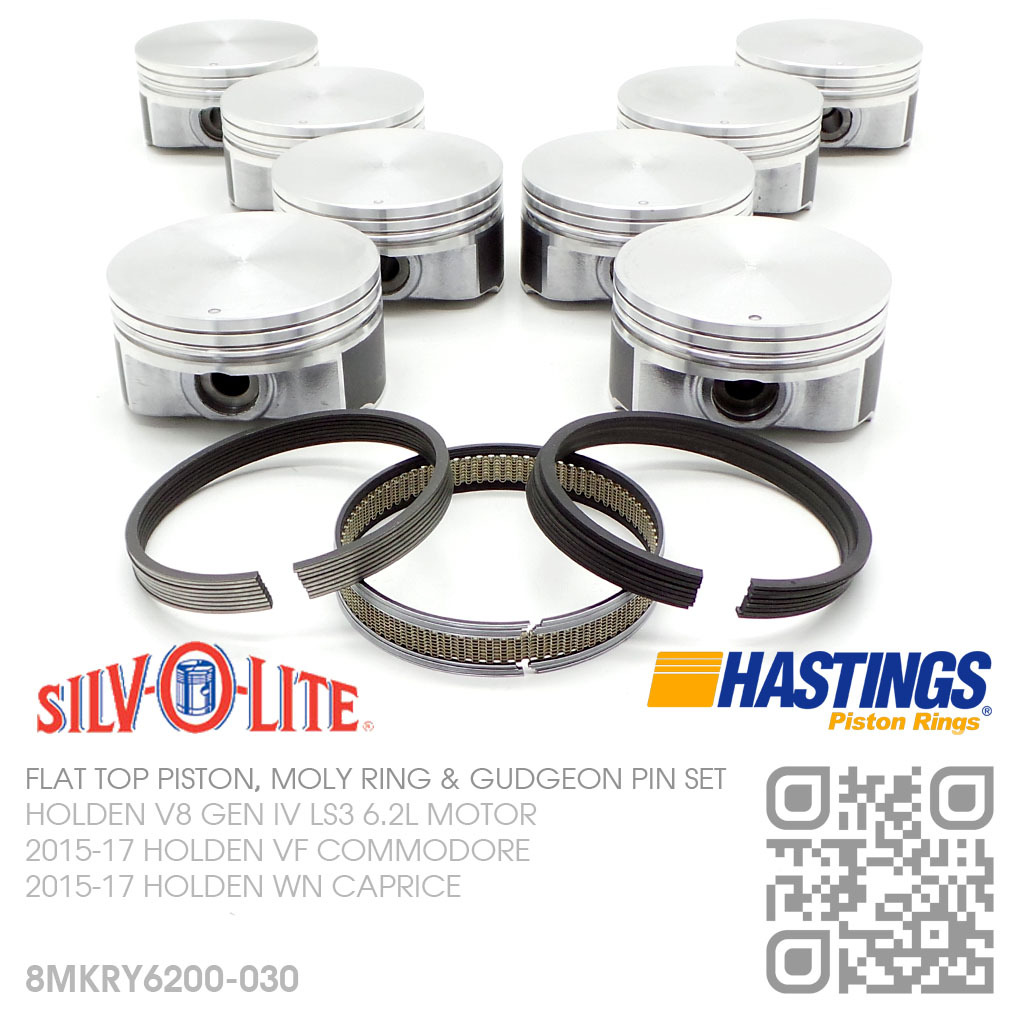

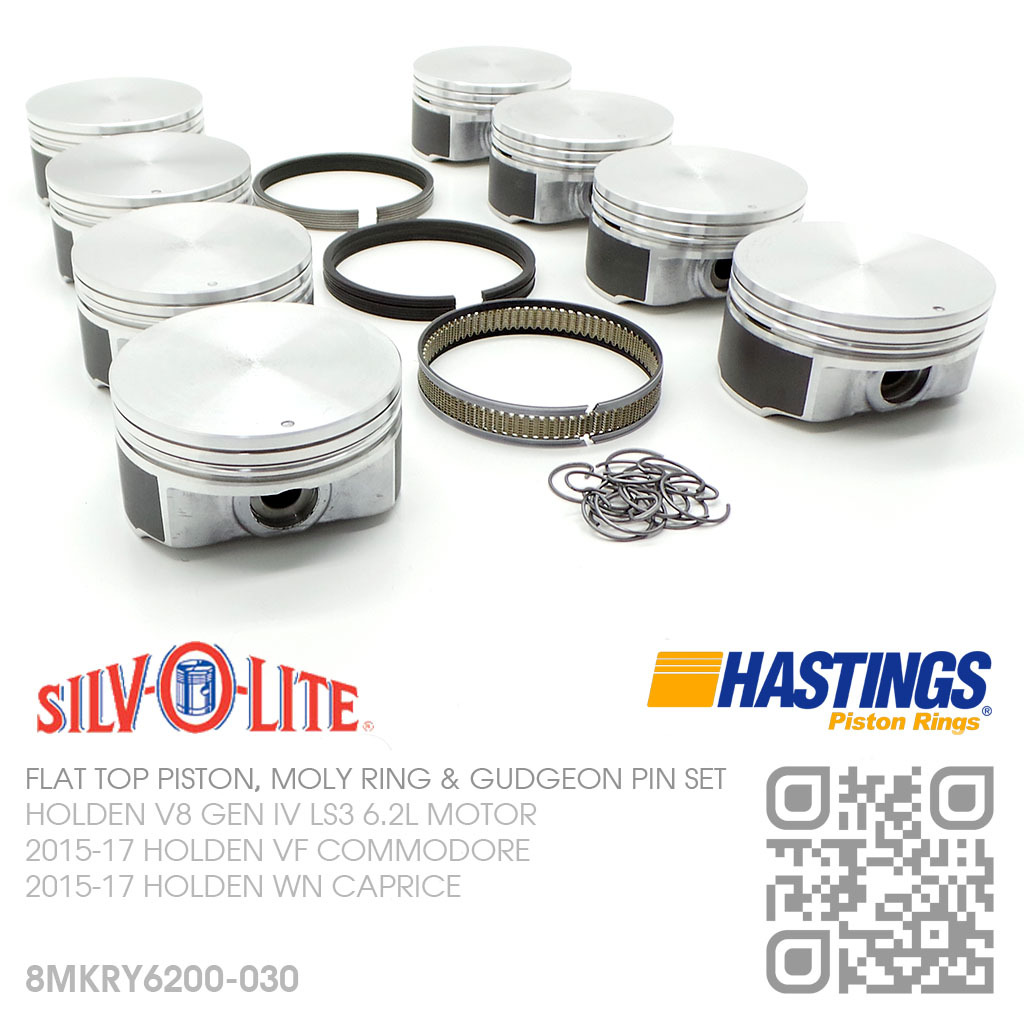

INCLUDES:

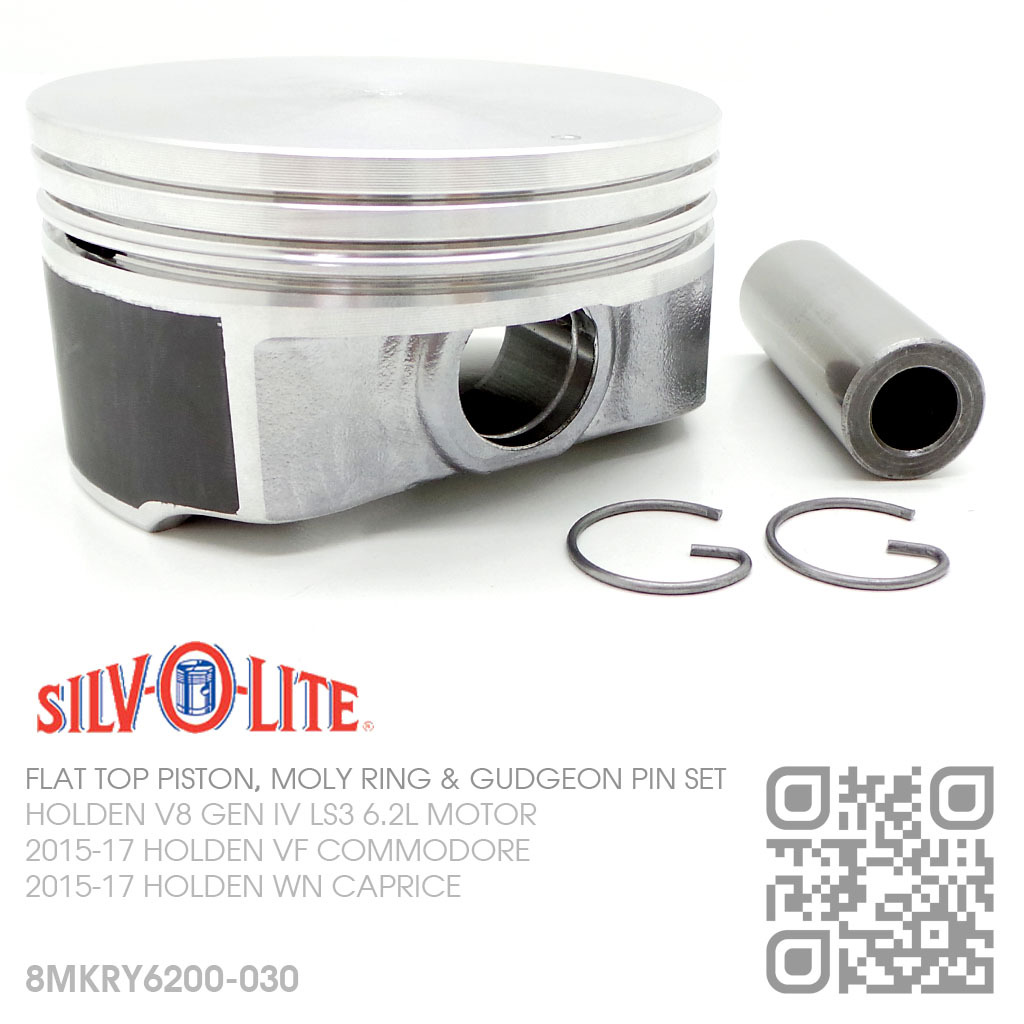

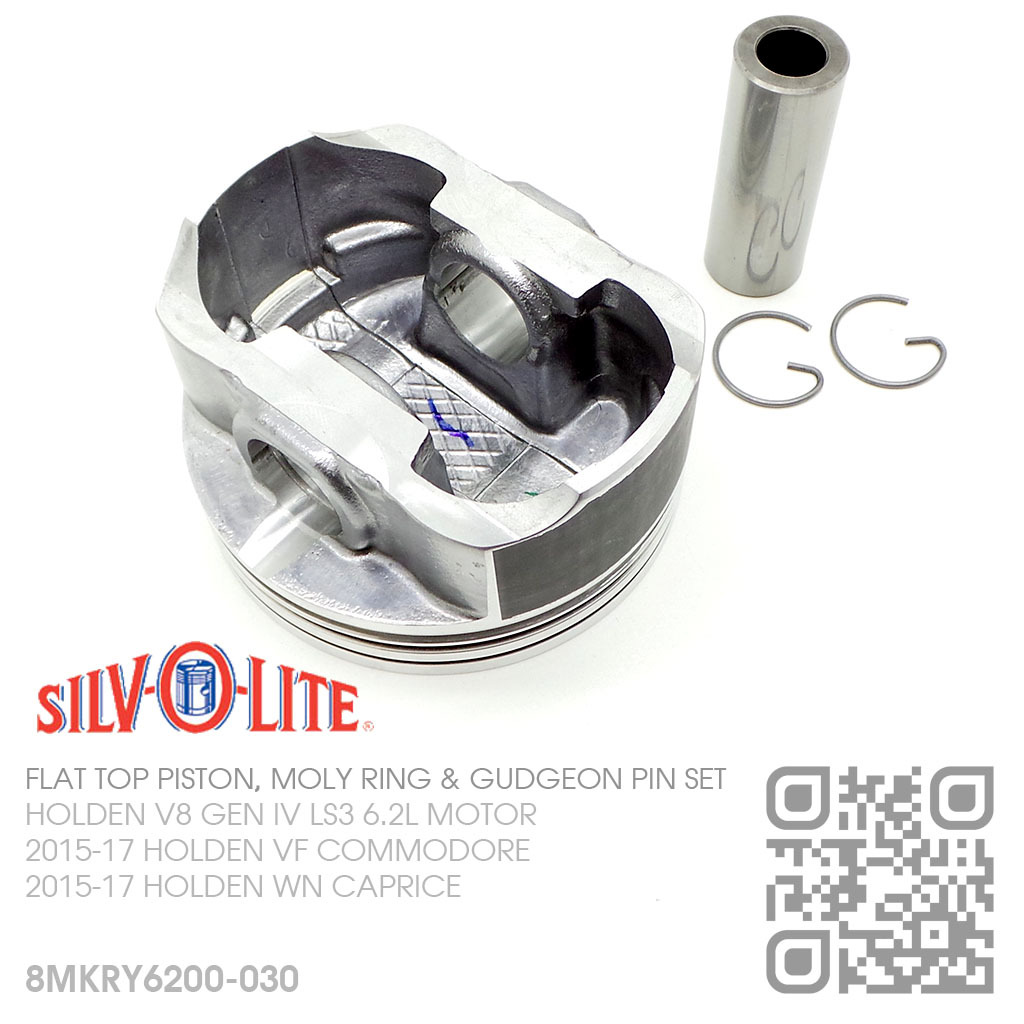

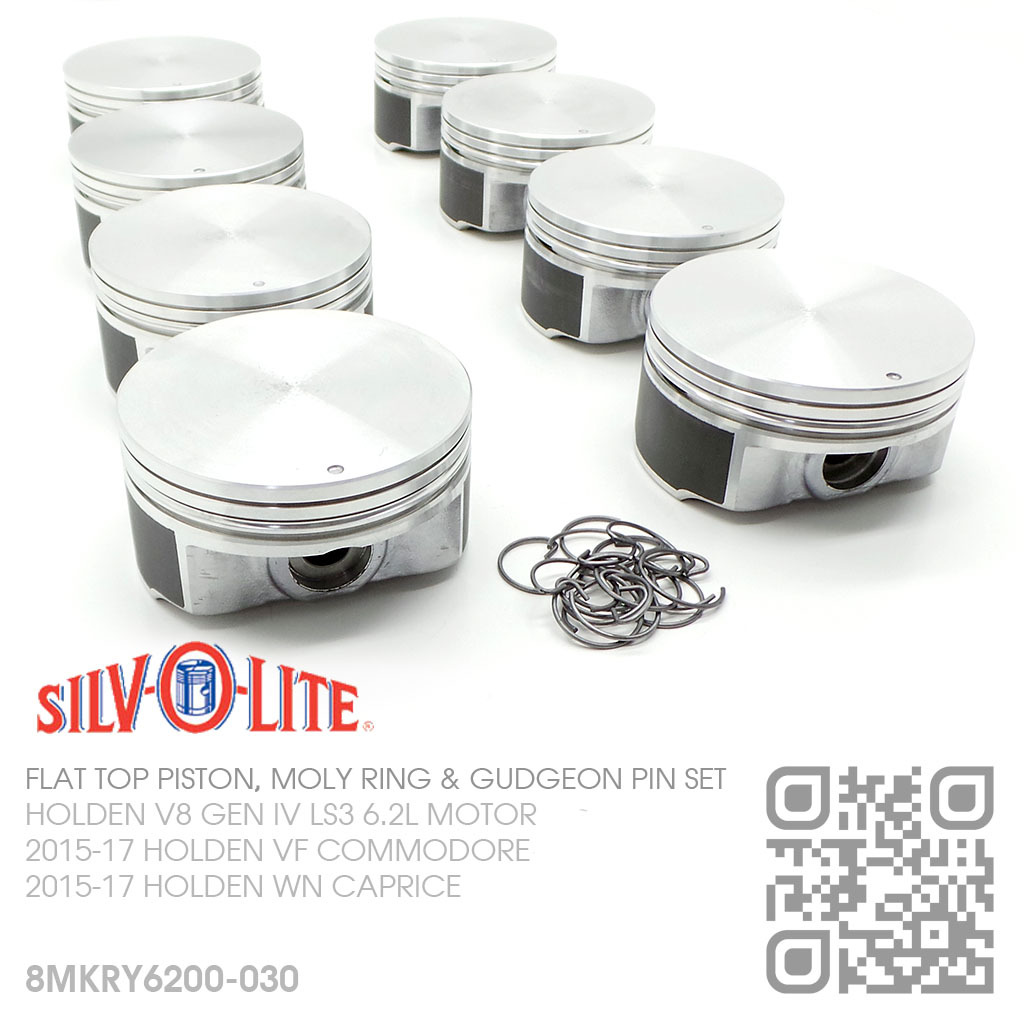

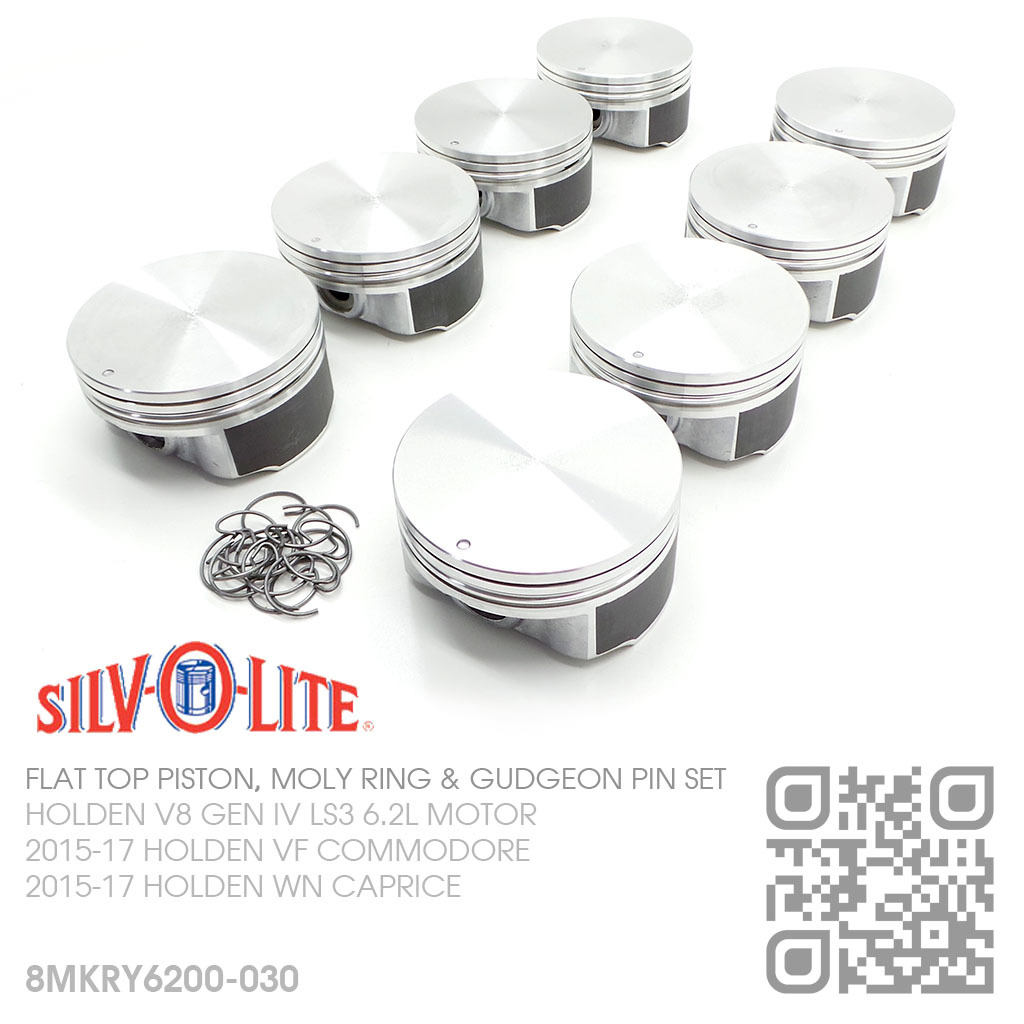

• SILVOLITE FLAT TOP PISTON WITH COATED SKIT (8)

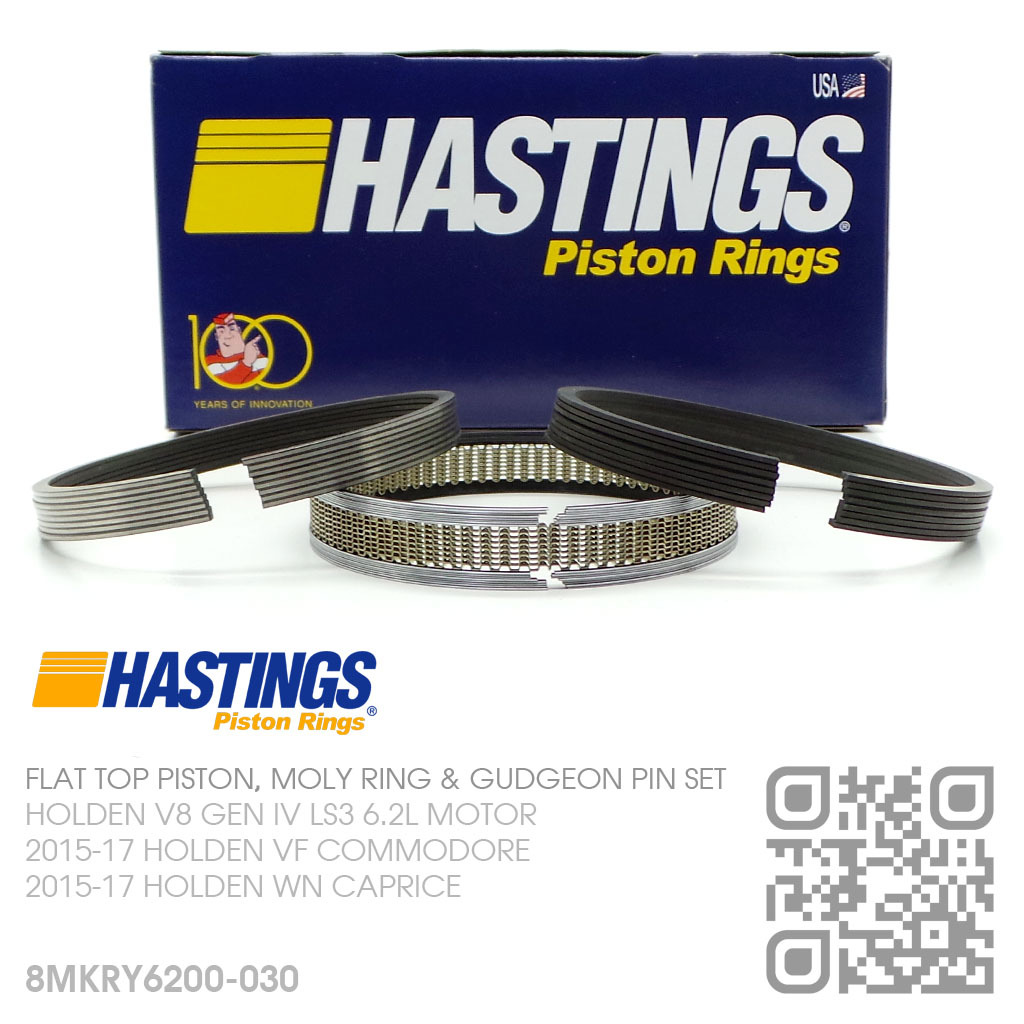

• HASTINGS MOLY PISTON RING (SET)
• SILVOLITE FULL FLOATING GUDGEON PIN (8)
• SILVOLITE GUDGEON PIN RETAINER (16)

SPECIFICATIONS:
Bore Size: 103.25mm / 4.065"
Size: +0.75mm / .030"
Head Type: FLAT TOP WITH COATED SKIRT
Piston Type: CAST HYPEREUTECTIC
Length: 55.62mm
Compression Height: 33.78mm
Pin Size: 23.94mm x 65.02mm
Pin Type: FULL FLOATING
Top Ring Width: 1.50mm
2nd Ring Width: 1.50mm
Oil Ring Width: 2.50mm

SPECIAL NOTE:
104.00mm / 4.095" ENGINE BLOCK BORE SIZE (4.065" +0.030")

MADE IN USA & MEXICO
