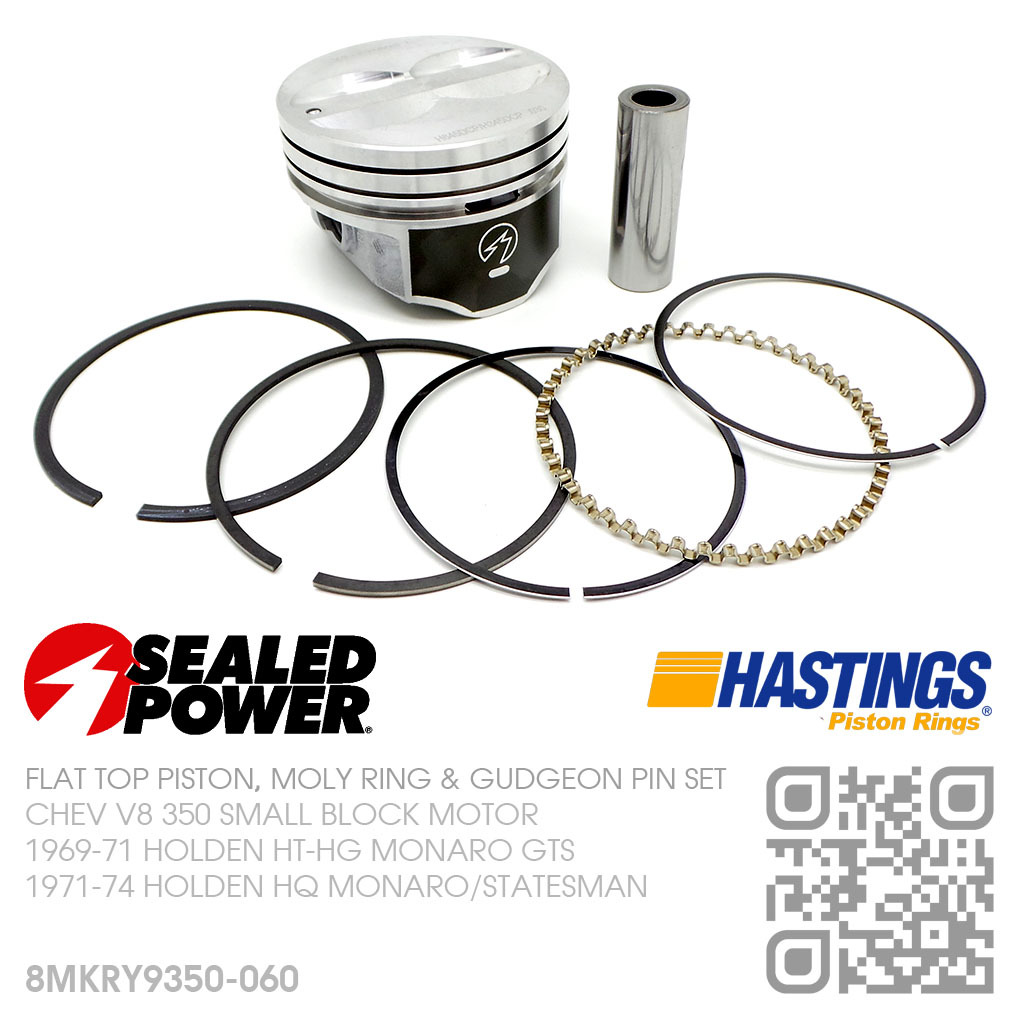

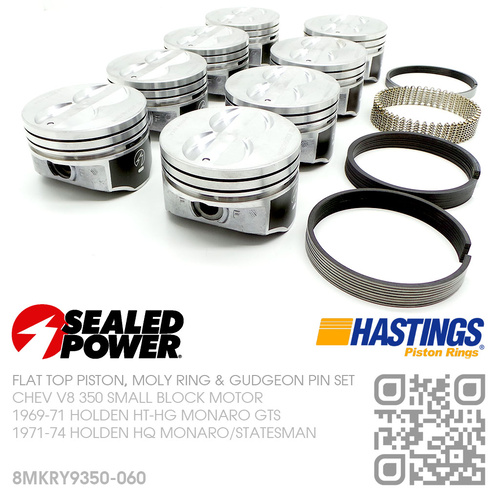

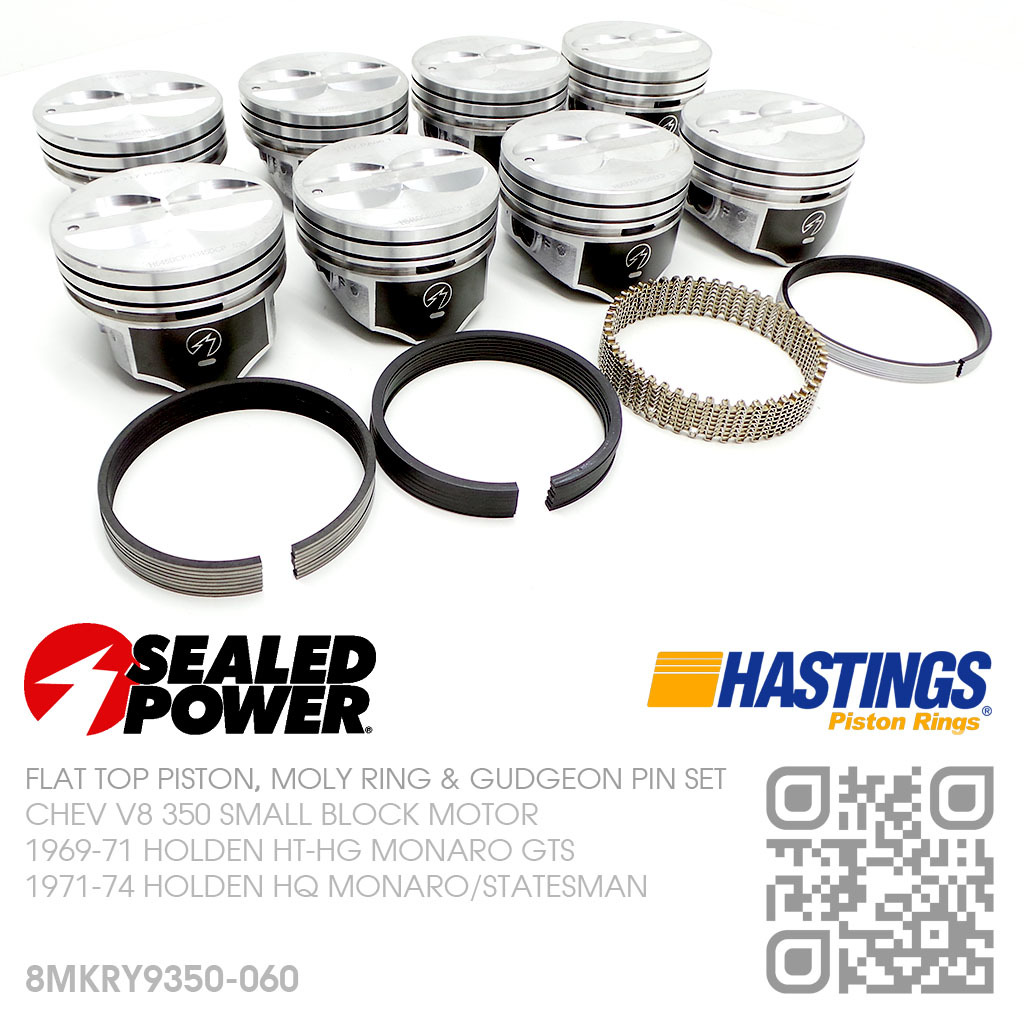

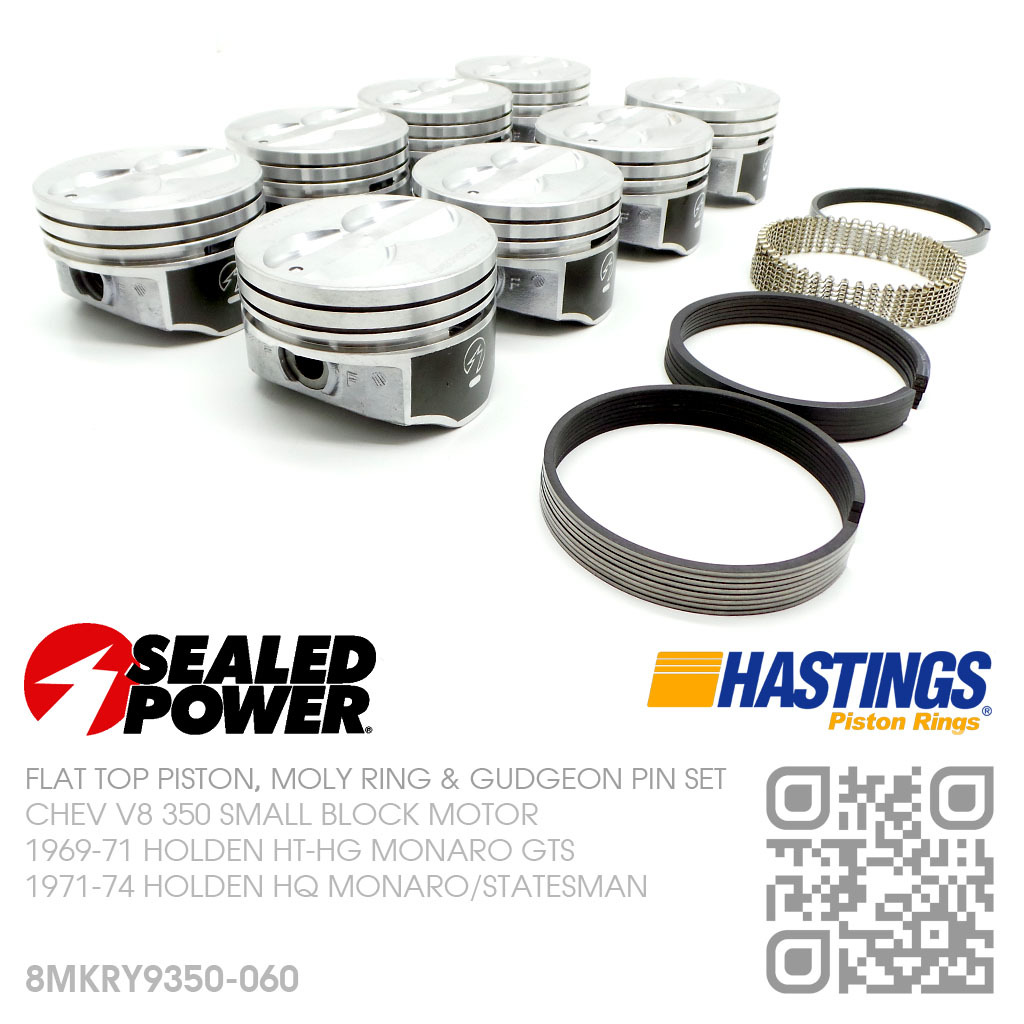

SEALED POWER 350+0.060" FLAT TOP PISTONS & HASTING MOLY RINGS [CHEV V8 350 SMALL BLOCK MOTOR]

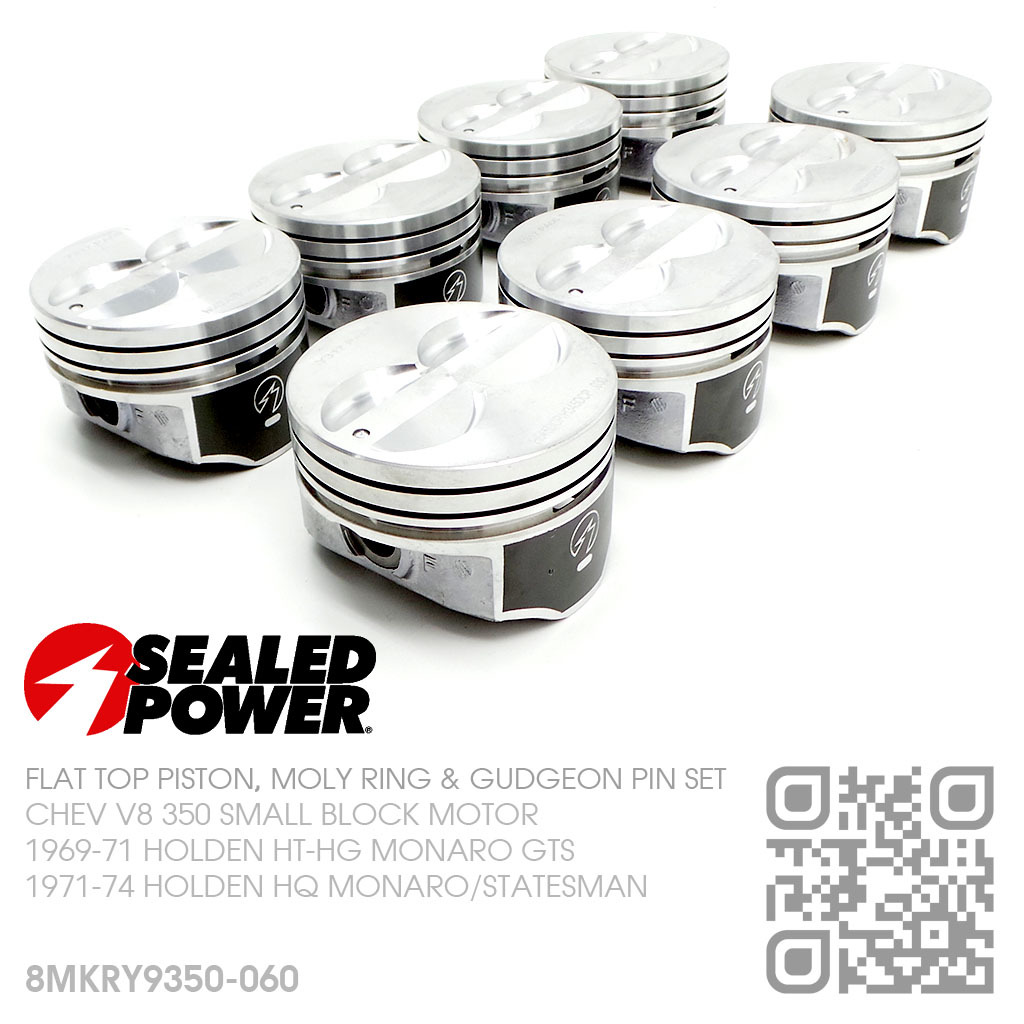

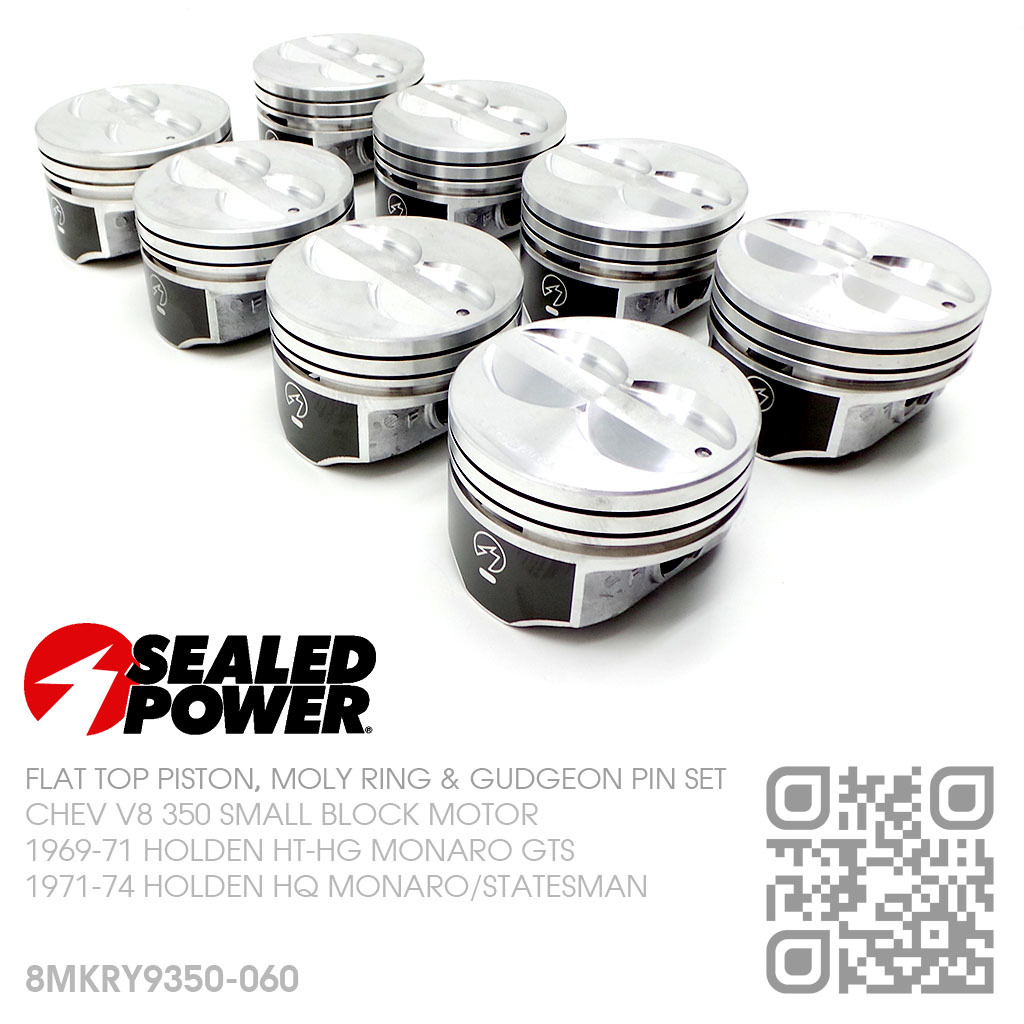

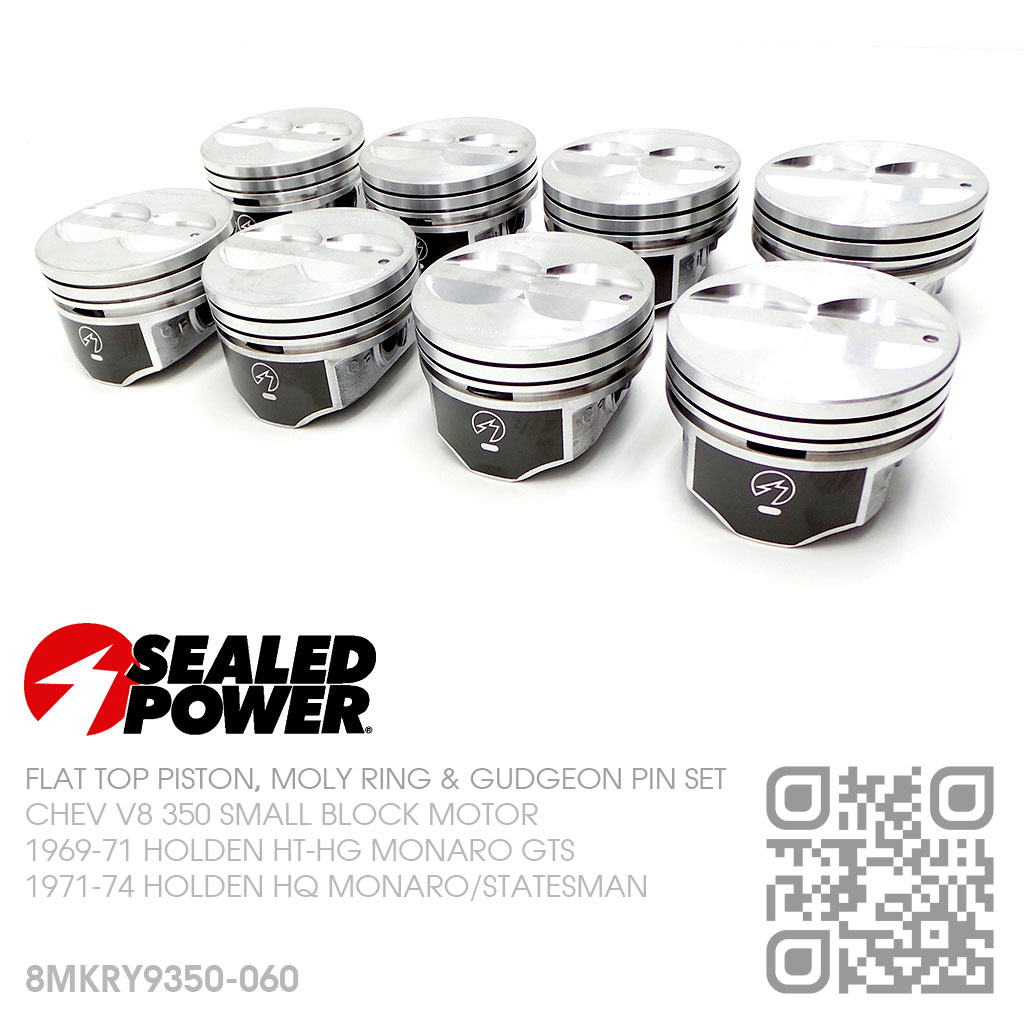

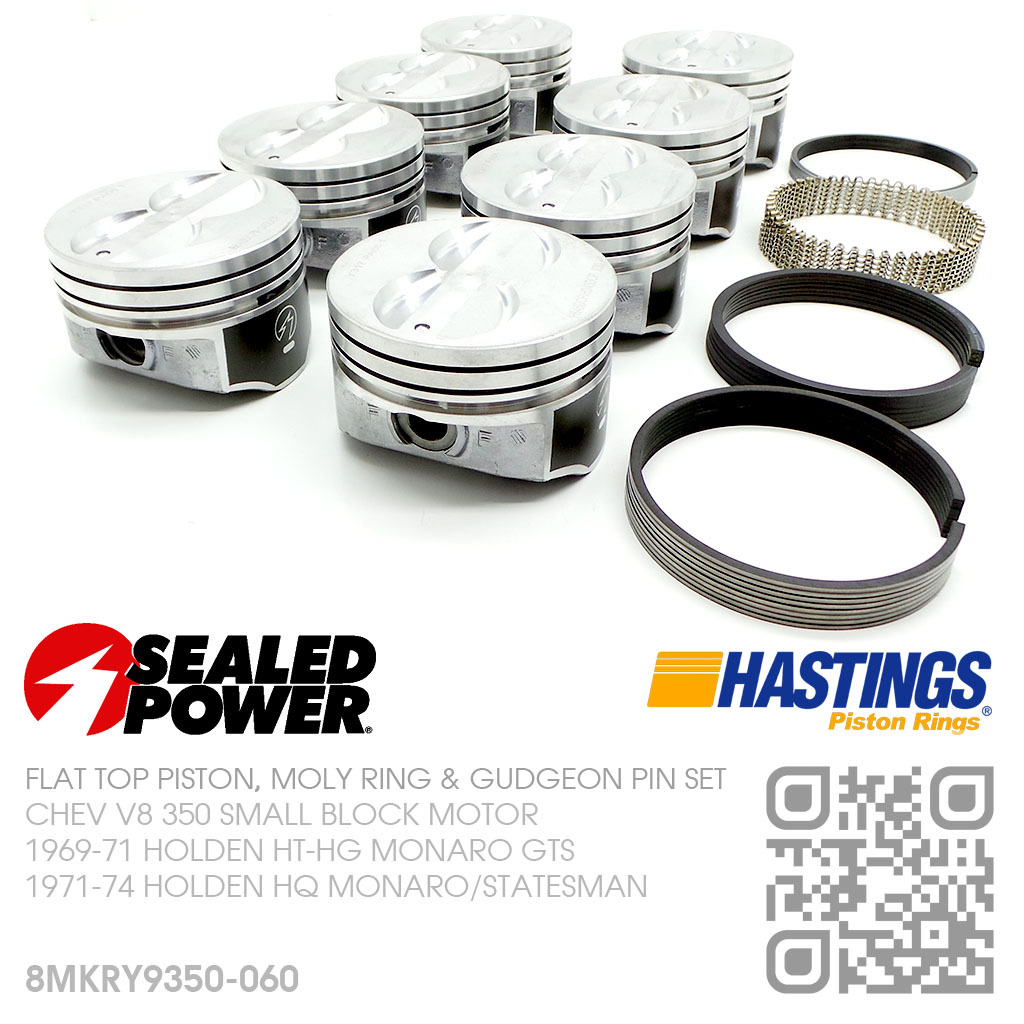

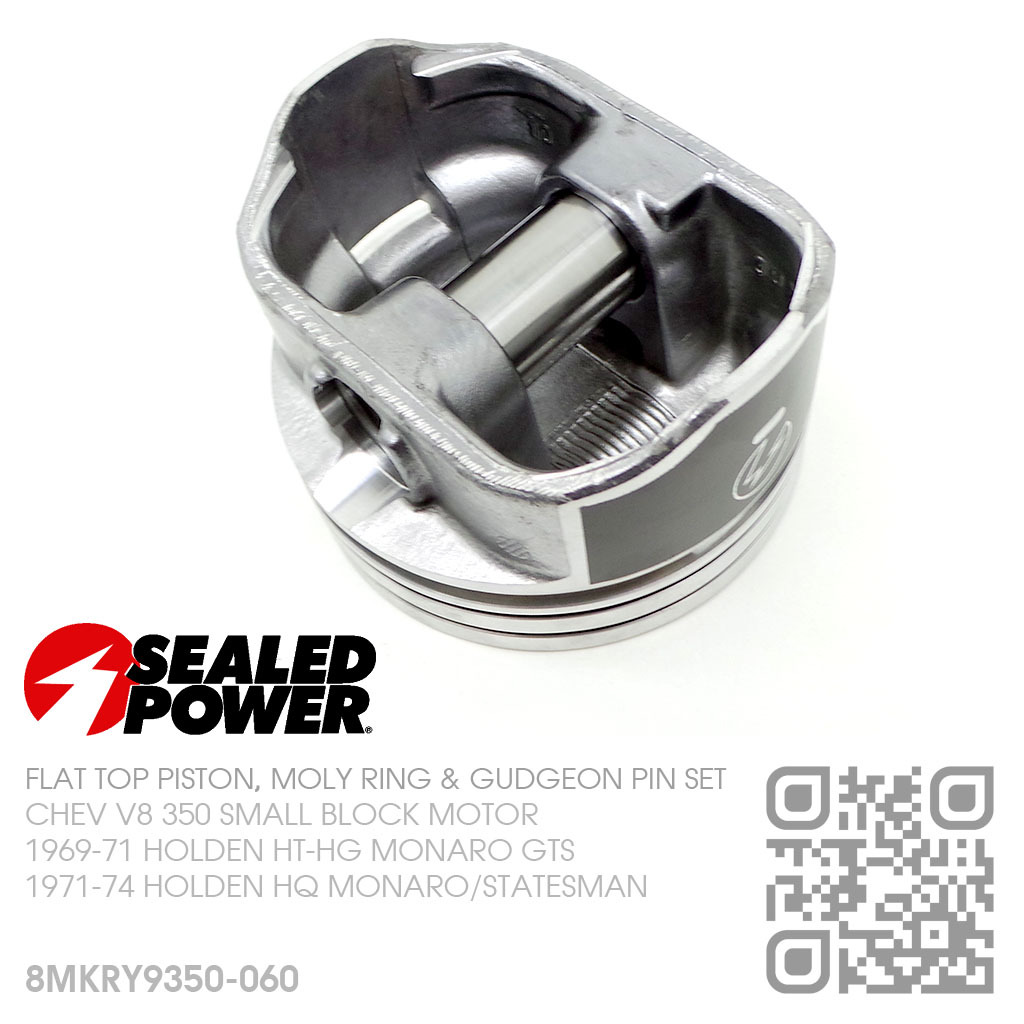

350+0.060" SEALED POWER PERFORMANCE HYPEREUTECTIC FLAT TOP PISTONS
WITH COATED SKIRTS, FOUR VALVE RELIEFS &

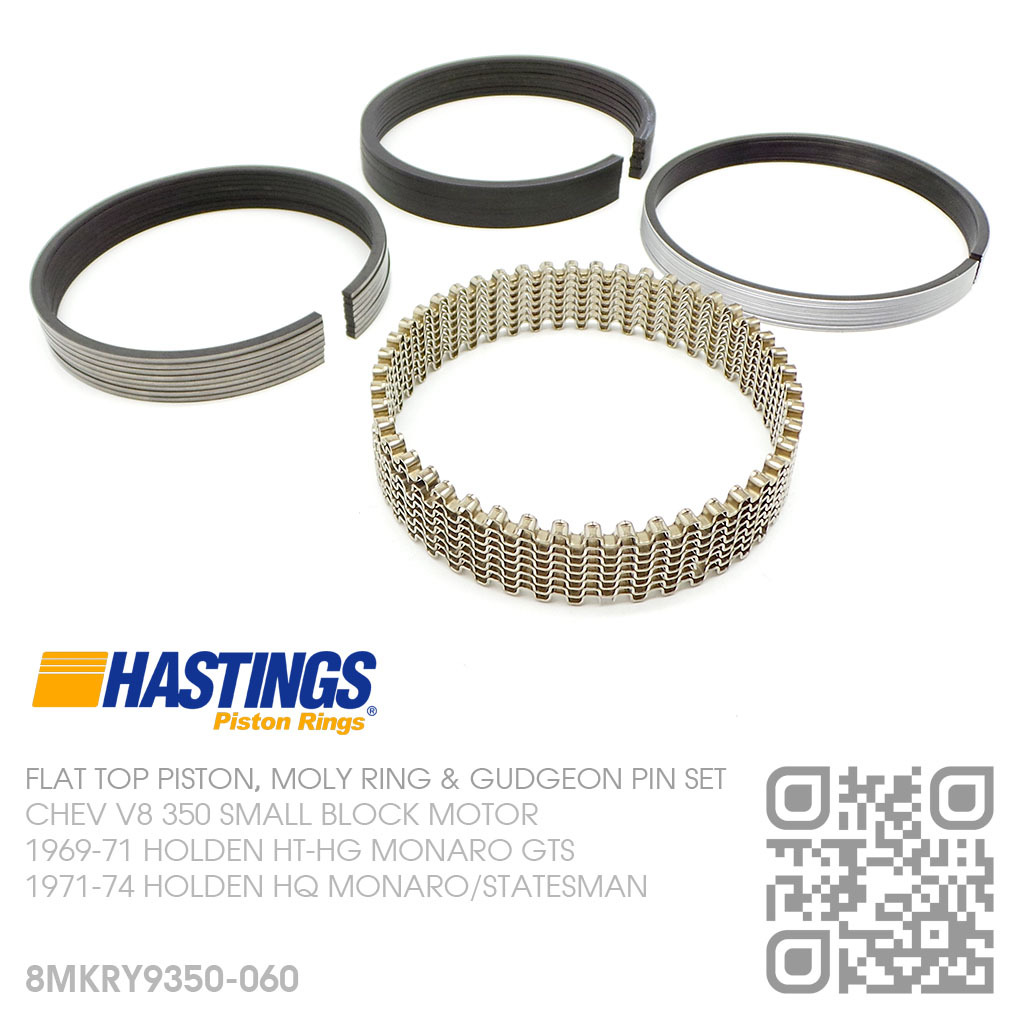

HASTINGS MOLY PISTON RING SET
CHEV V8 350 SMALL BLOCK MOTOR

05/1969-1974 HOLDEN [HT-HG-HQ MONARO GTS 350]
07/1971-1974 HOLDEN [HQ MONARO LS & STATESMAN]

Hypereutectic pistons are cast using hyper eutectic alloy, that is a metallic alloy which has a composition beyond the eutectic point. Hypereutectic pistons are made of an aluminum alloy which has much more silicon present than is soluble in aluminum at the operating temperature.

By adding silicon to the piston's alloy, the piston expansion is dramatically reduced to specify reduced clearance between the piston and the cylinder wall. Silicon itself expands less than aluminium. Another benefit of adding silicon is that the piston becomes harder and is less susceptible to scuffing which can occur when a soft aluminum piston is cold-revved in a relatively dry cylinder on start-up or during abnormally high operating temperatures.

The High Performance Flat Top Hypereutectic Pistons, Moly Piston Rings and Gudgeon Pins are made to the highest standard and exceed original manufacturers specifications for longevity, smooth operation and maximum performance.

SPECIFICATIONS:
Standard Bore Size: 4.000" / 101.60mm
Size: +0.060" / 1.50mm

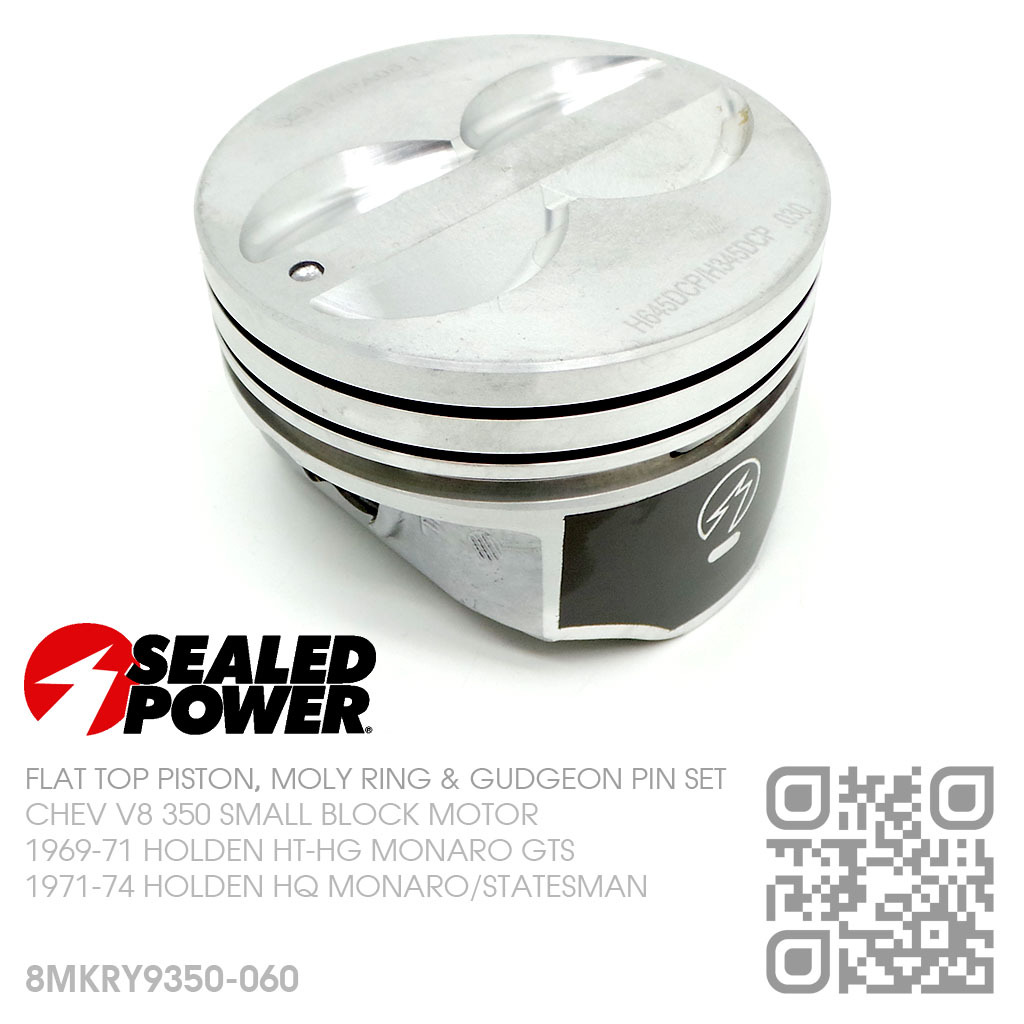

Head Type: FLAT TOP with FOUR VALVE RELIEFS (6.9cc)
Piston Type: CAST HYPEREUTECTIC
Skirt Coating: YES
Length: 2.610"
Compression Height: 1.548"
Pin Size: 0.927" x 2.710"
Pin Type: PRESS & FULL FLOATING
Top Ring Width: 5/64"
2nd Ring Width: 5/64"
Oil Ring Width: 3/16"

Sealed Power Vintage engine components are part of the family of replacement engine parts available from Federal-Mogul Motorparts, one of the world’s leading suppliers to automotive engine manufacturers and the replacement market.

For more than 75 years, Sealed Power has been a leading source of complete engine system solutions for Amercian automakers. No manufacturer or brand offers a broader array of OE quality replacement engine components for the vintage market.

The pistons are manufactured in India by Sealed Power (Federal-Mogul). The moly piston rings are manufactured in the United States of America by Hastings leaders in Piston Ring technologies and have been in business for over a hundred years.

SPECIAL NOTE:
4.060" ENGINE BLOCK BORE SIZE (4.000" +0.060")

MADE IN USA & INDIA
