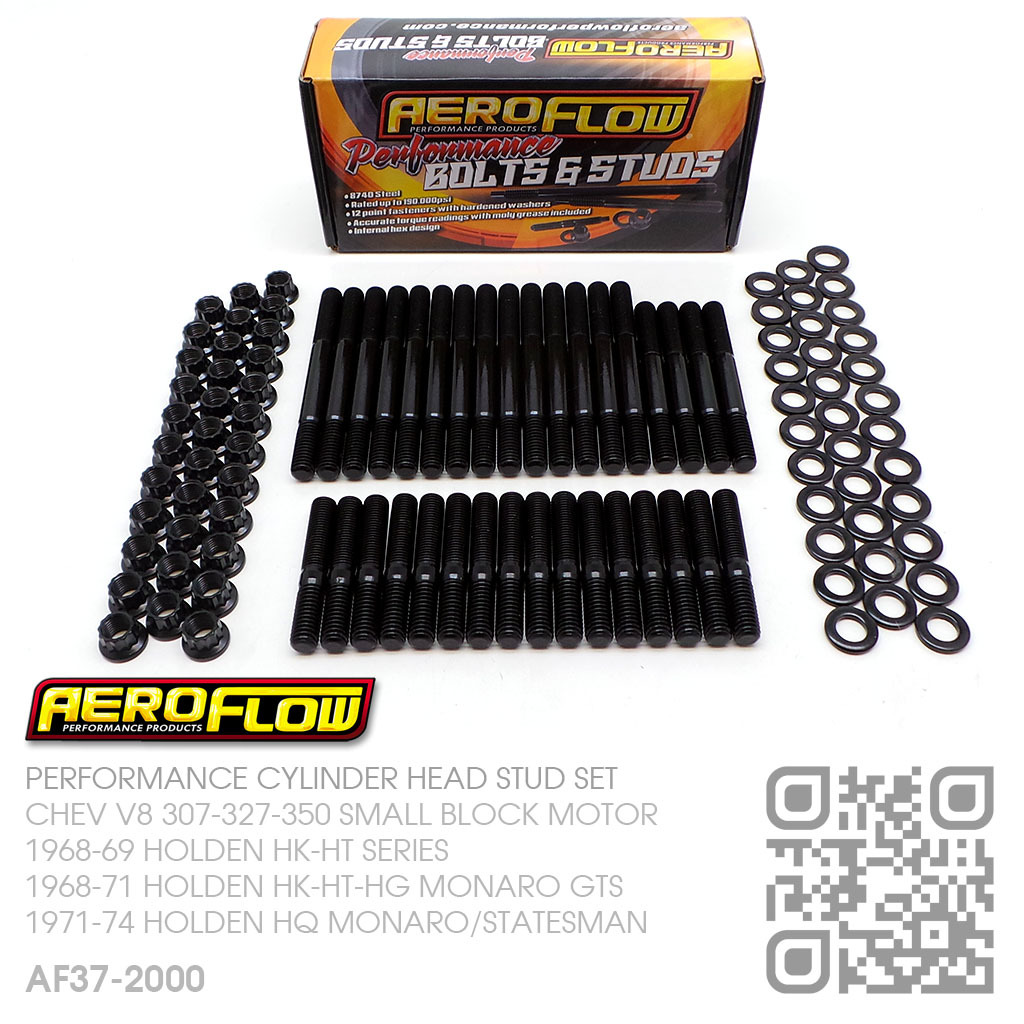

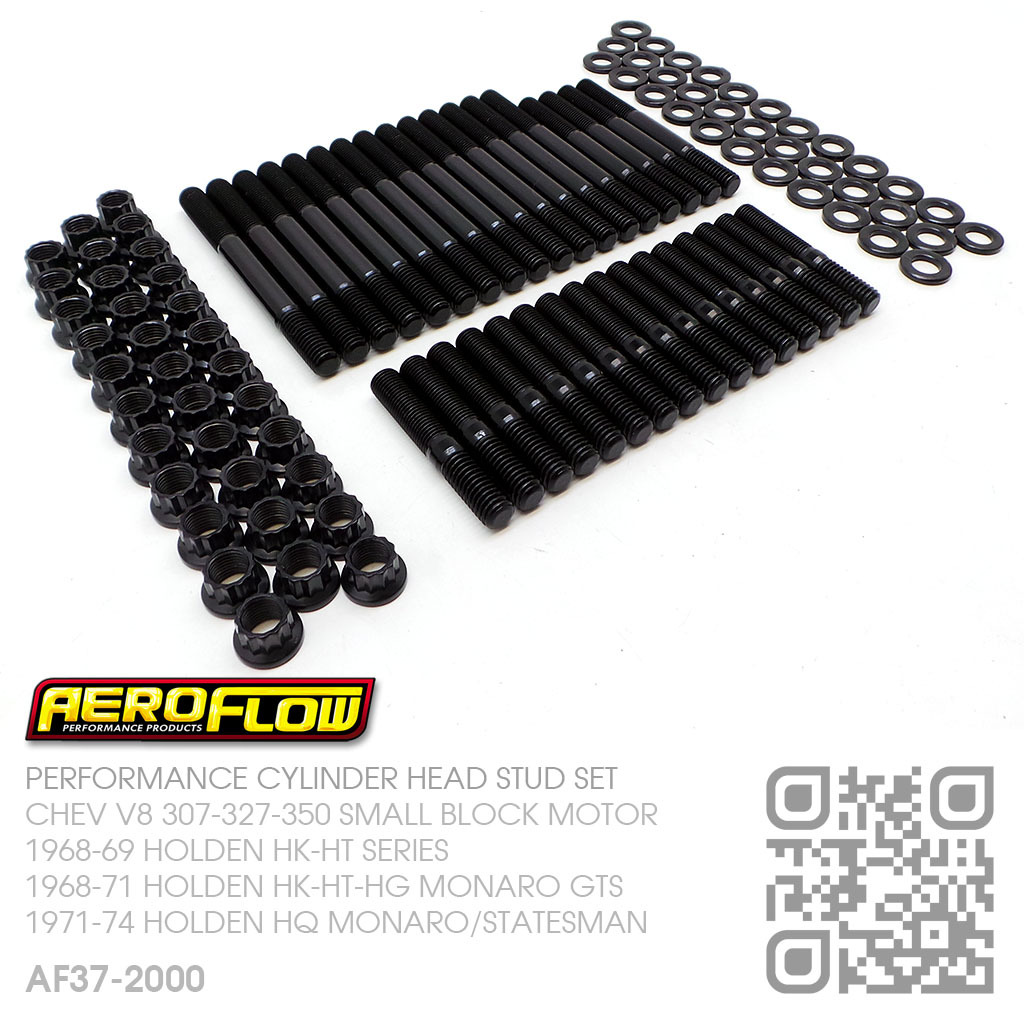

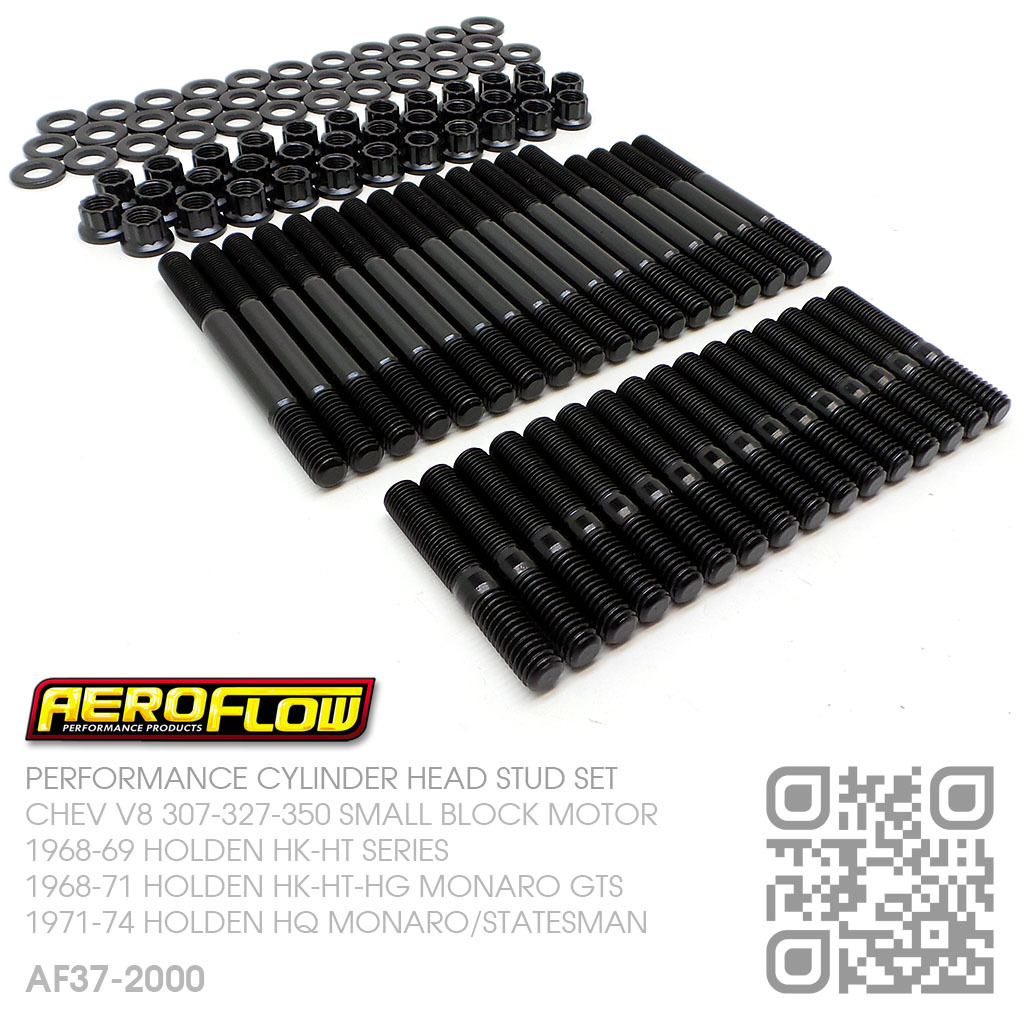

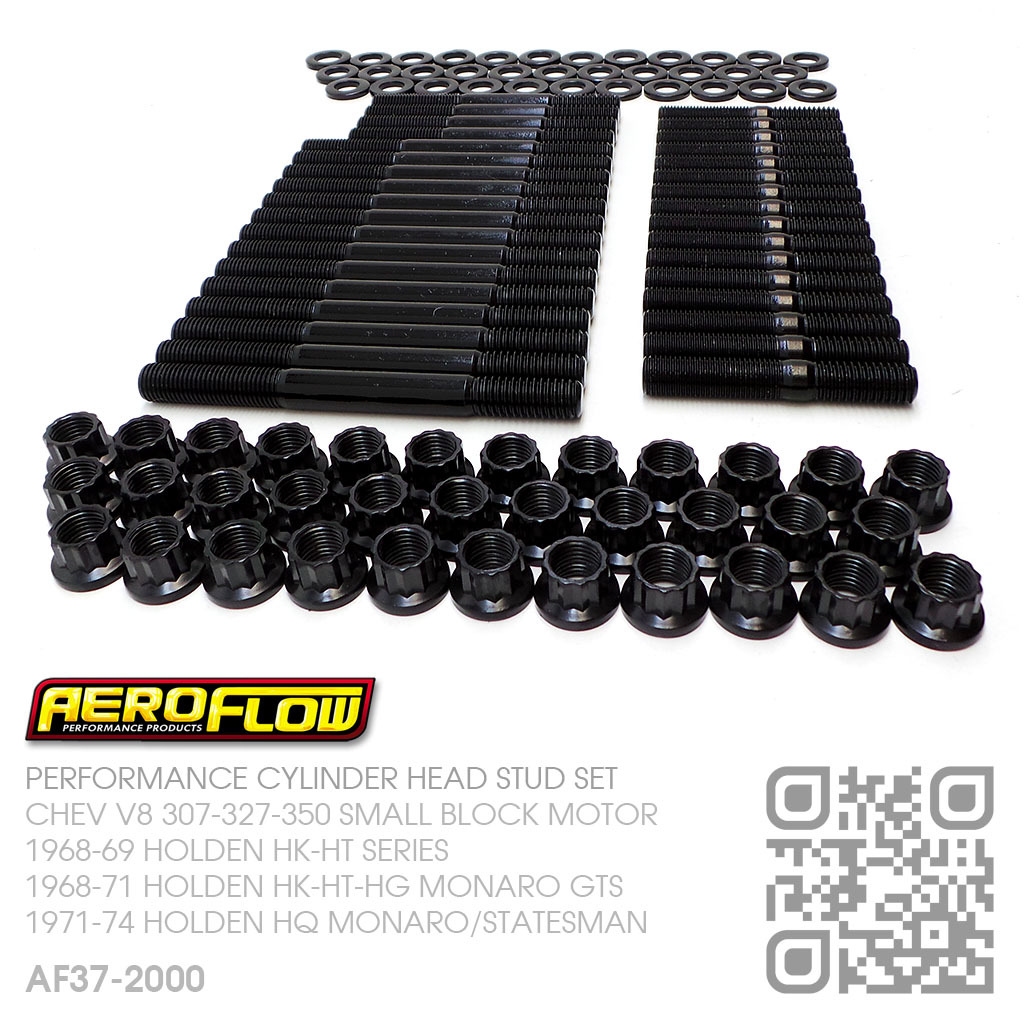

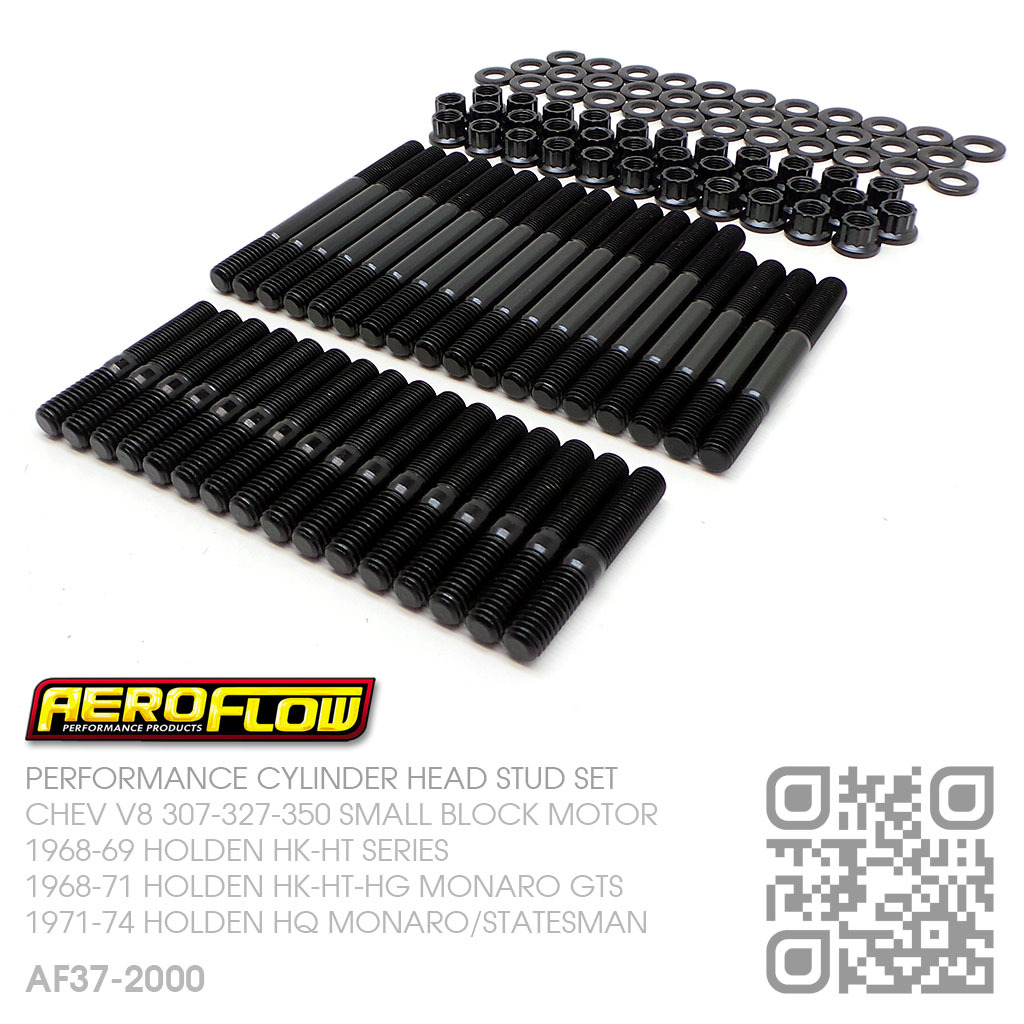

AEROFLOW PERFORMANCE CYLINDER HEAD STUD KIT [CHEV V8 307-327-350 SMALL BLOCK MOTOR]

AEROFLOW PERFORMANCE 8740 GRADE CYLINDER HEAD STUD KIT
12 POINT NUTS
CHEV V8 307-327-350 SMALL BLOCK MOTOR

01/1968-1969 HOLDEN [HK-HT SERIES]
08/1968-1969 HOLDEN [HK MONARO GTS 327]
05/1969-1974 HOLDEN [HT-HG-HQ MONARO GTS 350]
07/1971-1974 HOLDEN [HQ MONARO LS & STATESMAN]

Aeroflow Performance head studs greatly improve your cylinder head-to-block sealing compatibilities. This is important in engines with high power adders such as turbochargers, superchargers or nitrous. They can even be agreat addition to a mildly modified build as insurance against failure. All head studs provide a more accurate and consistent torque loading over traditional head bolts.

These head studs are manufactured from aircraft quality 8740 high tensile strength chromoly steel and cold-forged to ensure molecular integrity within the stud. Meaning these studs are rated up to 190,000 psi making them stronger than Grade 8 and OEM fasteners. All kits come complete with 12-point nuts and hardened washers for an even load distribution and accurate torque readings.

SPECIFICATIONS:
14 X LONG STUDS
119.20MM OVERALL LENGTH
47MM SHANK LENGTH
7/16”-14 THREAD INTO ENGINE BLOCK
7/16”-20 THREAD ON NUT END

4 X MID STUDS
102.80MM OVERALL LENGTH
31MM SHANK LENGTH
7/16”-14 THREAD INTO ENGINE BLOCK
7/16”-20 THREAD ON NUT END

16 X SHORT STUDS
69.50MM OVERALL LENGTH
5MM SHANK LENGTH
7/16”-14 THREAD INTO ENGINE BLOCK
7/16”-20 THREAD ON NUT END

34 X 12 POINT NUTS
7/16”-20 THREAD
18.15MM OUTSIDE DIAMETER
11.60MM HEIGHT

34 X FLAT WASHERS
19.80MM OUTSIDE DIAMETER
11.20MM INSIDE DIAMETER
3MM THICKNESS

REPLACES HOLDEN PART# 3704796, 3767468, 3734594

IMPORTANT NOTE:
FOLLOW GENERAL MOTORS / HOLDEN'S RECOMMENDED TORQUE SEQUENCE AND TIGHTEN TO SPECIFICATIONS
