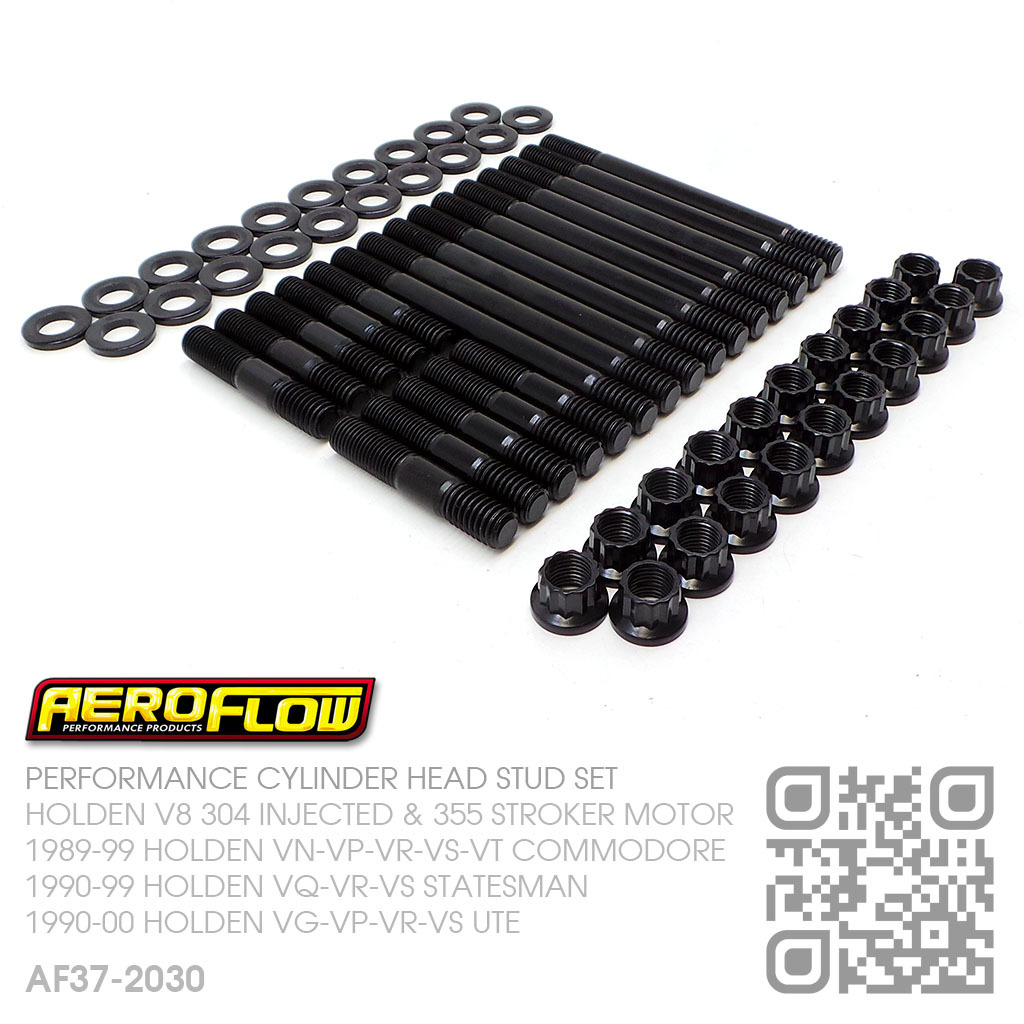

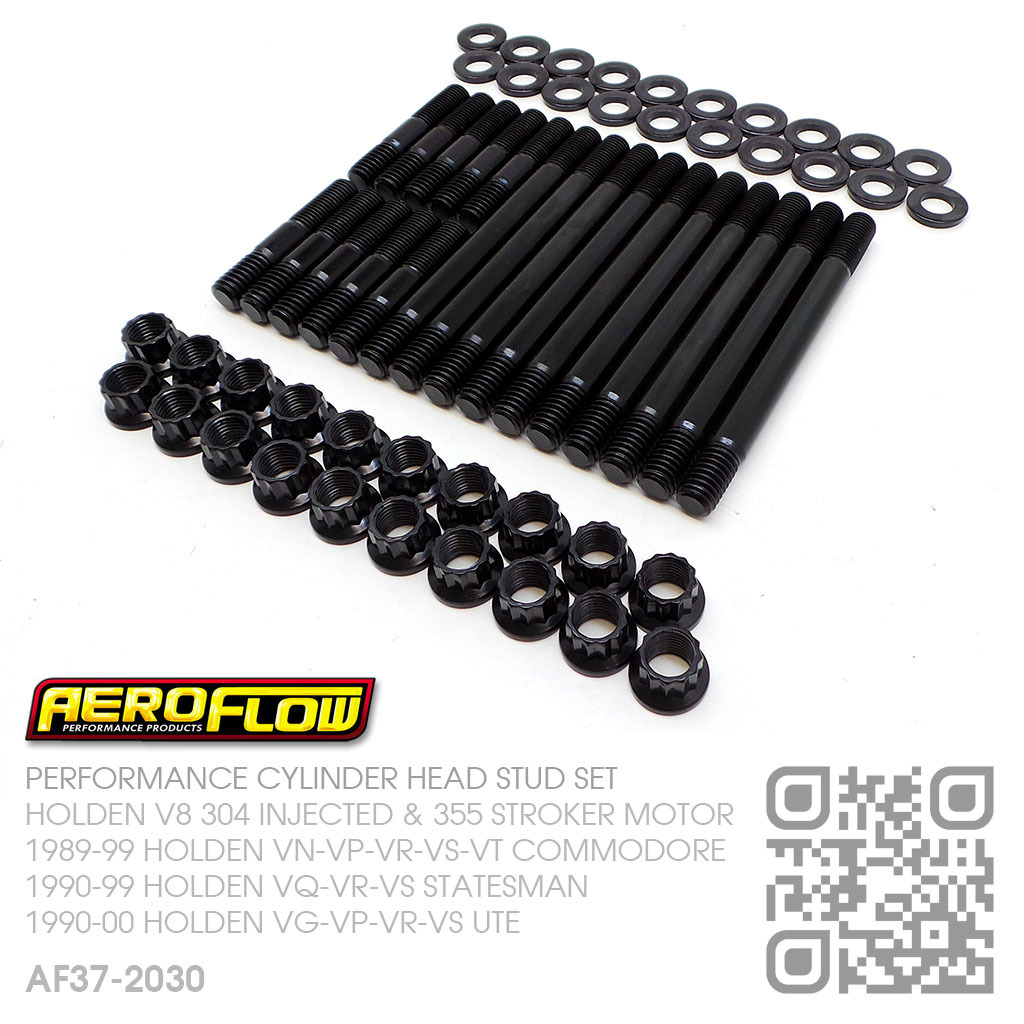

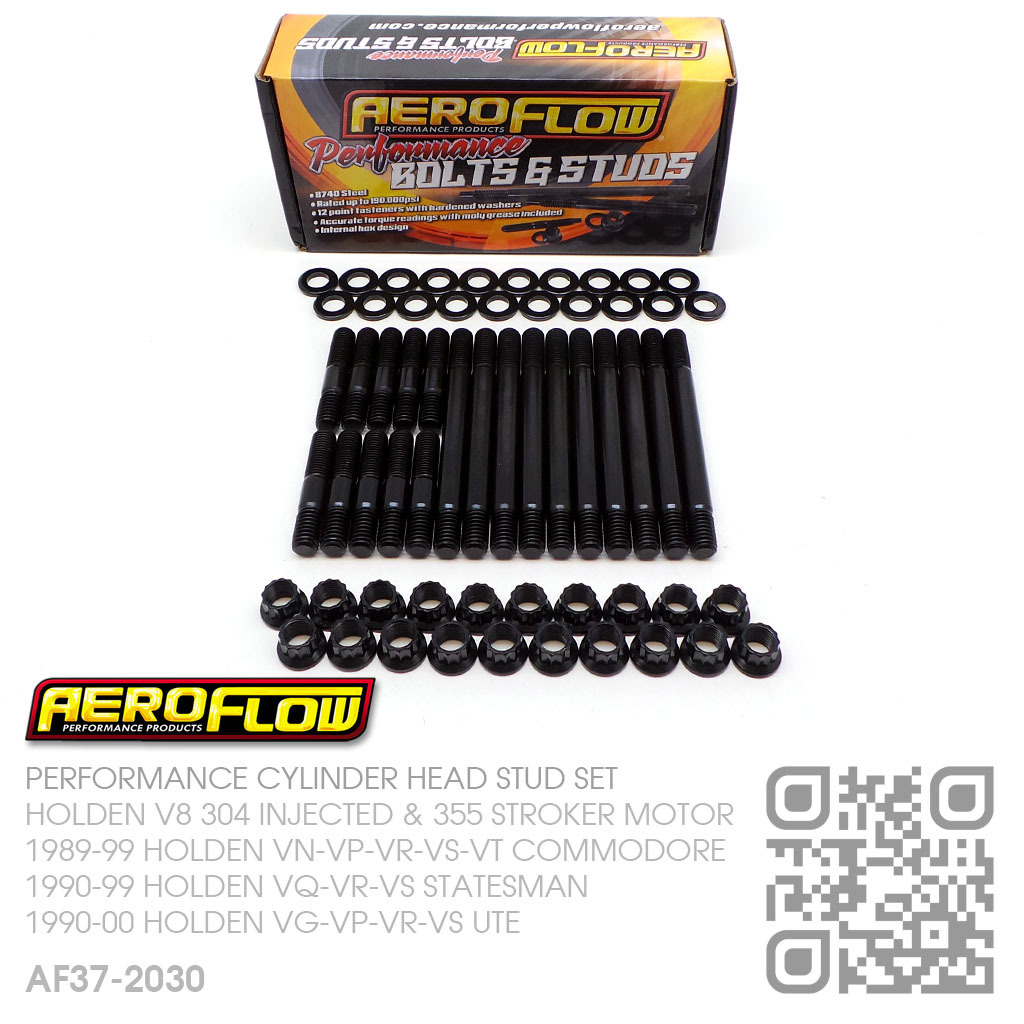

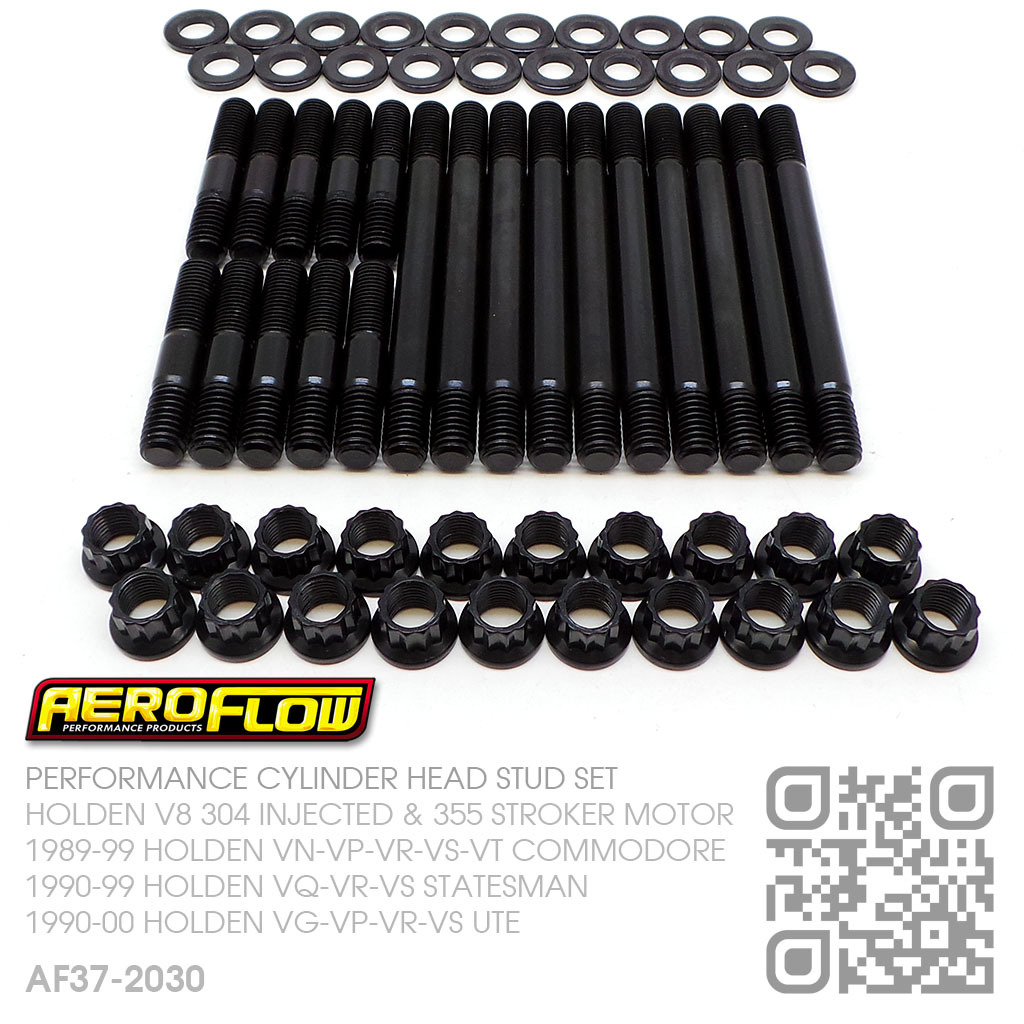

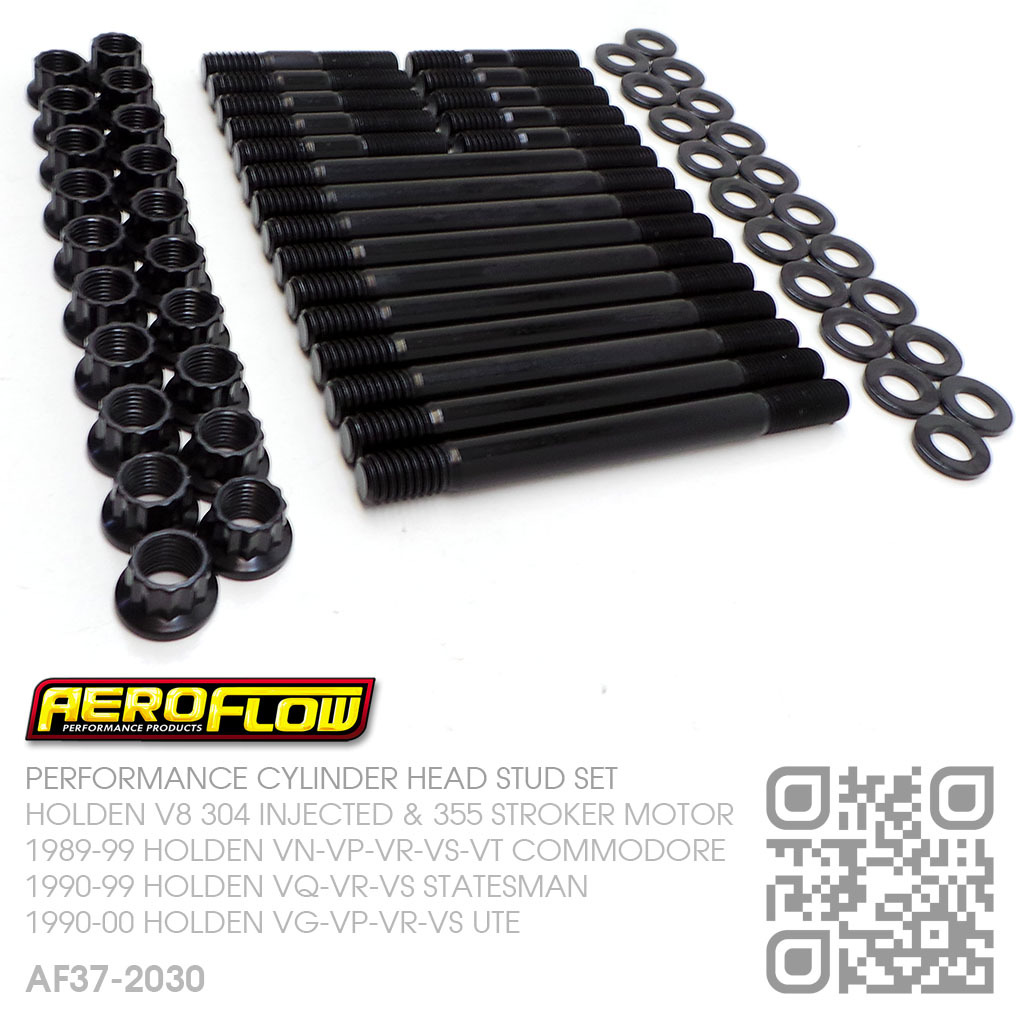

AEROFLOW PERFORMANCE CYLINDER HEAD STUD KIT [HOLDEN V8 304 INJECTED 5.0L & 355 STROKER 5.7L MOTOR]

AEROFLOW PERFORMANCE 8740 GRADE CYLINDER HEAD STUD KIT
12 POINT NUTS
LB9 HOLDEN V8 304 INJECTED 5.0L MOTOR
L98 HOLDEN V8 355 STROKER 5.7L MOTOR (348ci)

03/1989-1999 HOLDEN [VN-VP-VR-VS-VT COMMODORE]
03/1990-1999 HOLDEN [VQ-VR-VS STATESMAN/CAPRICE]
09/1990-2000 HOLDEN [VG-VP-VR-VS UTE]

Aeroflow Performance head studs greatly improve your cylinder head-to-block sealing compatibilities. This is important in engines with high power adders such as turbochargers, superchargers or nitrous. They can even be agreat addition to a mildly modified build as insurance against failure. All head studs provide a more accurate and consistent torque loading over traditional head bolts.

These head studs are manufactured from aircraft quality 8740 high tensile strength chromoly steel and cold-forged to ensure molecular integrity within the stud. Meaning these studs are rated up to 190,000 psi making them stronger than Grade 8 and OEM fasteners. All kits come complete with 12-point nuts and hardened washers for an even load distribution and accurate torque readings.

SPECIFICATIONS:
10 X SHORT STUDS
58.5MM OVERALL LENGTH
13.3MM SHANK LENGTH
7/16-14" THREAD INTO ENGINE
7/16-20" NUT END

10 X LONG STUDS
122MM OVERALL LENGTH
75.6MM SHANK LENGTH
7/16-14" THREAD INTO ENGINE
7/16-20 " NUT END

20 X 12 POINT NUTS
7/16-20" THREAD
17.6MM OUTSIDE DIAMETER
11MM OVERAL HEIGHT

20 X FLAT WASHERS
17.6MM OUTSIDE DIAMETER
11.4MM INSIDE DIAMETER
3MM THICKNESS

SPECIAL NOTE:
NOT SUITABLE FOR EARLY 253 & 308 RED/BLUE/BLACK V8 CYLINDER HEADS
