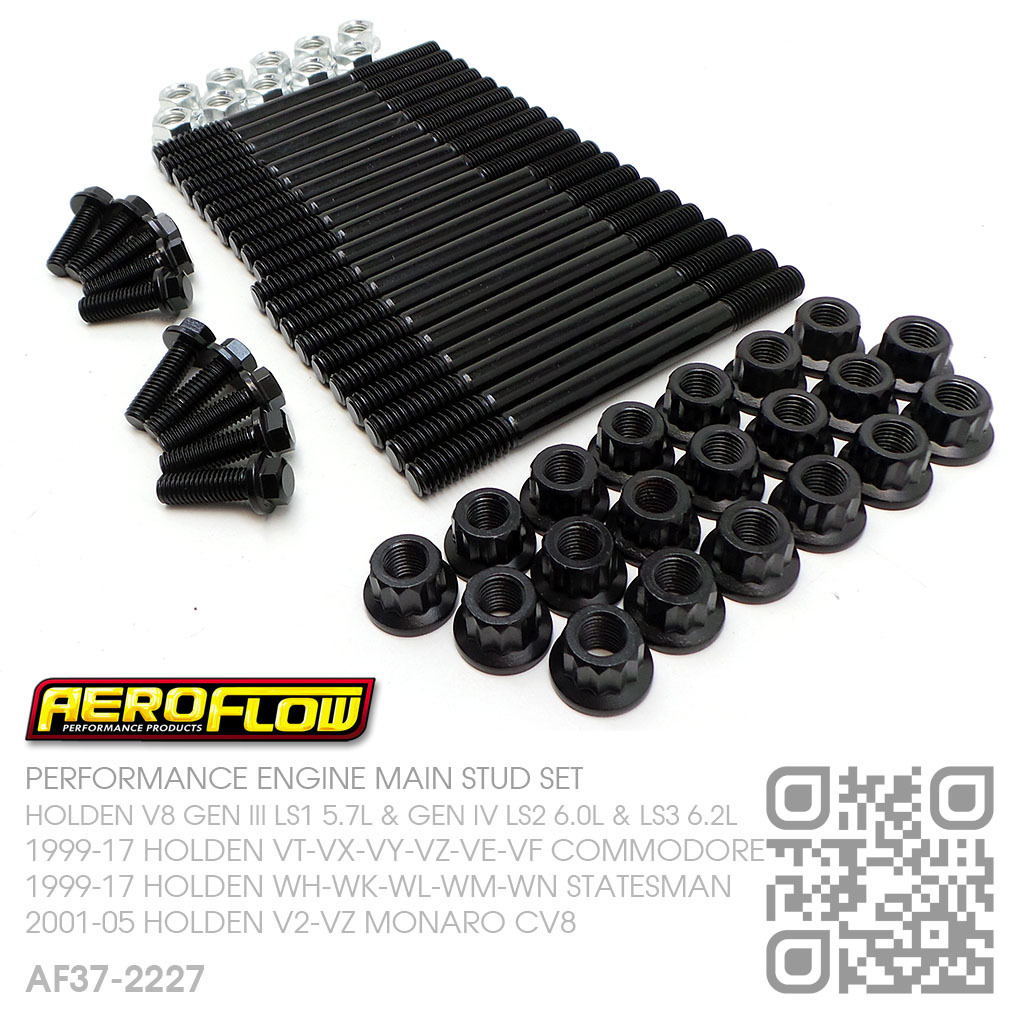

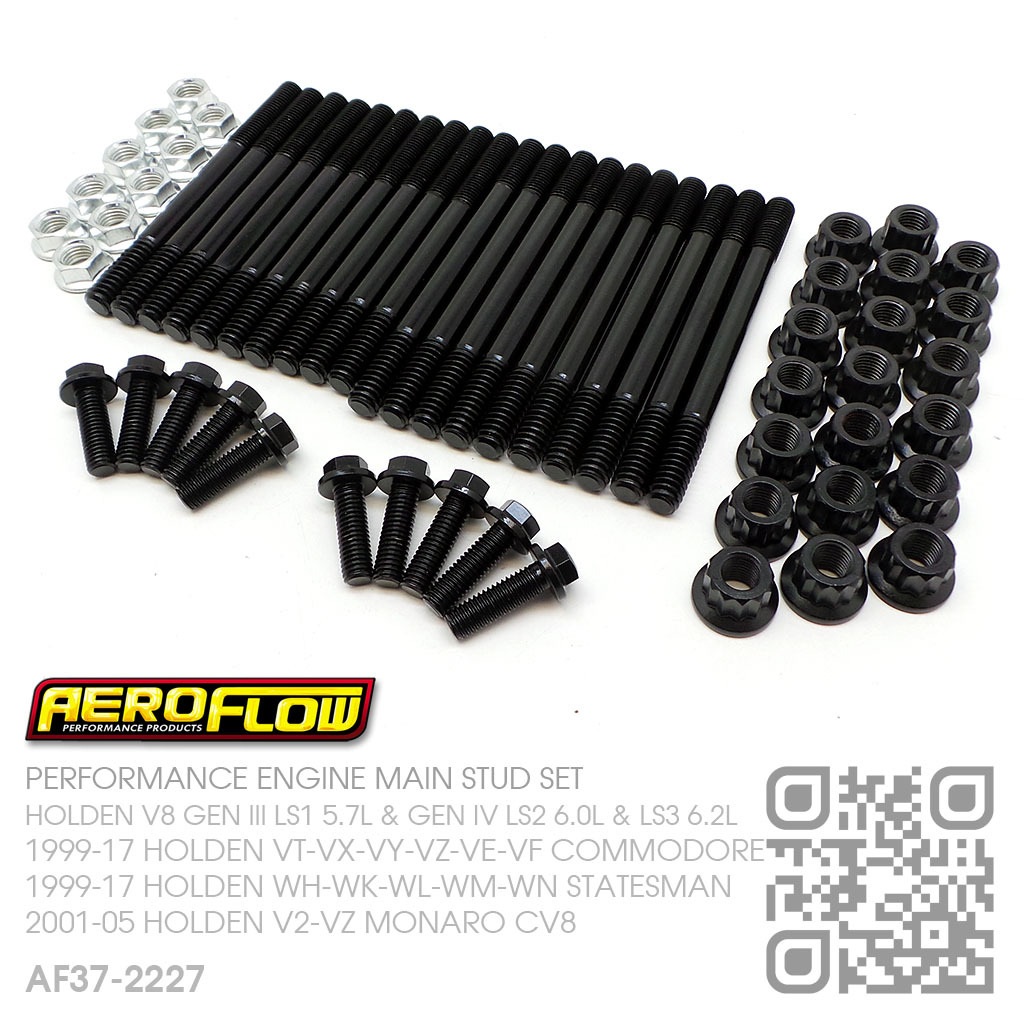

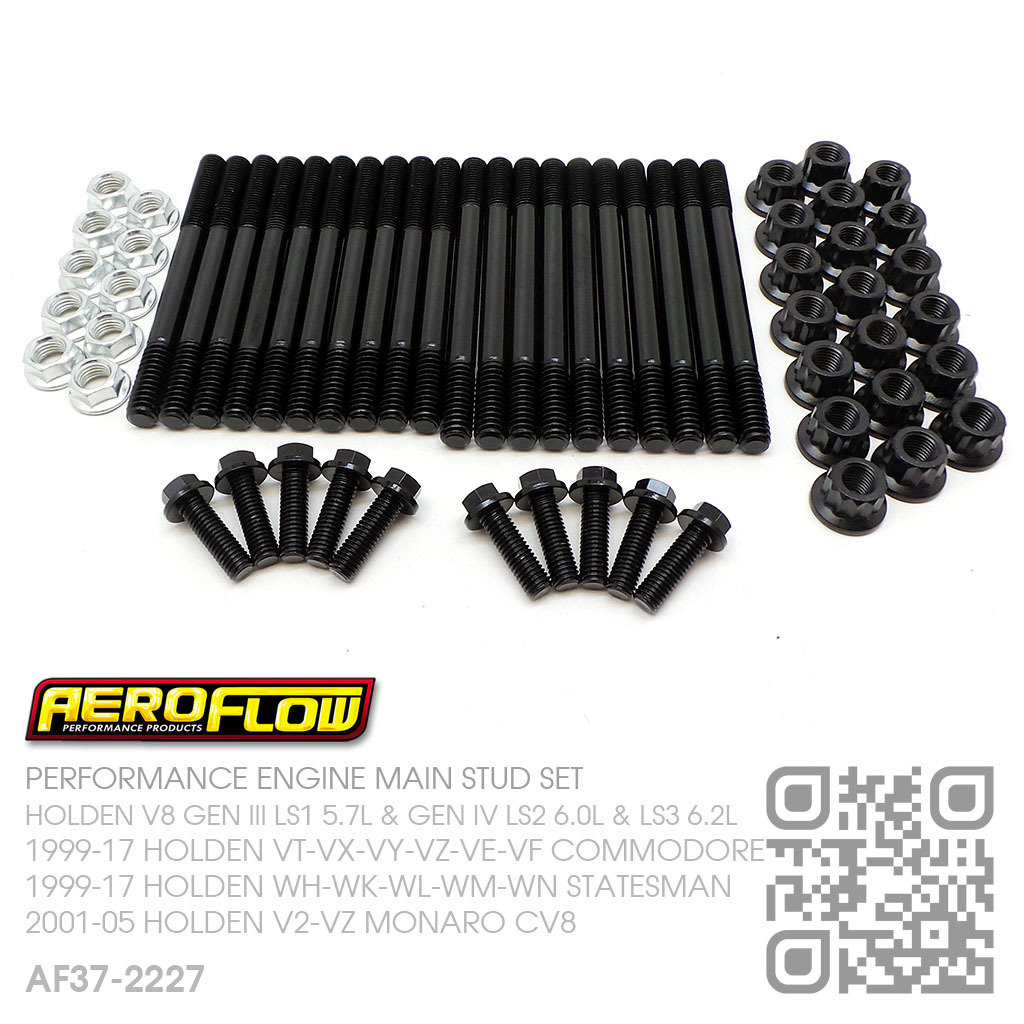

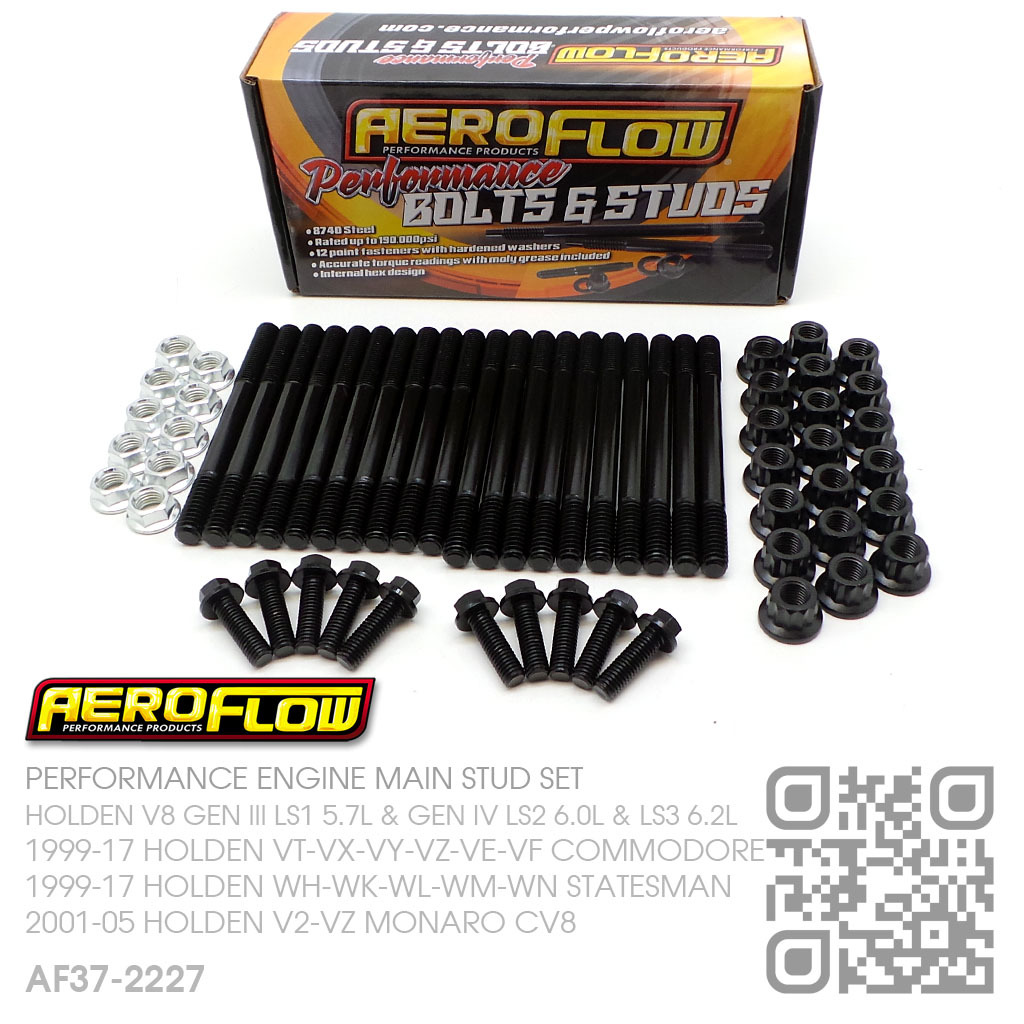

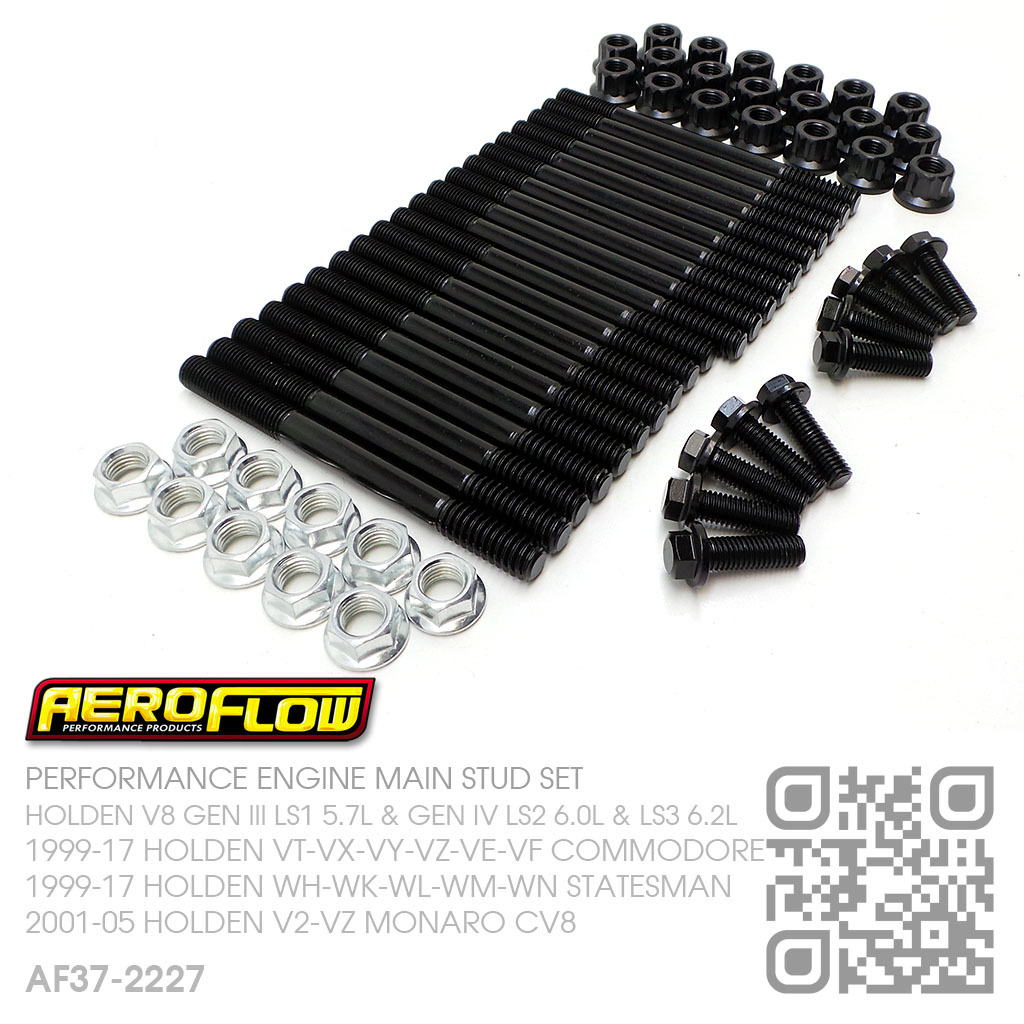

AEROFLOW PERFORMANCE MAIN STUD KIT [HOLDEN V8 GEN III LS1 5.7L, GEN IV LS2 6.0L & LS3 6.2L MOTOR]

AEROFLOW PERFORMANCE 8740 GRADE MAIN STUD KIT
12 POINT NUTS
HOLDEN V8 GEN III LS1 5.7L MOTOR
HOLDEN V8 GEN IV LS2 6.0L & LS3 6.2L MOTOR

06/1999-10/2017 HOLDEN [VTII-VX-VY-VZ-VE-VF COMMODORE]
06/1999-10/2017 HOLDEN [WH-WK-WL-WM-WN STATESMAN/CAPRICE]
12/2000-10/2017 HOLDEN [VU-VY-VZ-VE-VF UTE]
12/2001-12/2005 HOLDEN [V2-VZ MONARO CV8]
07/2008-10/2017 HOLDEN [VE-VF SPORTWAGON]

Aeroflow Performance main studs are designed to keep your main caps in placed and stop them walking and fretting which can lead to engine failure. These studs are preferred over bolts as they allow you to obtain more accurate torque readings.

These main studs are manufactured from aircraft quality 8740 high tensile strength chromoly steel and cold-forged to ensure molecular integrity within the stud. Meaning these studs are rated up to 190,000 psi making them stronger than Grade 8 and OEM fasteners. All kits come complete with 12-point nuts and hardened parallel washers for an even load distribution and accurate torque readings.

SPECIFICATIONS:
20 X STUDS
115.65MM OVERALL LENGTH
49.20MM SHANK LENGTH
M8 X 1.25MM THREAD INTO ENGINE
M8 X 1.25MM NUT END

10 X BOLTS
25.05MM UNDER HEAD LENGTH
M8 X 1.25MM THREAD
7.55MM BOLT HEAD HEIGHT
15MM BOLT HEAD DIAMETER

20 X 12 POINT NUTS
M8 X 1.25MM THREAD
18.75MM OUTSIDE DIAMETER
9.55MM OVERAL HEIGHT

10 X 12 POINT SERRATED NUTS
M8 X1.25MM THREAD
20.55MM OUTSIDE DIAMETER
11.30MM OVERAL HEIGHT
