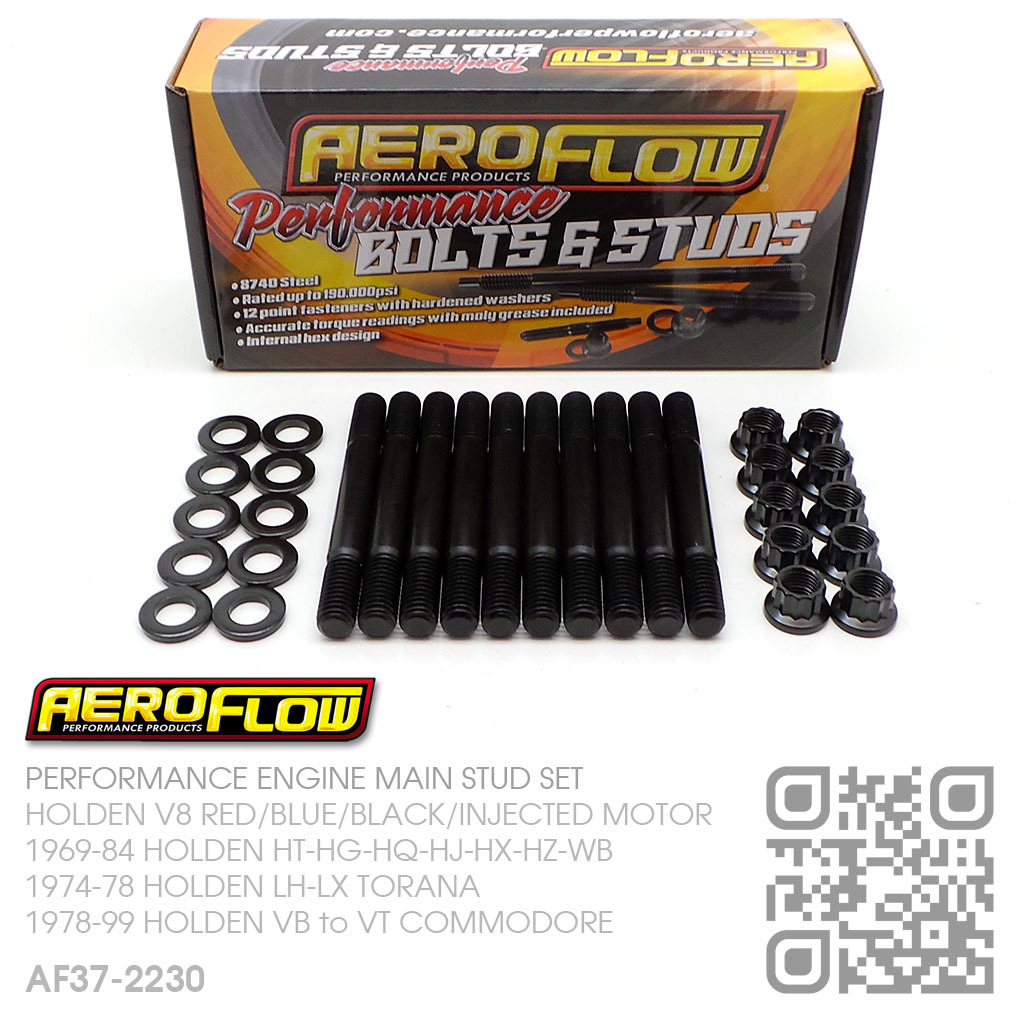

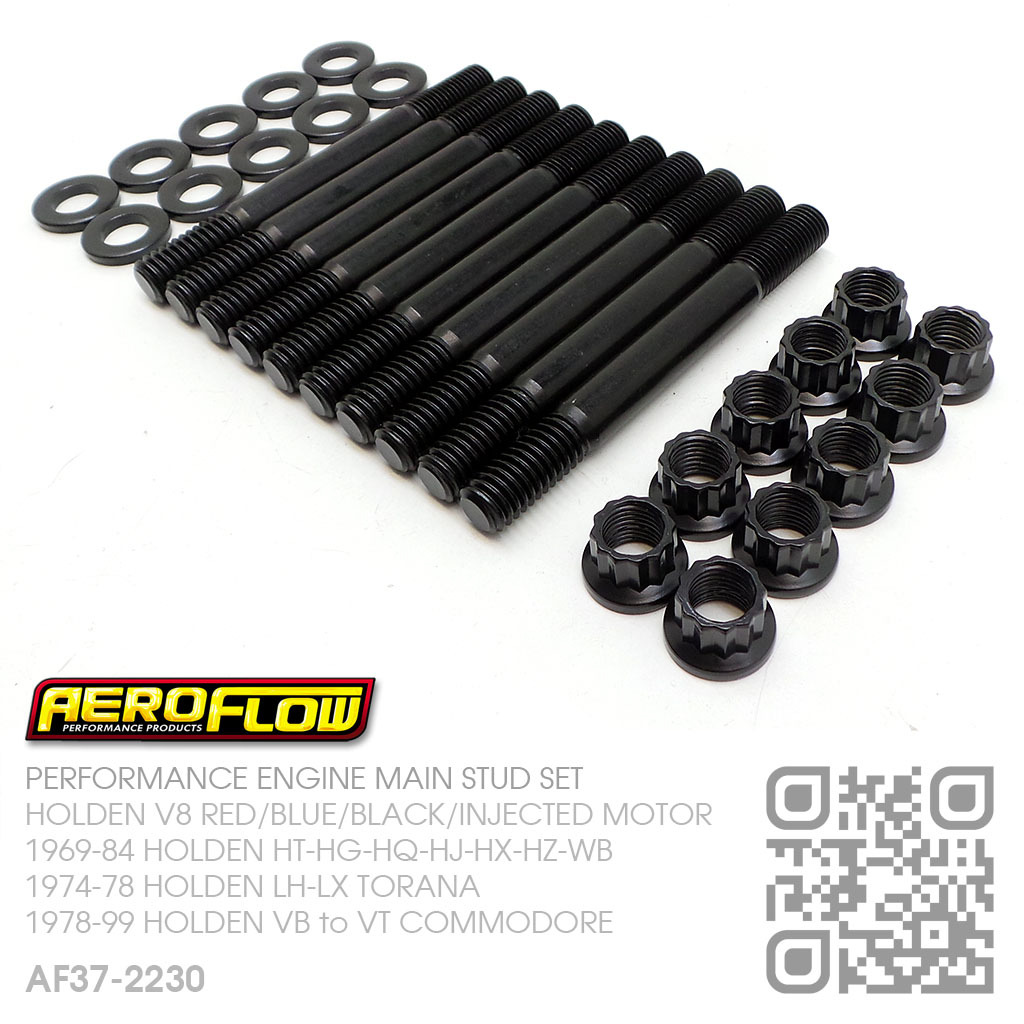

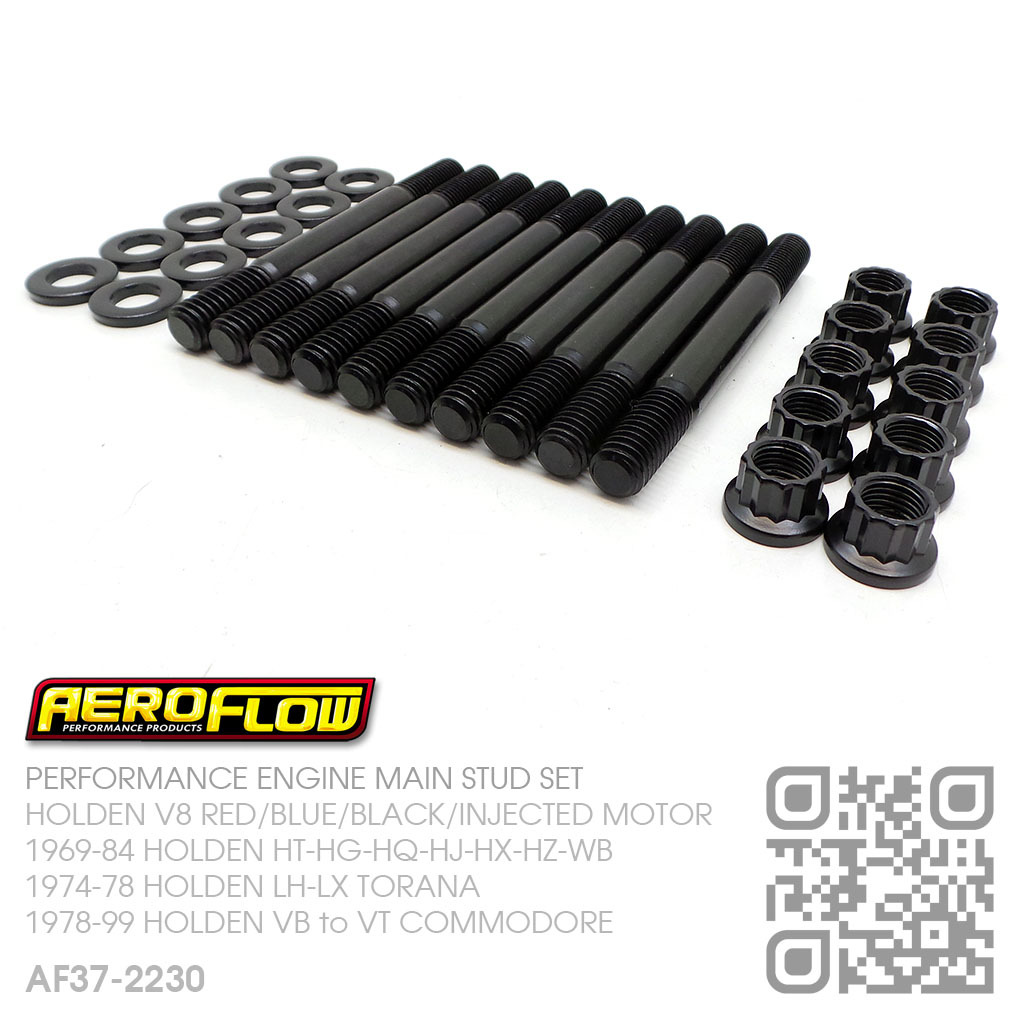

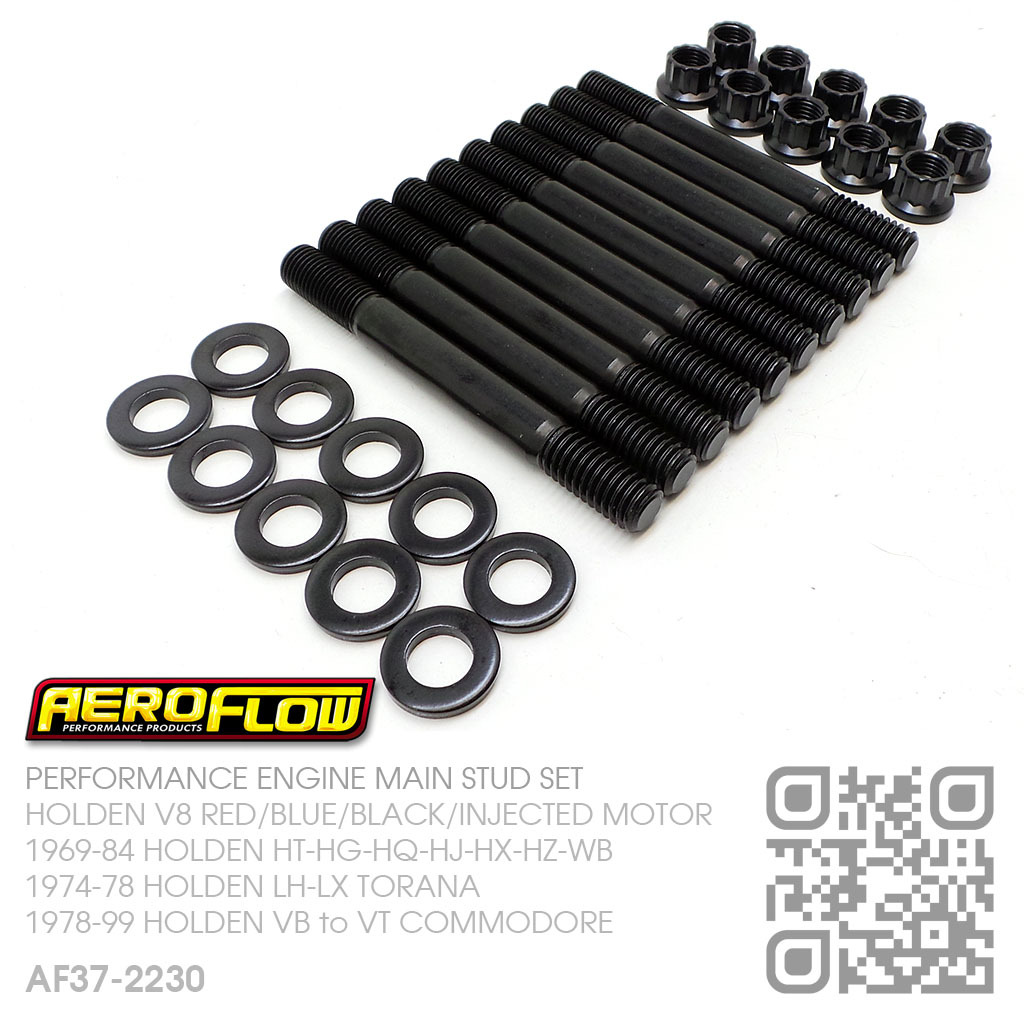

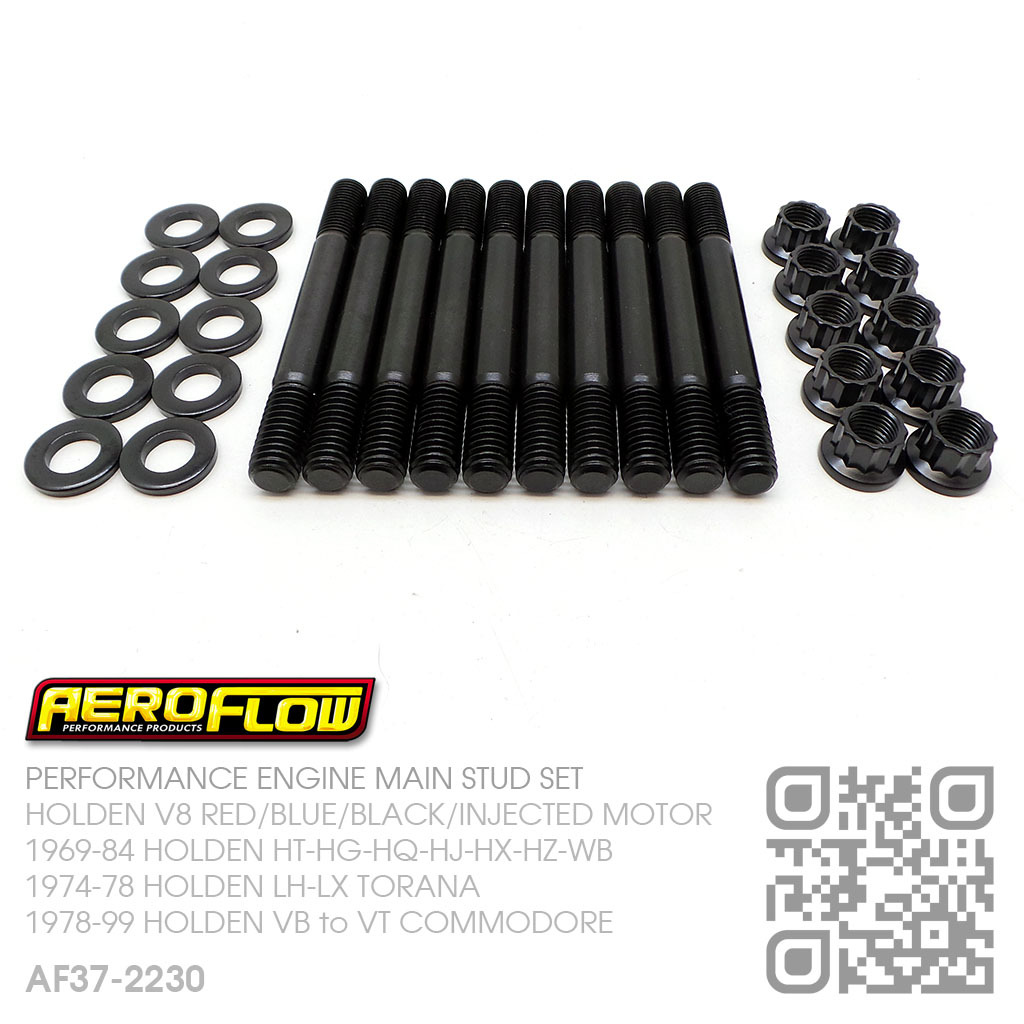

AEROFLOW PERFORMANCE 2-BOLT MAIN STUD KIT [HOLDEN V8 RED/BLUE/BLACK/INJECTED MOTOR]

AEROFLOW PERFORMANCE 8740 GRADE 2-BOLT MAIN STUD KIT
12 POINT NUTS
HOLDEN V8 253 4.2L & 308 5.0L RED/BLUE MOTOR
HOLDEN V8 304 & 308 5.0L BLACK MOTOR
HOLDEN V8 304 5.0L INJECTED MOTOR
HOLDEN V8 355 5.7L STROKER MOTOR (348ci)

HOLDEN V8 RED/BLUE/BLACK MOTOR
05/1969-1984 HOLDEN [HT-HG-HQ-HJ-HX-HZ-WB SERIES]
03/1974-03/1978 HOLDEN [LH-LX TORANA]
10/1978-08/1988 HOLDEN [VB-VC-VH-VK-VL COMMODORE]

HOLDEN V8 INJECTED MOTOR
03/1989-1999 HOLDEN [VN-VP-VR-VS-VT COMMODORE]
03/1990-1999 HOLDEN [VQ-VR-VS STATESMAN/CAPRICE]
09/1990-2000 HOLDEN [VG-VP-VR-VS UTE]

Aeroflow Performance main studs are designed to keep your main caps in placed and stop them walking and fretting which can lead to engine failure. These studs are preferred over bolts as they allow you to obtain more accurate torque readings.

These main studs are manufactured from aircraft quality 8740 high tensile strength chromoly steel and cold-forged to ensure molecular integrity within the stud. Meaning thesestuds are rated up to 190,000 psi making them stronger than Grade 8 and OEM fasteners. All kits come complete with 12-point nuts and hardened parallel washers for an even load distribution and accurate torque readings.

SPECIFICATIONS:
10 X LONG STUDS
101.6MM OVERALL LENGTH
49.5MM SHANK LENGTH
7/16-14" THREAD INTO ENGINE
7/16-20 " NUT END

10 X 12 POINT NUTS
7/16-20" THREAD
18.7MM OUTSIDE DIAMETER
11MM OVERAL HEIGHT

10 X FLAT WASHERS
20.4MM OUTSIDE DIAMETER
11.3MM INSIDE DIAMETER
3MM THICKNESS.

SPECIAL NOTE:
FOLLOW HOLDEN'S RECOMMENDED TORQUE SEQUENCE AND TIGHTEN TO SPECIFICATIONS
