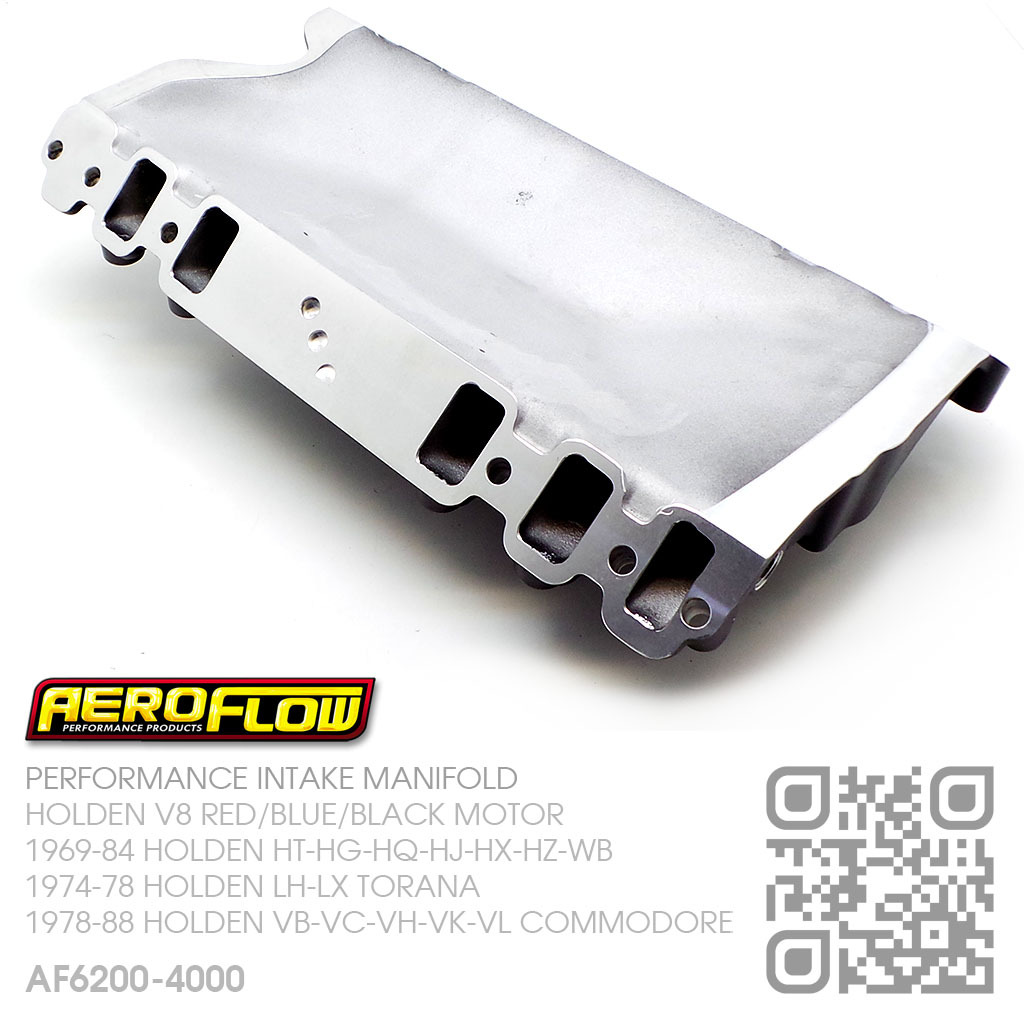

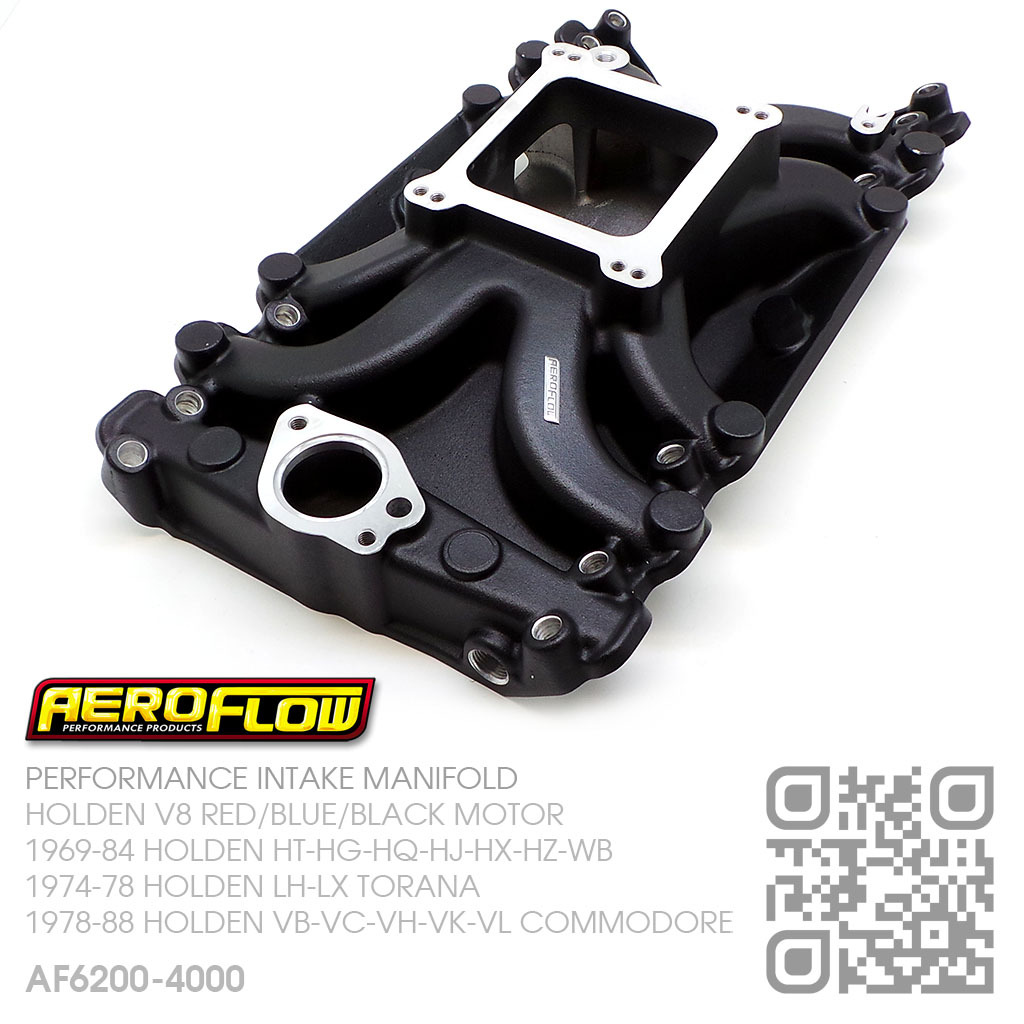

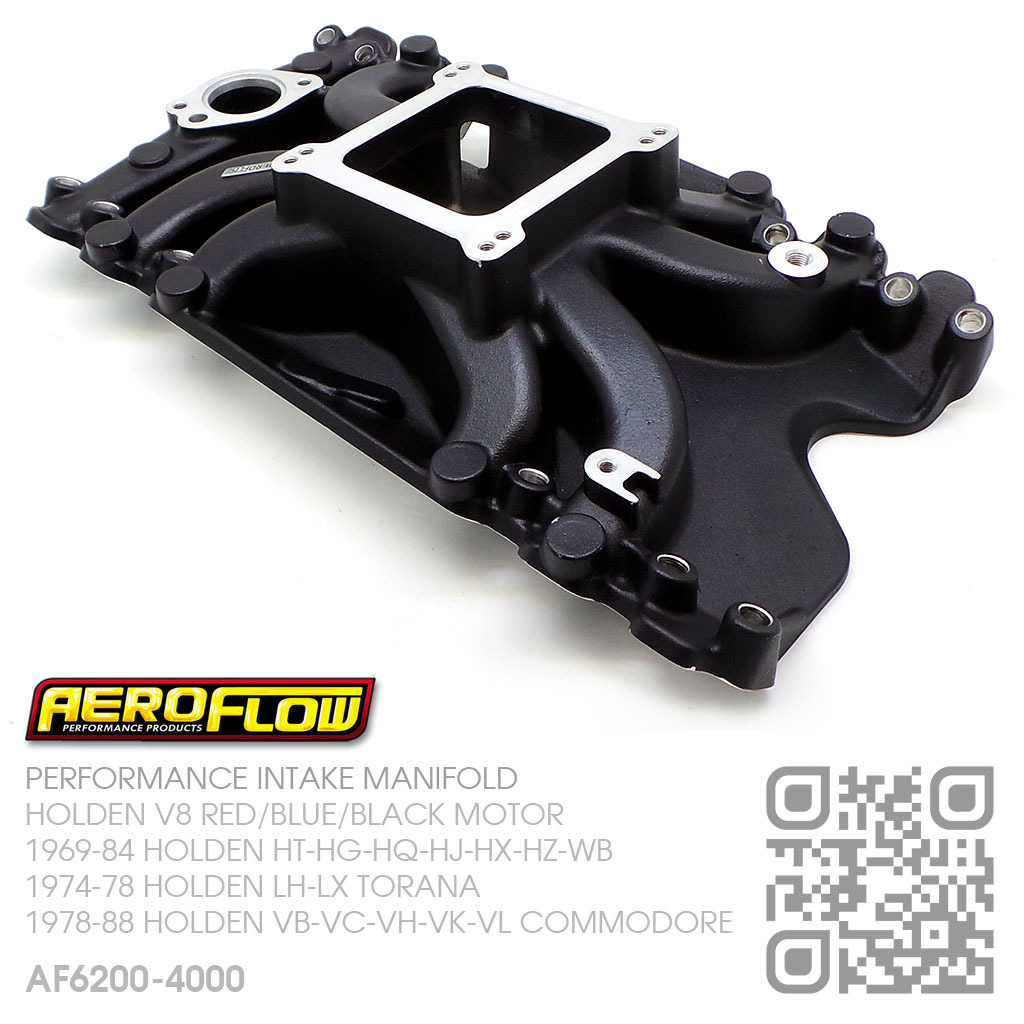

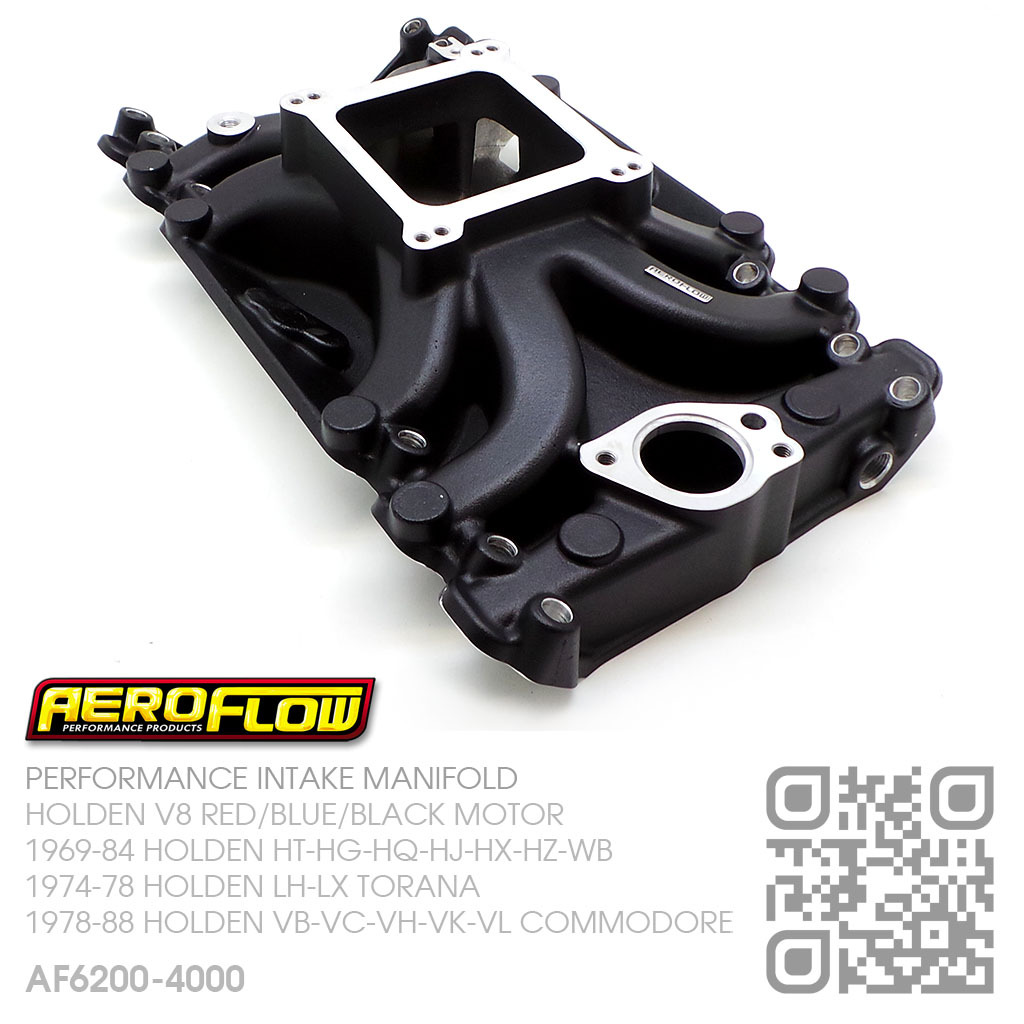

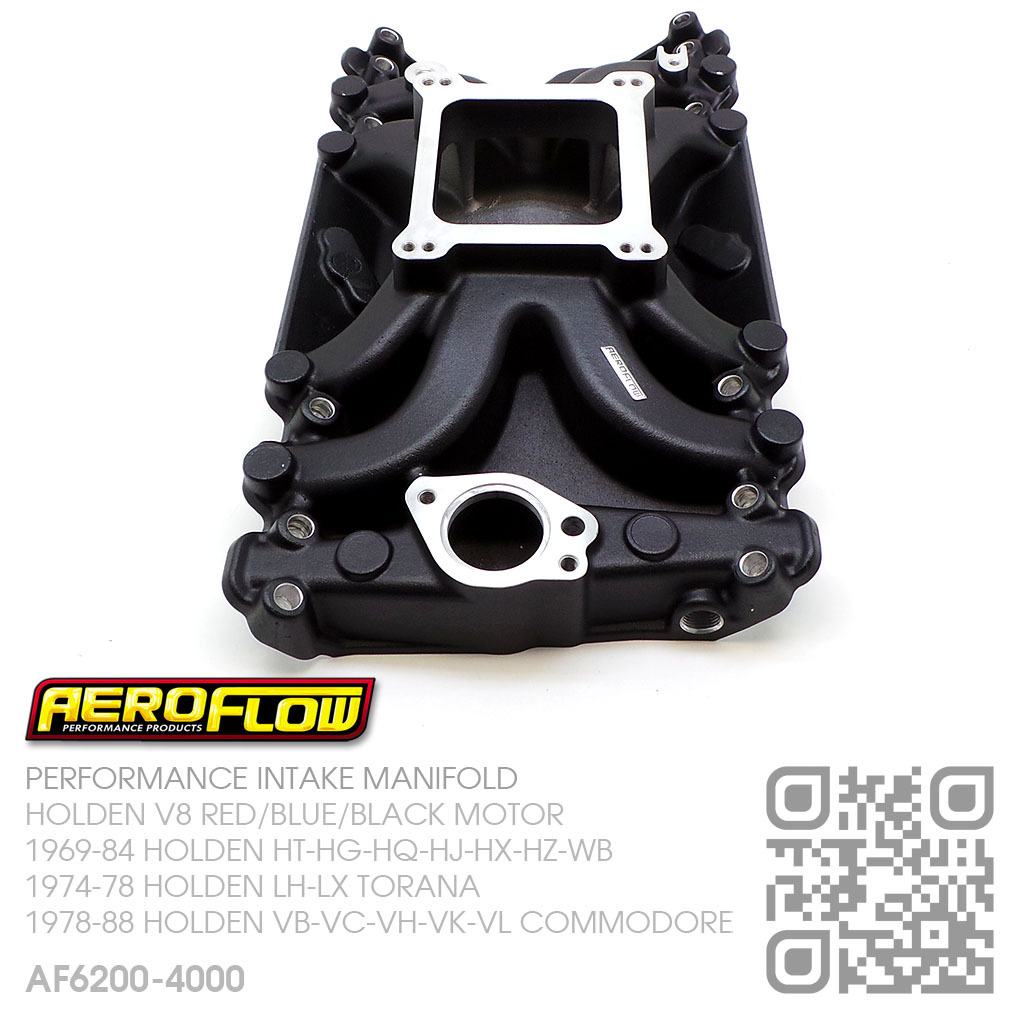

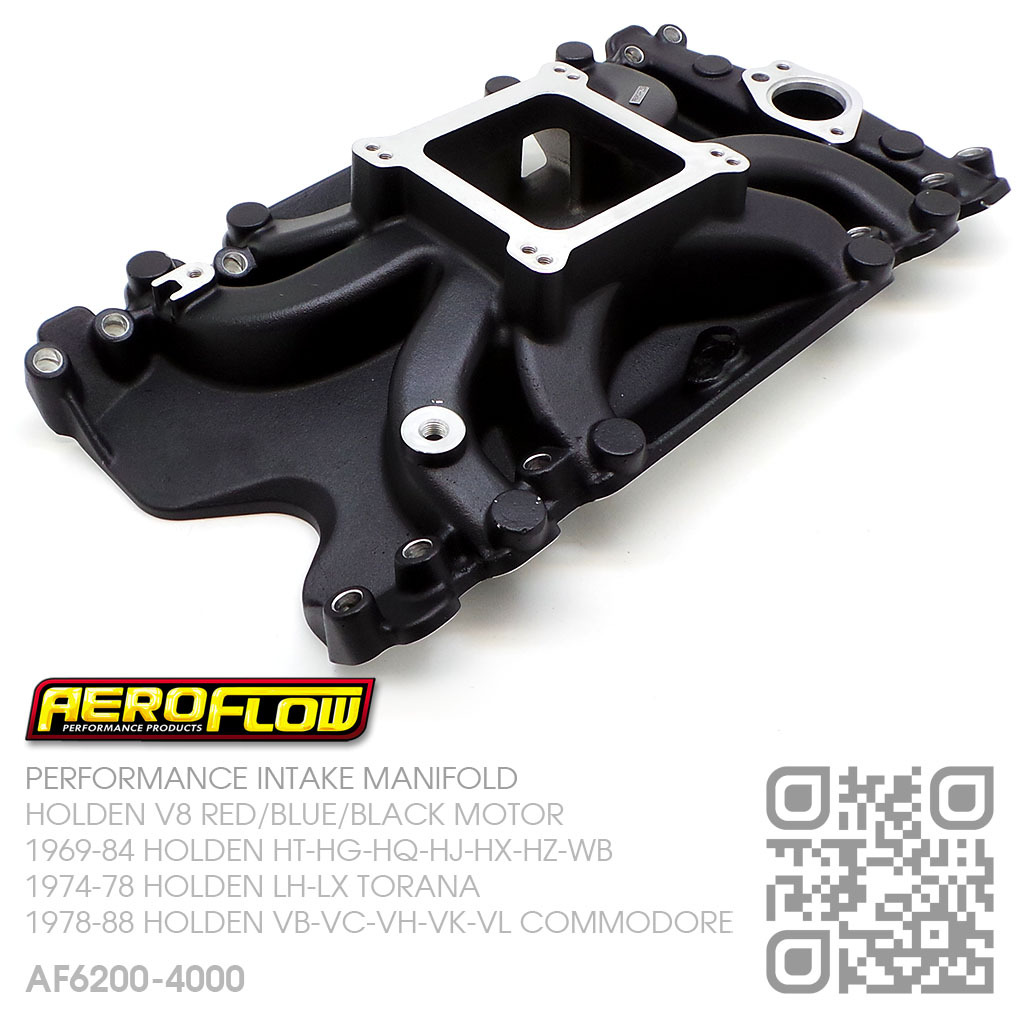

AEROFLOW PERFORMANCE CARBY INTAKE MANIFOLD [HOLDEN V8 304 & 308 RED/BLUE/BLACK MOTOR]

AEROFLOW PERFORMANCE CARBY INTAKE MANIFOLD
LOW-RISE SINGLE PLANE (BLACK FINISH)
SUITE SQUARE BORE CARBURETTOR
HOLDEN V8 308 5.0L RED & BLUE MOTOR
HOLDEN V8 304 & 308 5.0L BLACK MOTOR

05/1969-1984 HOLDEN [HT-HG-HQ-HJ-HX-HZ-WB SERIES]
03/1974-03/1978 HOLDEN [LH-LX TORANA]
10/1978-08/1988 HOLDEN [VB-VC-VH-VK-VL COMMODORE]

Get the maximum power from your carbureted engine with this Low Rise Holden carbureted cast intake manifold.

This single-plane intake manifold is designed to keep your air and fuel distribution going into the engine at a steady and even flow for maximum performance and efficiency.

The carburettor-mounting pad is designed to accept aftermarket square-bore carburettors with either manual or electric choke options available on today’s market.

Specifically designed for Holden V8 engines operating from 1500 to 6500 rpm range. In most cases, these manifolds accept late model water necks, air conditioning, alternator and H.E.I. ignition systems. Intake Runners should be port matched to your cylinder heads for optimal performance.

SPECIAL NOTE
WILL NOT SUIT LATE HOLDEN V8 304 CYLINDER HEADS
