AEROFLOW CONVERSION ENGINE PLATES [HOLDEN V8 GEN III LS1 5.7L & GEN IV LS2 6.0L/LS3 6.2L MOTOR]

AEROFLOW CONVERSION ENGINE PLATES
HOLDEN V8 GEN III LS1 5.7L MOTOR
HOLDEN V8 GEN IV LS2 6.0L & LS3 6.2L MOTOR

1968-1984 HOLDEN [HK-HT-HG-HQ-HJ-HX-HZ-WB SERIES]
1969-1980 HOLDEN [LC-LJ-LH-LX-UC TORANA]

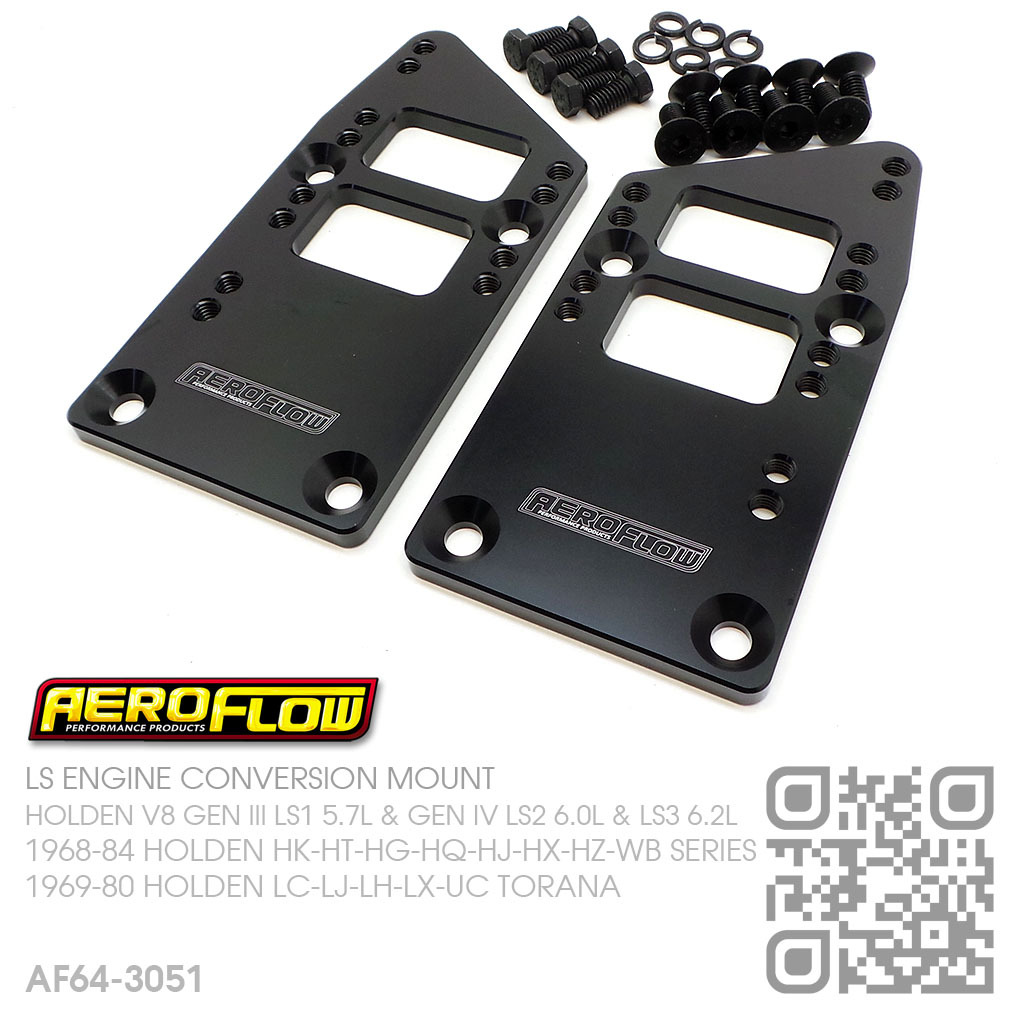

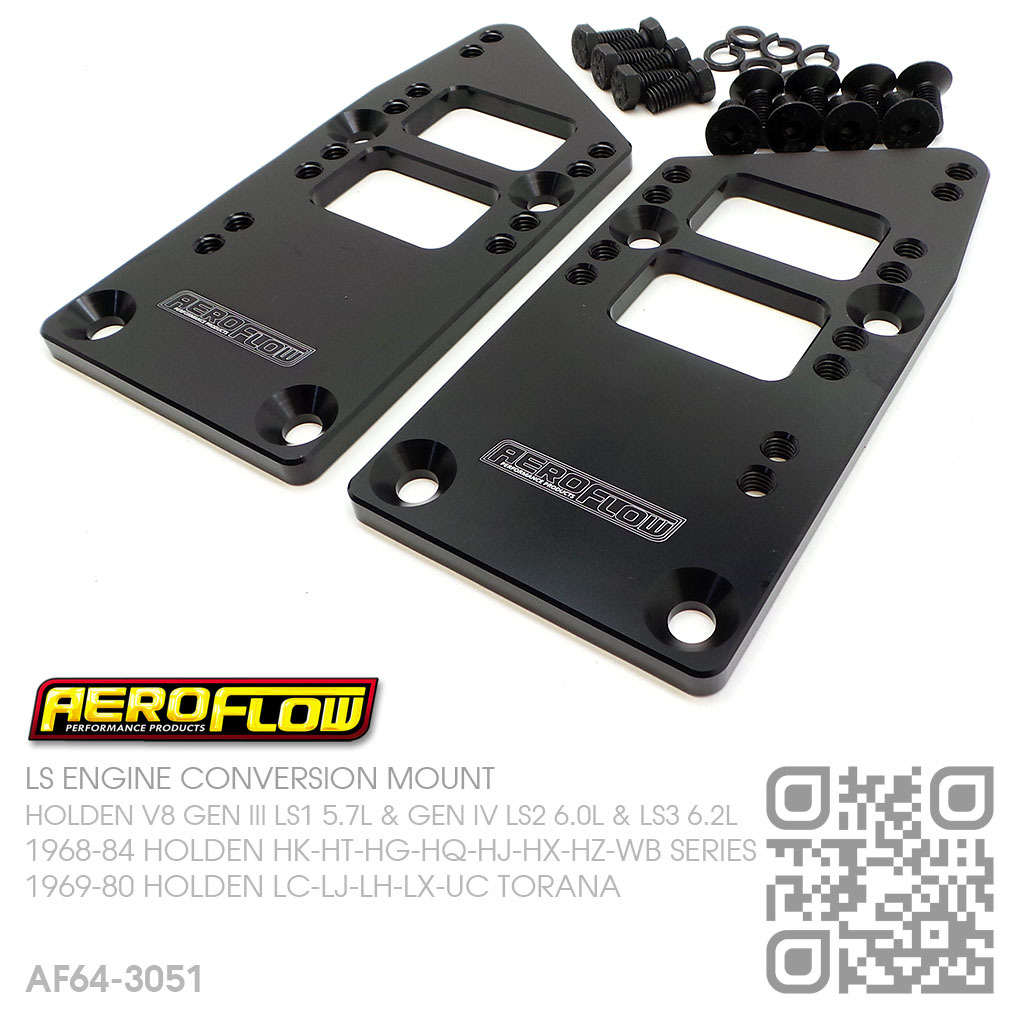

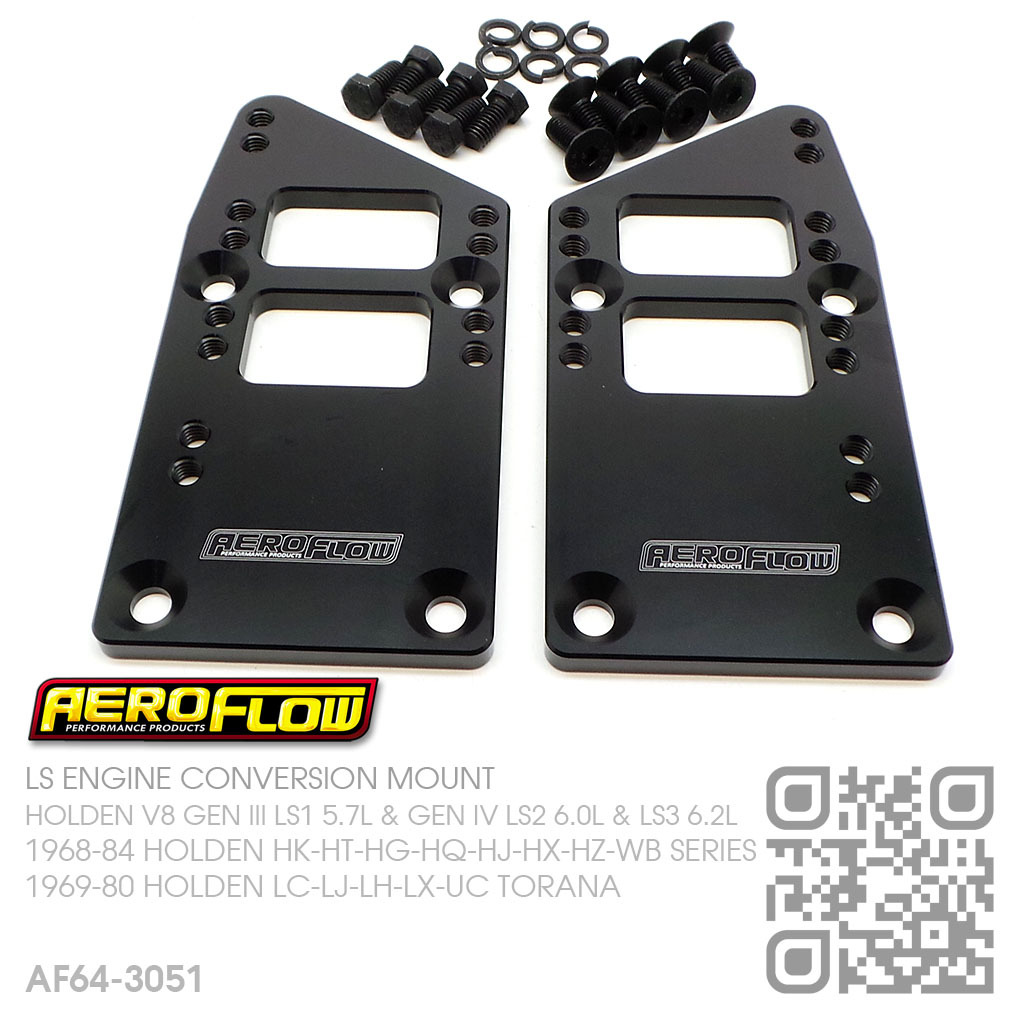

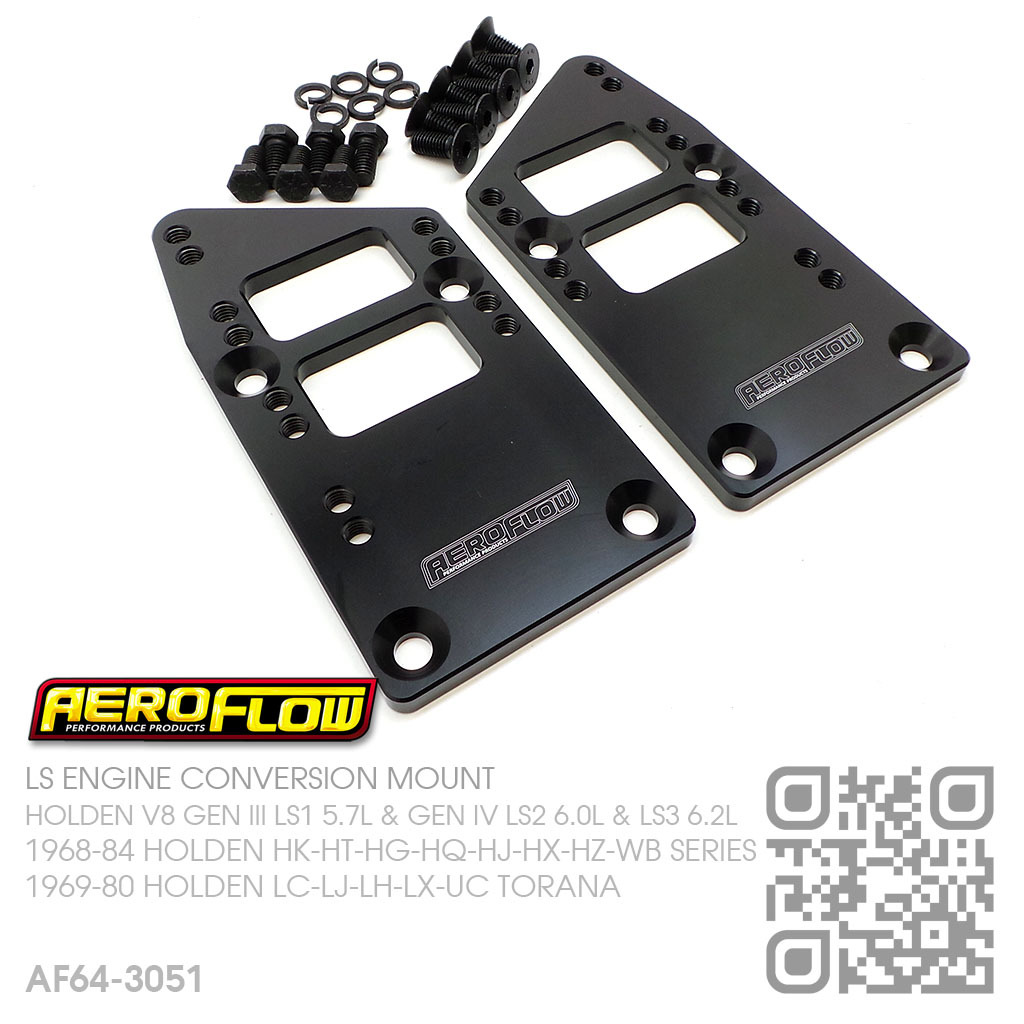

These billet aluminium conversion plate adapters are designed as a true bolt in adapter plate for installing a GM LS series engine into various chassis types that use a 3-bolt engine mount.

They will place your LS engine in the correct position when swapping from a small or big block Chevrolet engine to a LS series engine and have four different motor mount placement positions.

1ST POSITION: Places the LS enginein the stock SBC location

2ND POSITION: Places your LS engine forward 7/16" (11mm) from the original SBC location

3RD POSITION: Places your LS engine forward 1-3/4" (44mm) from the original SBC location

4TH POSITION: Places your LS engine forward 2-1/4" (57mm) from the original SBC location

Includes left and right adapter plates and all necessary grade-8 hardware. These LS conversion plates will not work with low mount AC compressors.

SPECIAL NOTE:
CONVERSION OIL PAN / SUMP REQUIRED
