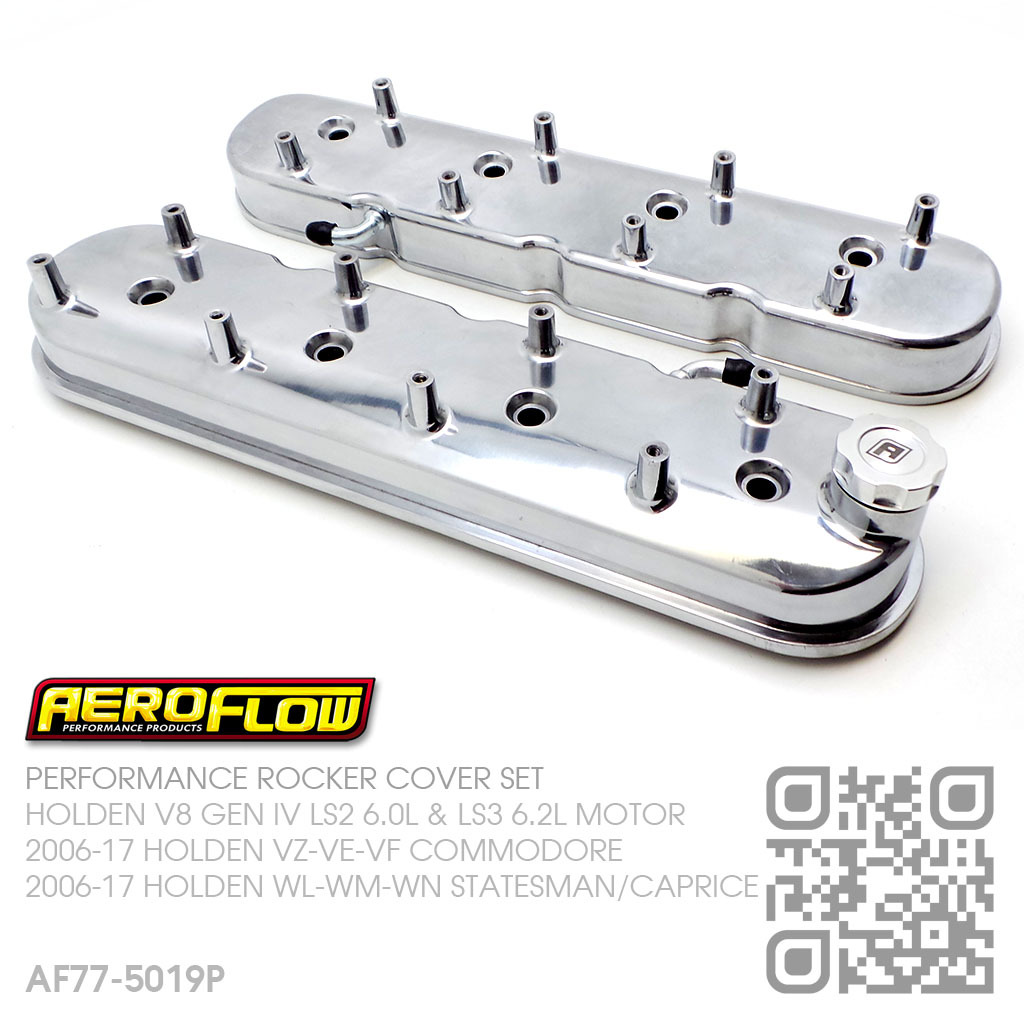

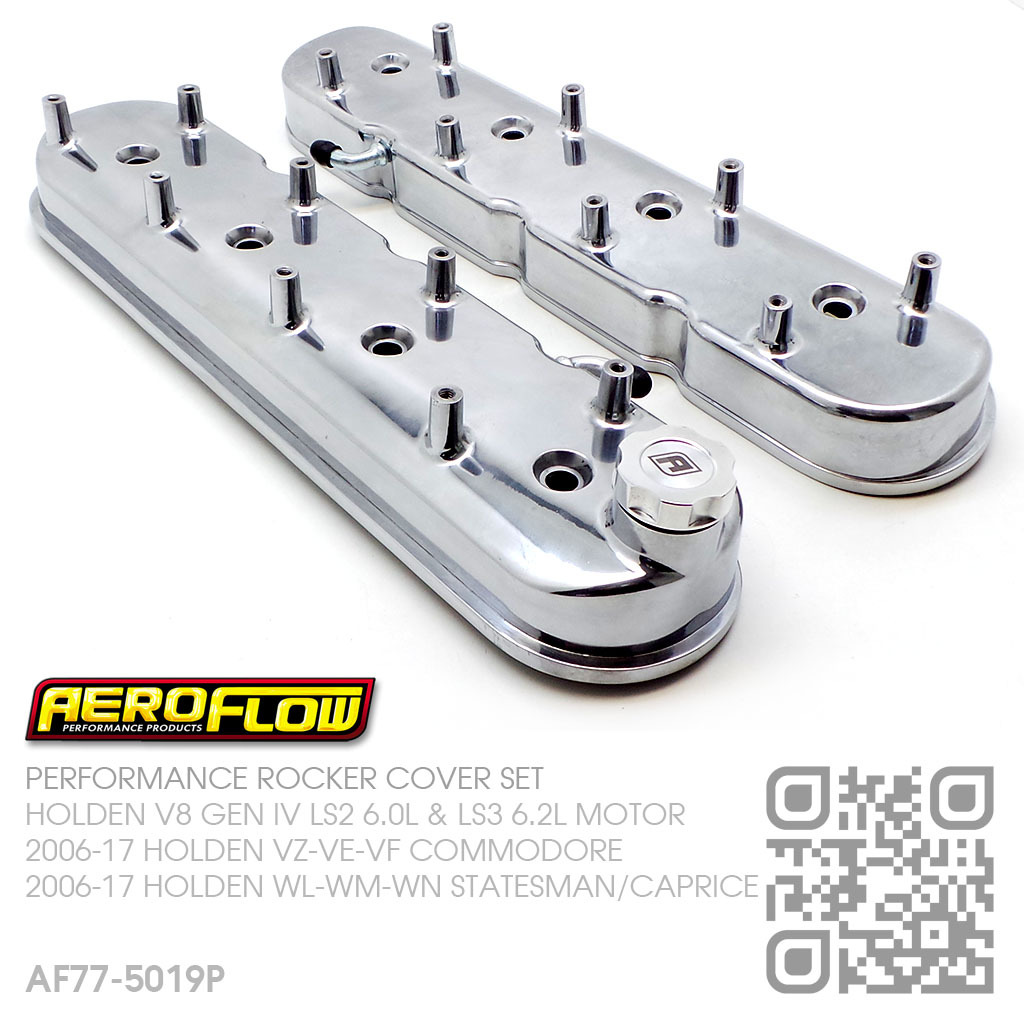

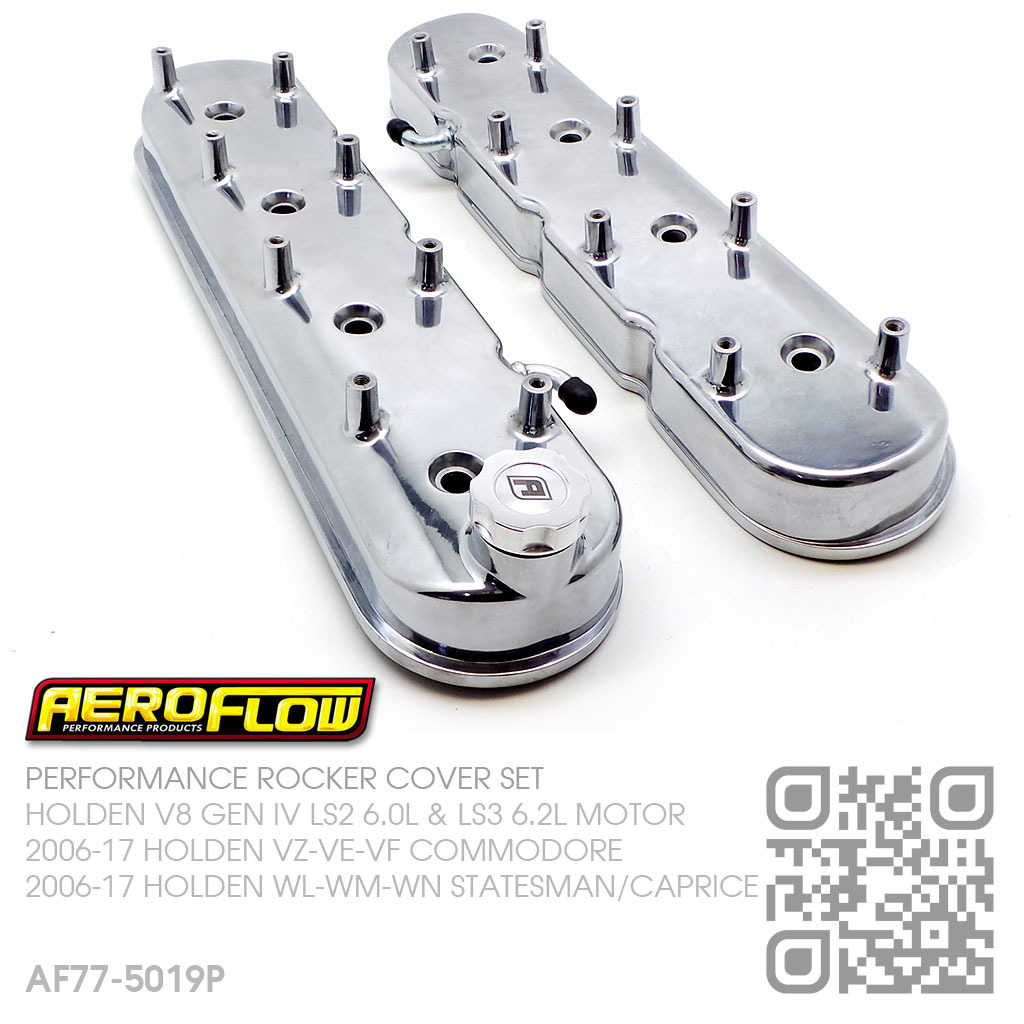

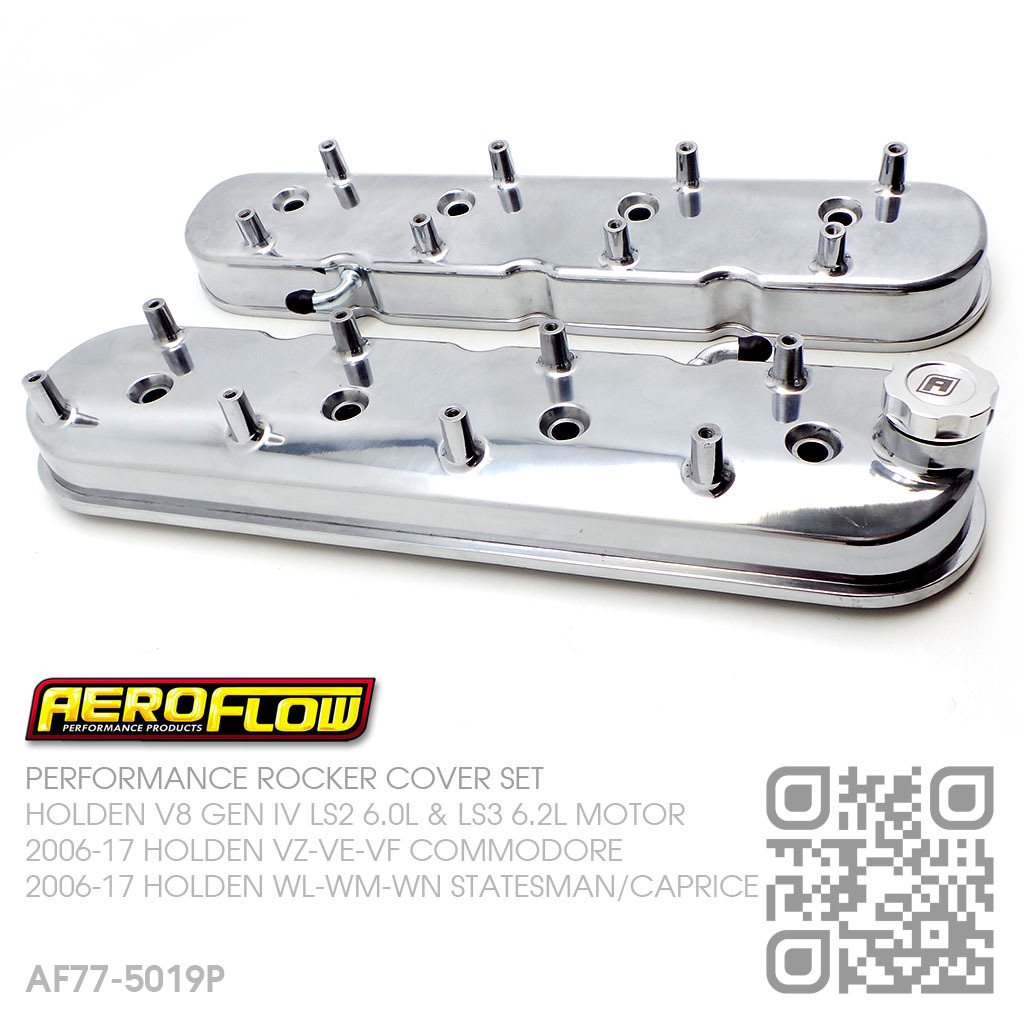

AEROFLOW PERFORMANCE ALLOY ROCKER COVERS [GEN IV LS2 6.0L & LS3 6.2L MOTOR]

AEROFLOW PERFORMANCE ALLOY ROCKER COVERS (POLISHED)
HOLDEN V8 GEN IV LS2 6.0L & LS3 6.2L MOTOR

01/2006-2017 HOLDEN [VZ-VE-VF COMMODORE]
01/2006-2017 HOLDEN [WL-WM-WN STATESMAN/CAPRICE]
01/2006-2017 HOLDEN [VZ-VE-VF UTE]

Cast aluminium valve covers are a great way to improve and refine the look of your LS engine, without any radical changes to its configuration.

These Aeroflow Performance valve covers allow you to boltthe factory coils back into the factory position but without the brackets required on the OE covers.

These valve covers were designed to add anadditional 13mm of internal clearance over the factory height valve covers. It also features a baffled stock-style ventilation set-up and oil fill cap while also retaining the factory gaskets and bolts.

SPECIFICATIONS:
TALL FACTORY STYLE LS VALVE COVERS
SUITS GM LS2/LS3 STYLE COIL PACKS WITH 72MM BOLT SPACING
TOTAL HEIGHT: 76MM
VALVE TRAIN CLEARANCE: .750" LIFT CAM WITH STOCK STYLE ROCKER ARMS

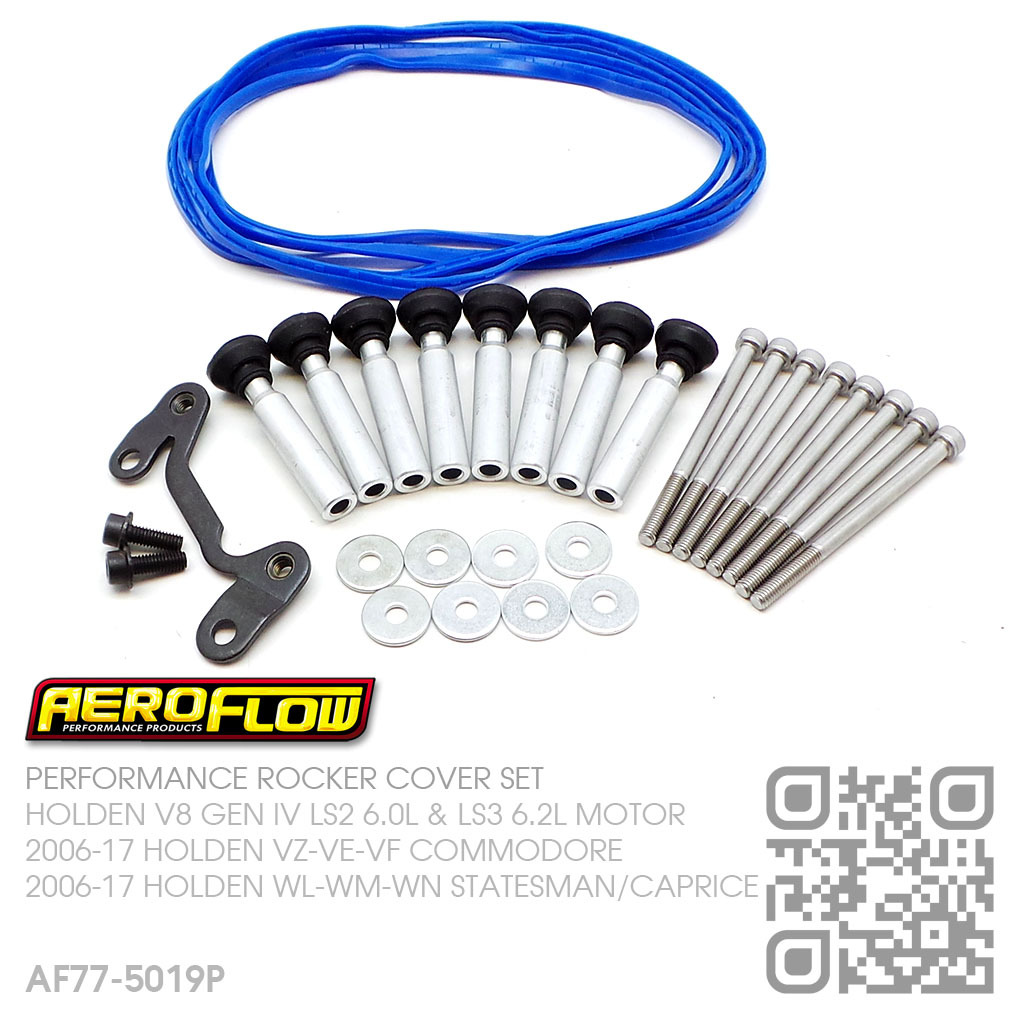

VALVE COVERS INCLUDES:
2 x GM LS VALVE COVER (ONE WITH OIL FILL CAP AND BOTH HAVE 3/8" BREATHER HOSE BARB)
8 x VALVE COVER MOUNTING SOCKET CAP SCREWS (M6 X 1.00MM, 85MM UHL)
8 x VALVE COVER BASESTANDS AND GROMMETS
8 x FLAT WASHERS
2 x RUBBER VALVE COVER GASKETS

REPLACES GM PART NUMBER 12637684 & 12642655

SPECIAL NOTE:
CAN BE USED ON HOLDEN V8 GENI III LS1 ENGINE USING LS2 or LS3 IGNITION COILS
