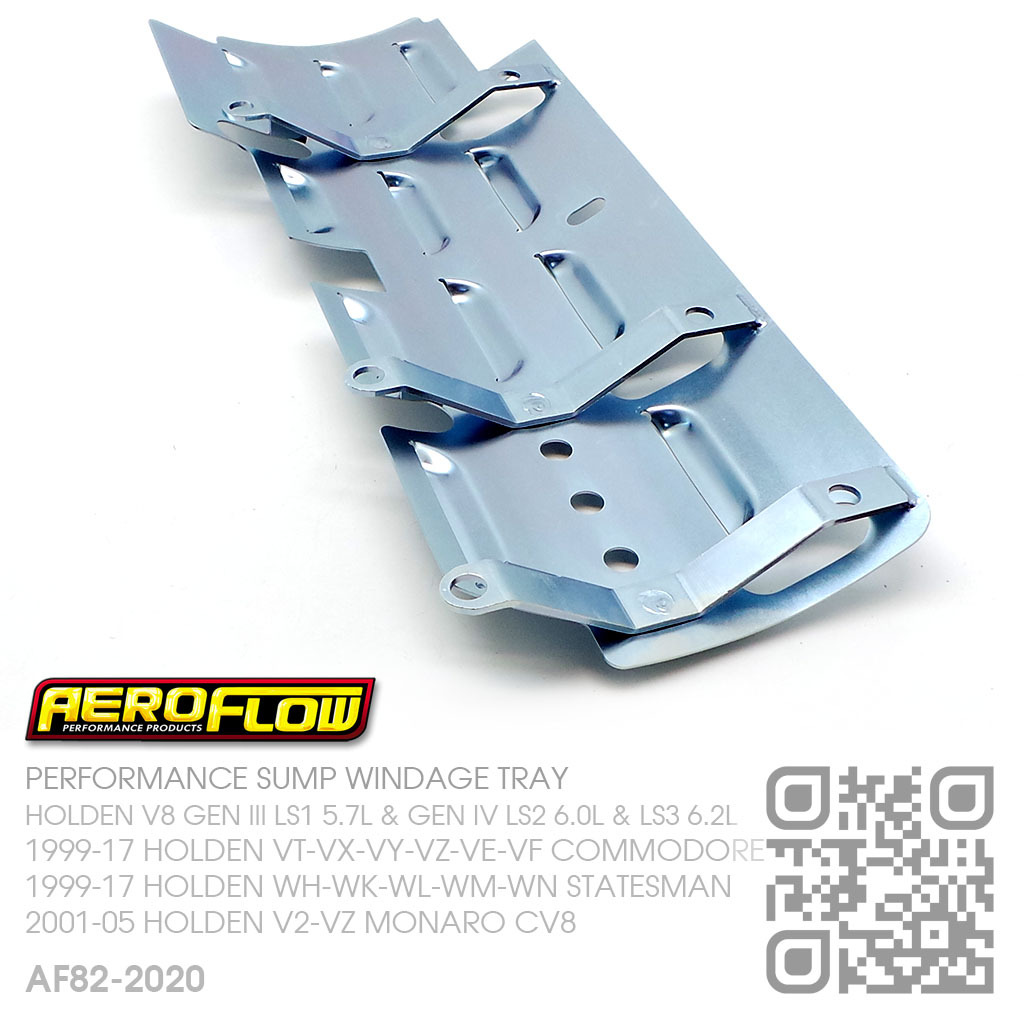

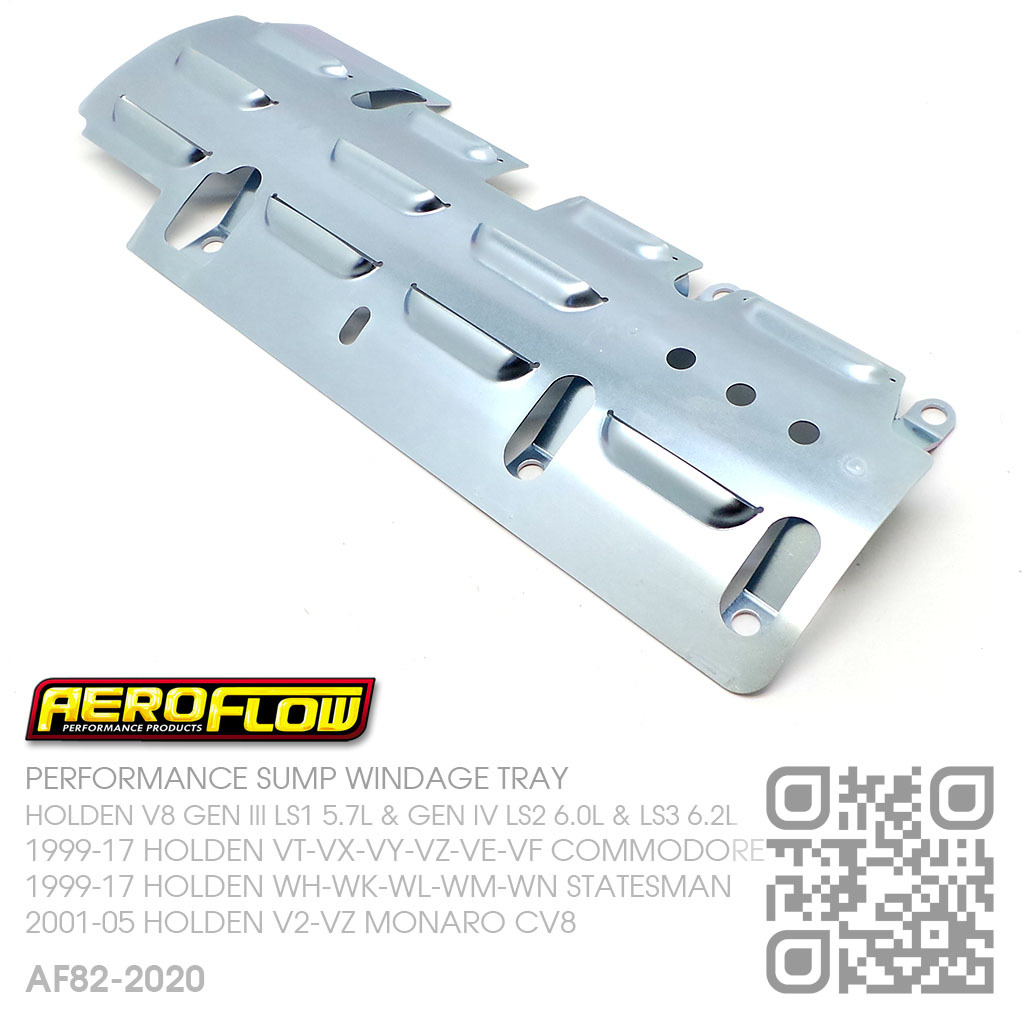

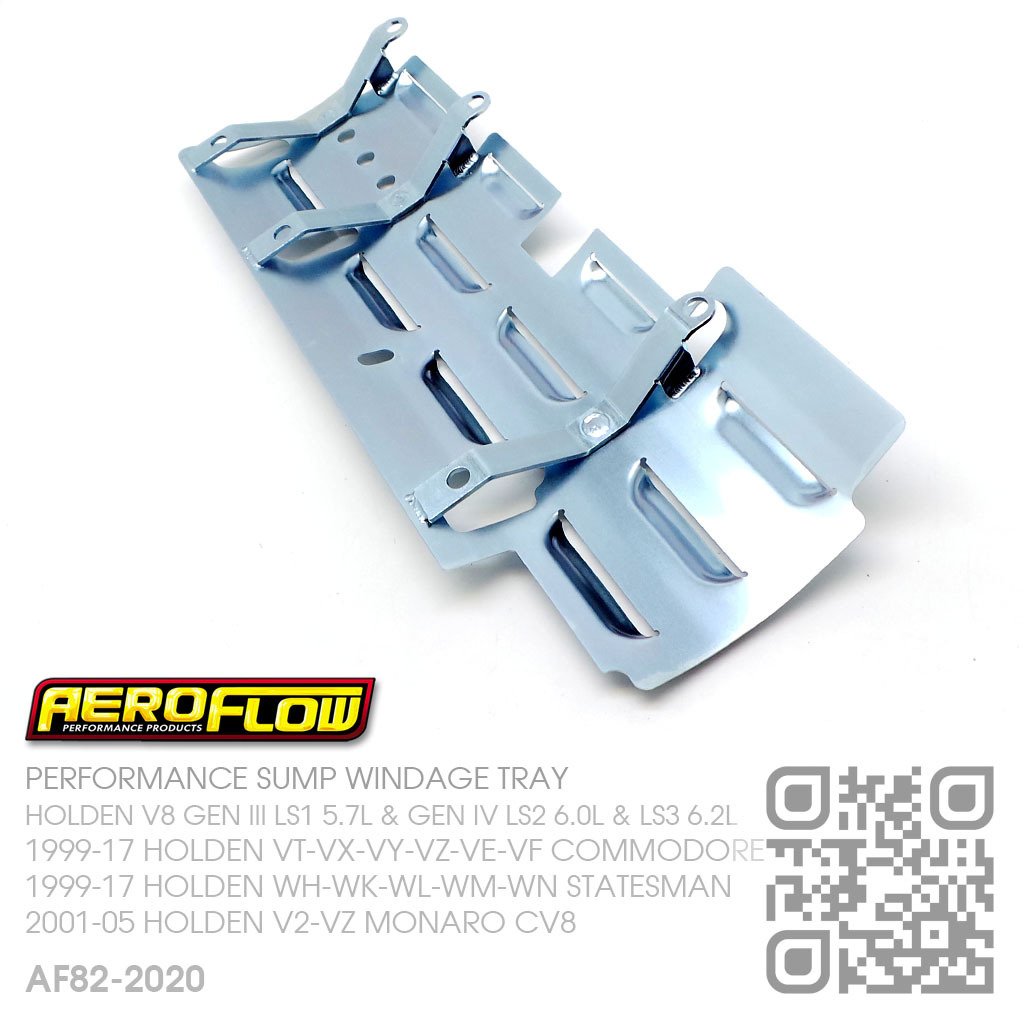

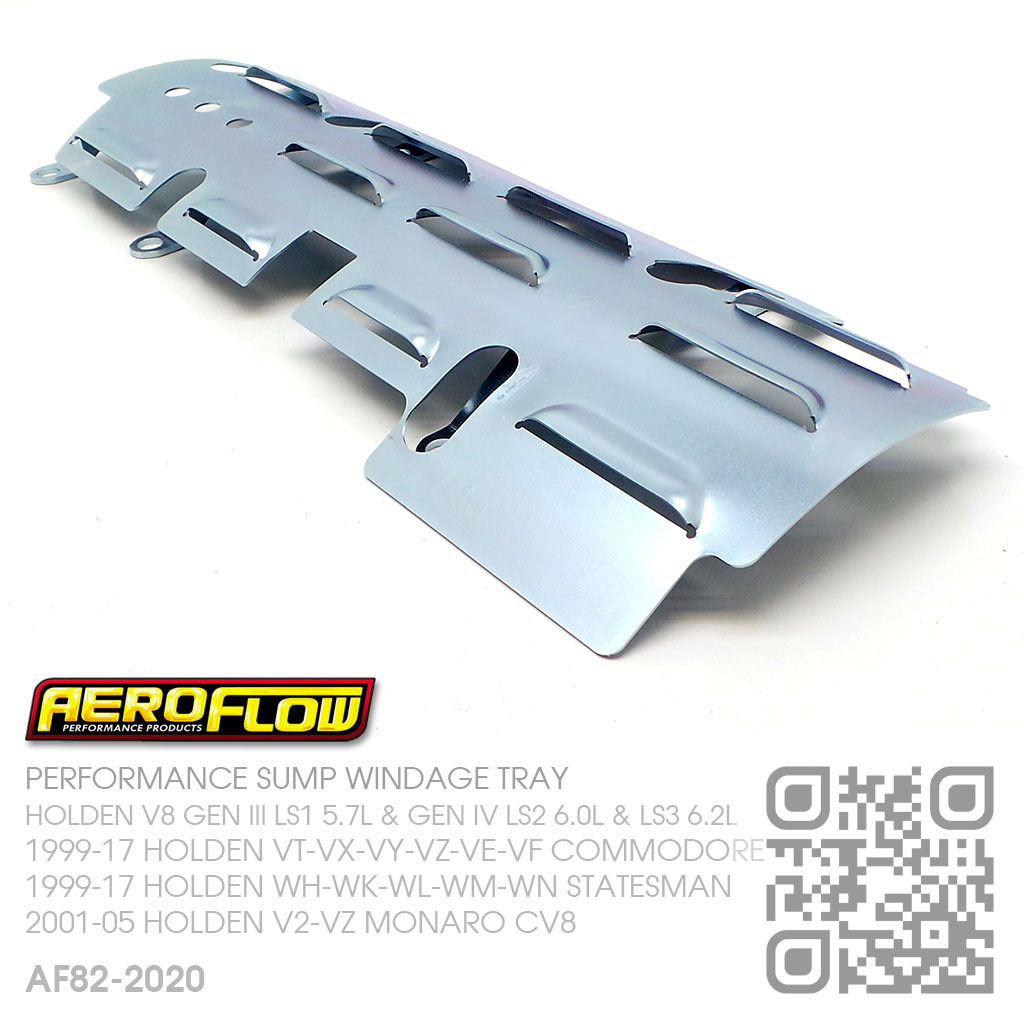

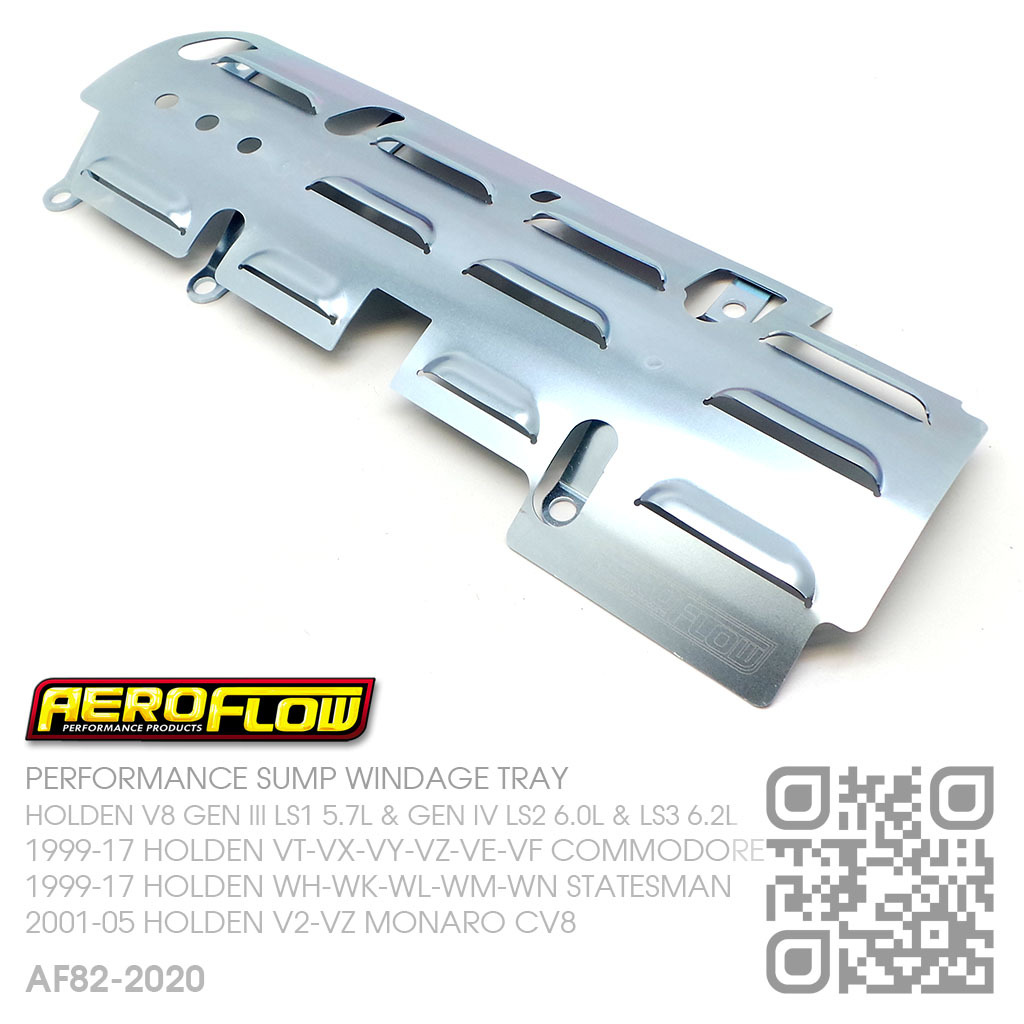

AEROFLOW PERFORMANCE SUMP WINDAGE TRAY [HOLDEN V8 GEN III LS1 5.7L, GEN IV LS2 6.0L & LS3 6.2L MOTOR]

AEROFLOW PERFORMANCE SUMP WINDAGE TRAY
HOLDEN V8 GEN III LS1 5.7L MOTOR
HOLDEN V8 GEN IV LS2 6.0L & LS3 6.2L MOTOR

06/1999-10/2017 HOLDEN [VTII-VX-VY-VZ-VE-VF COMMODORE]
06/1999-10/2017 HOLDEN [WH-WK-WL-WM-WN STATESMAN/CAPRICE]
12/2000-10/2017 HOLDEN [VU-VY-VZ-VE-VF UTE]
12/2001-12/2005 HOLDEN [V2-VZ MONARO CV8]
07/2008-10/2017 HOLDEN [VE-VF SPORTWAGON]

Aeroflow Performance GM LS windage tray reduces aeration of the oil from windage during operation. The custom engineered contours optimise rapid oil return to the sump while providing optimum protection against oil splash back resulting in improved oil control for your performance engine.

The louvered windage tray suits up to a 4" stroke and front and rear sump oil pans whether standard or aftermarket. They mount direct to the main caps with provisions for front and rear oil pick ups as well as aftermarket main studs.

SPECIAL NOTE:
SOME MODIFICATIONS MAY BE REQUIRED IN SOME APPLICATIONS

IMPORTANT NOTE:
ALL MID MOUNT OIL PICKUPS IN HOLDEN VE-VF COMMODORE & WM-WN STATESMAN WILL REQUIRE SOME MODIFICATIONS TO FIT
