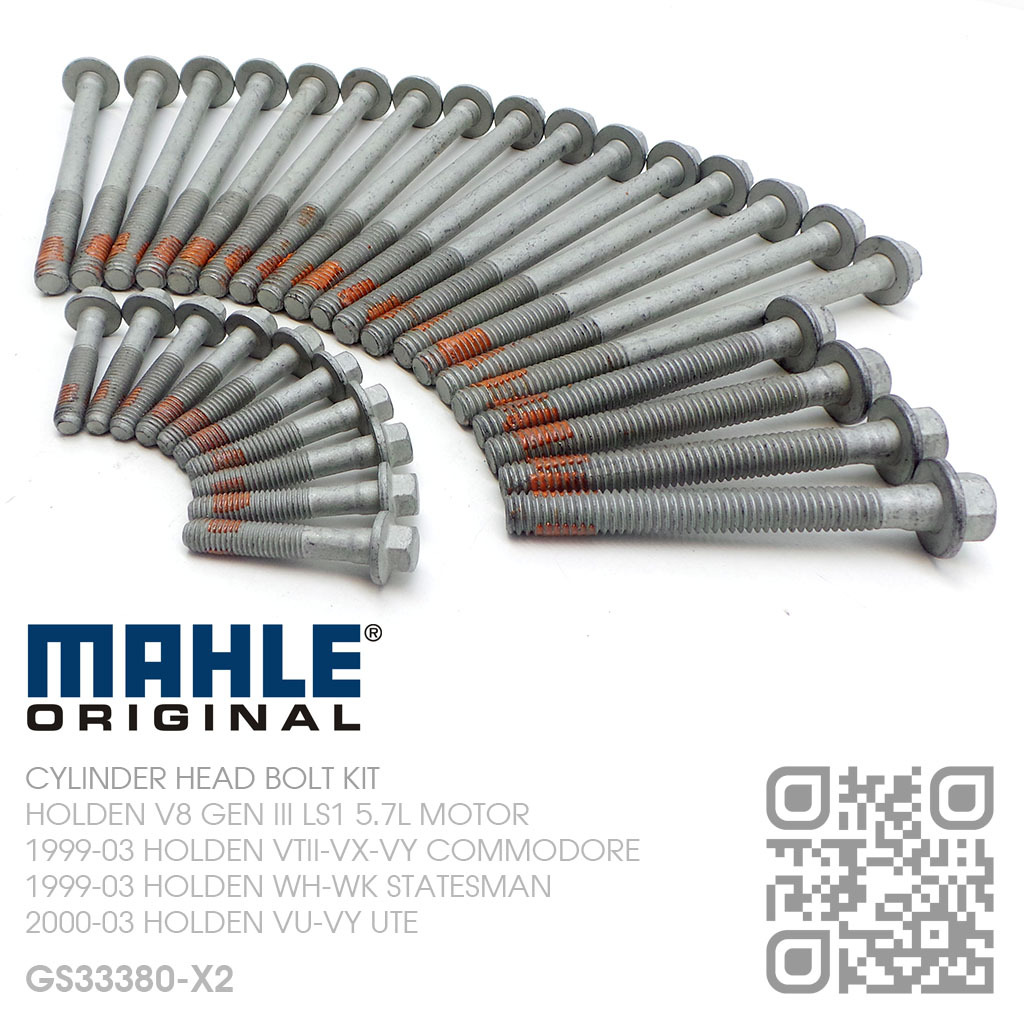

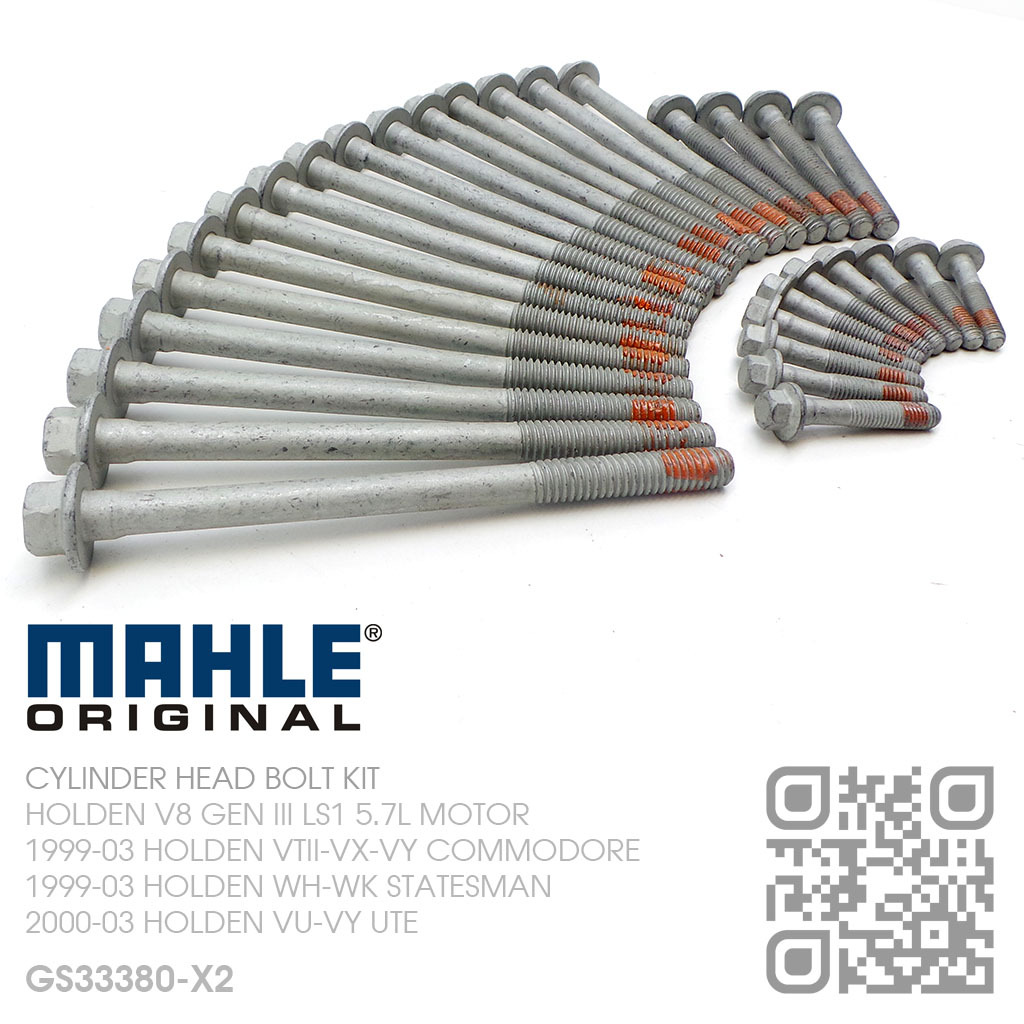

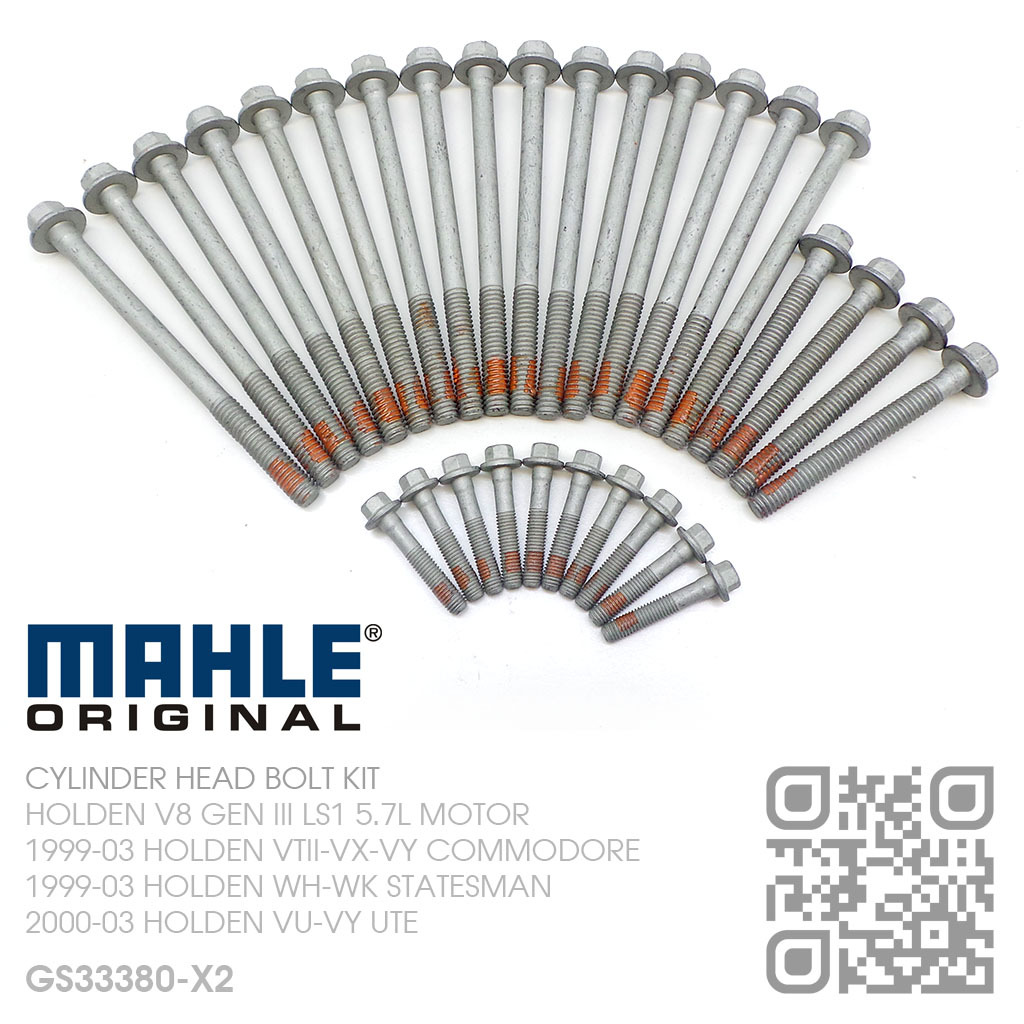

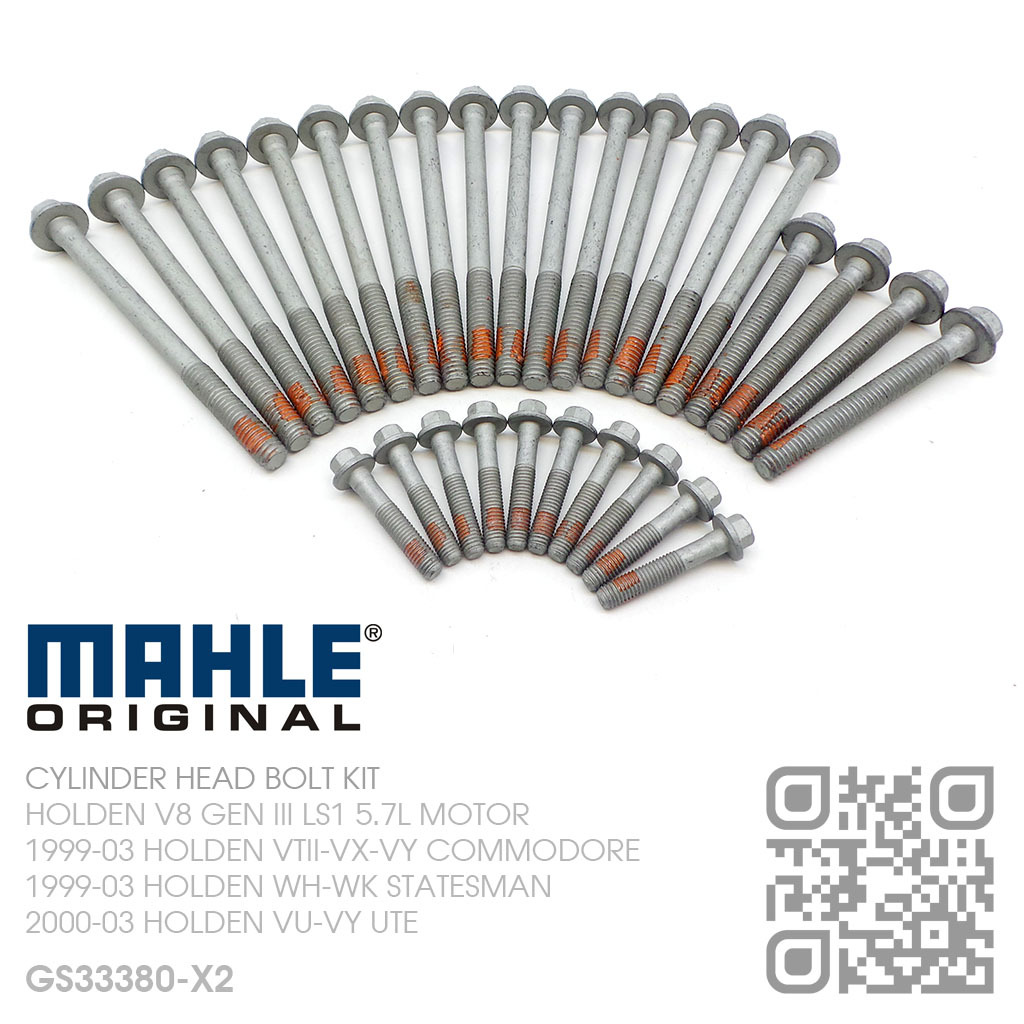

MAHLE ORIGINAL CYLINDER HEAD BOLT KIT [HOLDEN V8 GEN III LS1 5.7L MOTOR]

MAHLE ORIGINAL CYLINDER HEAD BOLT KIT
HOLDEN V8 GEN III LS1 5.7L MOTOR
FIRST DESIGN CYLINDER HEAD

05/1999-2003 HOLDEN [VTII-VX-VY COMMODORE]
06/1999-2003 HOLDEN [WH-WK STATESMAN]
12/2000-2003 HOLDEN [VU-VY UTE]
10/2001-2003 HOLDEN [V2 MONARO CV8]

It's important to replace cylinder head bolts on a LS series engine's when removing the cylinder head(s), some of bolts used in this engine are single use, due to the fact of the fasteners being torque to yield.

Using second hand bolts may cause premature failure and help open that can of worms when your trying to put it all back together or even worse when if the engine is running.

SPECIFICATIONS:
Head Type: Male Hex
Length: 110mm (4) & 155mm (16)
Thread: M11 X 2.00

Head Type: Male Hex
Length: 45mm (10)
Thread: M8 X 1.25
Quantity: 30 Pieces

Since 1920, MAHLE a German company has been involved in the Automotive industry and nowadays, half of all automobiles produced worldwide contain Mahle components. MAHLE is a leading international supplier to the automotive industry as well as a pioneer and technology driver for the mobility of the future.

REPLACES GENERAL MOTORS (GM) PART# 11588291, 12560745 & 12558840

SPECIAL NOTE:
MUST HAVE 1MA ON REAR OF CYLINDER HEAD(S)

IMPORTANT NOTE:
FOLLOW HOLDEN'S RECOMMENDED TORQUE SEQUENCE AND TIGHTEN BOLTS TO SPECIFICATIONS
