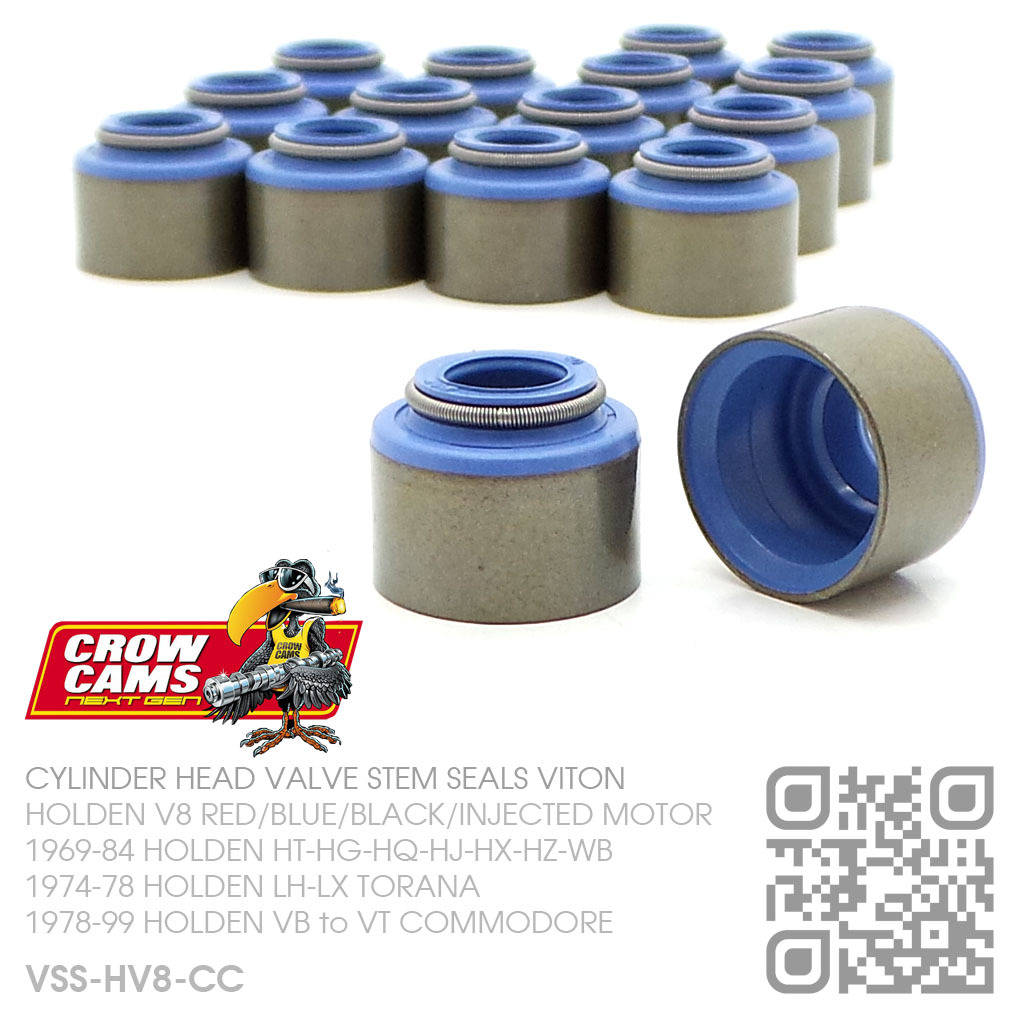

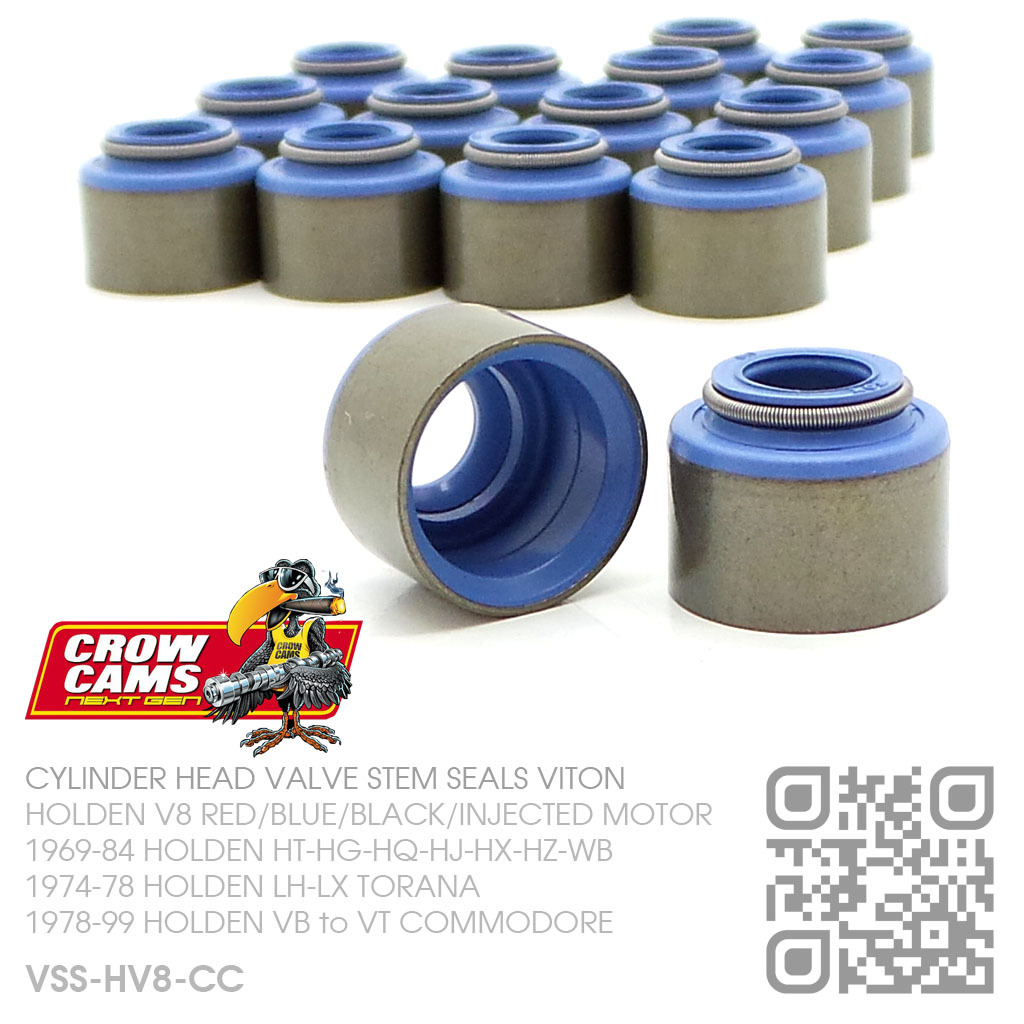

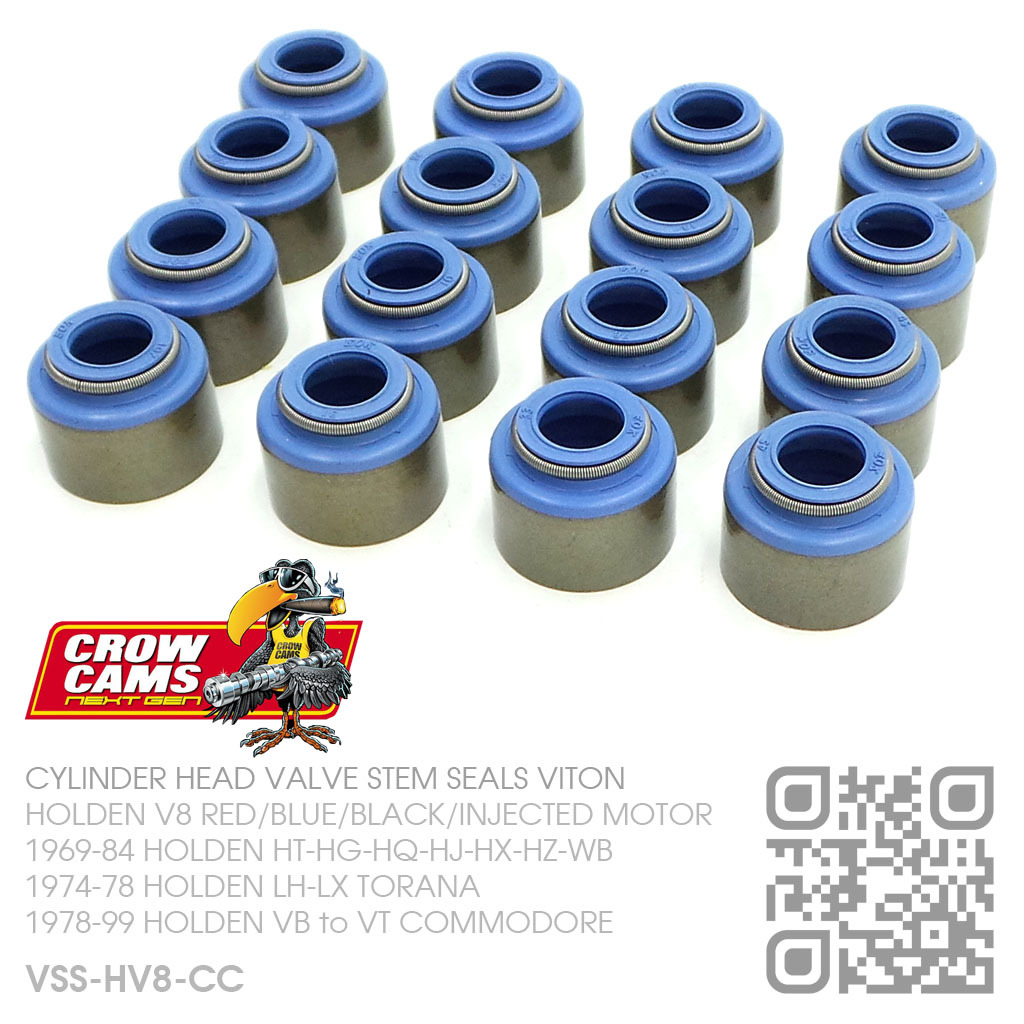

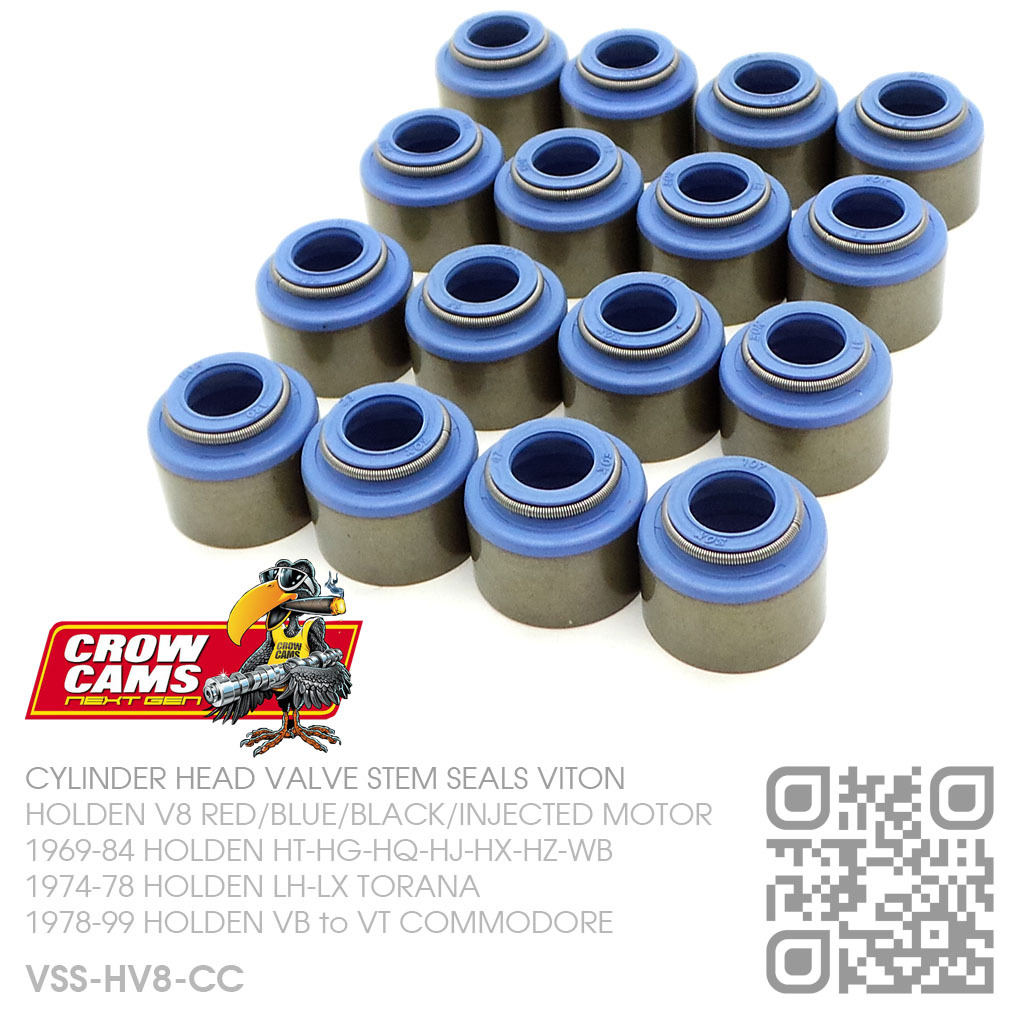

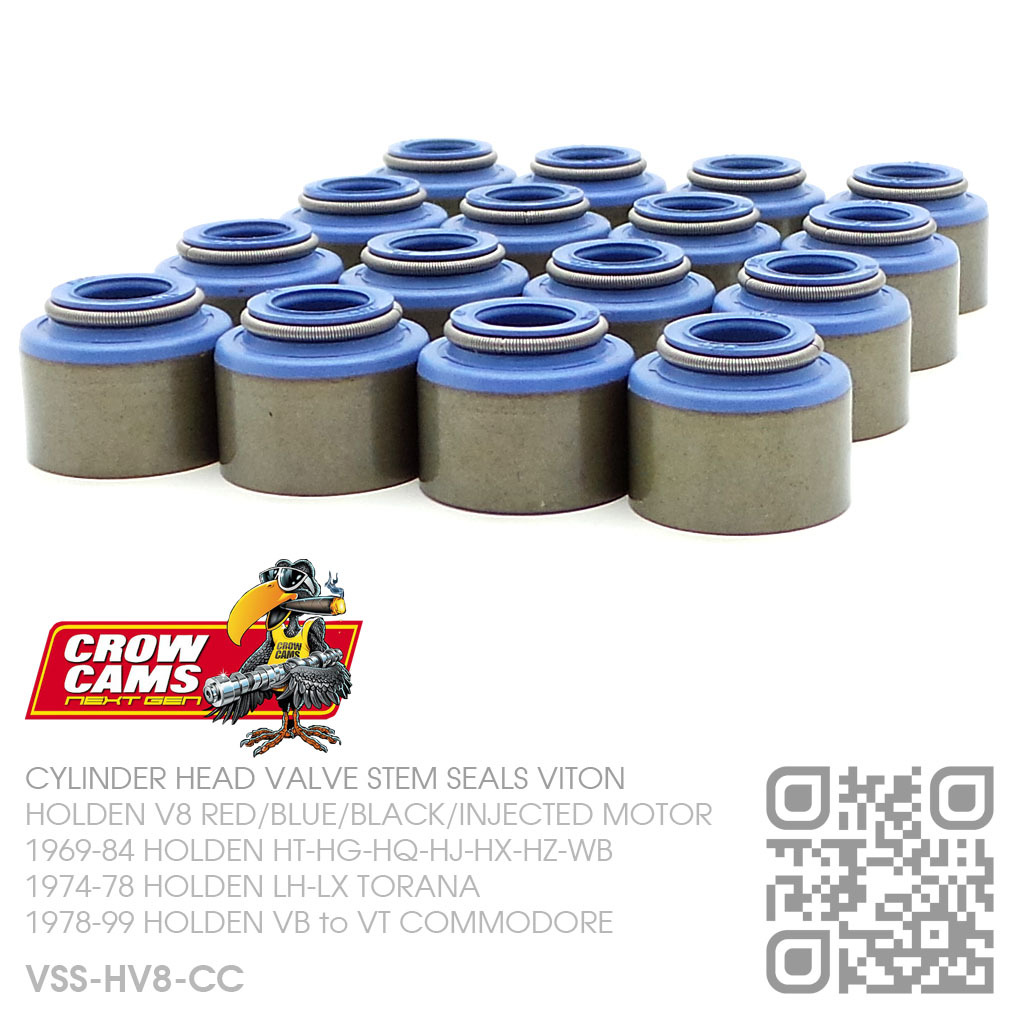

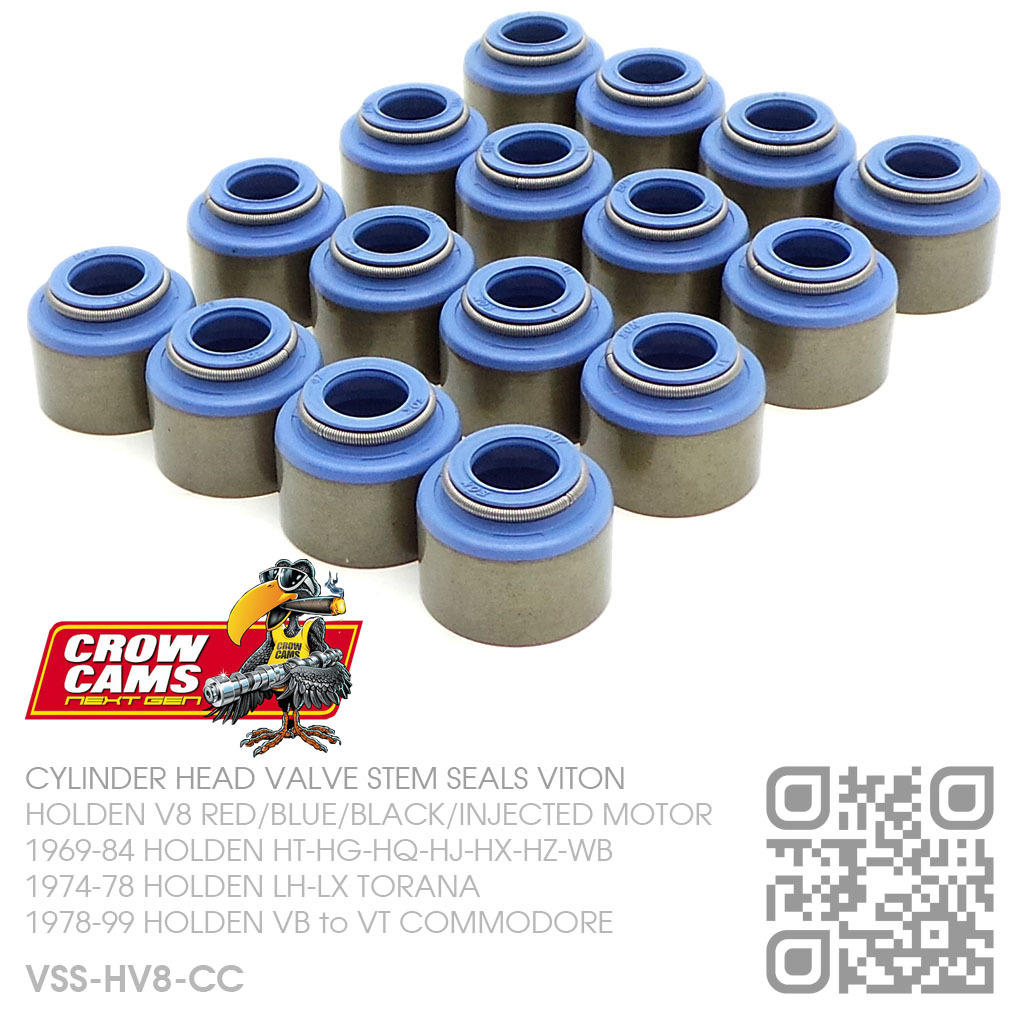

CROW CAMS PERFORMANCE VITON VALVE STEM SEALS [HOLDEN V8 RED/BLUE/BLACK/INJECTED MOTOR]

CROW CAMS NEXT GEN PERFORMANCE VITON VALVE STEM SEALS
HOLDEN V8 253 4.2L & 308 5.0L RED/BLUE MOTOR
HOLDEN V8 304 & 308 5.0L BLACK MOTOR
HOLDEN V8 304 5.0L INJECTED MOTOR
HOLDEN V8 355 5.7L STROKER MOTOR (348ci)

HOLDEN V8 RED/BLUE/BLACK MOTOR
05/1969-1984 HOLDEN [HT-HG-HQ-HJ-HX-HZ-WB SERIES]
03/1974-03/1978 HOLDEN [LH-LX TORANA]
10/1978-08/1988 HOLDEN [VB-VC-VH-VK-VL COMMODORE]

HOLDEN V8 INJECTED MOTOR
03/1989-1999 HOLDEN [VN-VP-VR-VS-VT COMMODORE]
03/1990-1999 HOLDEN [VQ-VR-VS STATESMAN/CAPRICE]
09/1990-2000 HOLDEN [VG-VP-VR-VS UTE]

Valve stem seals play a critical role in controlling valve lubrication as well as oil consumption. Seal longevity is another issue that should be considered when choosing replacement valve stem seals.

The material from which the seals are made must be capable of withstanding the harsh operating environment inside the engine for an extended period of time.

High operating temperatures cause lower grade materials such as nitrile to harden and become brittle over time. Eventually, this can lead to cracking, loss of oil control and seal failure. When a valve stem seal loses it's ability to control the amount of oil that enters the guide, it can cause a variety of problems.

Viton is a technology which comes from the Aerospace Industry and is the latest innovation in Valve Stem Seals.

SPECIFICATIONS:
Valve Stem Diameter: 0.343" (11/32")
Valve Guide Diameter: 0.531˝(17/32")
Unloaded Seal Diameter: 0.675"
Unloaded Seal Height: 0.527"
Material: VITON
Construction: METAL GLAD WITH RUBBER INSERT & G/SPRING
Set Quantity: 16

For more than 30 years, Crow Cams in Australia, have developed valve train products.

SPECIAL NOTE:
CYLINDER HEAD VALVE GUIDE WILL REQUIRE MACHINING TO FIT THIS PRODUCT
