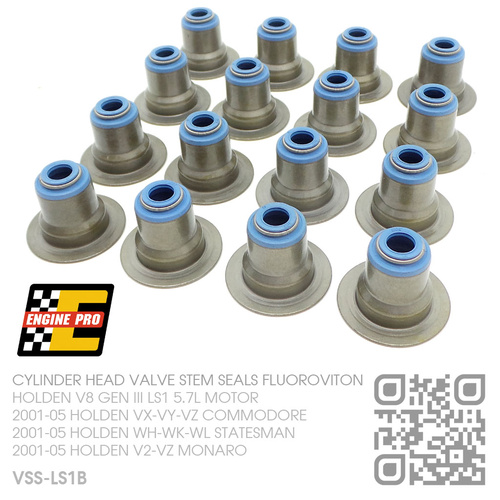

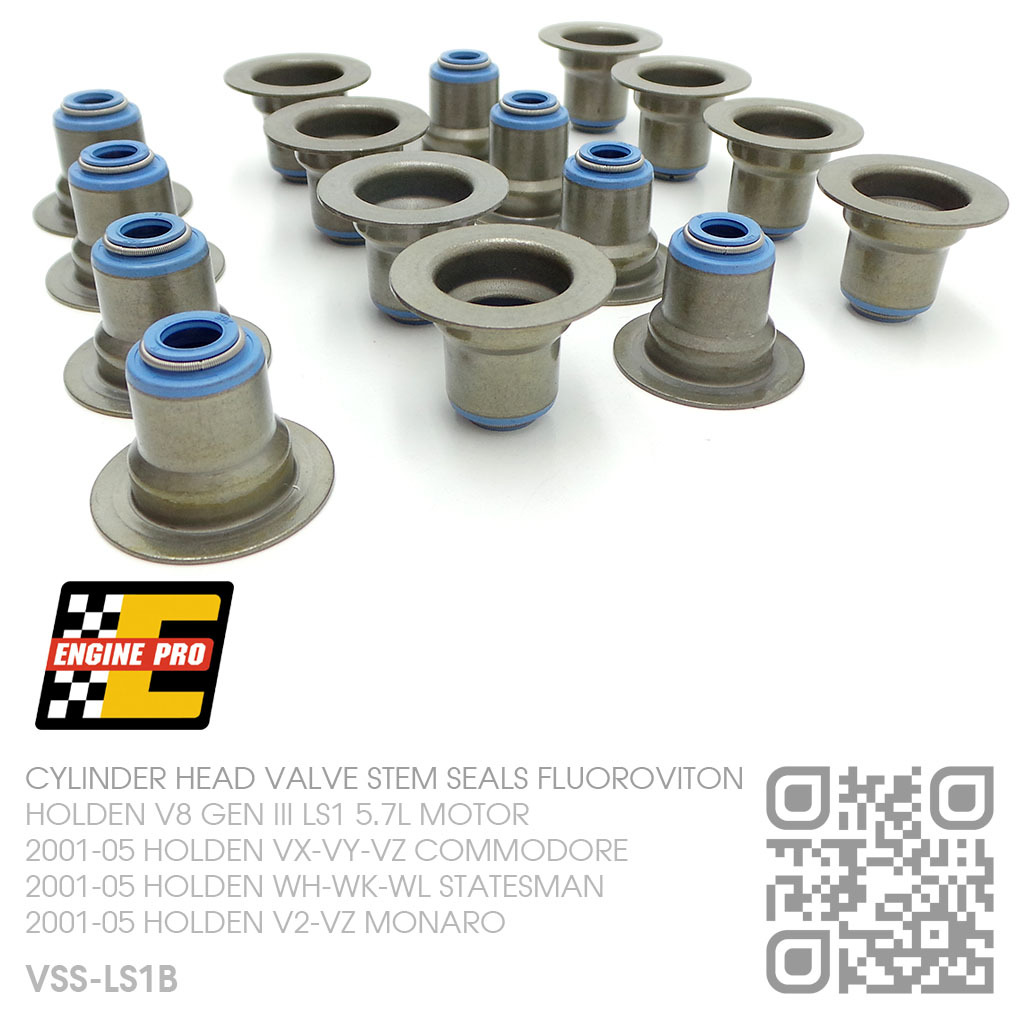

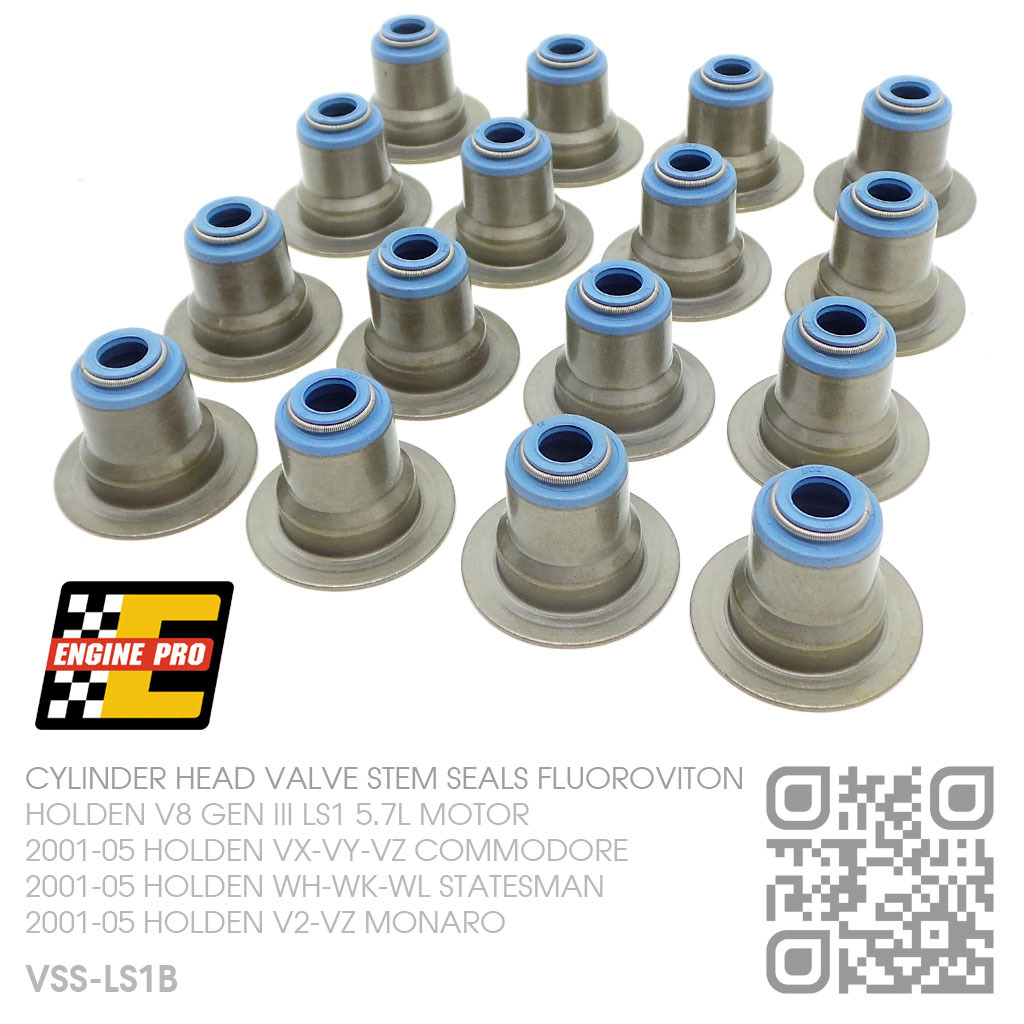

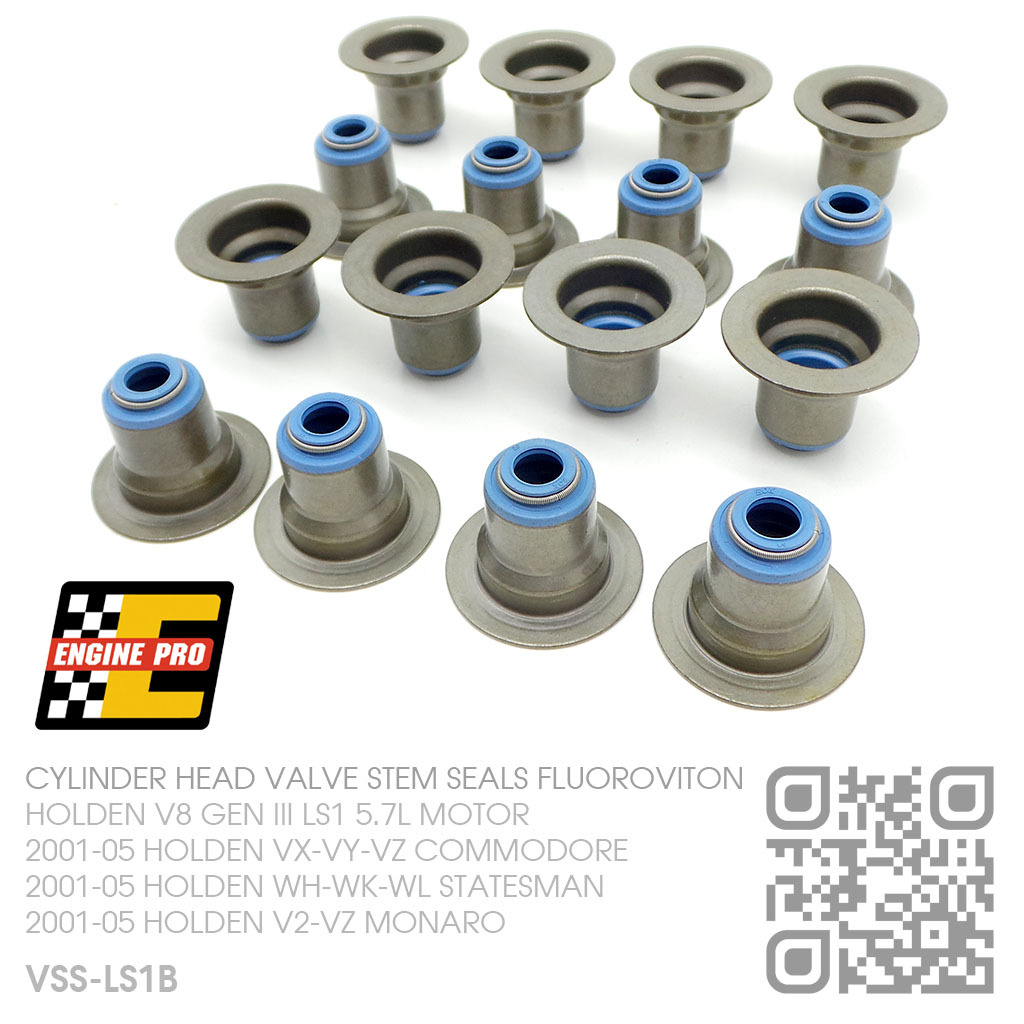

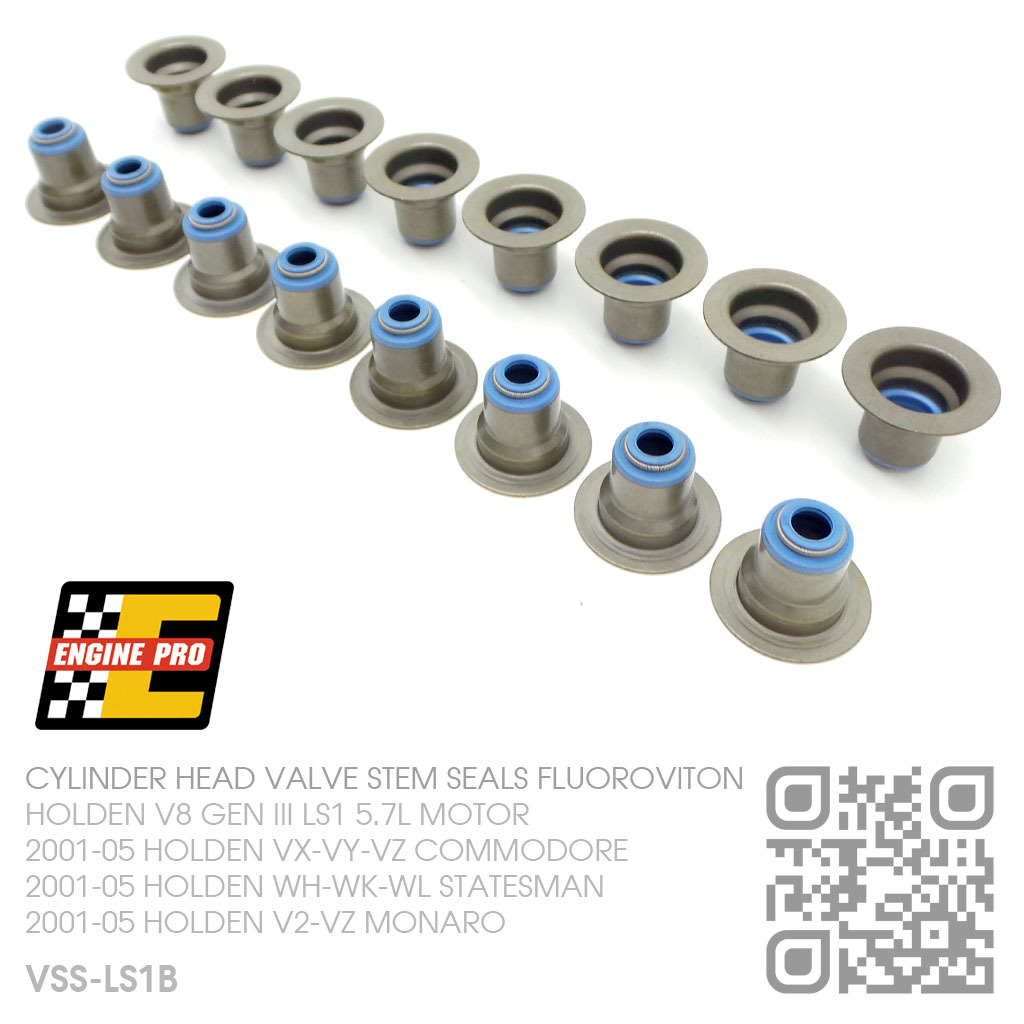

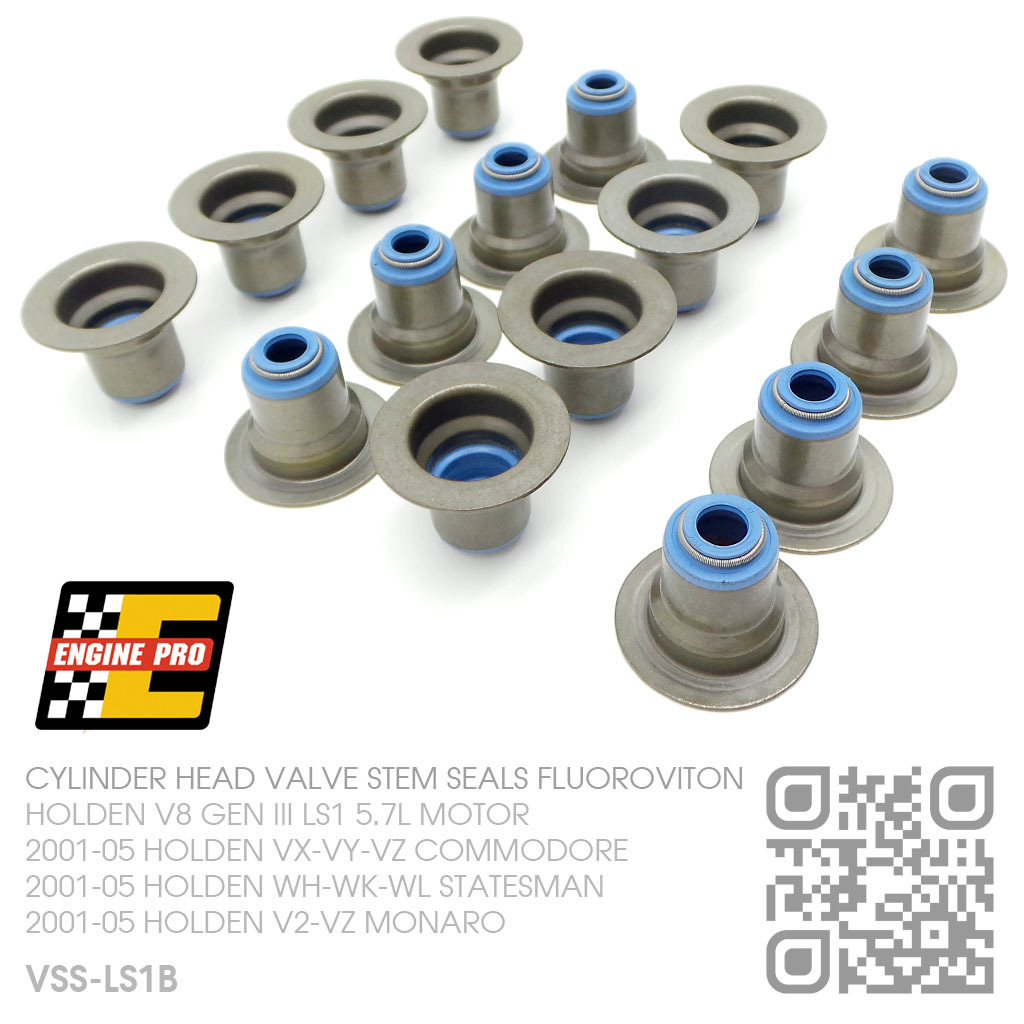

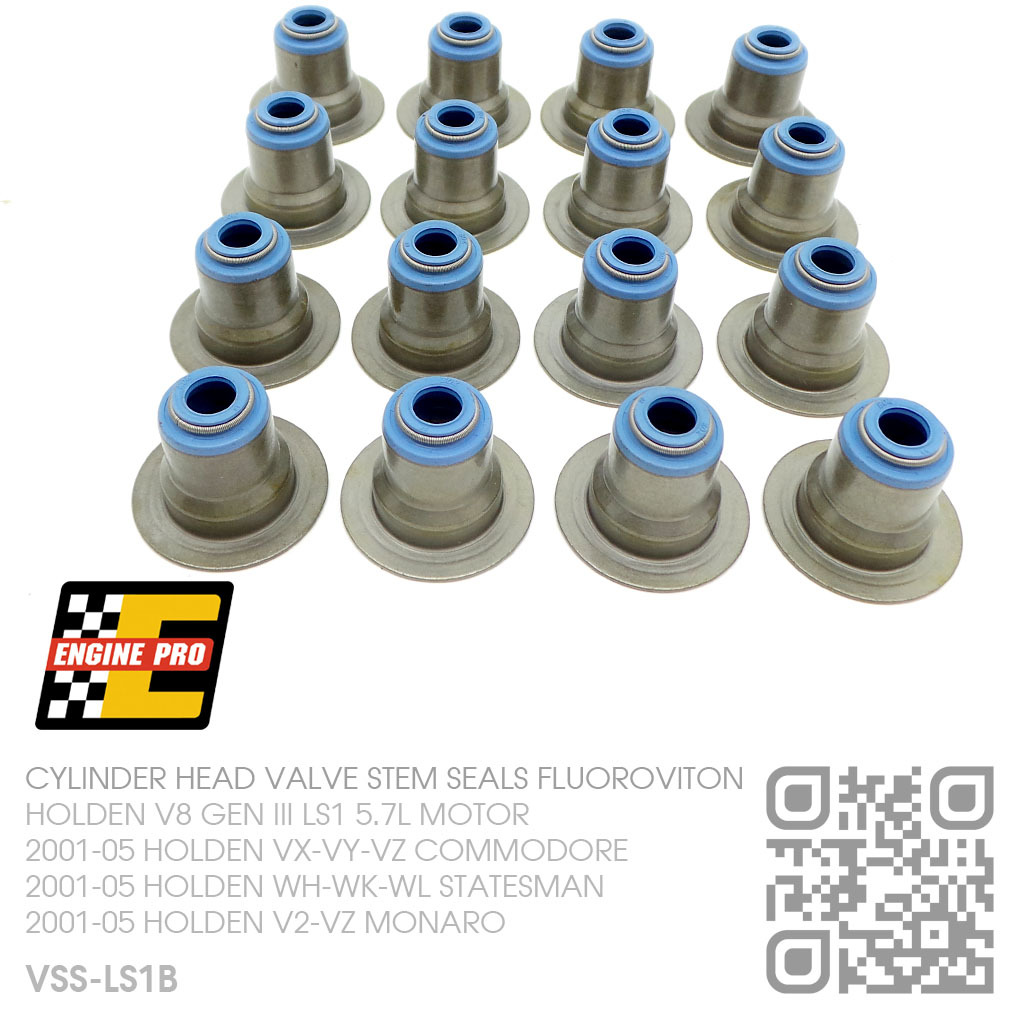

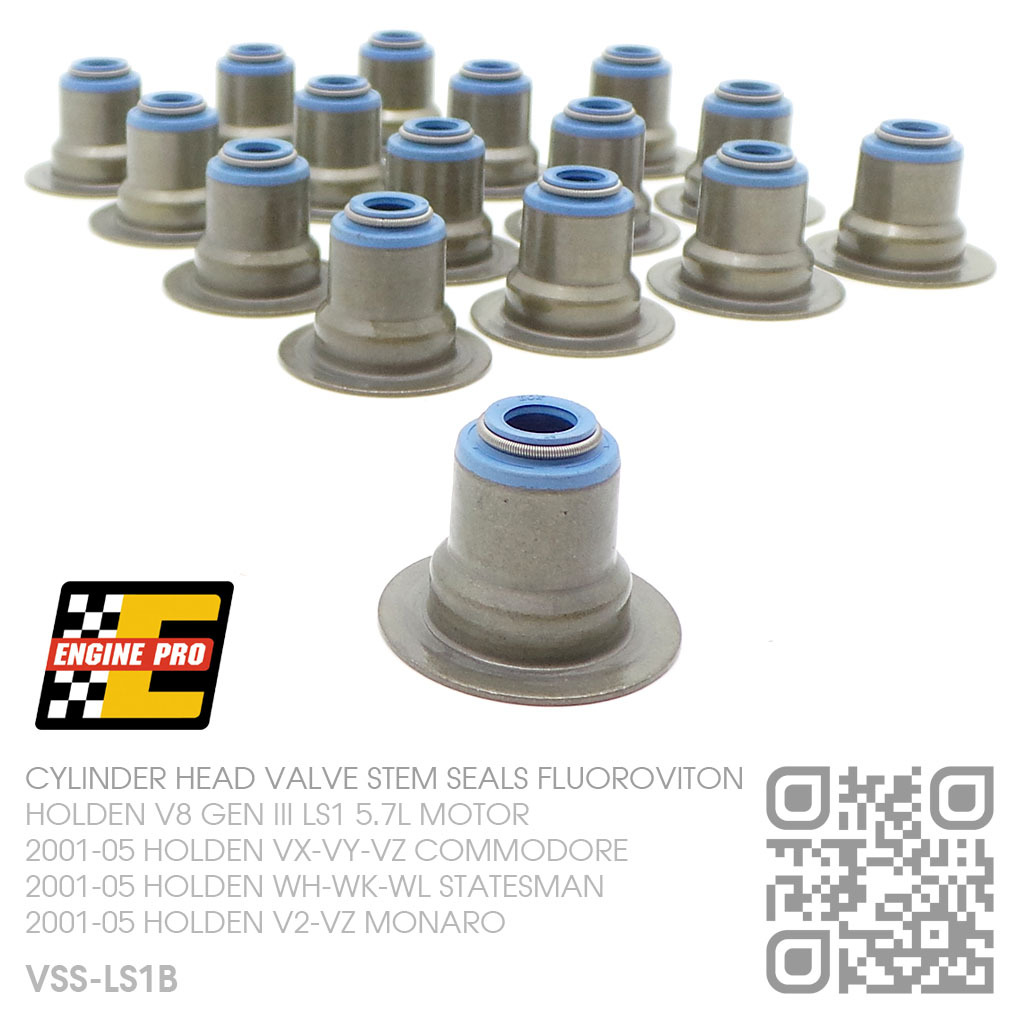

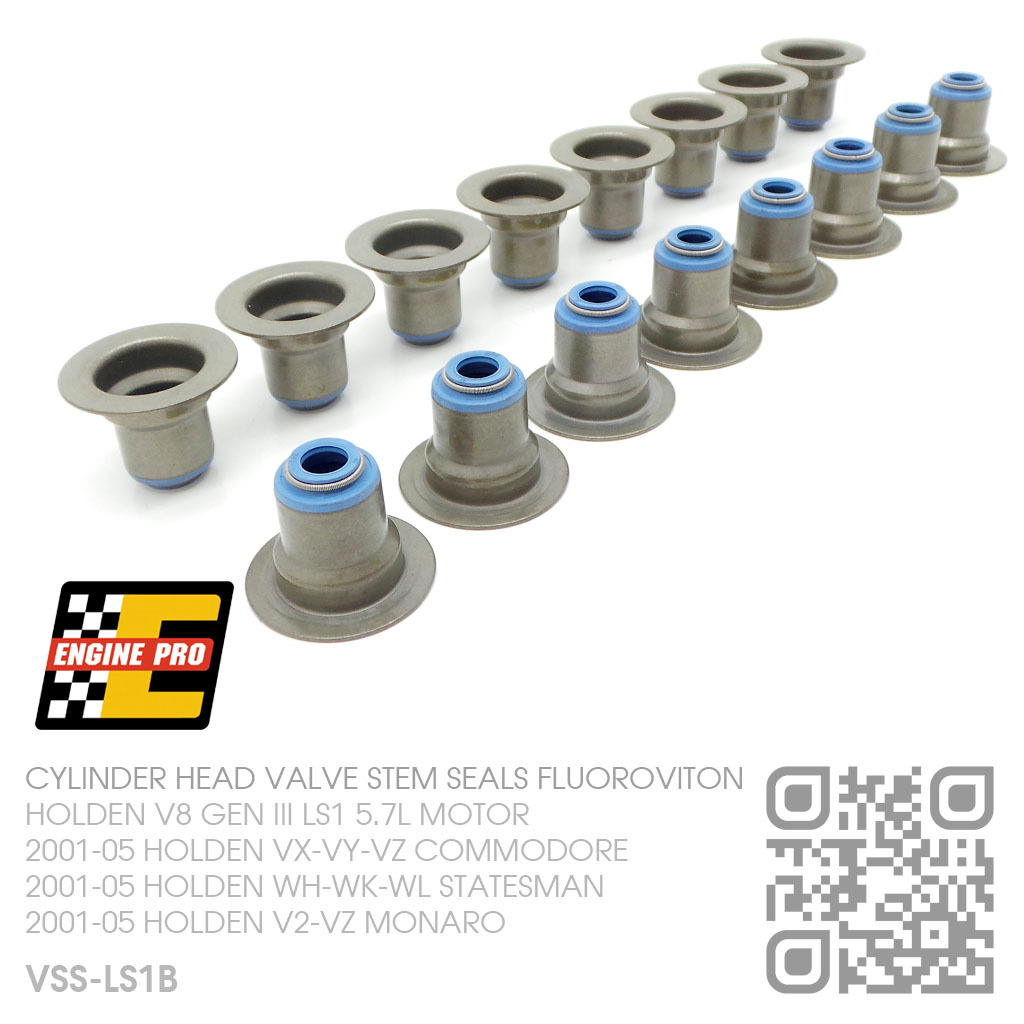

ENGINE PRO PERFORMANCE FLUOROVITON VALVE STEM SEALS [HOLDEN V8 GEN III LS1 5.7L MOTOR]

ENGINE PRO PERFORMANCE FLUOROVITON VALVE STEM SEALS
HOLDEN V8 GEN III LS1 5.7L MOTOR
RECTANGULAR PORT CYLINDER HEADS
FROM ENGINE# VF001155001

2001-2005 HOLDEN [VX-VY-VZ COMMODORE]
2001-2005 HOLDEN [WH-WK-WL STATESMAN/CAPRICE]
2001-2005 HOLDEN [VU-VY-VZ UTE]
2001-2005 HOLDEN [V2-VZ MONARO CV8]

Valve stem seals play a critical role in controlling valve lubrication as well as oil consumption. Seal longevity is another issue that should be considered when choosing replacement valve stem seals.

The material from which the seals are made must be capable of withstanding the harsh operating environment inside the engine for an extended period of time.

High operating temperatures cause lower grade materials such as nitrile to harden and become brittle over time. Eventually, this can lead to cracking, loss of oil control and seal failure. When a valve stem seal loses it's ability to control the amount of oil that enters the guide, it can cause a variety of problems.

Fluoroviton is a technology which comes from the Aerospace Industry and is the latest innovation in Valve Stem Seals.

SPECIFICATIONS:
Valve Stem Diameter: 0.313" / 8.00mm
Valve Guide Diameter: 0.492"
Unloaded Seal Base: 0.791"
Unloaded Seal Flange: 1.187"
Unloaded Seal Height: 0.887"
Material: FLUROVITON
Style: TOPHAT
Construction: METAL GLAD ONE PIECE SEAL
Set Quantity: 16

Since 1989, American Based Engine Pro has been manufacturing performance engine parts as is now one of the leading distrubutors to the performance engine building industry.

MADE IN USA

SPECIAL NOTE:
NOT SUITABLE FOR ENGINES BEFORE ENGINE# VF001155001
NOT SUITABLE FOR CATHEDRAL PORT CYLINDER HEADS
MUST HAVE 2MA ON REAR OF CYLINDER HEAD(S)
